How to Animate a Bow and Arrow in After Effects

Learn how to create a realistic bow-and-arrow animation in After Effects by animating the bowstring path and syncing the arrow release for a smooth, cinematic result.

Introduction

Animating a bow and arrow is a great exercise for understanding path animation, timing, and secondary motion in After Effects. In this tutorial, you’ll animate a flexible bowstring and synchronize it with the arrow’s movement to create a believable shot.

Step 1: Prepare Your Layers

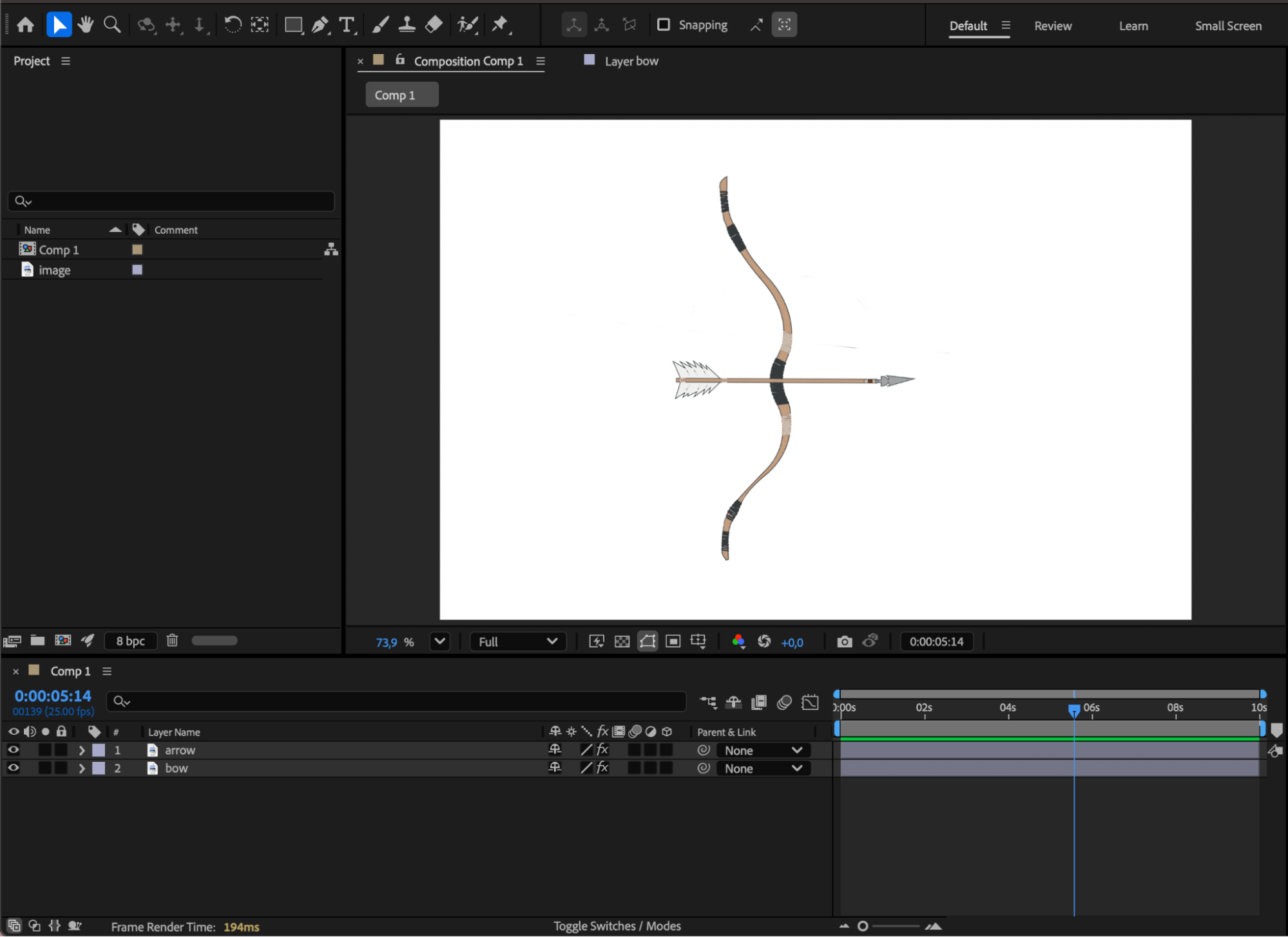

Open your project where the bottom layer contains the bow without the string, and the top layer contains the arrow.Step 2: Create the Bowstring

Use the Pen Tool (G) to create the bowstring connecting both ends of the bow. Set Fill to None, Stroke Color to Black, and Stroke Width to 3 px.Step 3: Set the Initial Path Keyframe

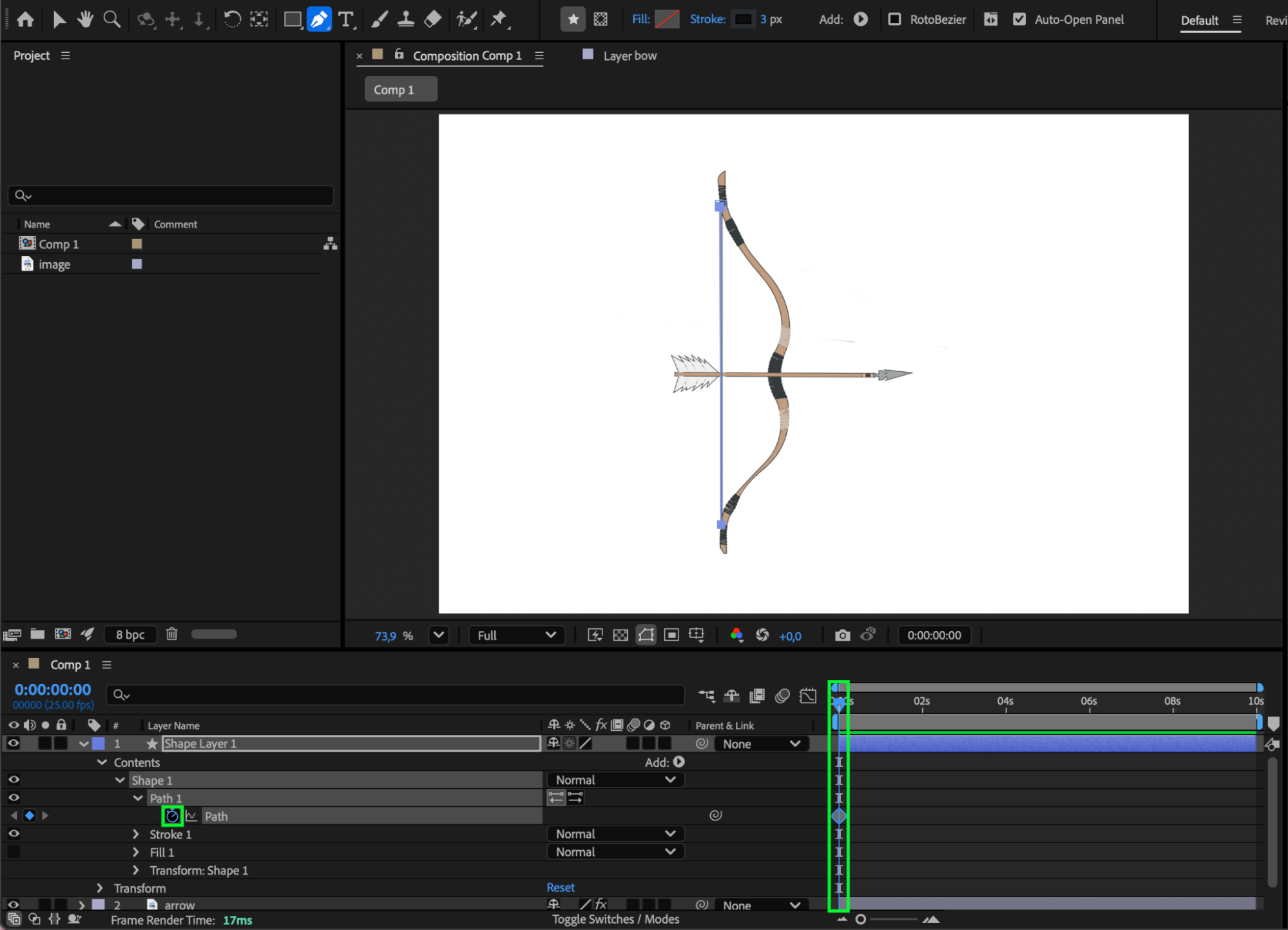

Expand the shape layer properties and enable the Path stopwatch at the beginning of the composition.

Step 4: Animate the Bowstring Stretch

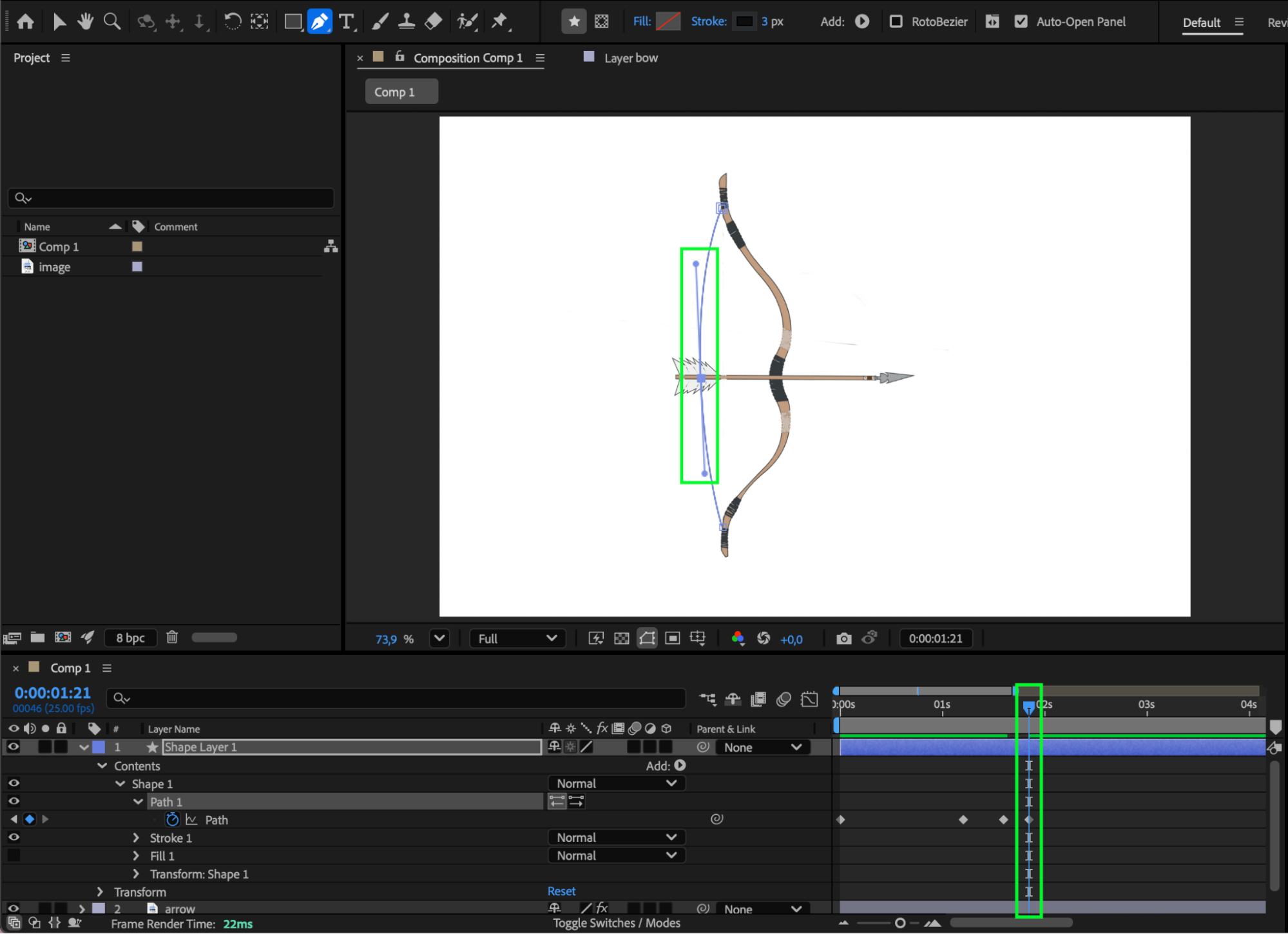

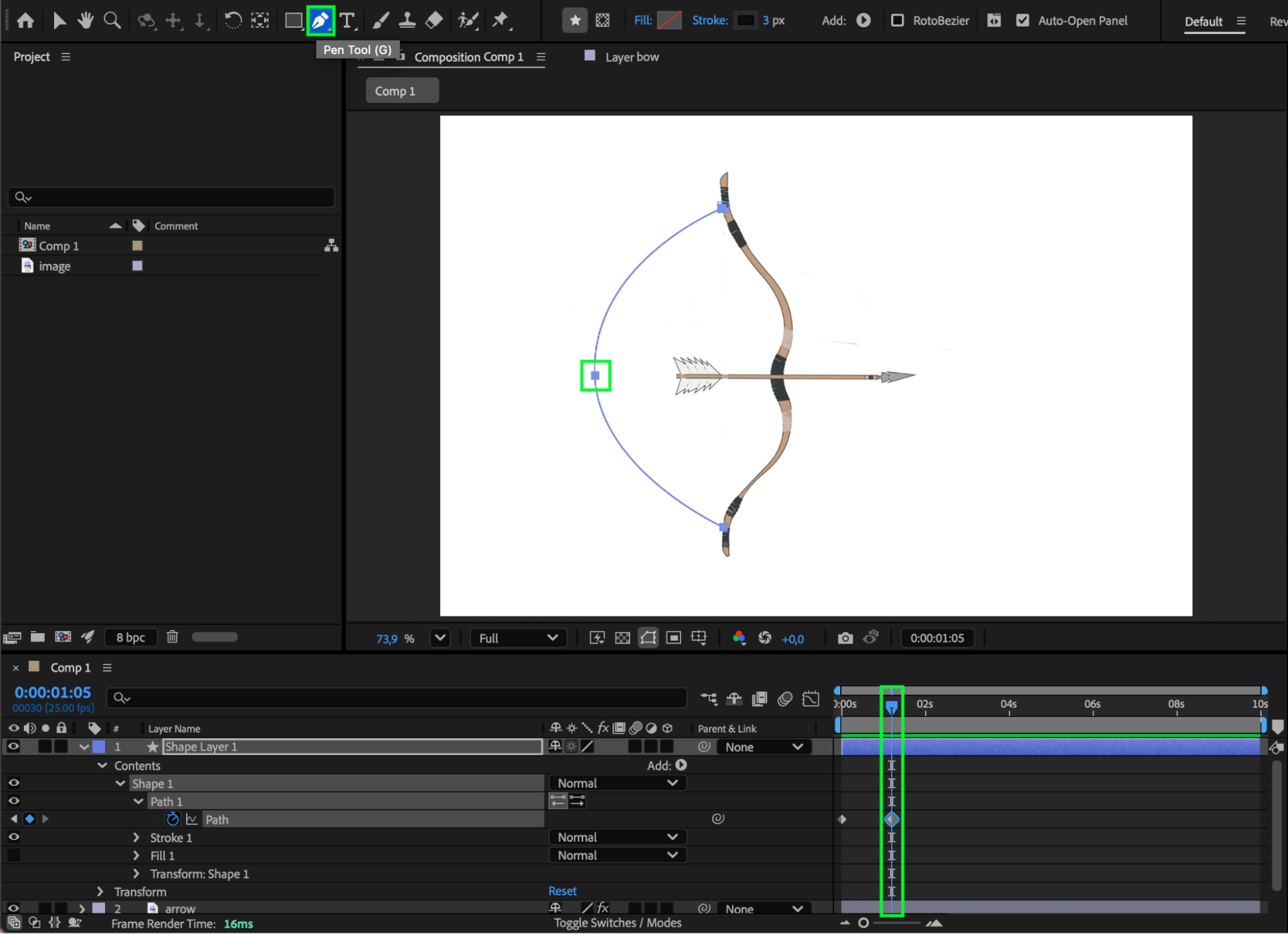

Move the CTI 30 frames forward. Using the Pen Tool (G), add a third point in the middle of the string and move it to the left. Adjust the Bezier curves so the string looks realistically stretched.Step 5: Create the Snap-Back Motion

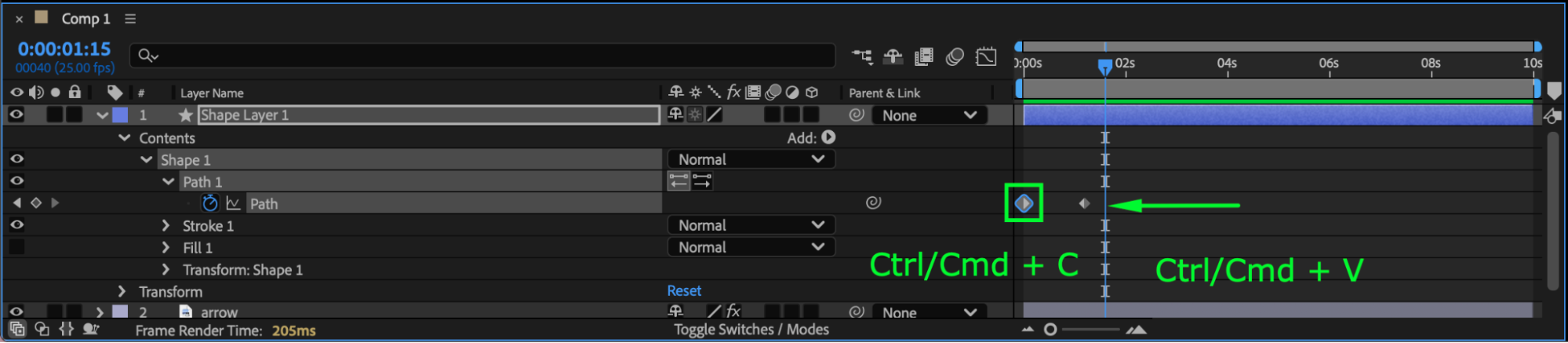

Move the CTI 10 frames forward and paste the first keyframe (the straight bowstring).Step 6: Add Secondary Rebound

Move the CTI 5 frames forward and paste the second keyframe (the curved string). Adjust the middle point slightly closer to its original position so the string appears slightly curved, not fully stretched. Step 7: Final Settle

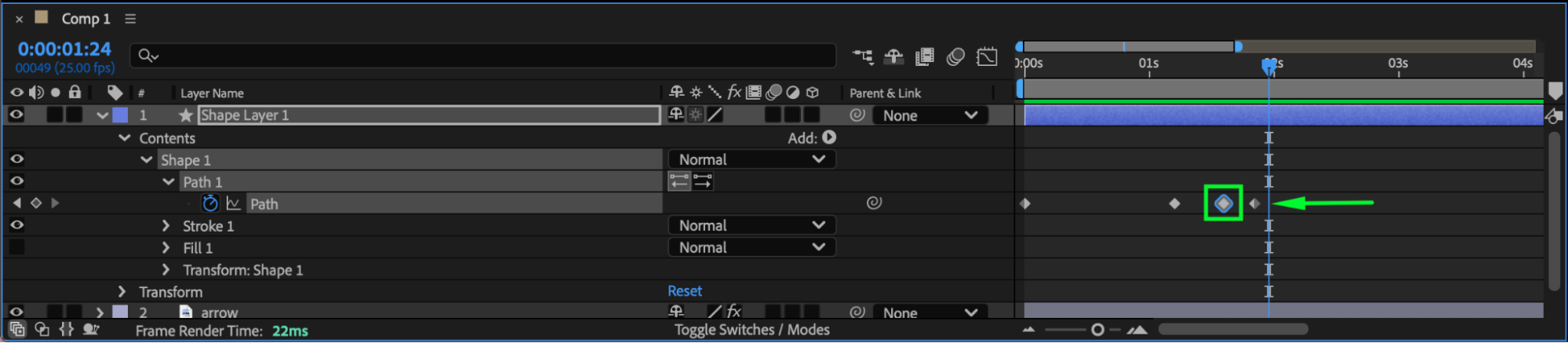

Move the CTI 2 frames forward and paste the third keyframe to finish the vibration and settling motion.Step 8: Smooth the Animation

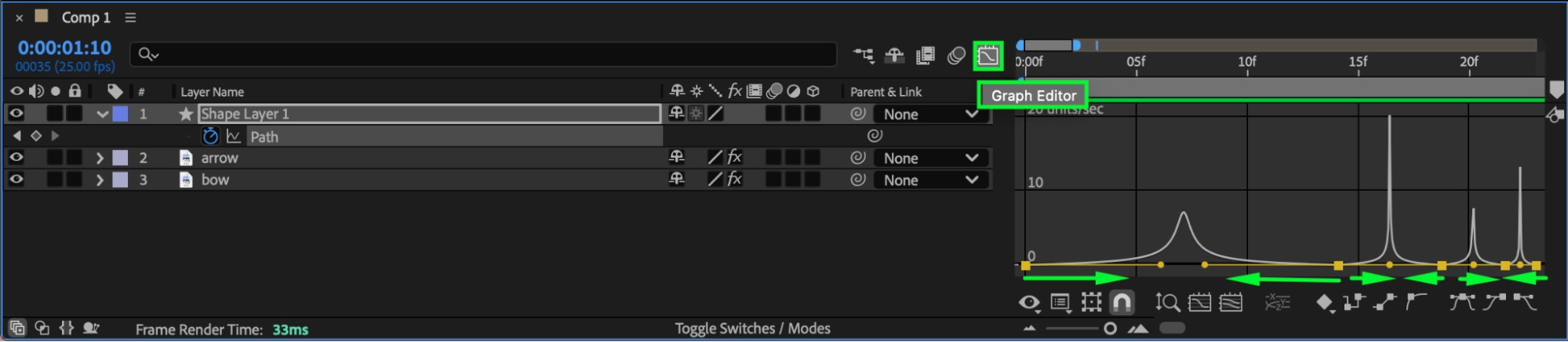

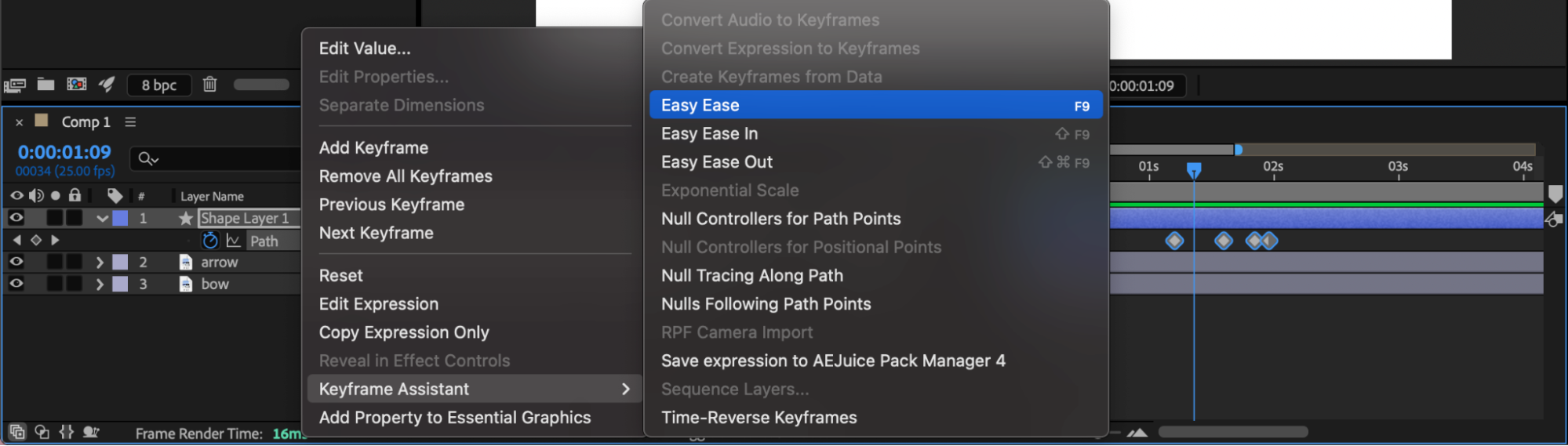

Apply Easy Ease to the keyframes and refine the motion using the Graph Editor. Step 9: Animate the Arrow – Start Position

Place the CTI at the beginning of the composition and enable the Position stopwatch for the arrow. Position the arrow so the fletching starts behind the bowstring.

Step 10: Hold the Tension

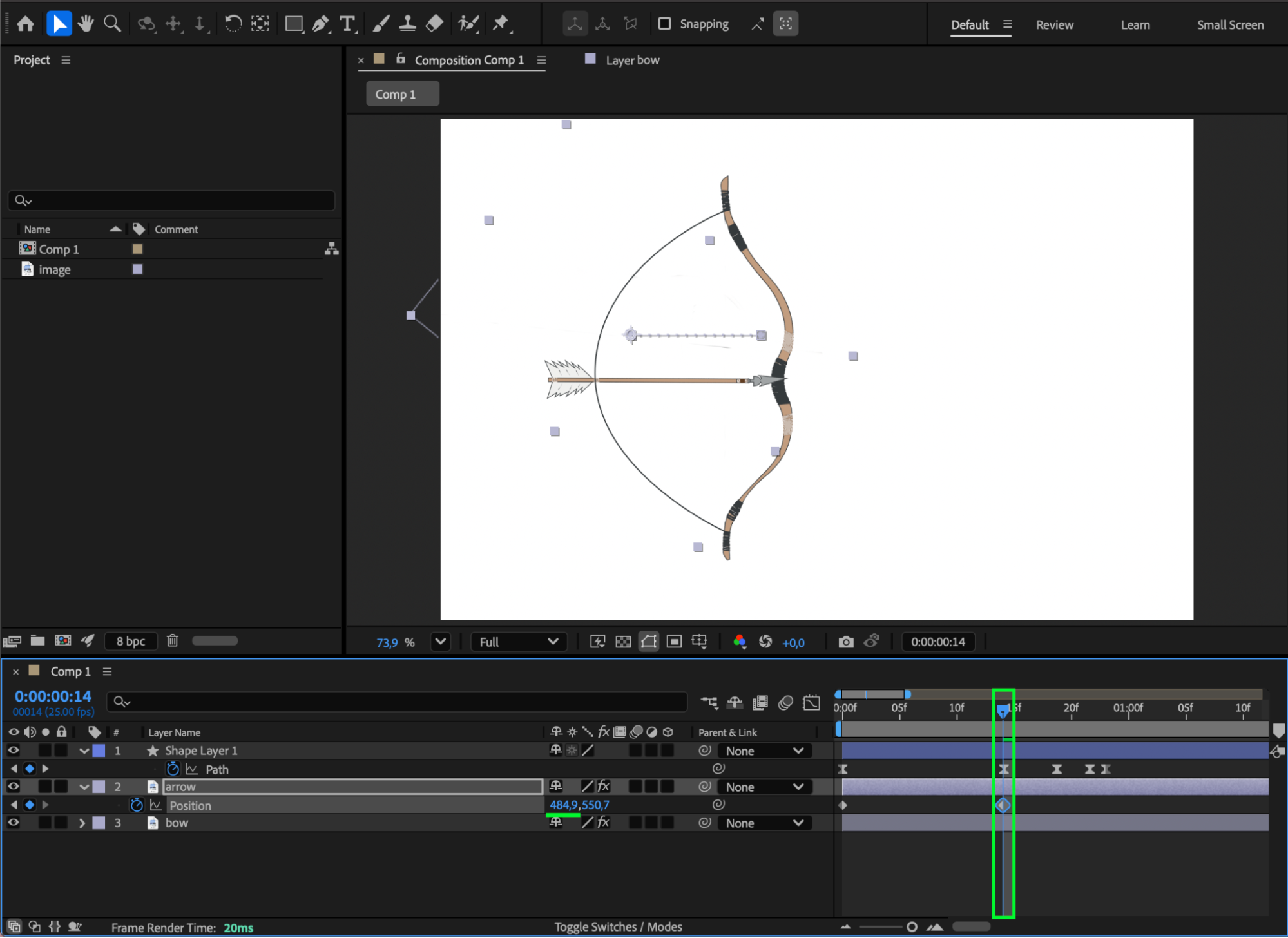

Move the CTI 30 frames forward and adjust the arrow’s position so the fletching is still behind the stretched bowstring.

Step 11: Release the Arrow

Move the CTI 10 frames forward and change the arrow’s position so it shoots out of the frame.Step 12: Refine Motion

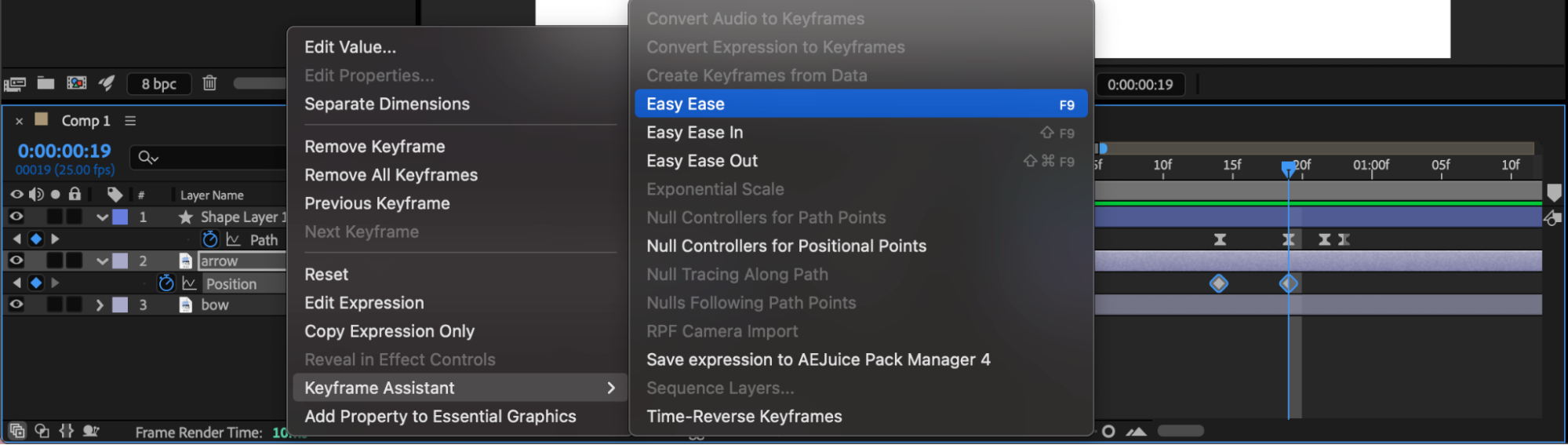

Apply Easy Ease to the arrow animation for smoother acceleration.Step 13: Enable Motion Blur

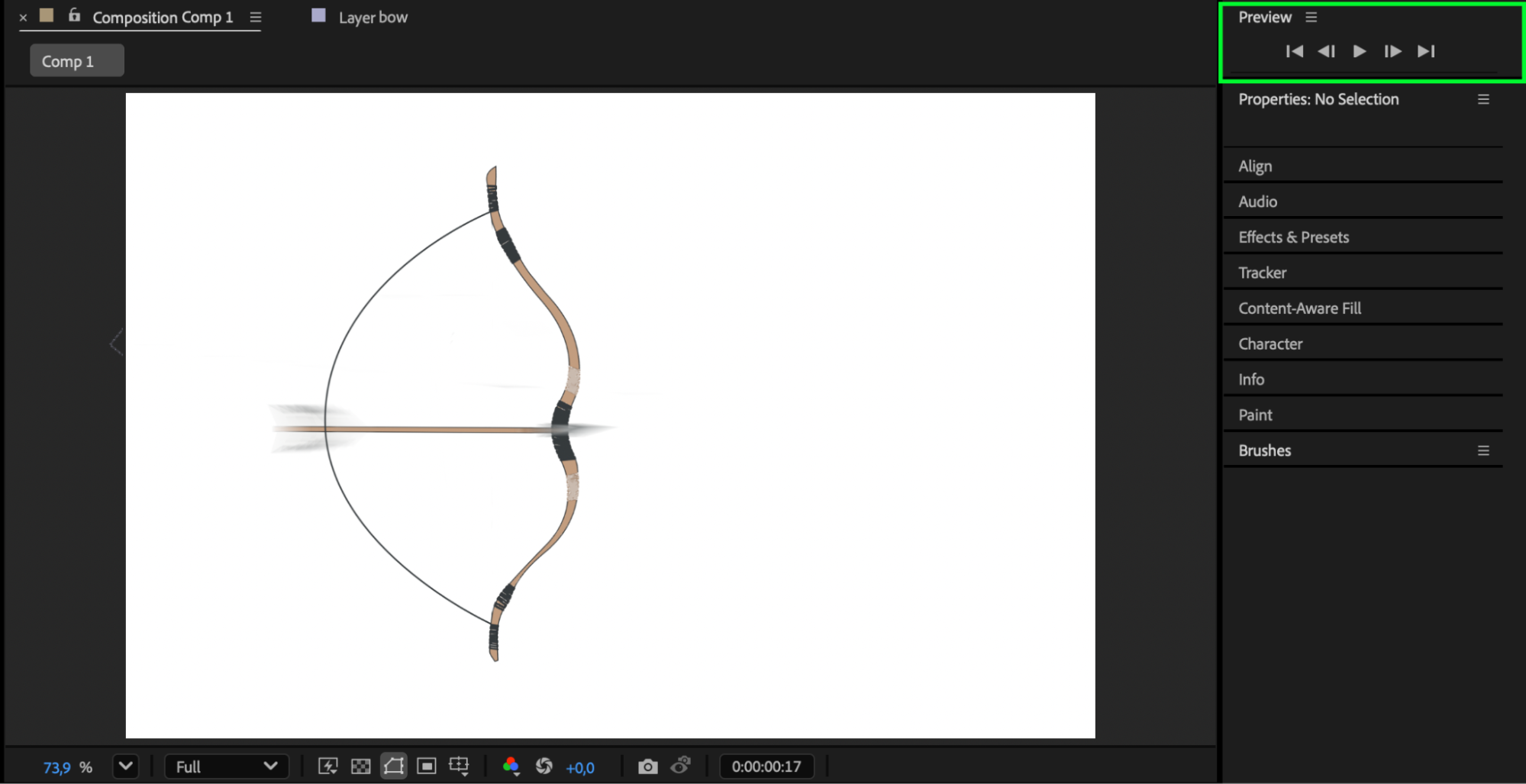

Enable Motion Blur for both the bowstring shape layer and the arrow to add realism. Preview

Preview the final animation and fine-tune the timing for impact.

Conclusion

By animating the bowstring path and carefully syncing the arrow movement, you can achieve a dynamic and realistic bow-and-arrow animation entirely in After Effects.
