Learn how to create smooth and stylish rectangle animations using shape layer properties, easing, motion blur, and effects in After Effects.
Introduction
Animating rectangles is a core skill in motion design. By adjusting shape layer properties such as Size, Position, and Roundness, you can create clean and dynamic UI animations, transitions, and modern motion graphics directly in After Effects.
Step 1: Create a New Composition

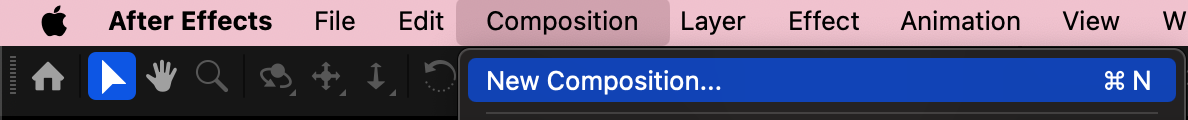

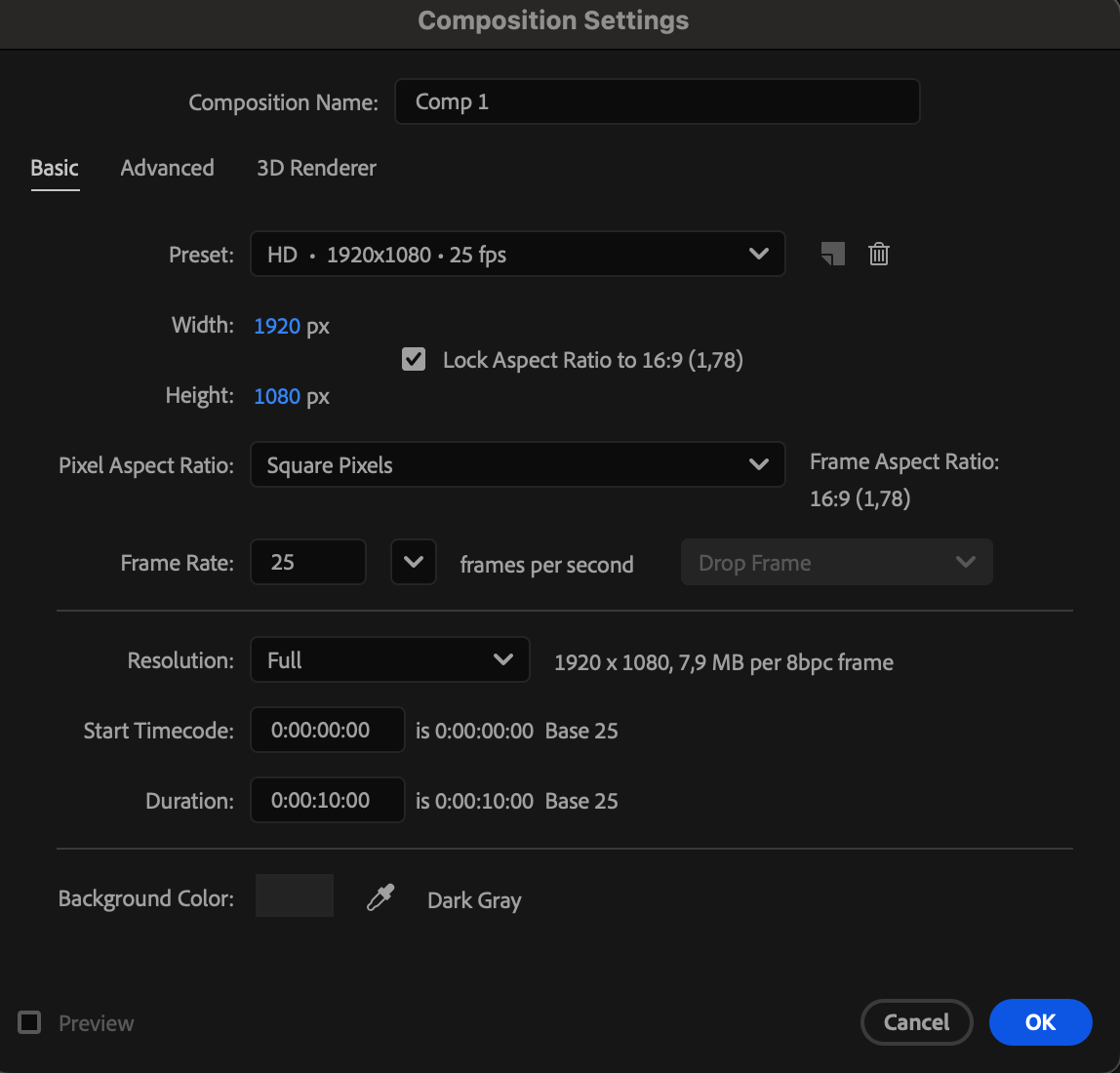

Go to Composition > New Composition and set up your composition with the desired resolution and frame rate.
Step 2: Create a Rounded Rectangle Shape

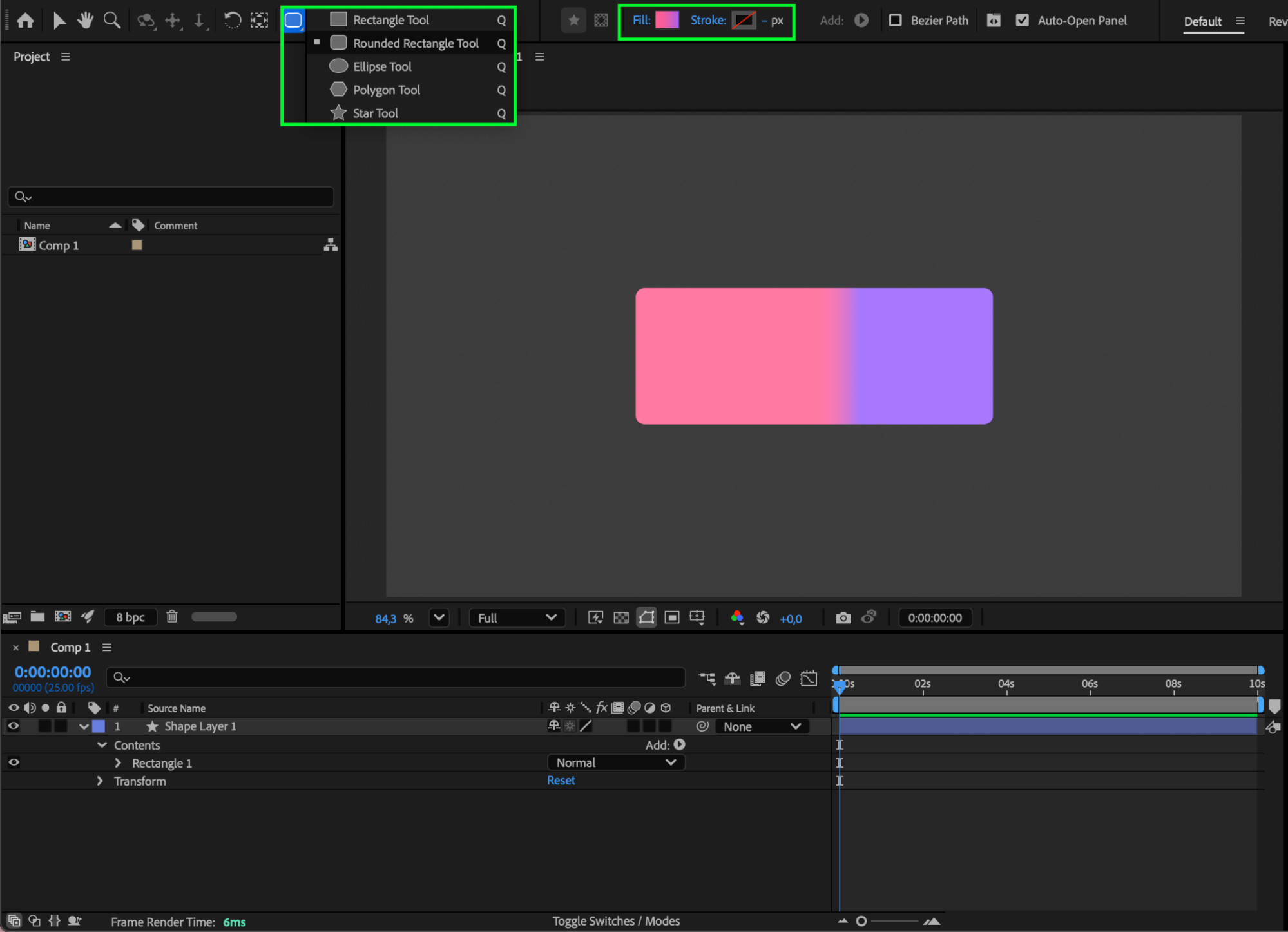

Select the Rounded Rectangle Tool (Q). Draw a rectangle and set the Fill and Stroke colors as needed.
Step 3: Animate the Shape Properties
Expand the shape layer properties and locate Size, Roundness, and Position.

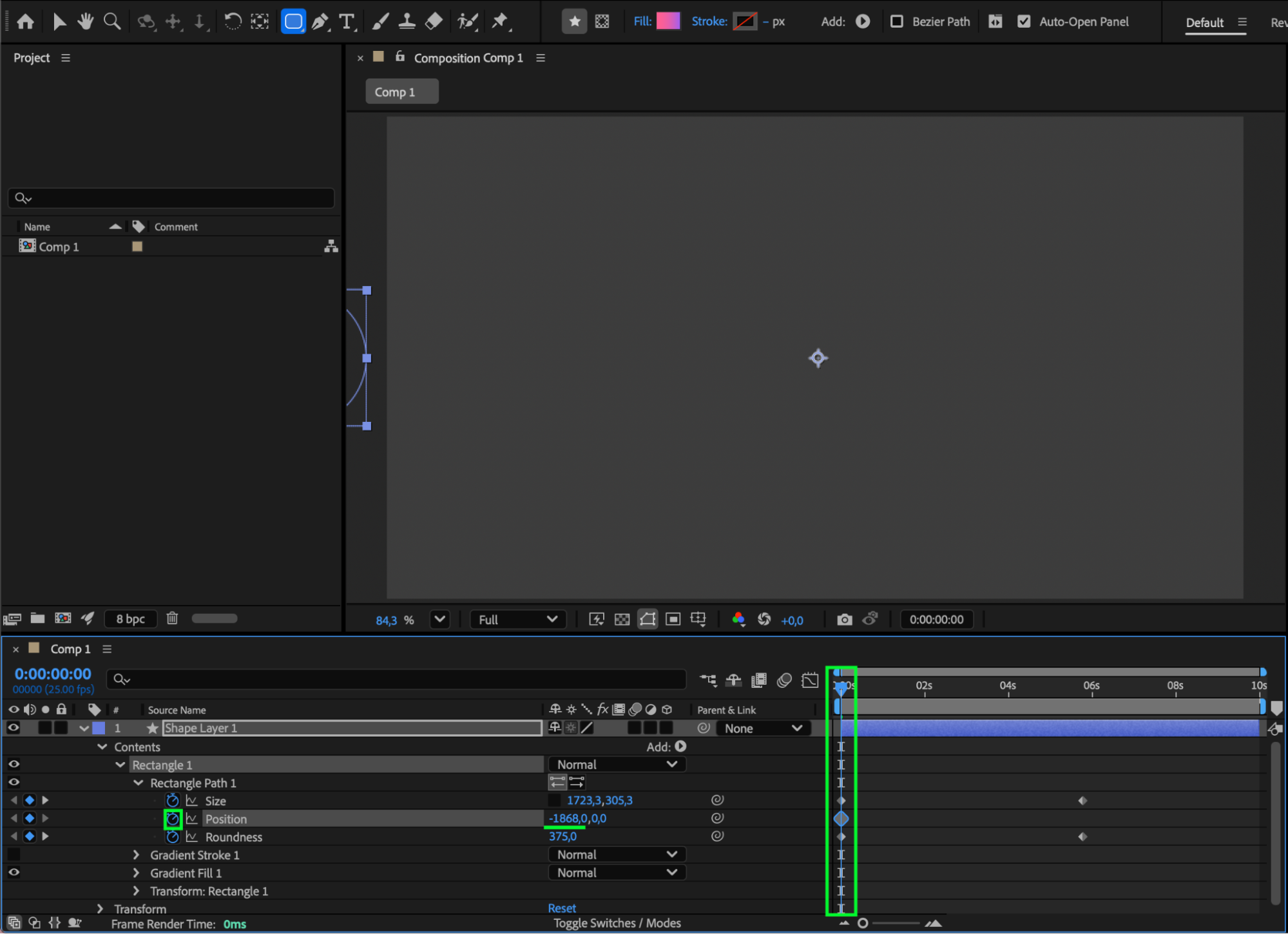

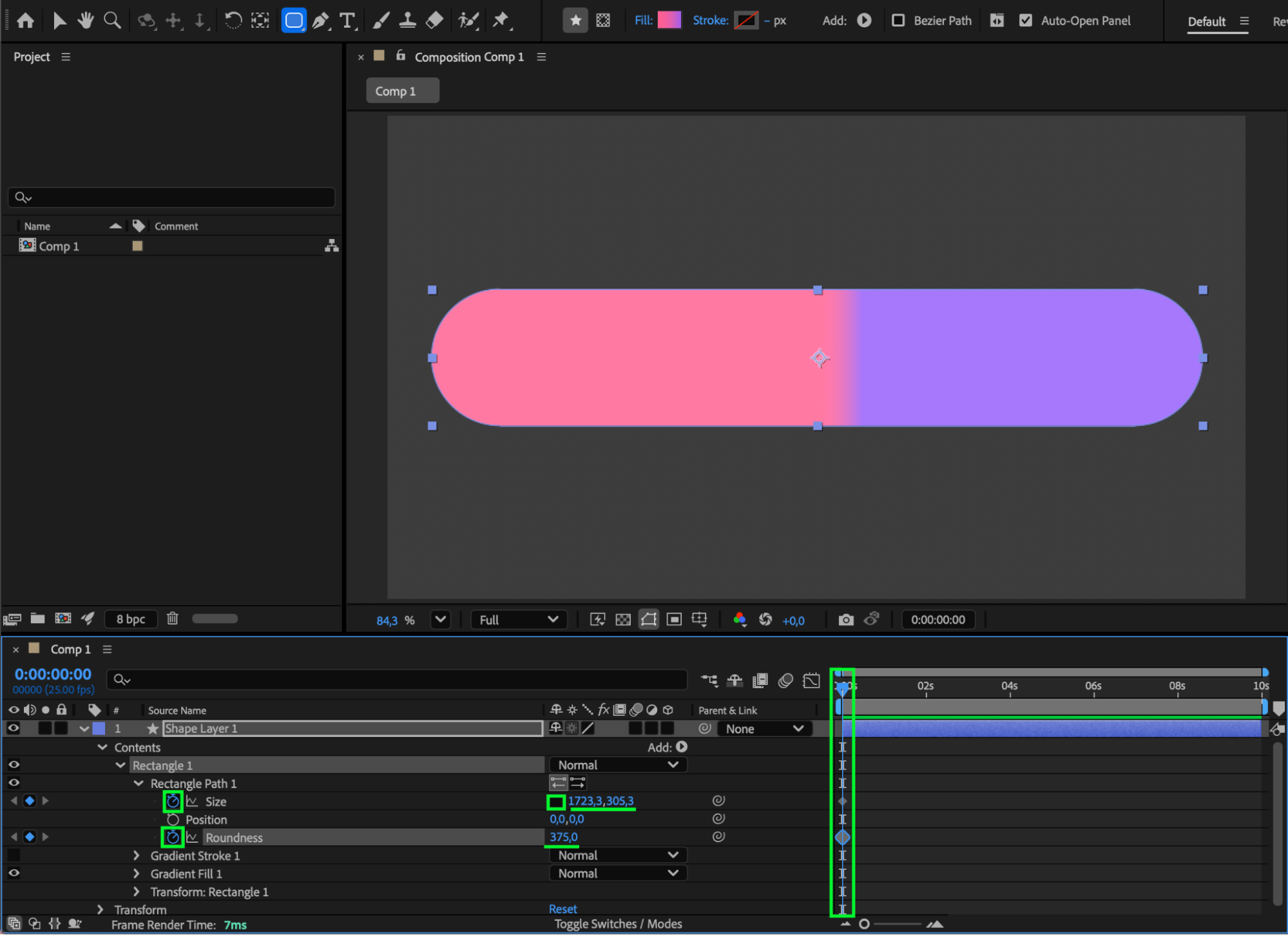

At the start of the composition, enable keyframes (click the stopwatch) for all parameters and set:
Size: 1723, 305 (example)
Roundness: 375
Position: –1868, 0
Move the CTI to the middle of the composition and change the values to:
Size: 804, 305 (example)
Roundness: 53
Position: 0, 0
This creates an animation where a long horizontal shape moves and transforms into a compact rectangle.
Step 4: Add a Subtle Scale Bounce
At the end of the position animation:

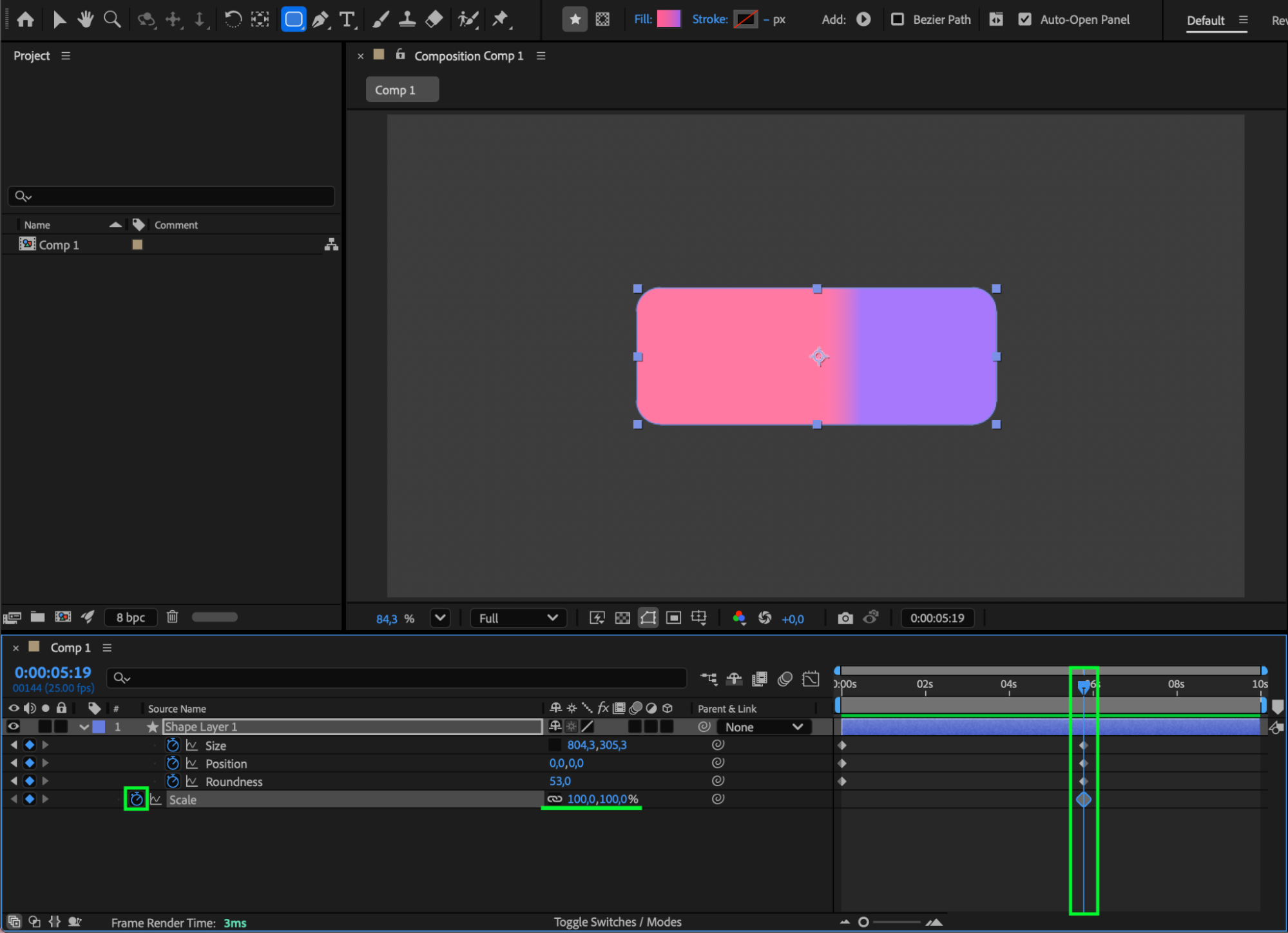

Set Scale = 100%.

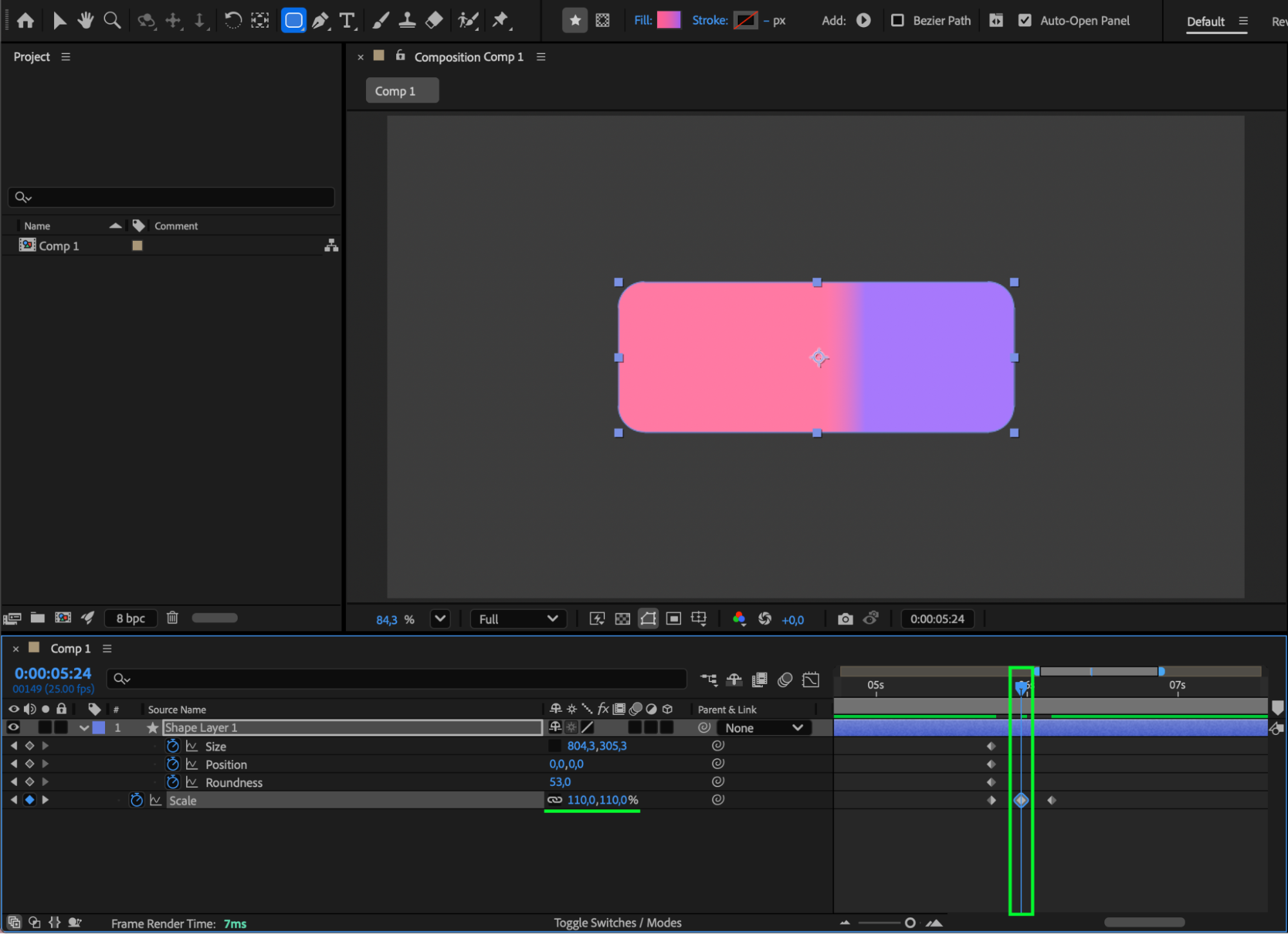

Move the CTI 5 frames forward and set Scale = 110%.

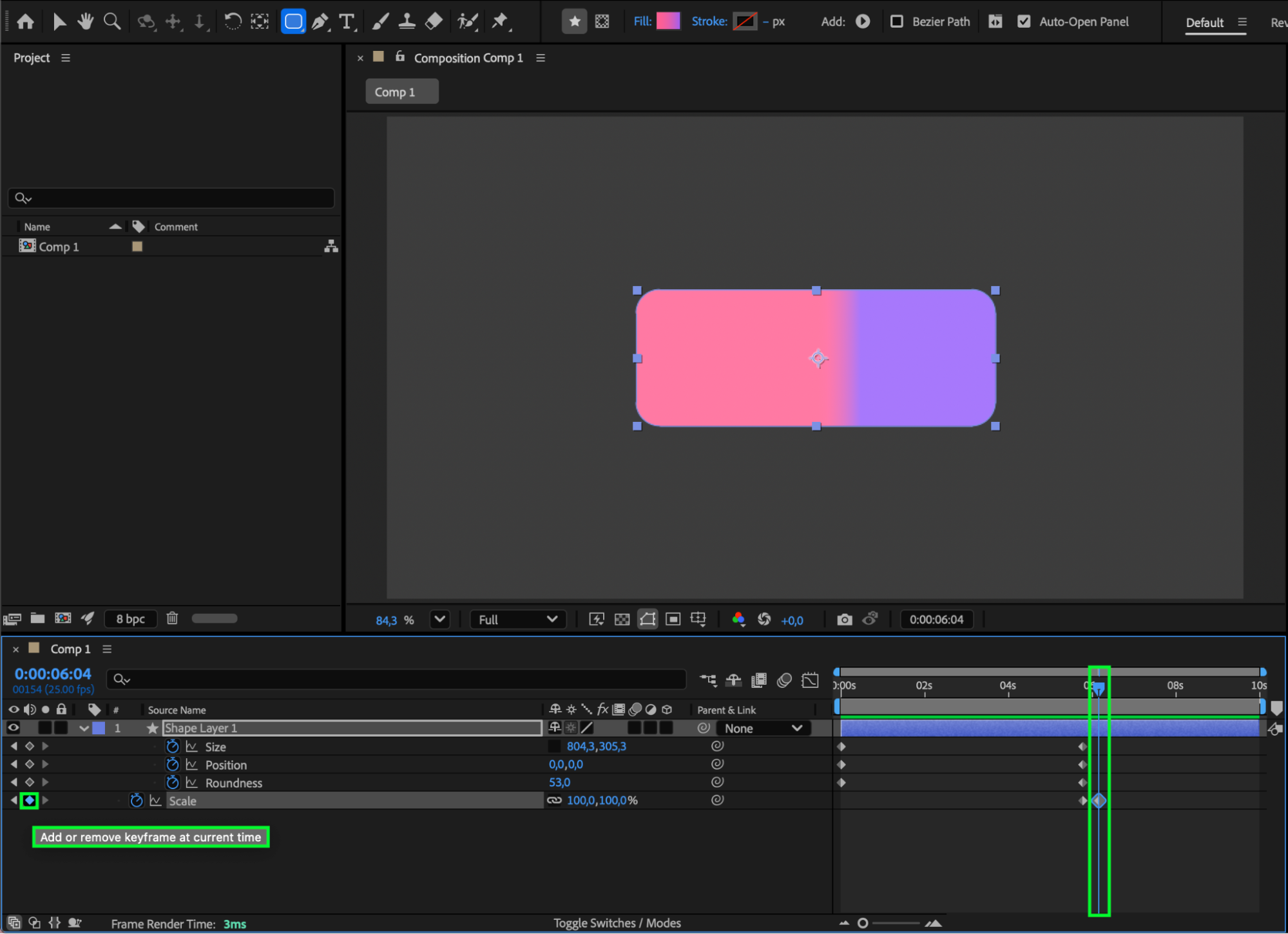

Move the CTI another 5 frames forward and return Scale = 100%.
This adds a subtle bounce for extra polish.
