A Step-by-Step Guide to Animating a Pie Chart in After Effects

Introduction: Why Animated Pie Charts Are Effective

Pie charts are a visually appealing way to represent data, and animating them adds an extra layer of engagement. With After Effects, you can create dynamic pie chart animations that bring statistics and information to life. This guide will walk you through the process of designing and animating a pie chart step by step.

Step 1: Create a New Composition

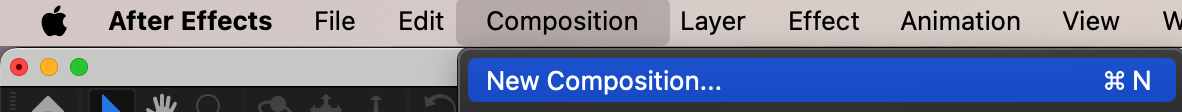

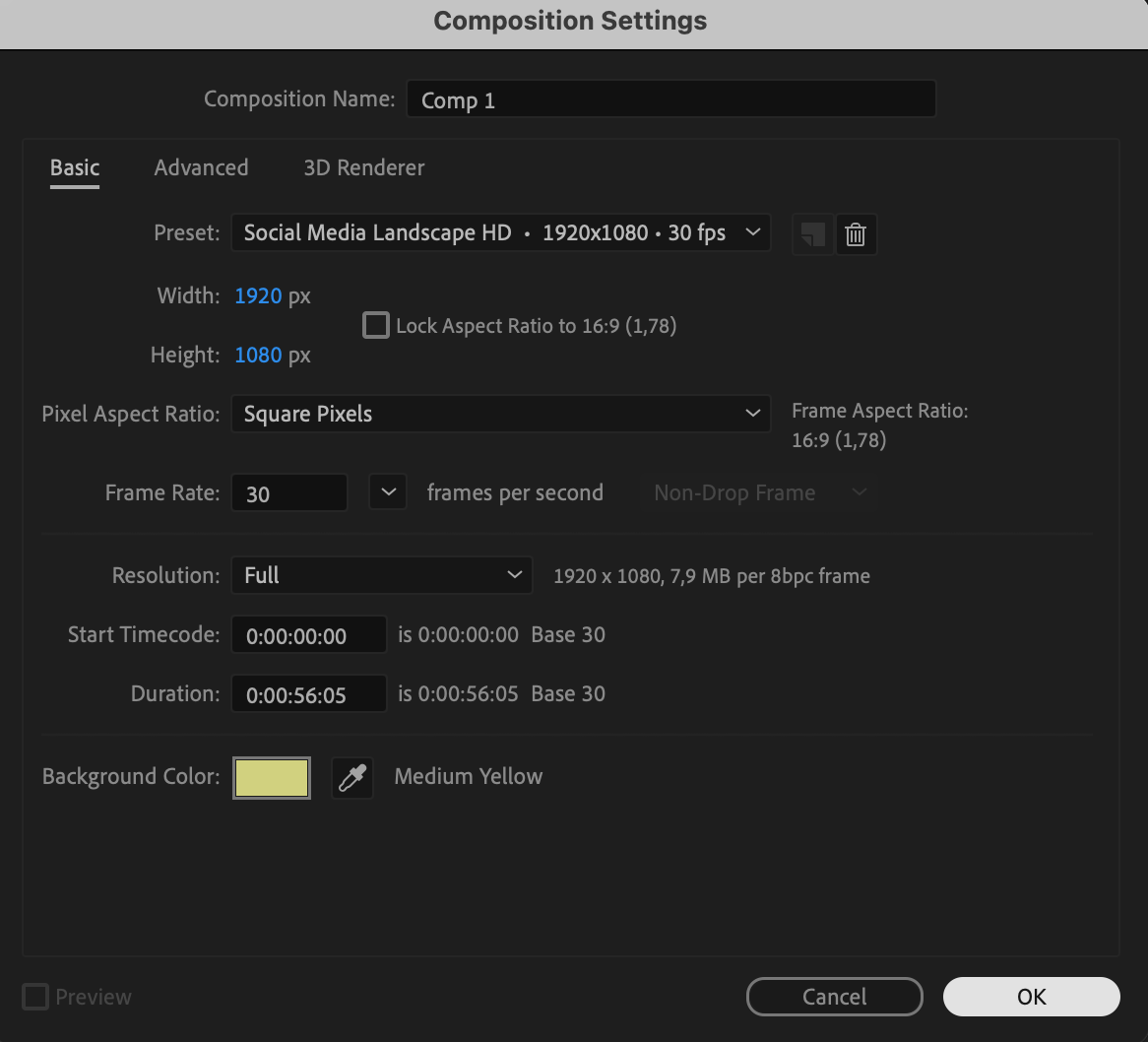

Start by creating a new composition in After Effects. Go to Composition > New Composition, set the resolution, frame rate, and duration as per your project requirements, and click OK. This will serve as the workspace for your pie chart animation. Step 2: Add a Shape Layer

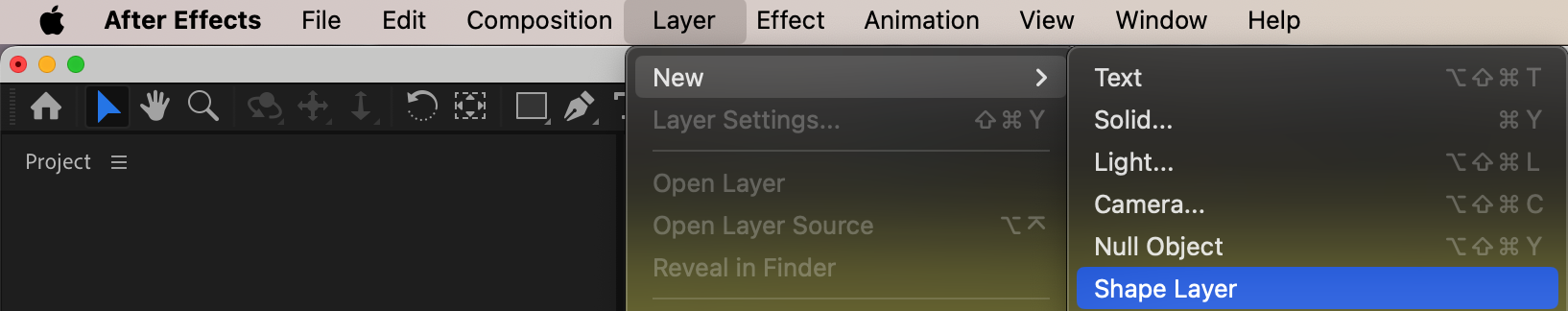

The next step is to create the base layer for your pie chart. Navigate to Layer > New > Shape Layer in the top menu. This will add an empty shape layer to your timeline, which will later hold the circular design of your pie chart. Shape layers are flexible and can be modified easily, making them ideal for this task.Step 3: Draw a Circle

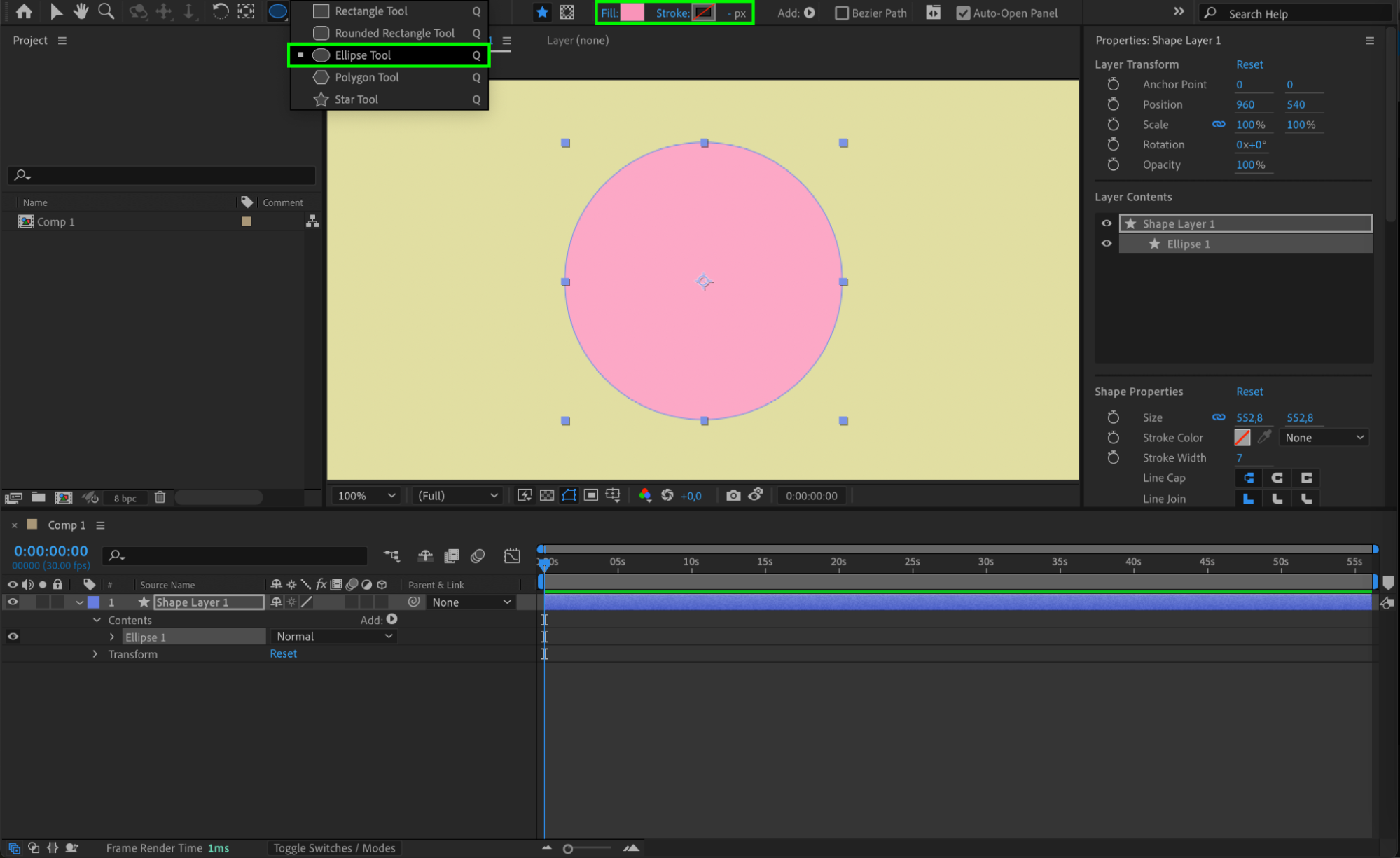

To draw the main circular shape of your pie chart, select the Shape Layer in the timeline and choose the Ellipse Tool (Q) from the toolbar. Hold the Shift key while dragging from the center of the composition to create a perfect circle. Once the circle is drawn, set the Fill color in the toolbar to define the visual appearance of your pie chart.Step 4: Apply the Radial Wipe Effect

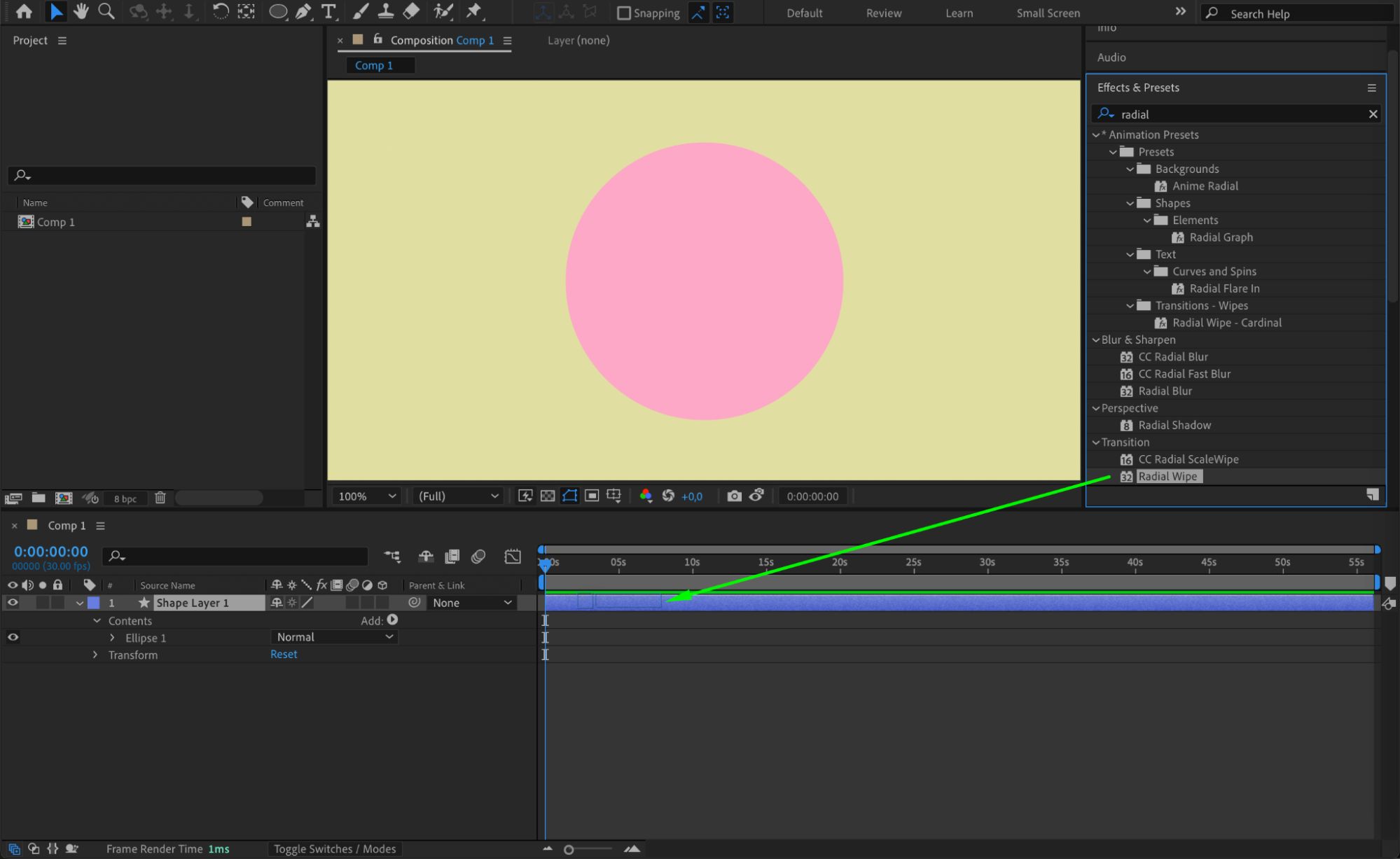

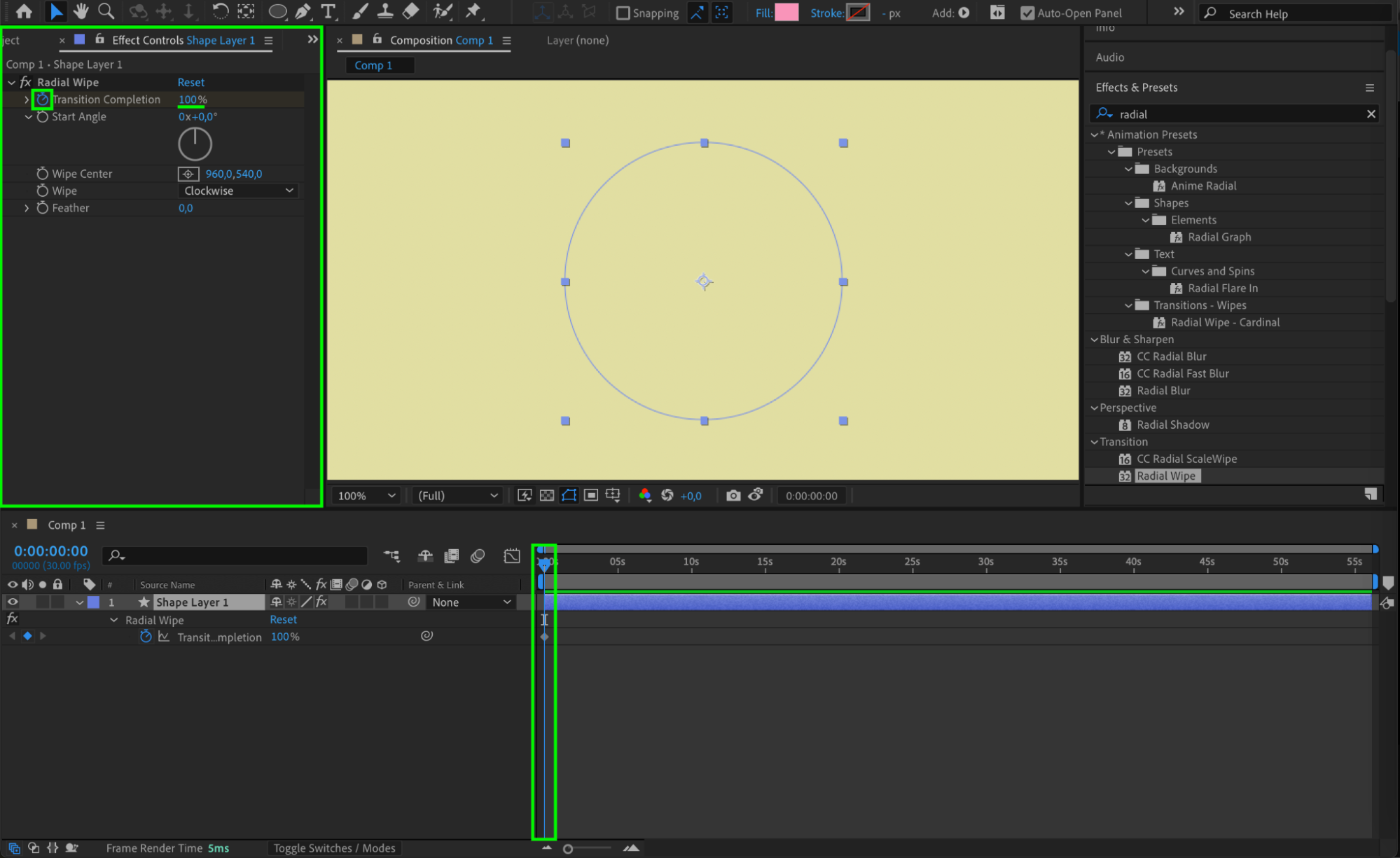

To animate the pie chart, you’ll use the Radial Wipe effect. Open the Effects & Presets panel on the right side of the interface, search for Radial Wipe, and drag it onto your shape layer. In the Effect Controls panel, confirm that the Wipe Center is positioned precisely at the center of the circle. This effect will allow you to reveal or hide parts of the circle dynamically.

Step 5: Animate the First Segment

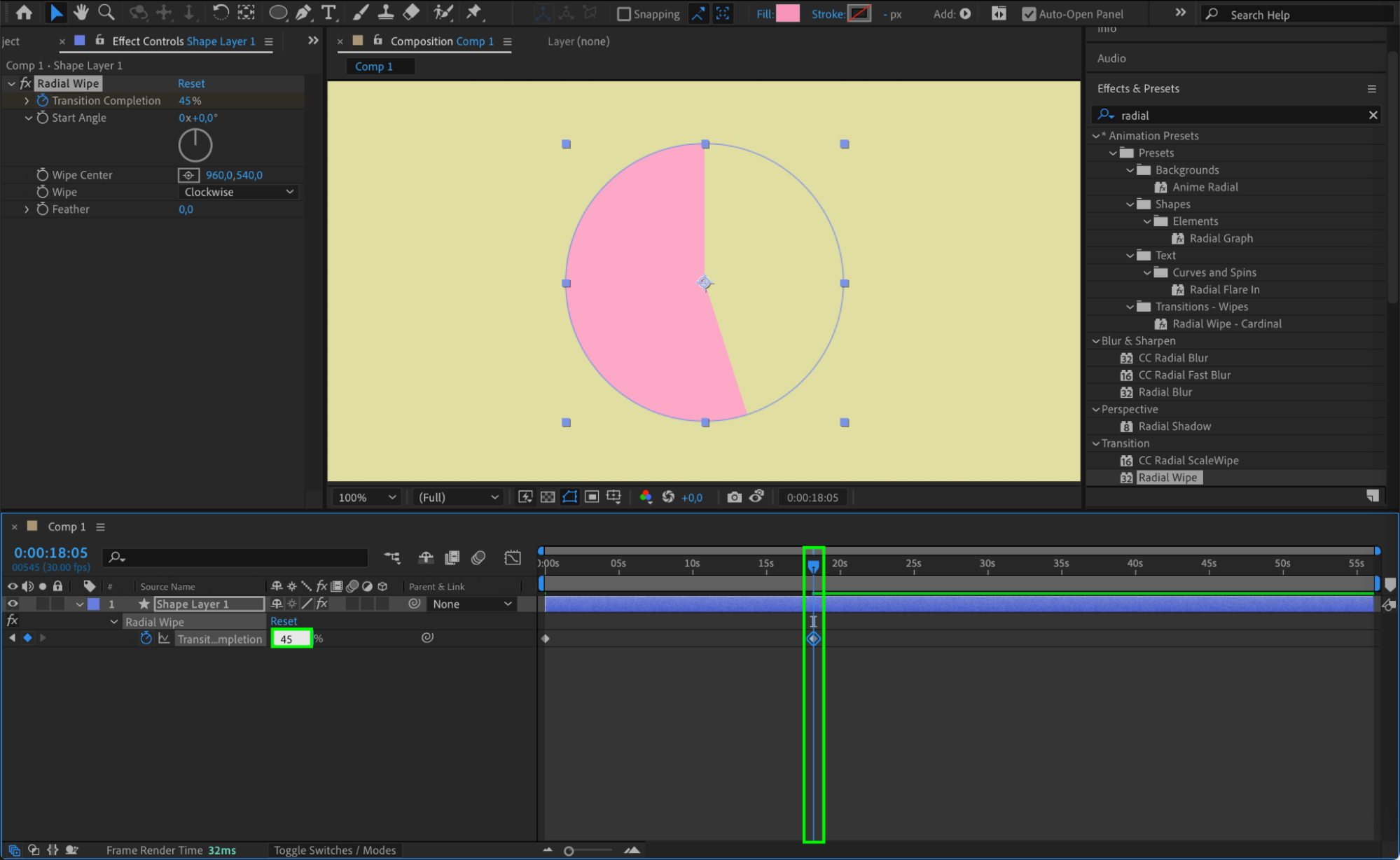

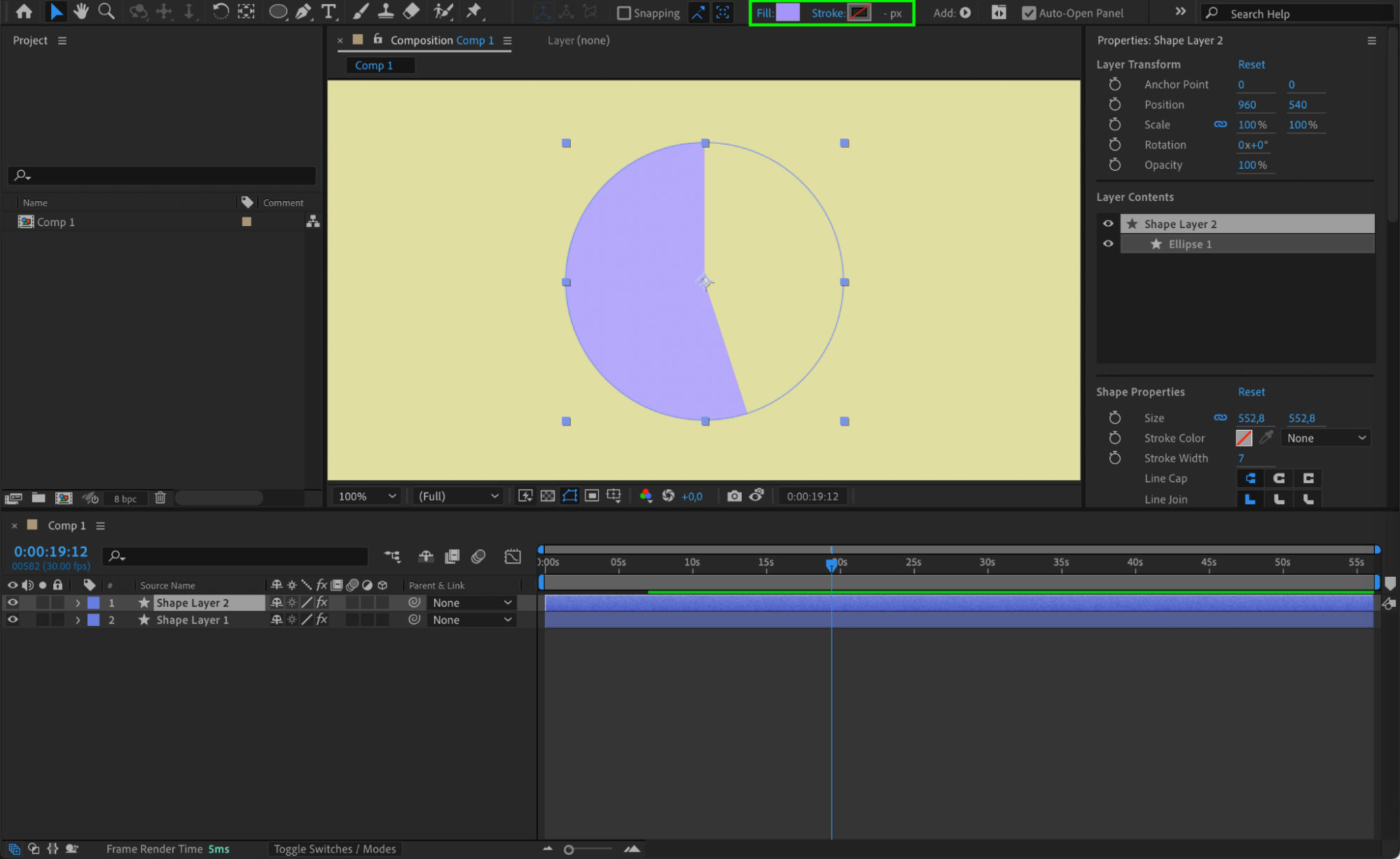

To create the first animated segment, adjust the Transition Completion parameter in the Effect Controls panel. Set it to 100% at the start of the timeline and add a keyframe by clicking the stopwatch icon. Move the CTI (Current Time Indicator) forward in the timeline and reduce the Transition Completion to the desired percentage (e.g., 45% for a 55% segment). This creates the initial animated segment. Step 6: Close the Circle with the Final Segment

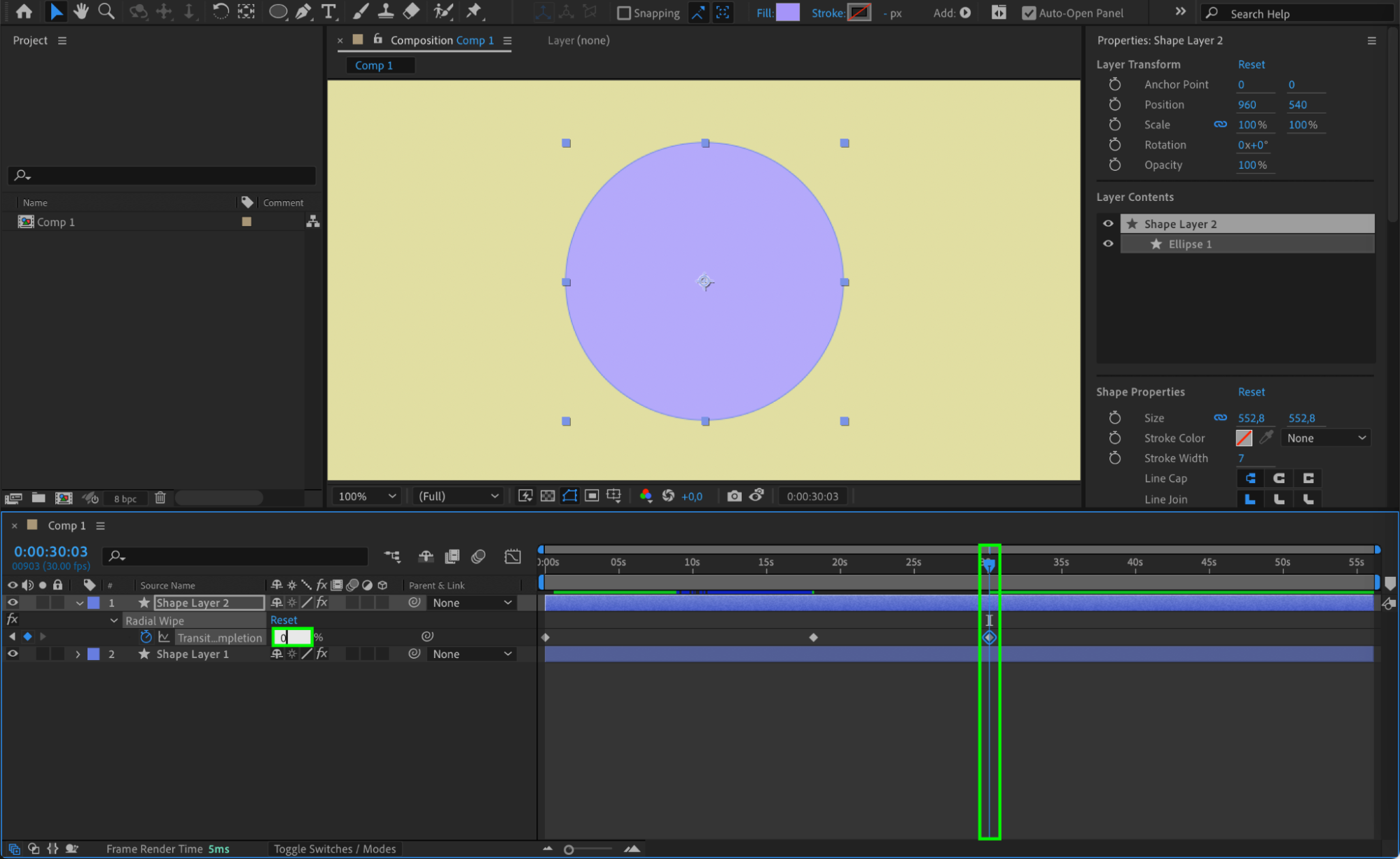

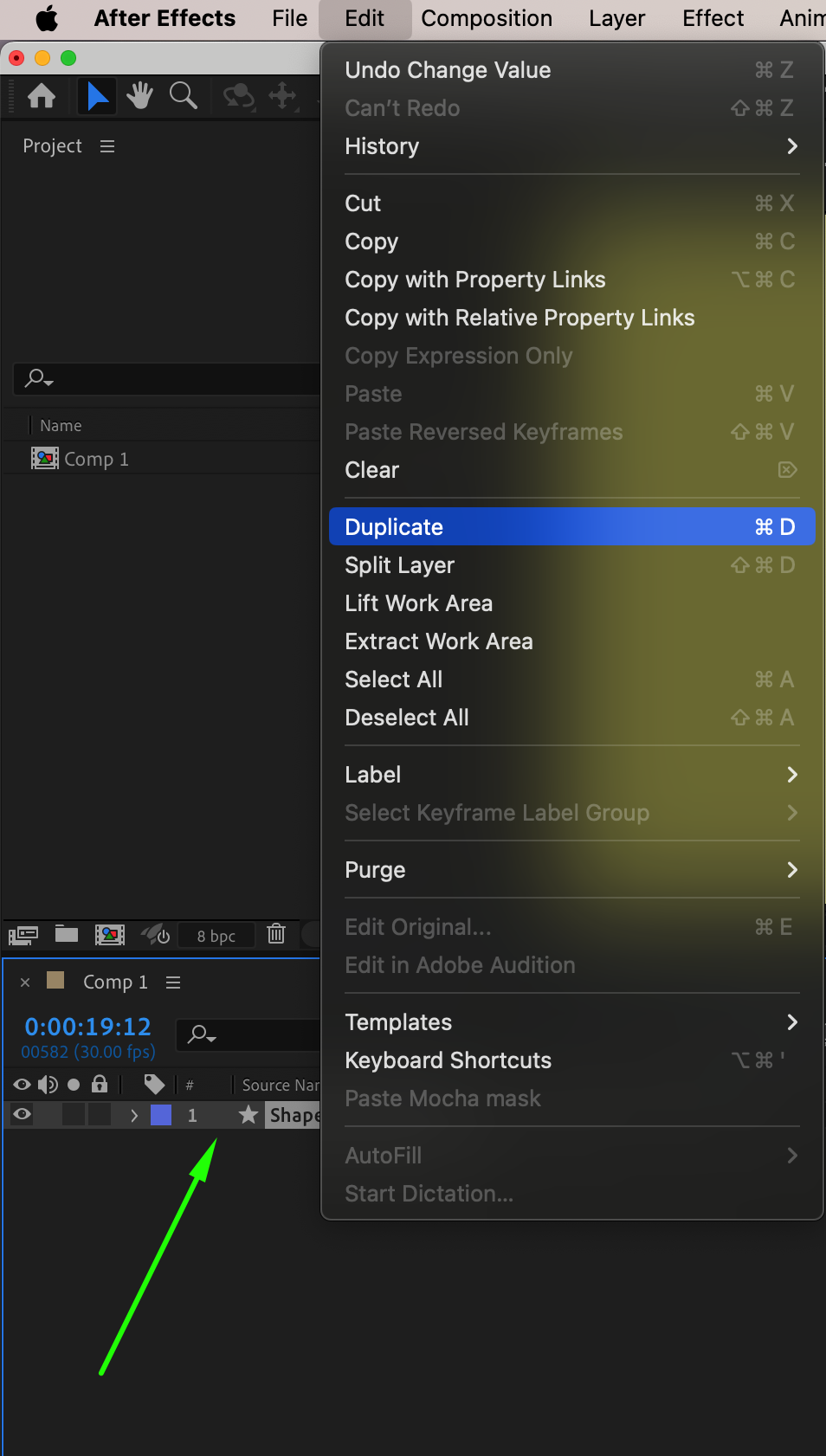

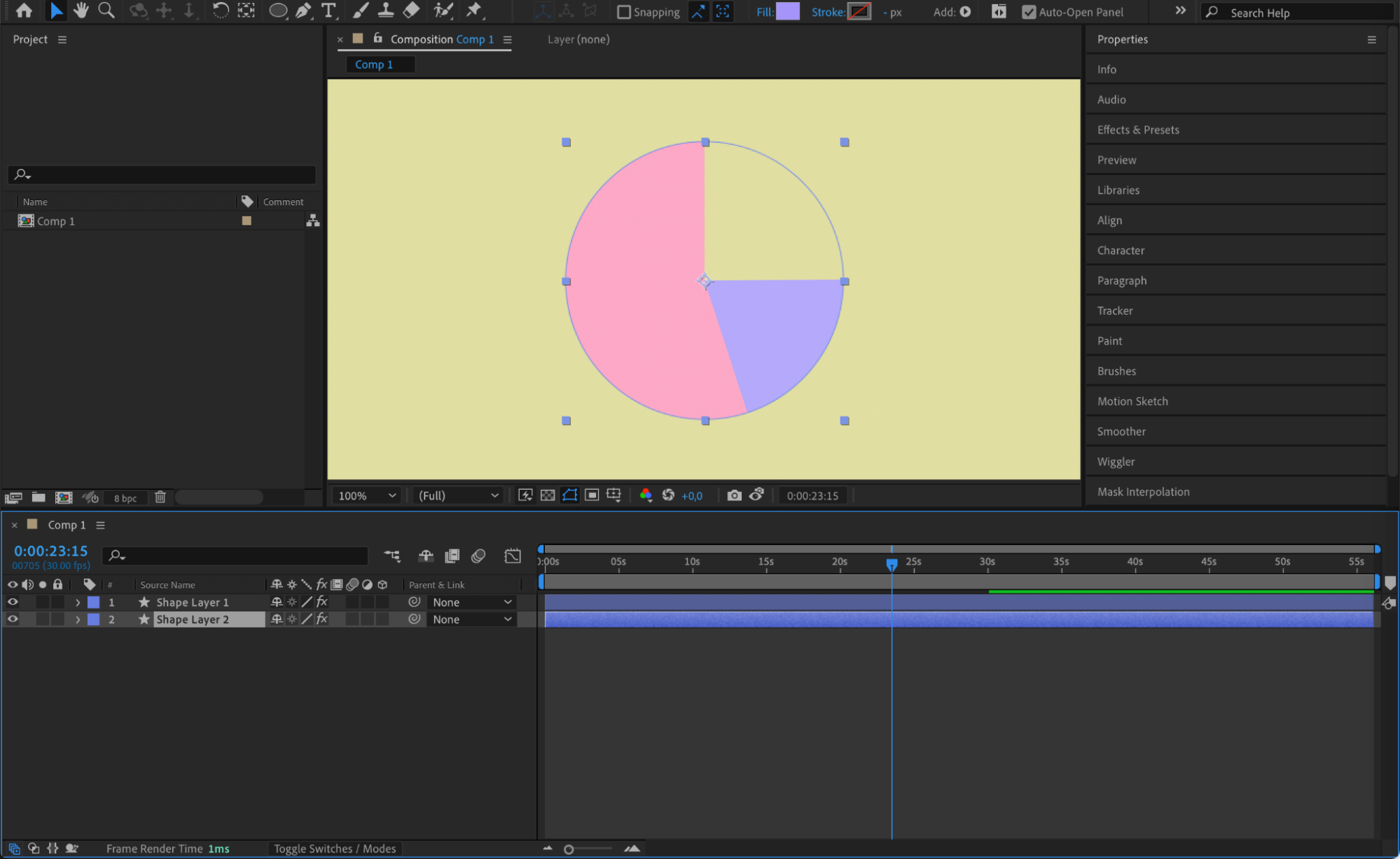

To complete the pie chart, duplicate the shape layer by selecting it and going to Edit > Duplicate. Adjust the Transition Completion keyframes for this layer so that the circle fully closes, ending at 0%. This step ensures that the final segment seamlessly aligns with the rest of the chart. Once the adjustments are complete, move the duplicated layer below the original layer in the timeline to maintain the visual hierarchy and avoid overlap issues. This positioning ensures the animation remains clean and cohesive.

Step 7: Preview Your Animation

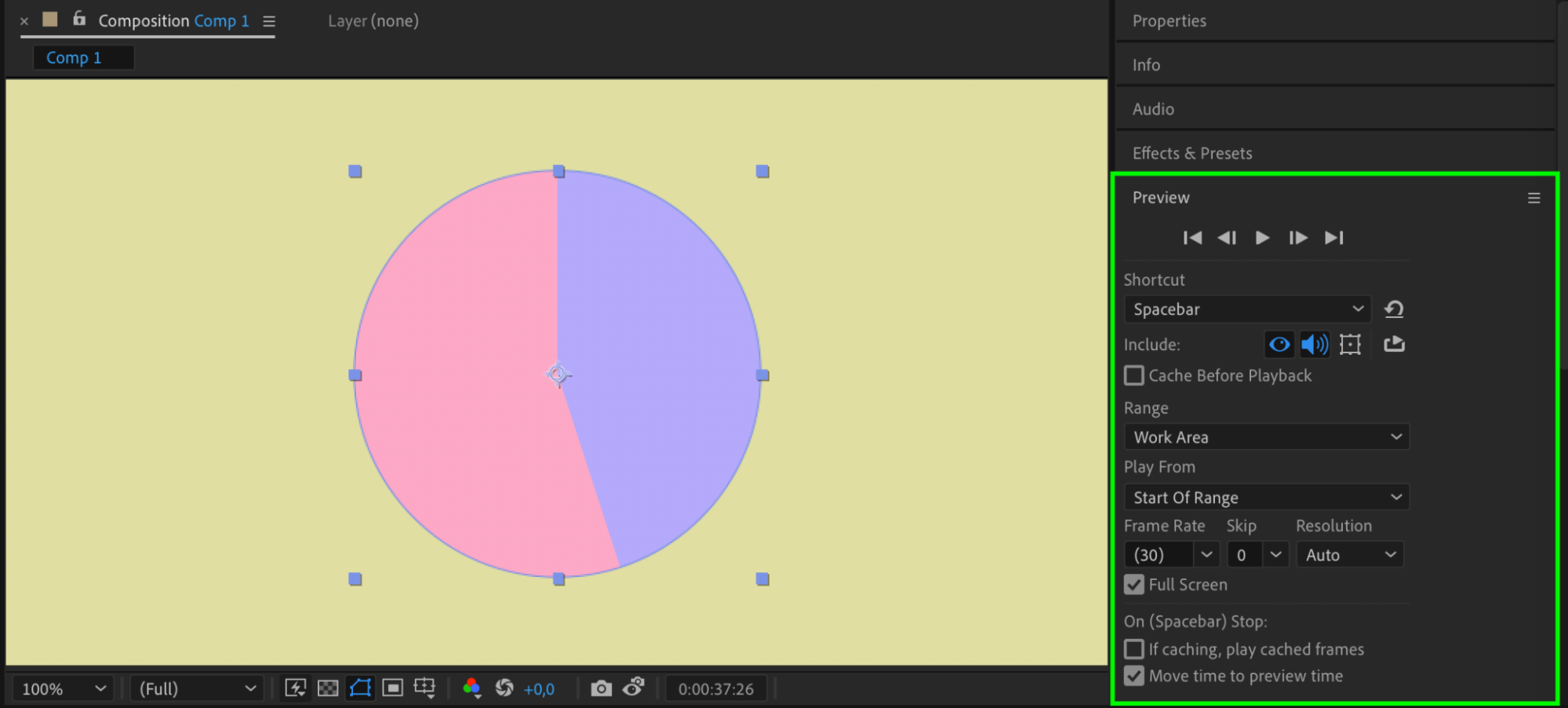

Before finalizing, review the animation by pressing the Spacebar to preview it. Pay attention to the transitions between segments, ensuring they are smooth and visually appealing. Adjust keyframes, colors, or timing as needed to perfect the animation. This step is crucial to deliver a polished result.Step 8: Render the Final Animation

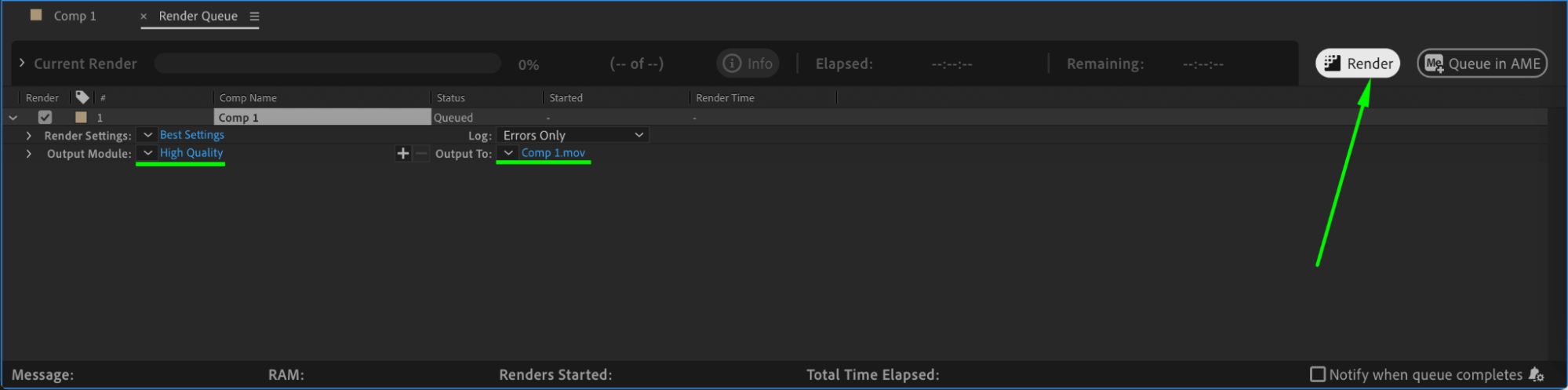

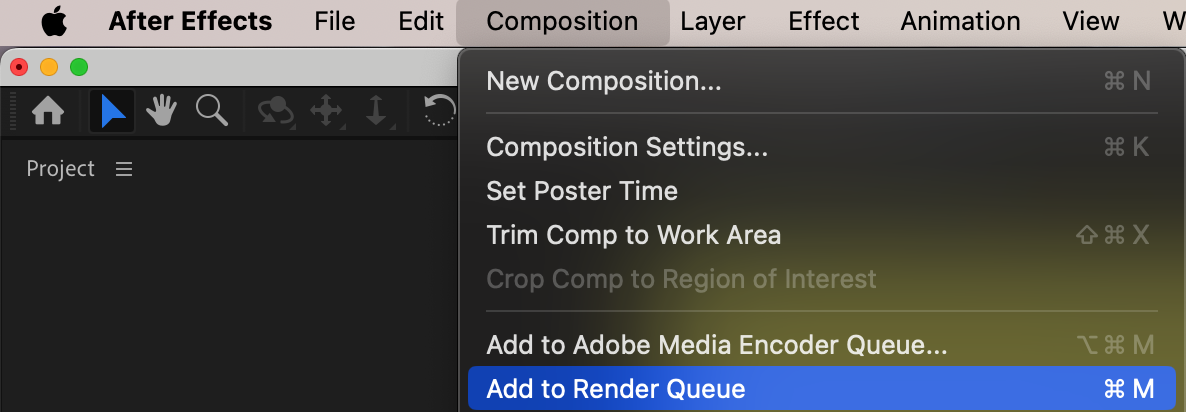

Once you’re satisfied with your animated pie chart, it’s time to render it. Go to Composition > Add to Render Queue, choose the desired output settings, and click Render to export the animation. This creates a video file that you can use in your projects or presentations.

Conclusion

Animating a pie chart in After Effects is an excellent way to present data dynamically. By following these steps, you can design a compelling visual representation of your information. Experiment with segment sizes, colors, and animation timing to make your chart unique and engaging.
