How to Create Arrow Animations in After Effects: Step-by-Step Guide

Master the Art of Arrow Animation in After Effects

Are you ready to dive into the world of arrow animations in After Effects and take your projects to new heights? Animating arrows can add a dynamic touch to your motion graphics and help emphasize key elements on screen. In this step-by-step guide, we’ll walk you through the process of creating captivating arrow animations in After Effects.

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now

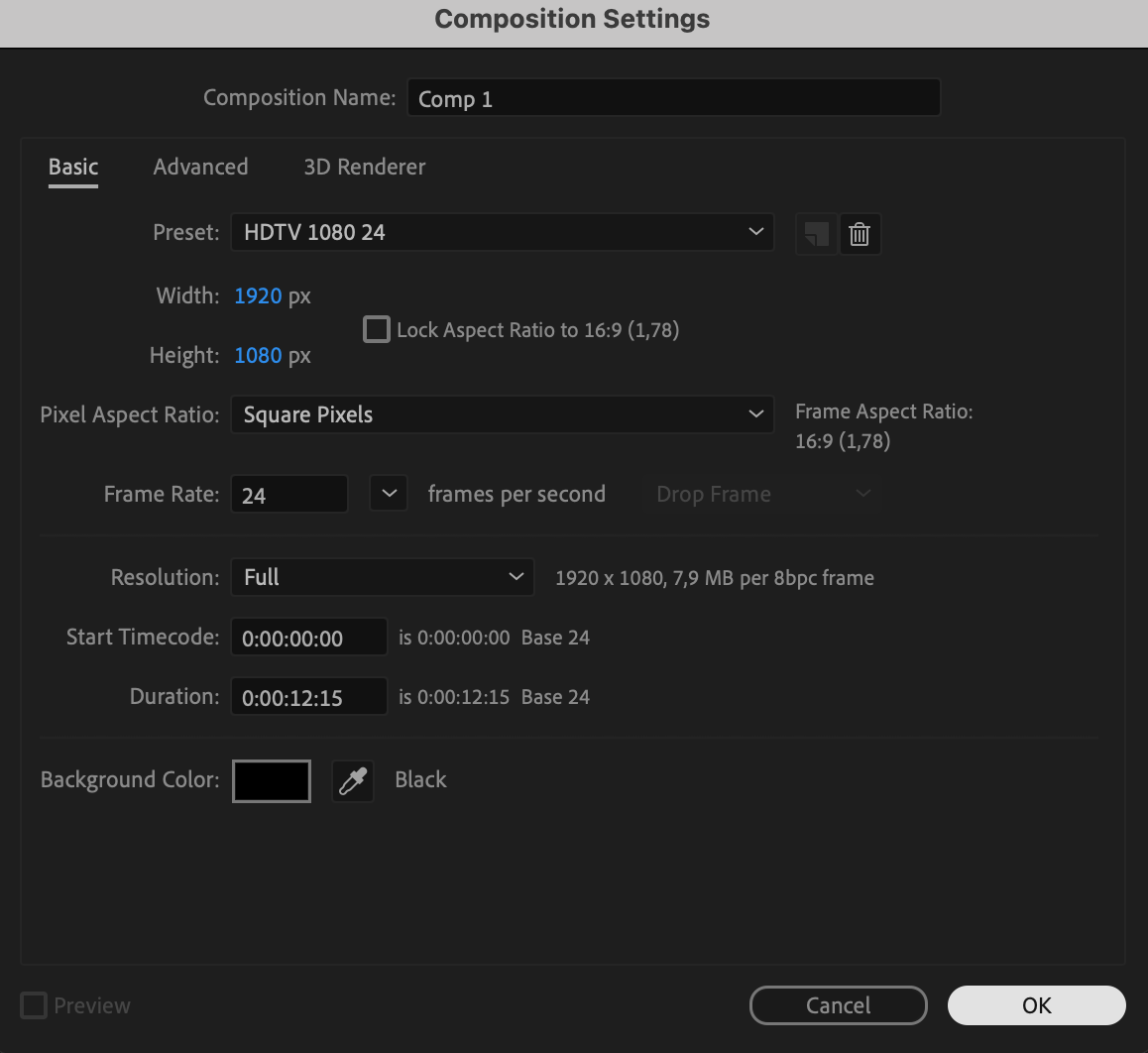

Step 1: Create Composition and Adjust Settings

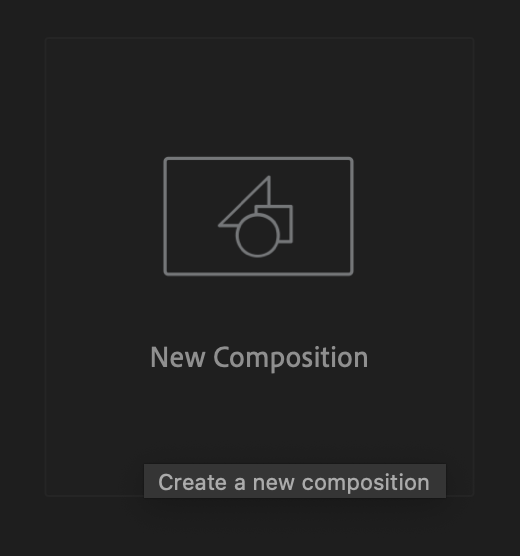

Create a new composition and set the necessary parameters. Set the background color to black.

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now

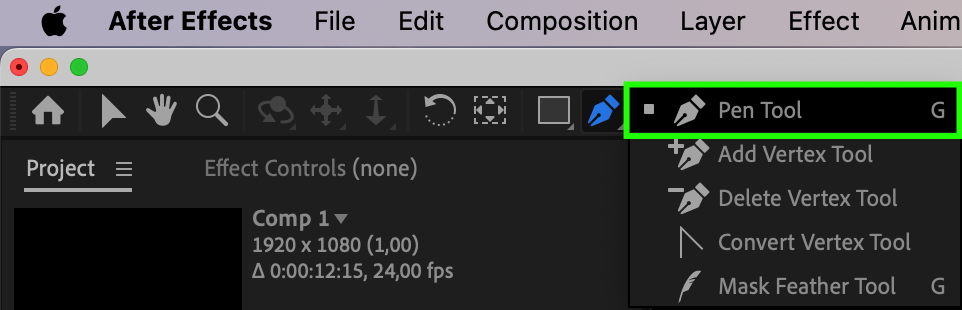

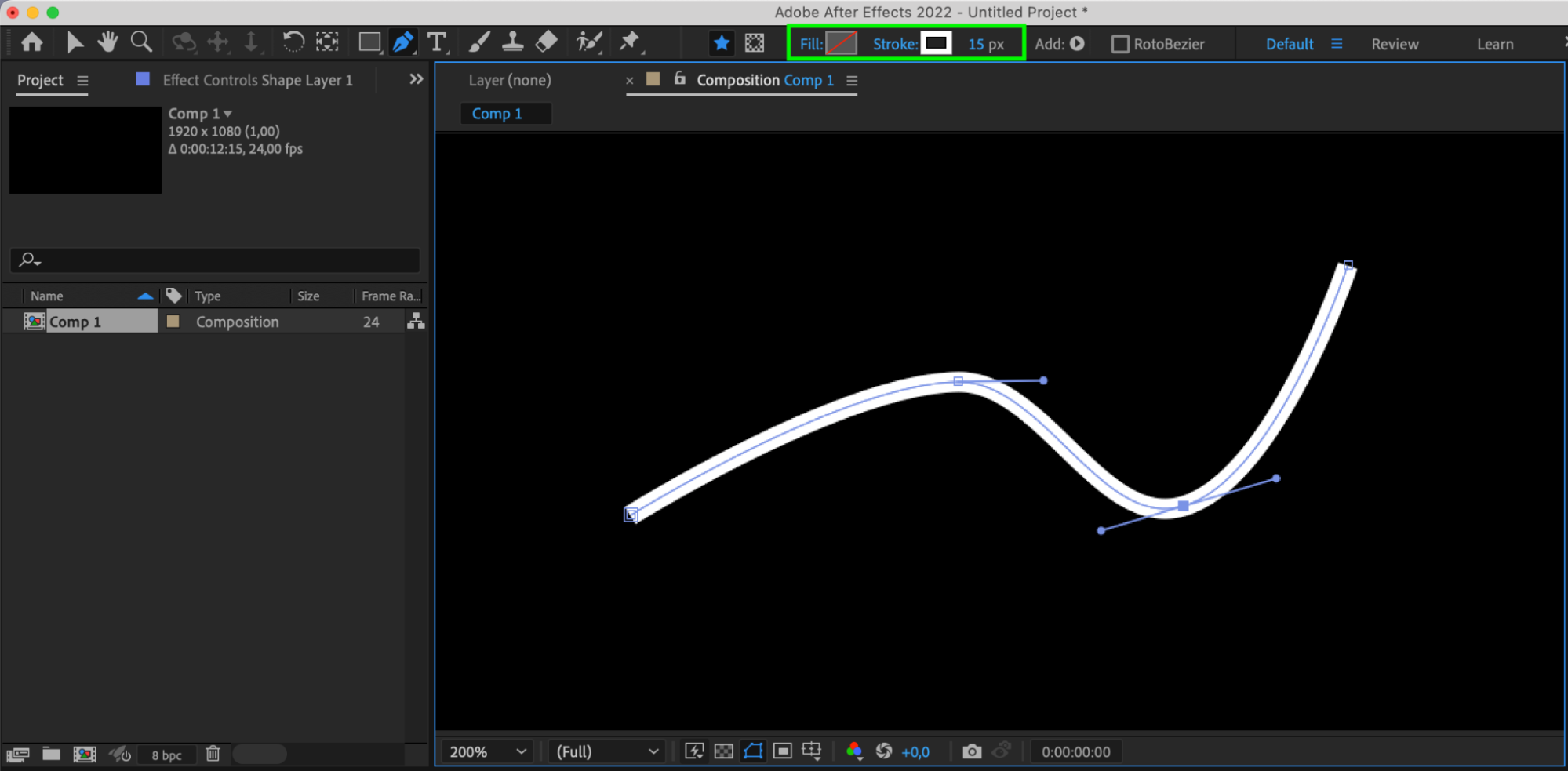

Step 2: Draw Line Using Pen Tool
Use the Pen Tool (G) to draw a line. Adjust fill and stroke settings according to your preference.

Step 3: Add Animation with Trim Paths

Get 10% off when you subscribe to our newsletter

By subscribing you agree to your email being stored and used to receive the emails in accordance to our Privacy Policy
descount

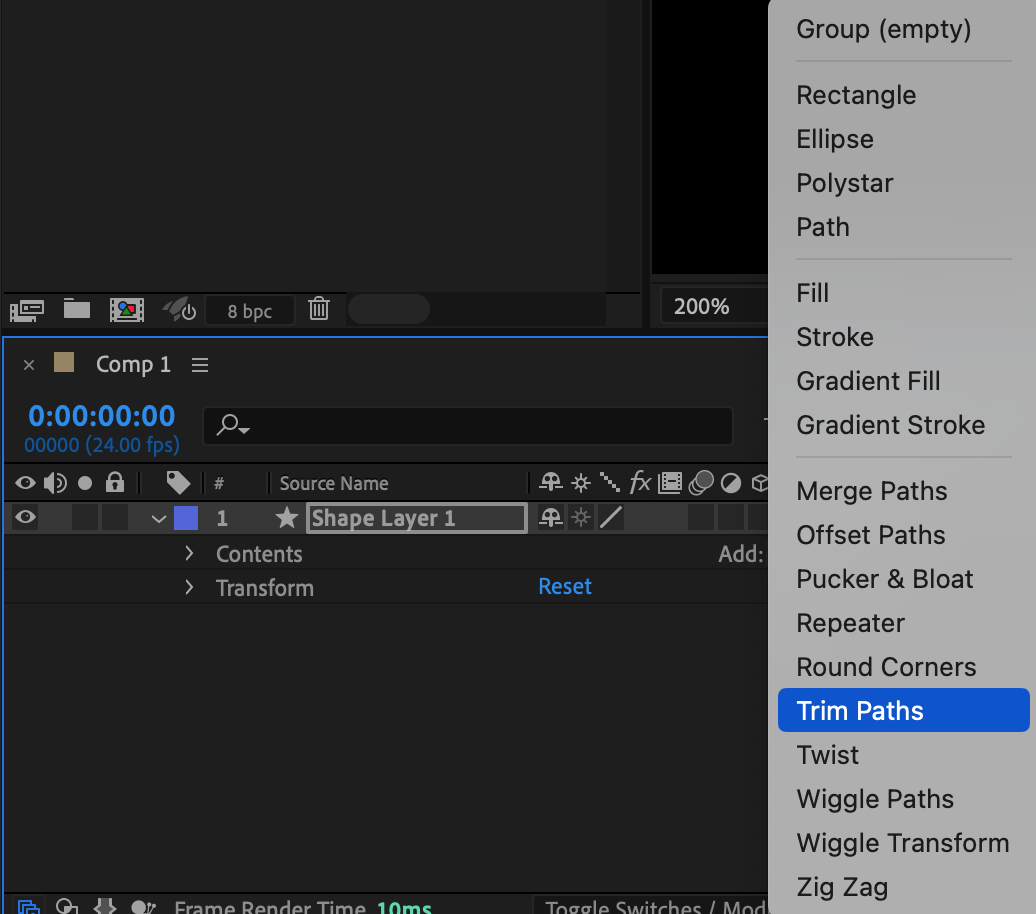

Expand the Shape layer and select Trim Paths from the Add menu to add trimming animation.

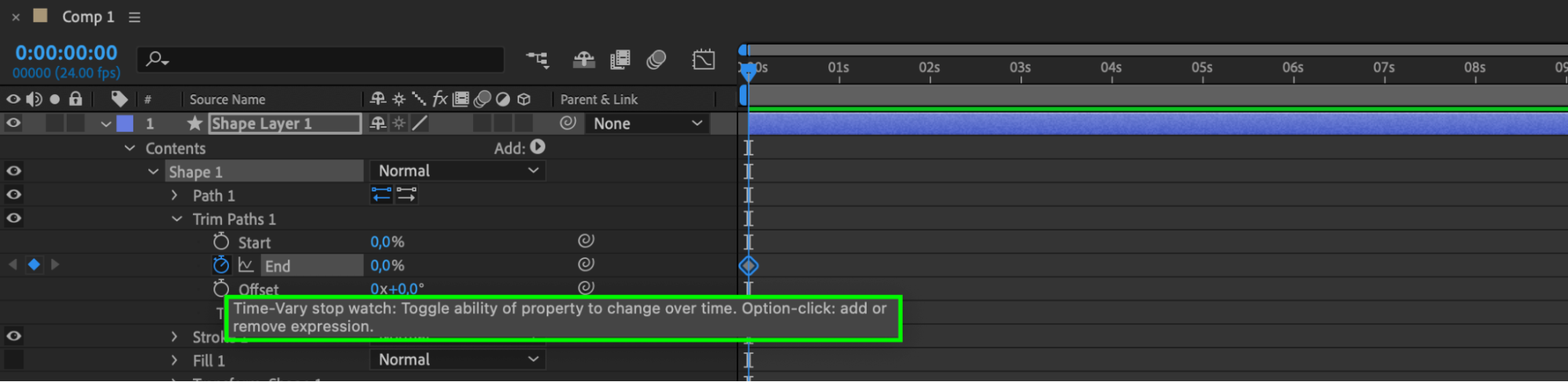

Step 4: Adjust End Parameter for Animation

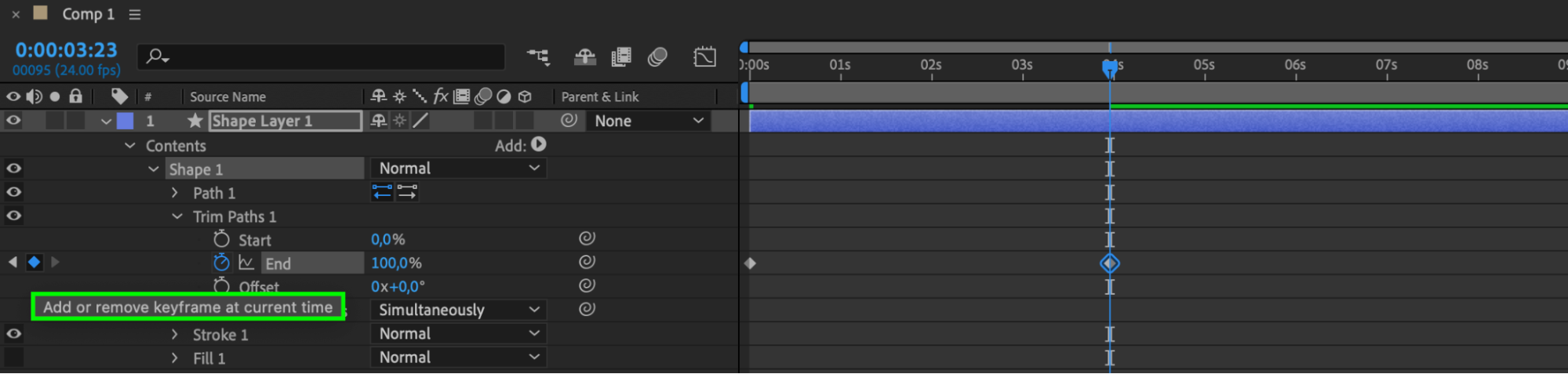

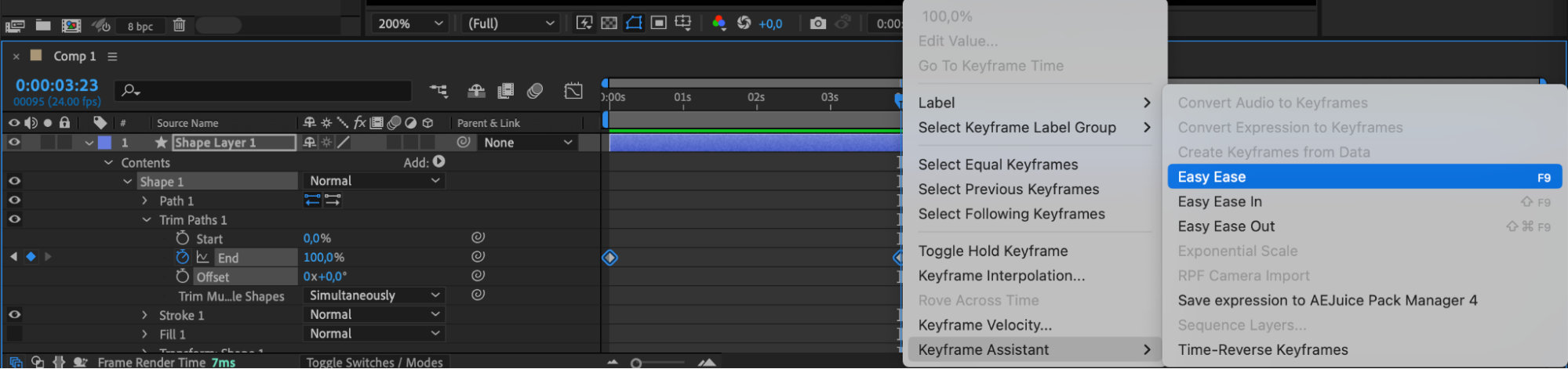

In the Trim Path 1 section, adjust the End parameter. Create keyframes first with a value of 0, then with a value of 100 to animate the line’s appearance. Apply Easy ease to the keyframes.

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now

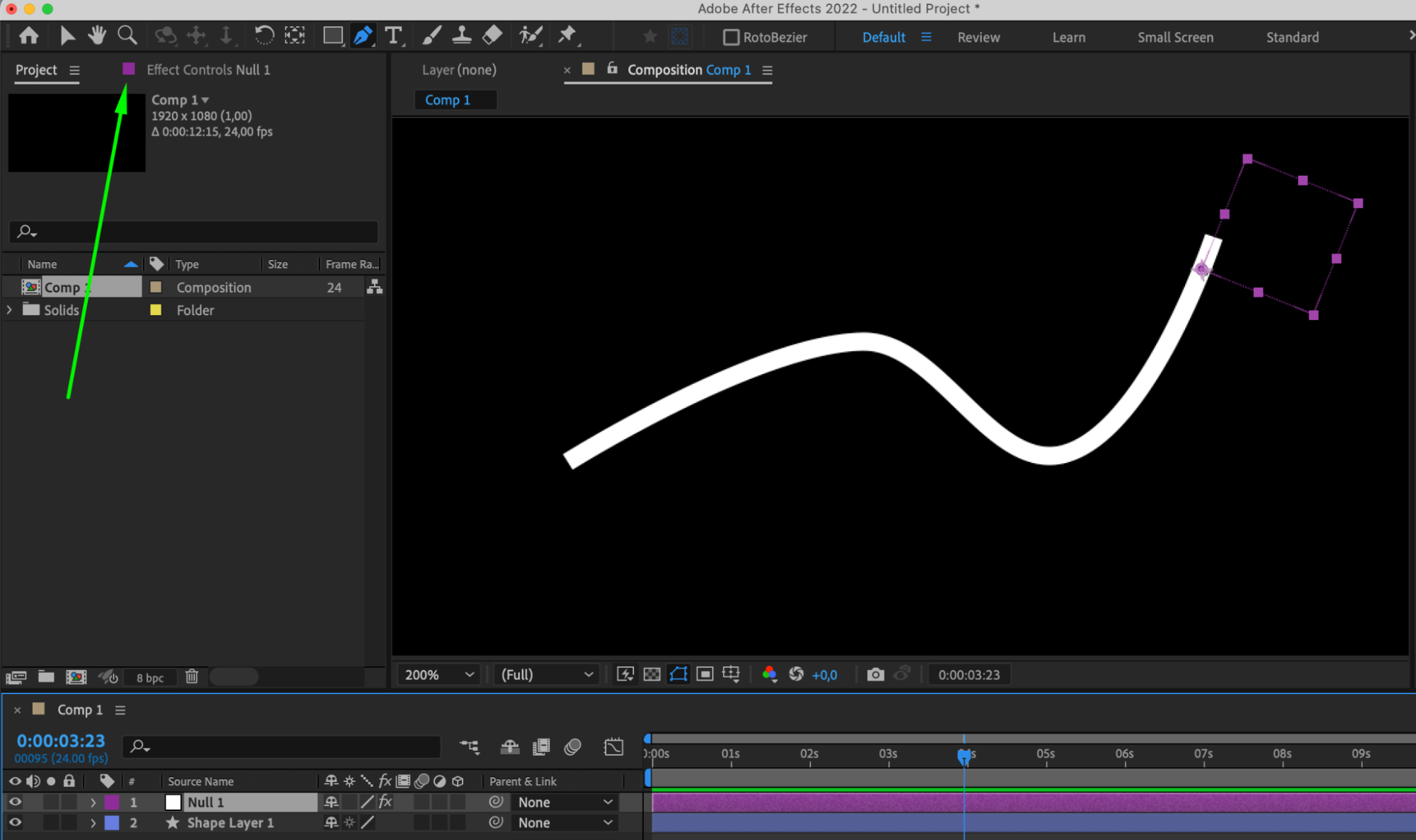

Step 5: Create Null Object for Animation

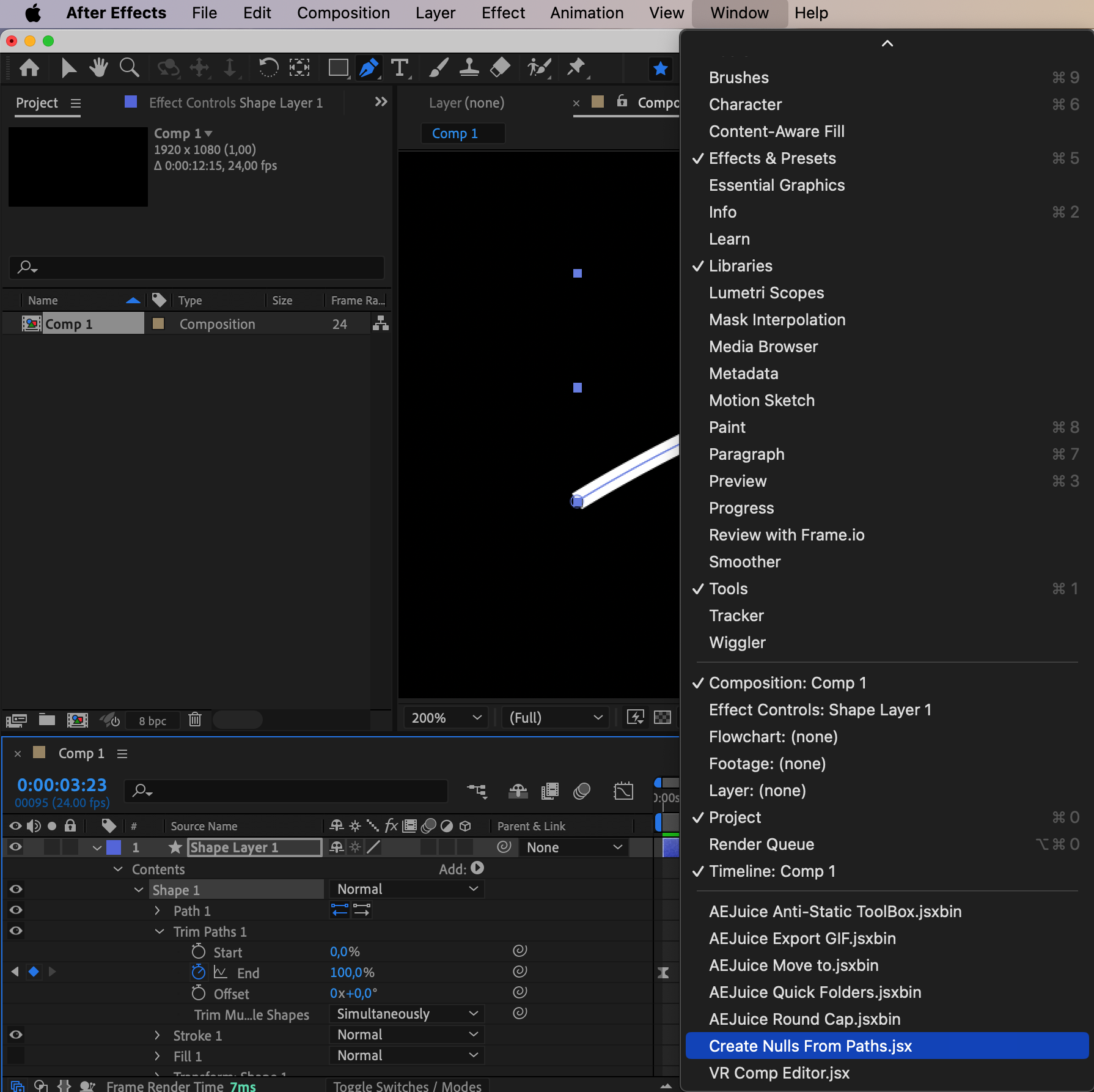

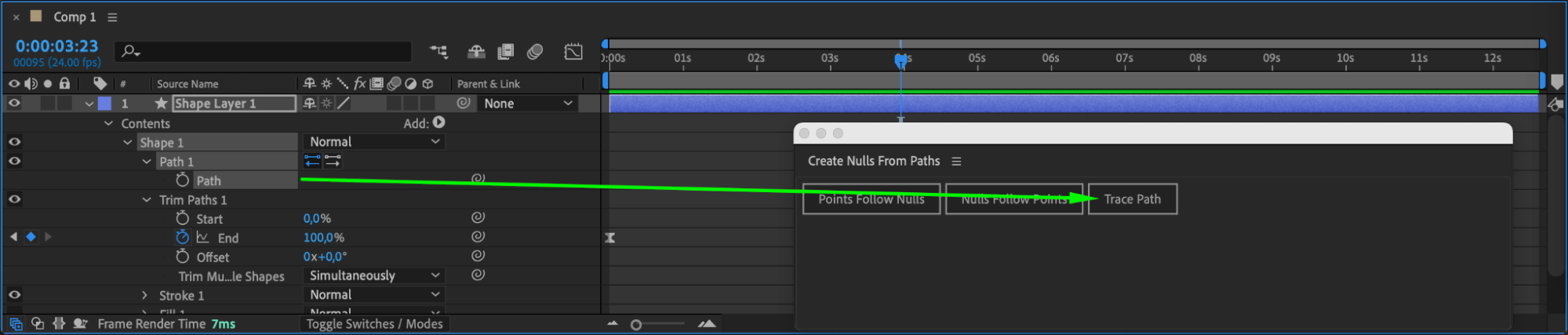

Create a null object from the path of the line using the Create Nulls From Paths panel. This will help control the line’s animation.

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now

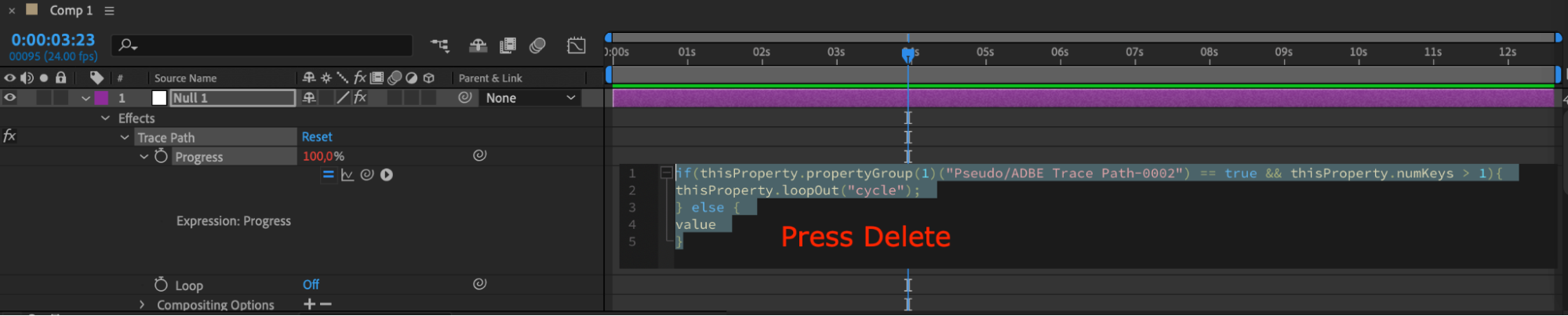

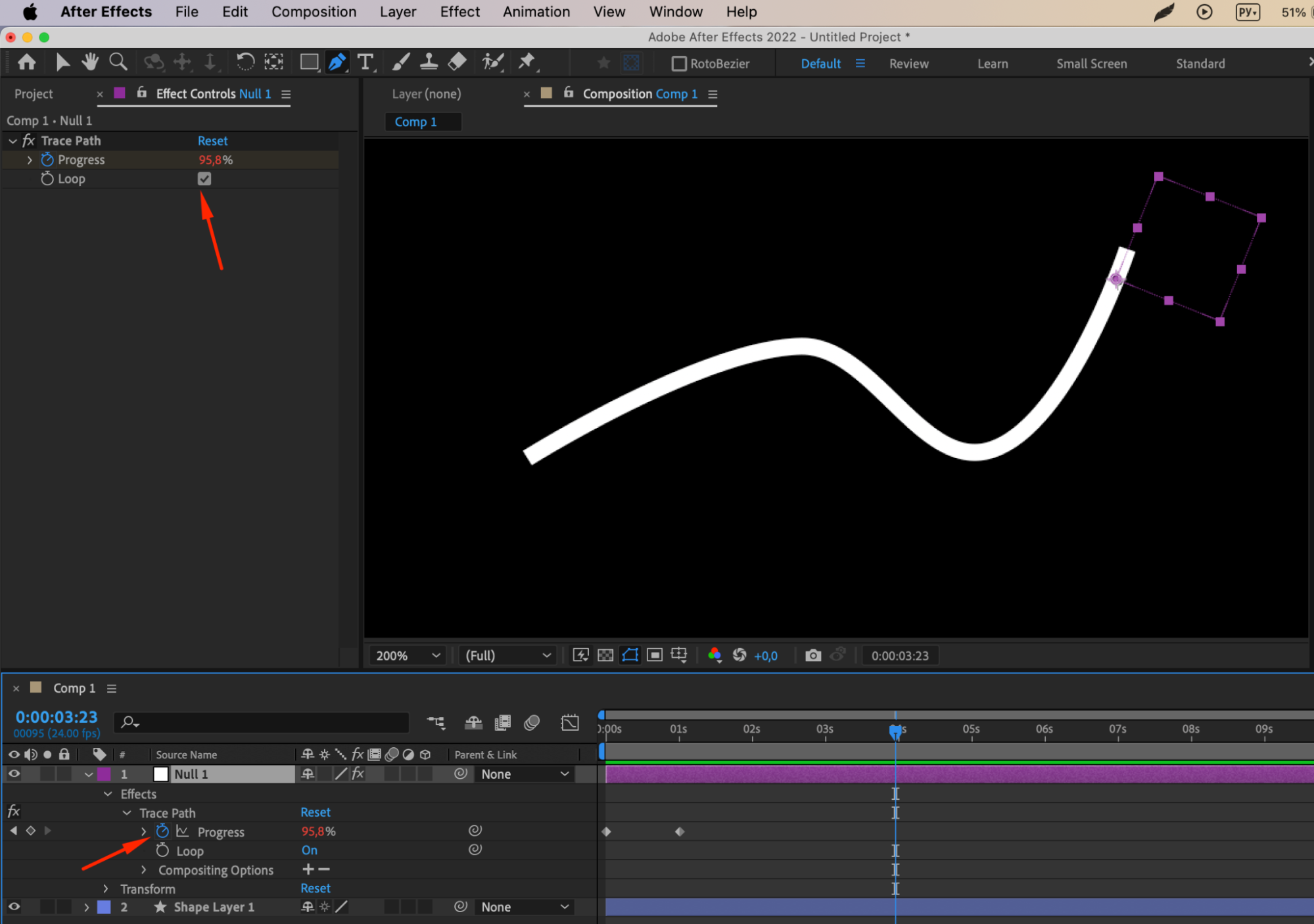

Step 6: Adjust Animation Using Expressions

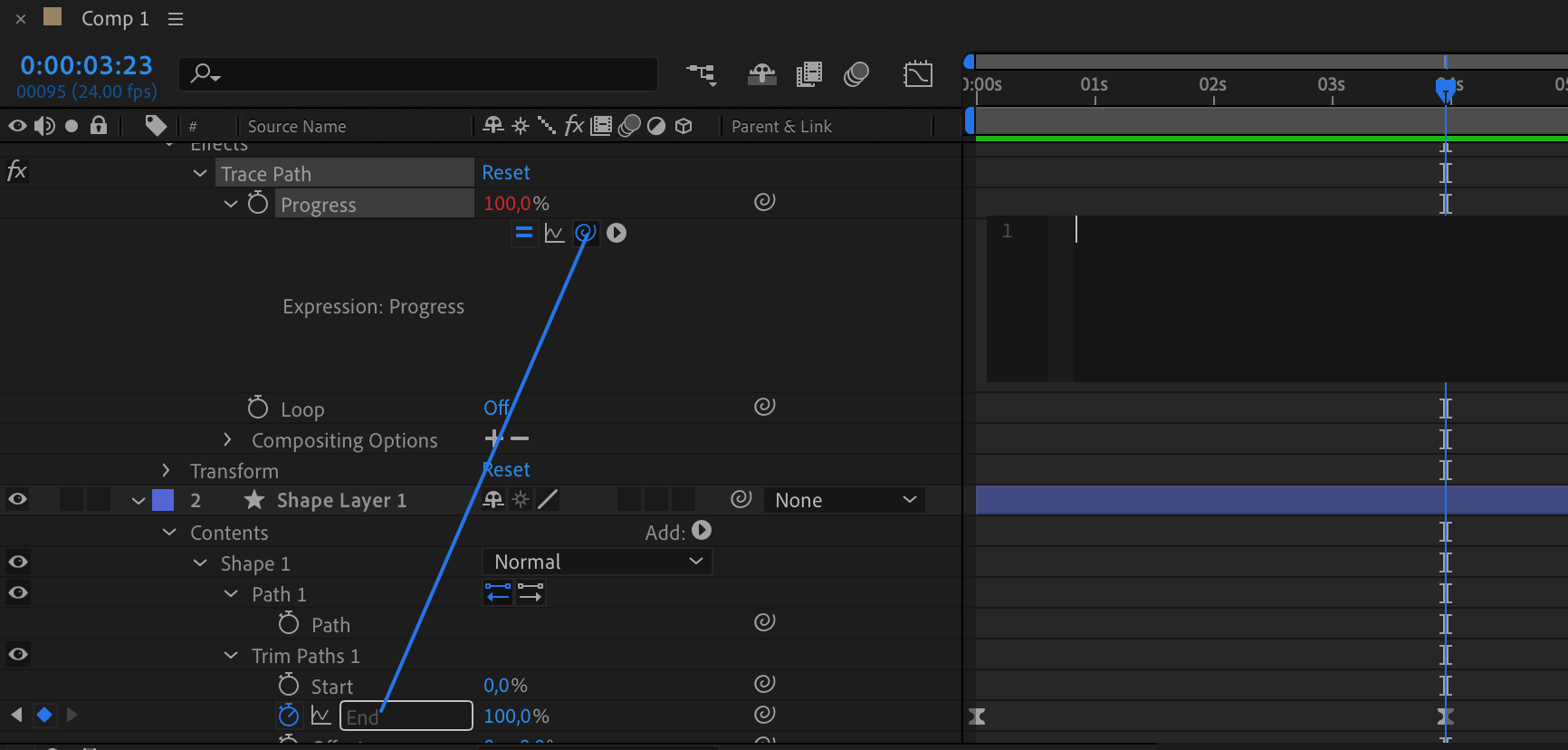

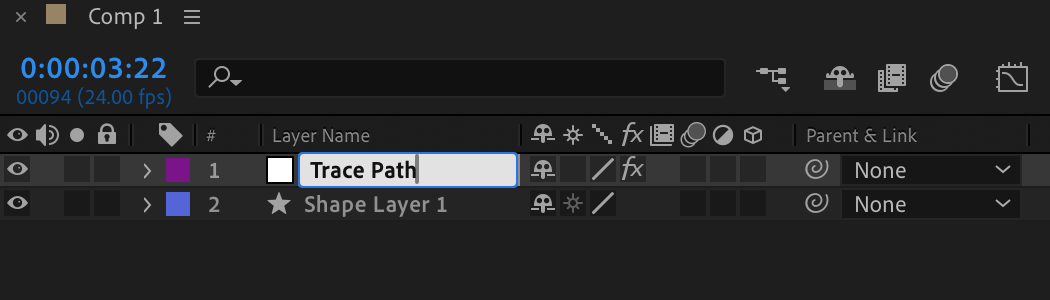

In the Effect Controls panel, ensure that the Loop option is disabled. Delete automatically created keyframes from the Progress property. Make the Progress property a child of the End property of the Shape Layer. Rename the Null Object to Trace path.

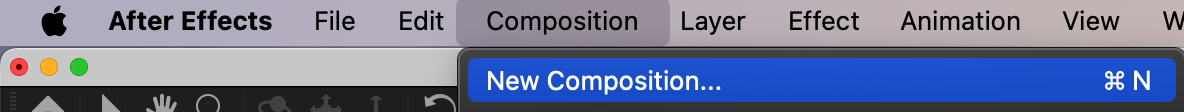

Step 7: Create Composition for Arrowhead

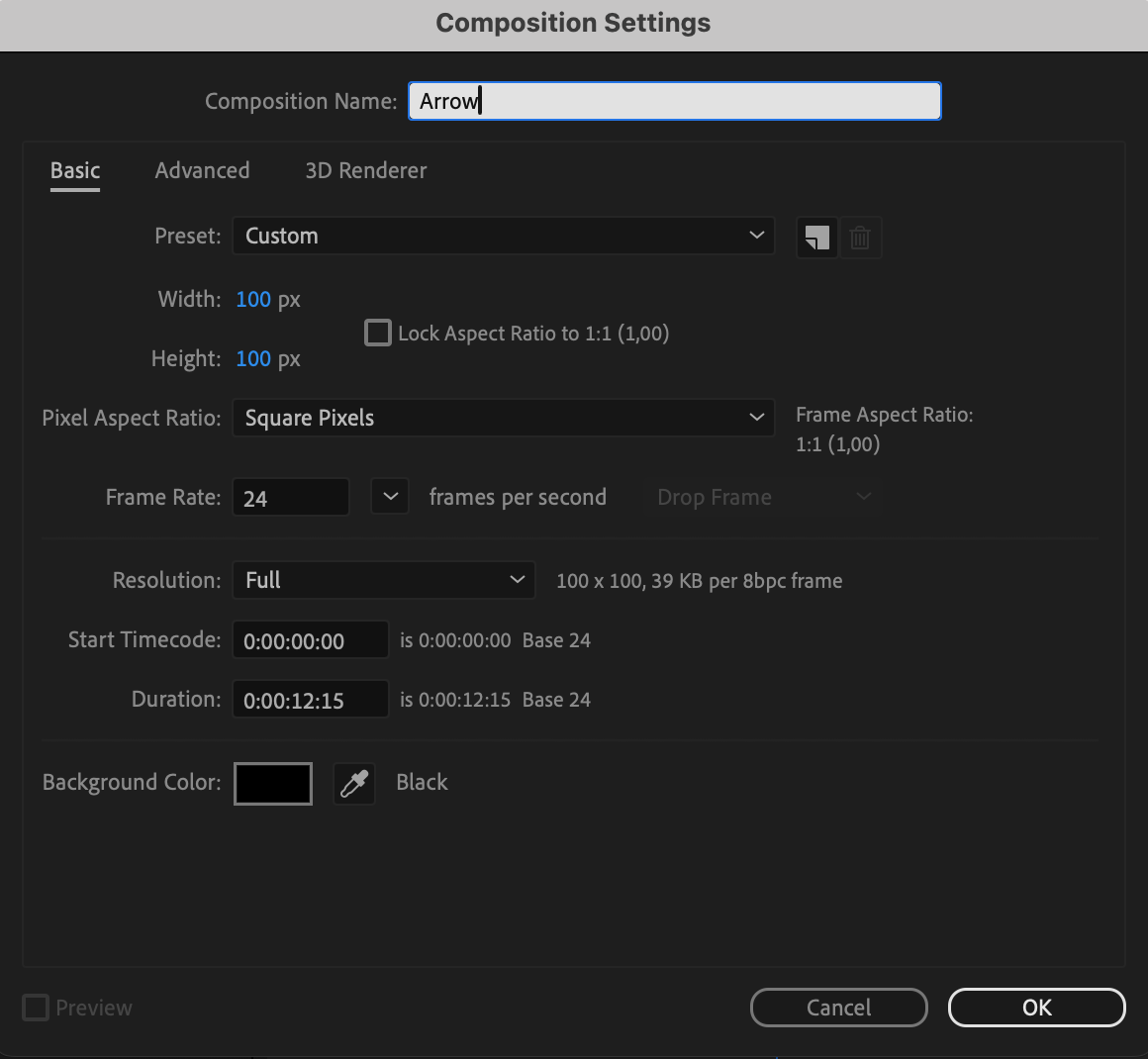

Create a new composition with the desired dimensions and name it “Arrow.”

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now

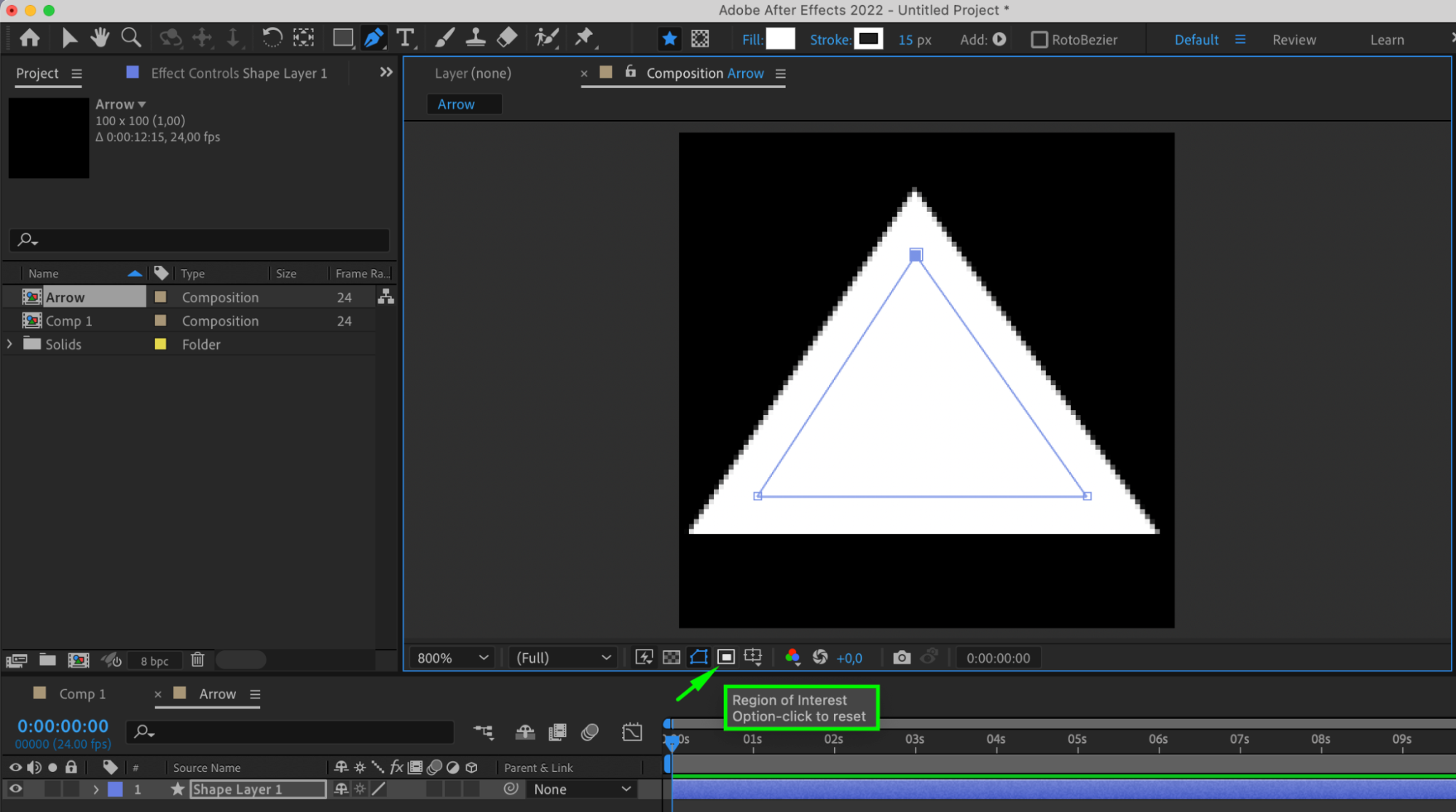

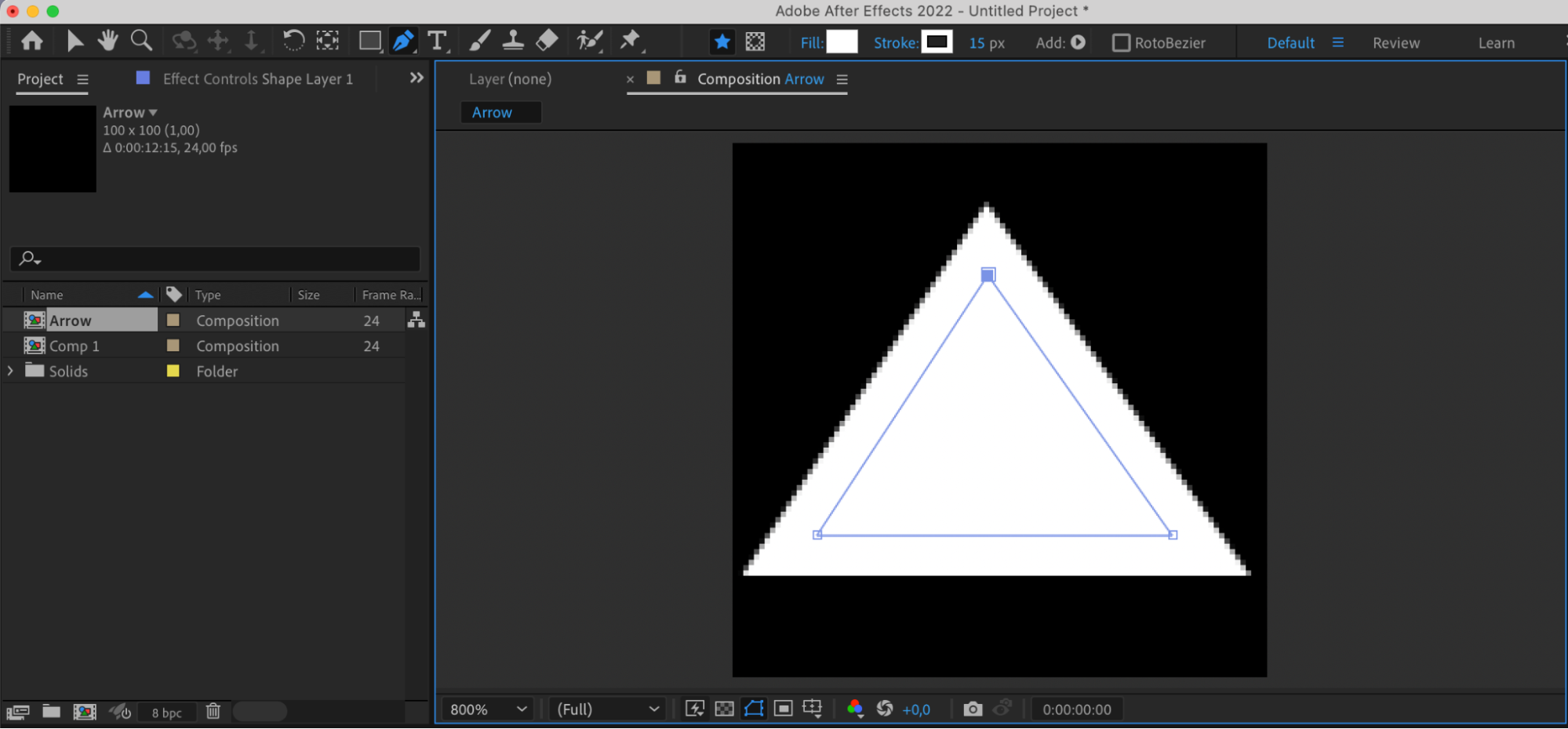

Step 8: Draw Arrowhead

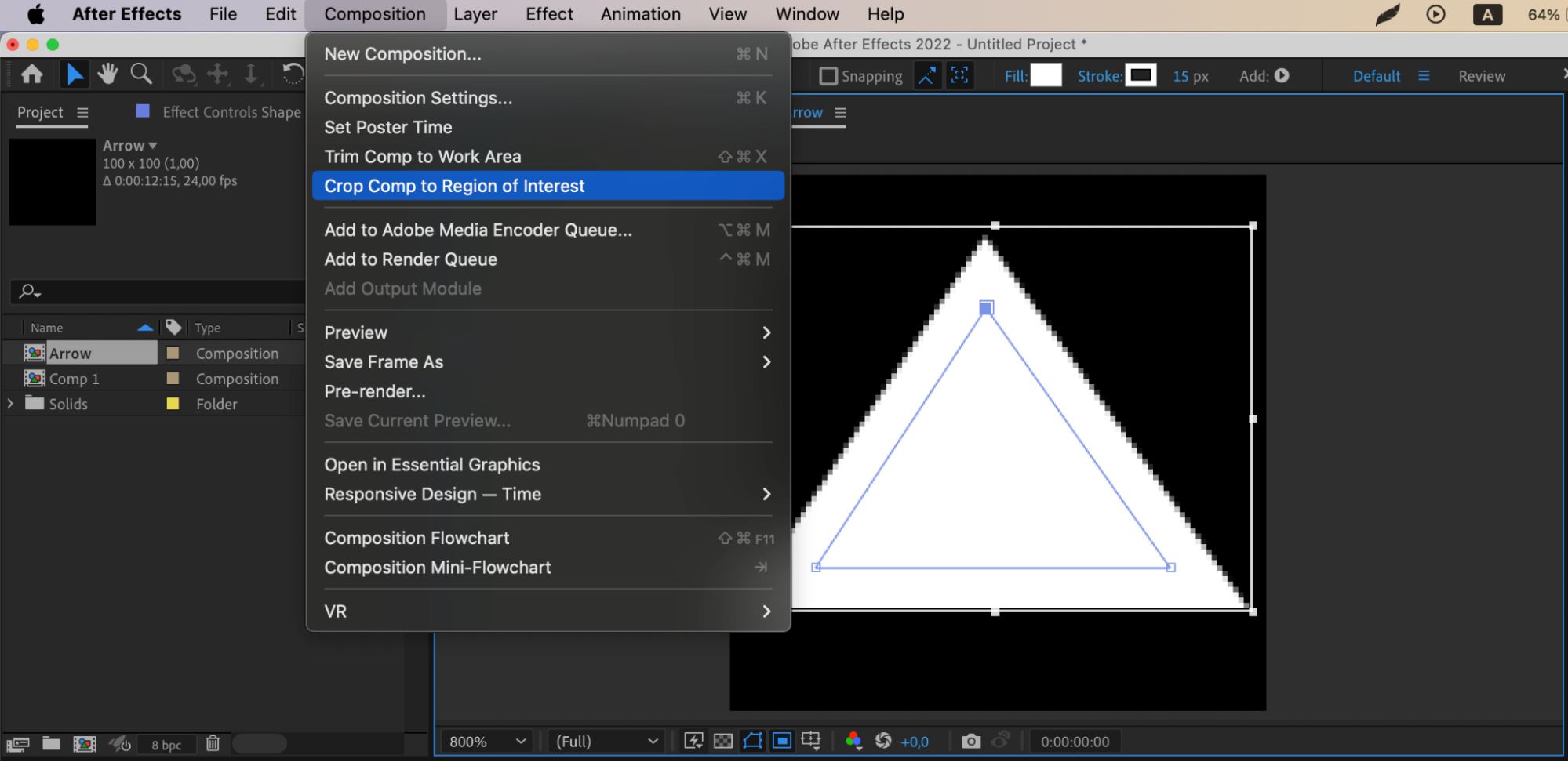

Use the Pen Tool to draw the arrowhead. Use the Region of Interest to crop the composition to the arrowhead’s size.

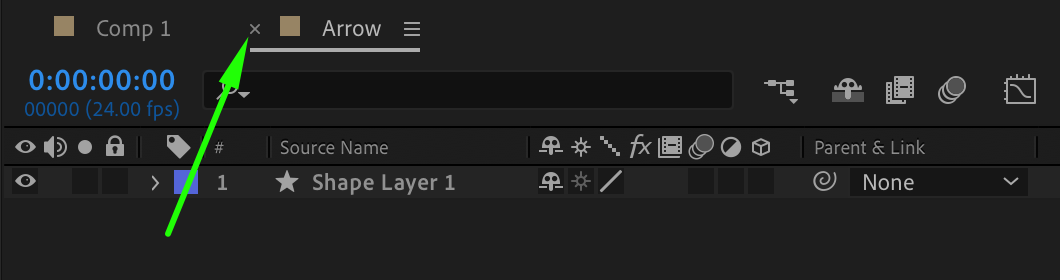

Step 9: Add Arrowhead to Main Composition

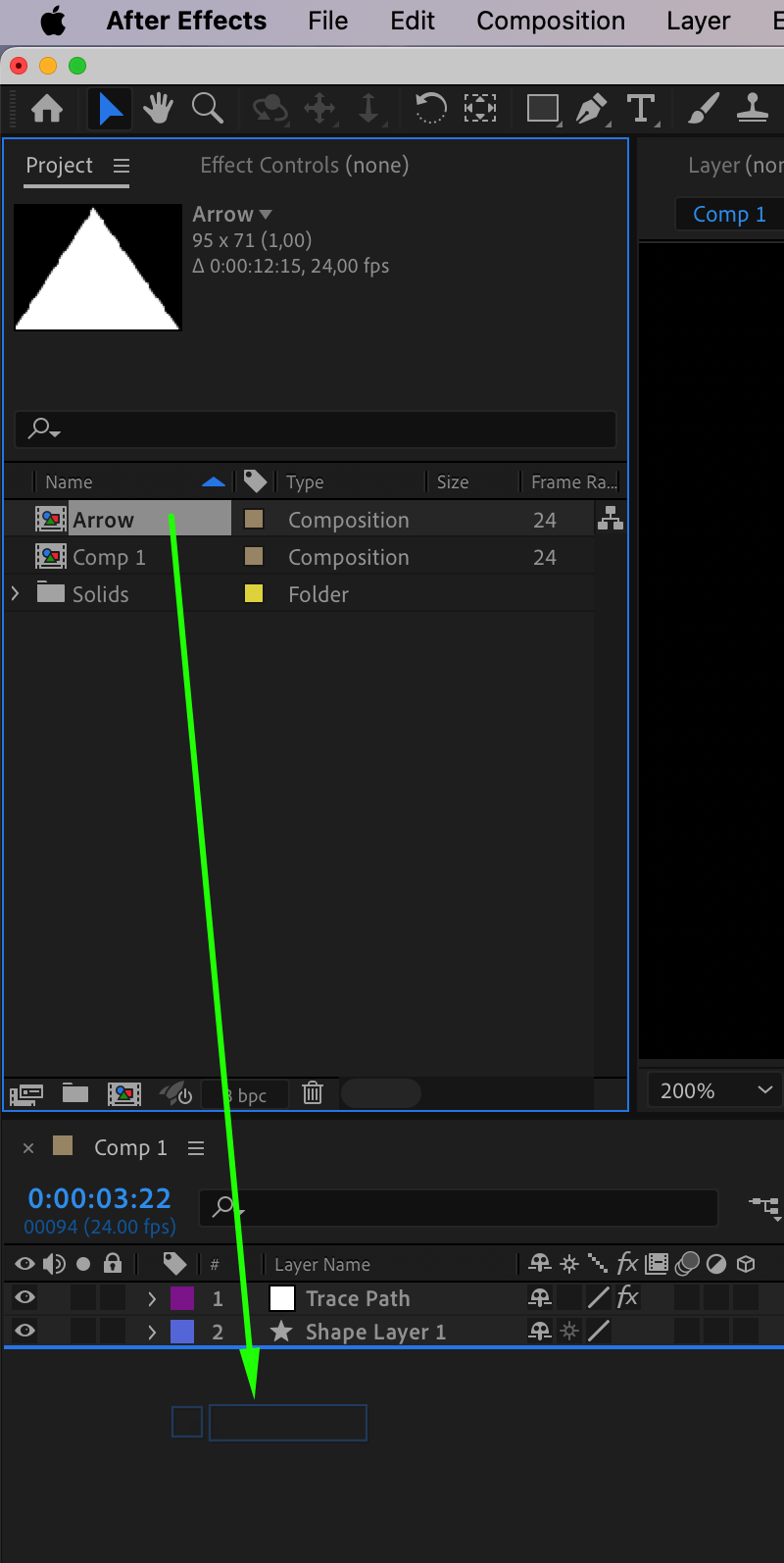

Drag the composition with the arrowhead into the main composition.

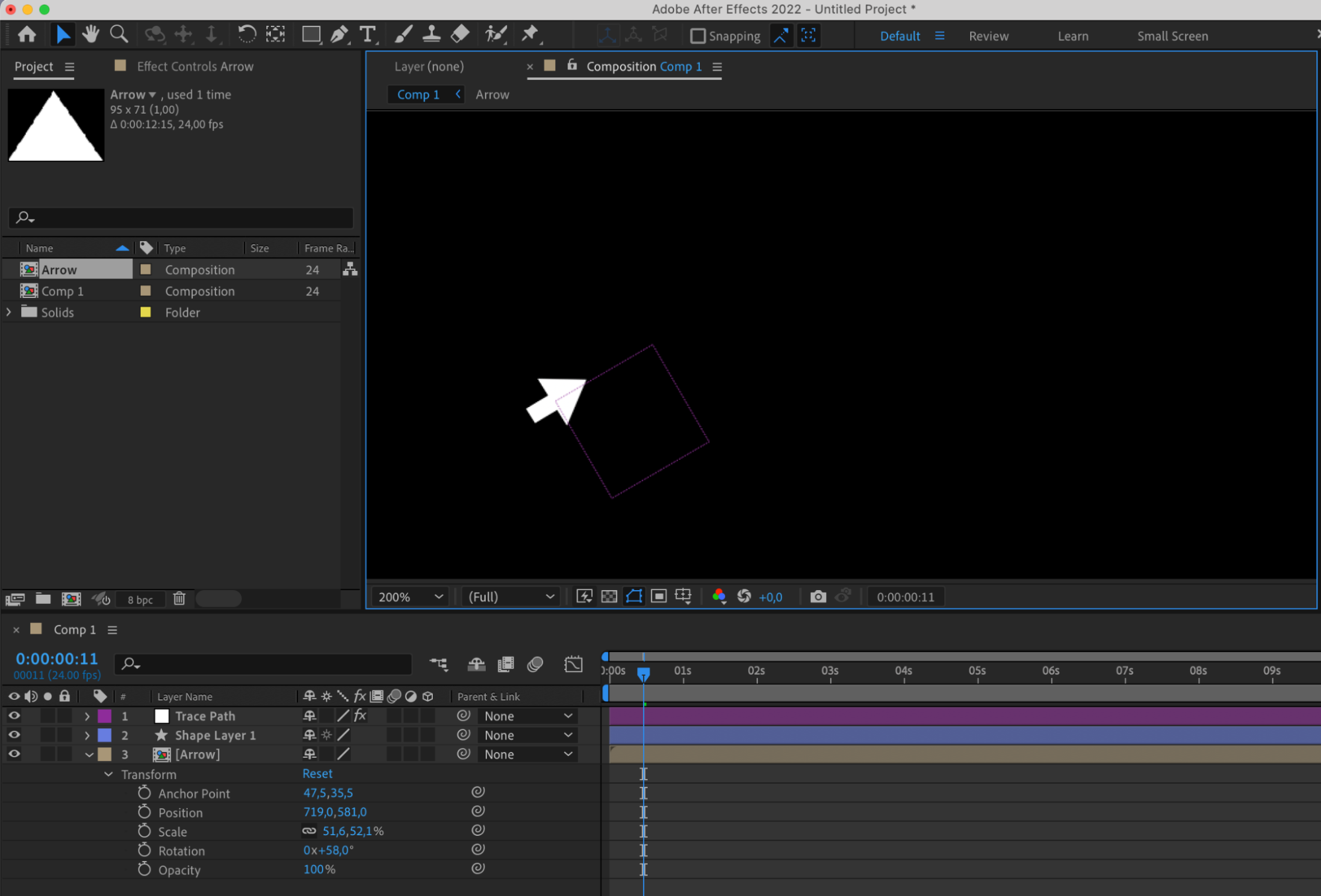

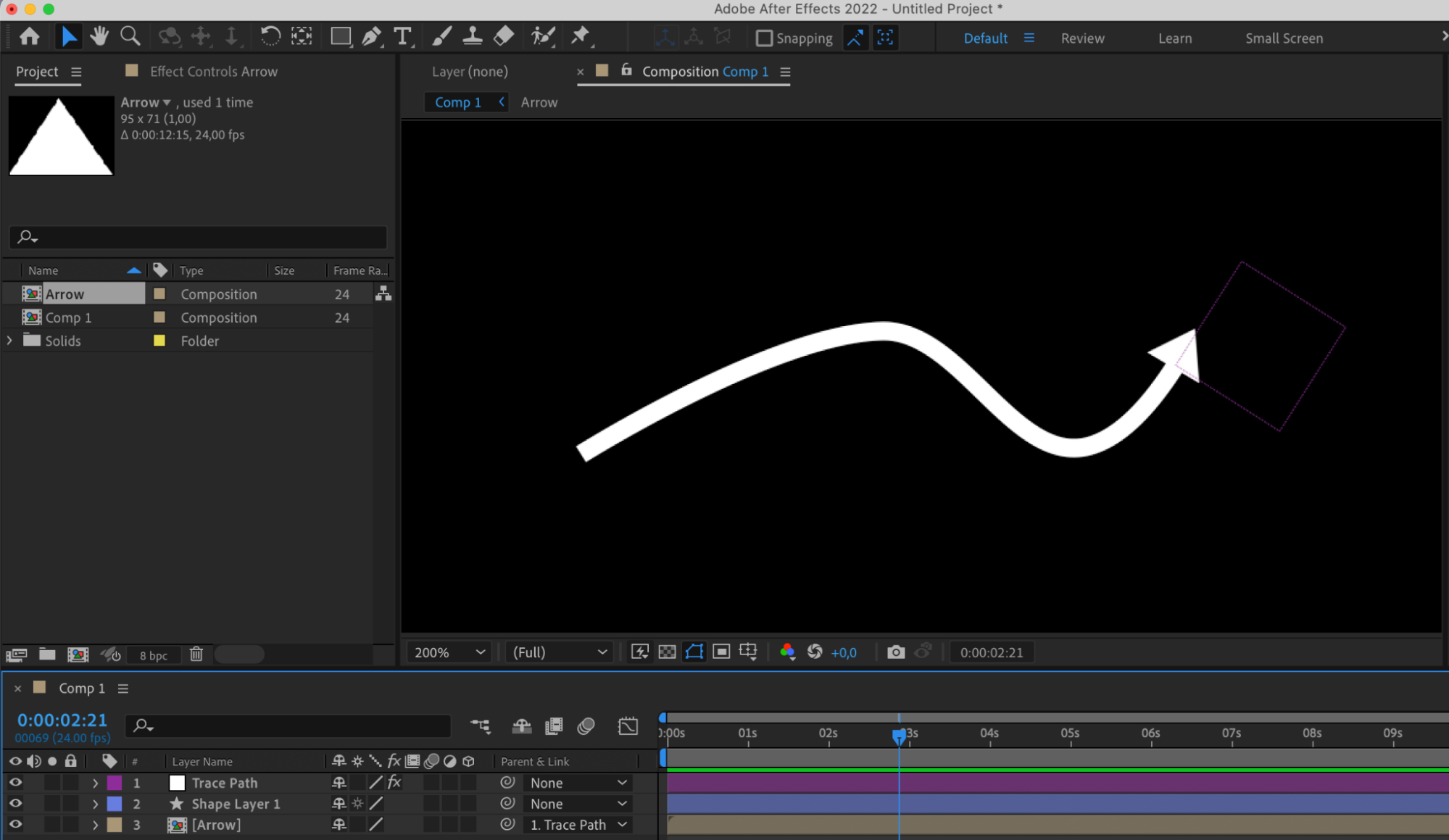

Step 10: Adjust Position and Size of Arrowhead

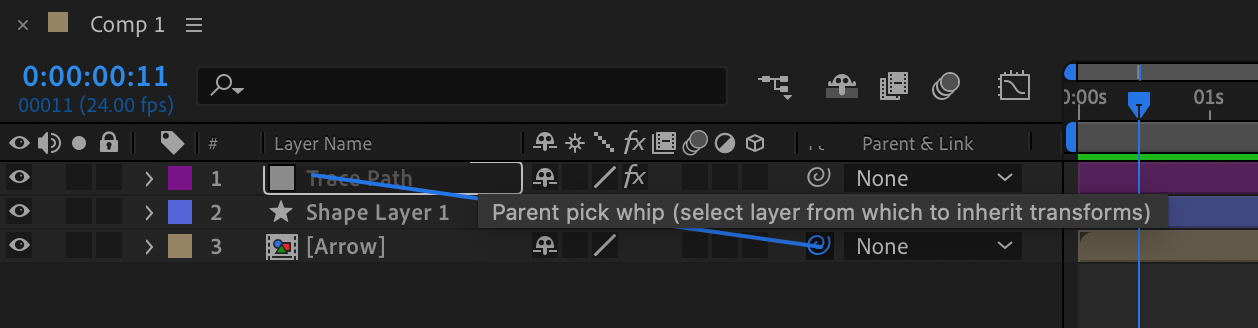

Edit the position and size of the arrowhead and make it a child layer of Trace Path.

-50%
-50%
00hrs : 00mins : 00sec
Happy HolidaysSale sitewide
Shop now


Conclusion
In this tutorial, we explored how to create dynamic arrow animations in After Effects. By following the step-by-step instructions, you’ve learned how to utilize tools like the Pen Tool, Trim Paths, and Null Objects to animate a line and add an arrowhead to it seamlessly. This technique allows for versatile and customizable arrow animations that can be used in various projects, such as motion graphics, presentations, and explainer videos. With practice and creativity, you can further enhance these animations to suit your specific needs and bring your ideas to life in After Effects. Now, armed with this knowledge, you’re ready to incorporate captivating arrow animations into your next project with confidence. Experiment, explore, and enjoy the creative possibilities that After Effects has to offer!
