Step-by-Step Guide to Masking a Moving Object in After Effects

Introduction to Masking Moving Objects in After Effects

Creating a mask that follows a moving object in After Effects allows for greater control and focus on specific parts of your footage. Masking moving objects can help isolate subjects, apply effects selectively, or enhance visual storytelling. This guide walks you through the essential steps to mask a moving object using After Effects’ powerful tracking tools.

Step 1: Import Your Video File

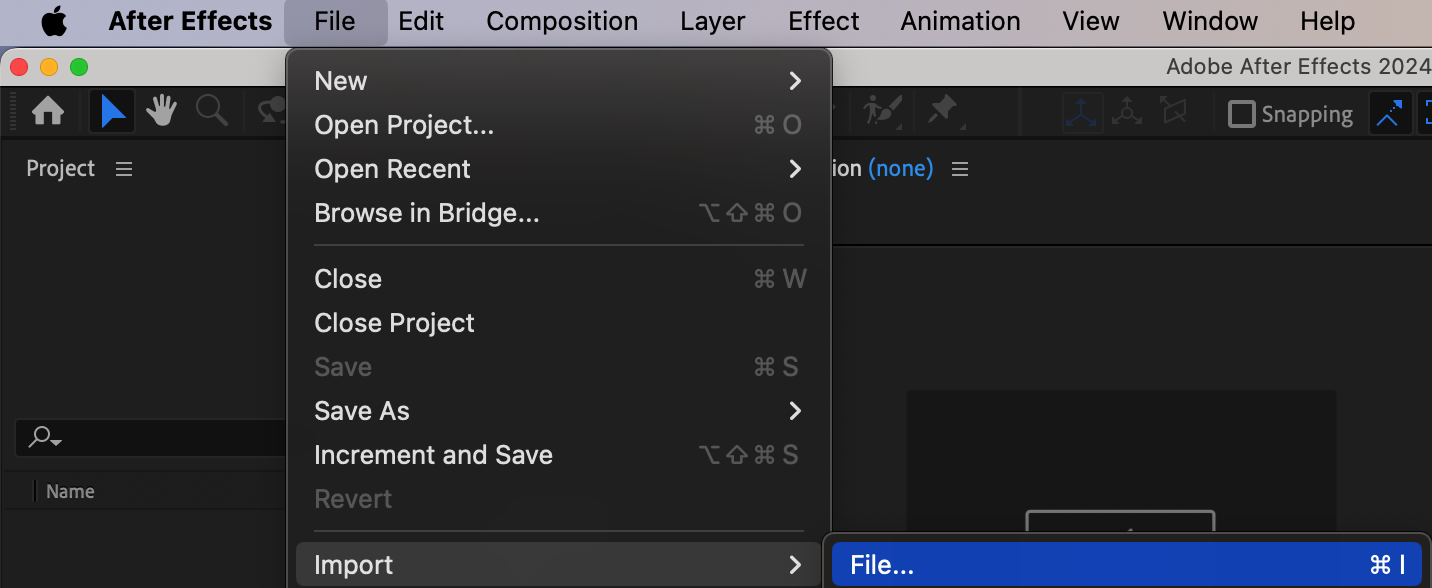

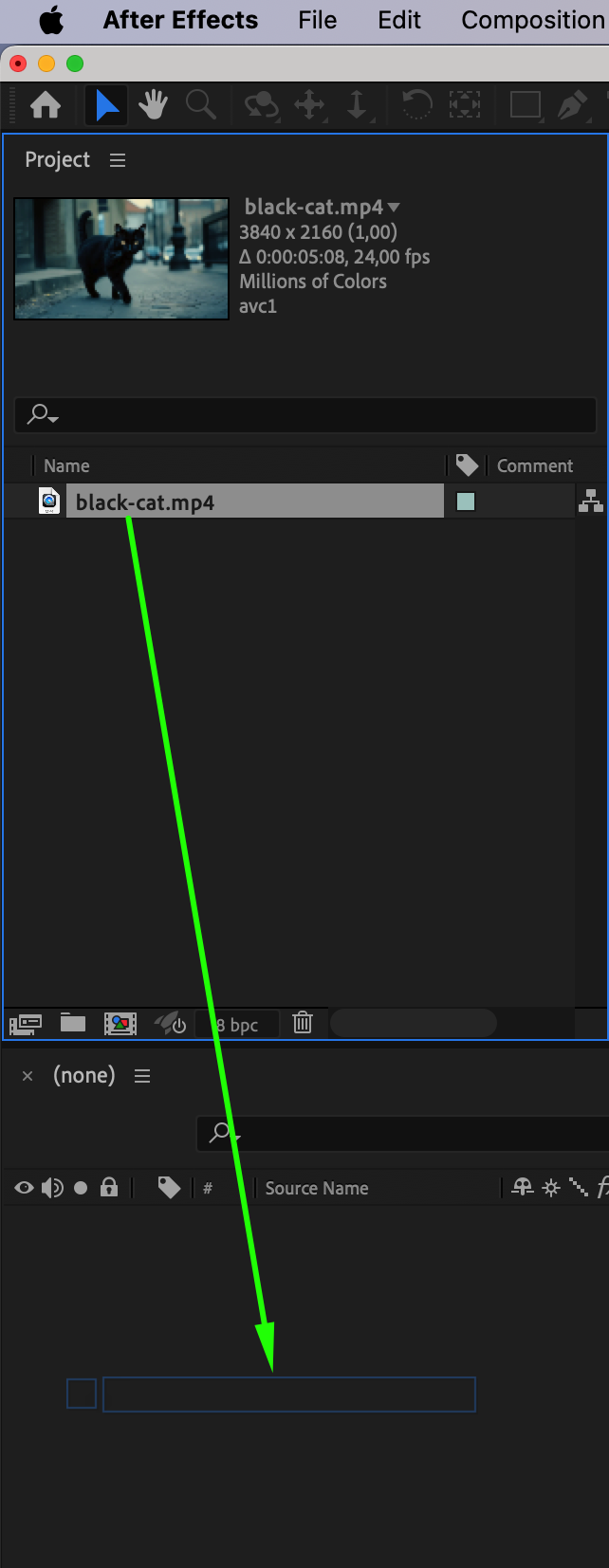

To get started, import the video file that you want to work with. Go to File > Import > File and select your video. Once imported, drag the file onto the timeline to add it to your composition. This will create a new composition that you’ll use as the workspace for your masking and tracking. Step 2: Select the Object with the Shape Tool

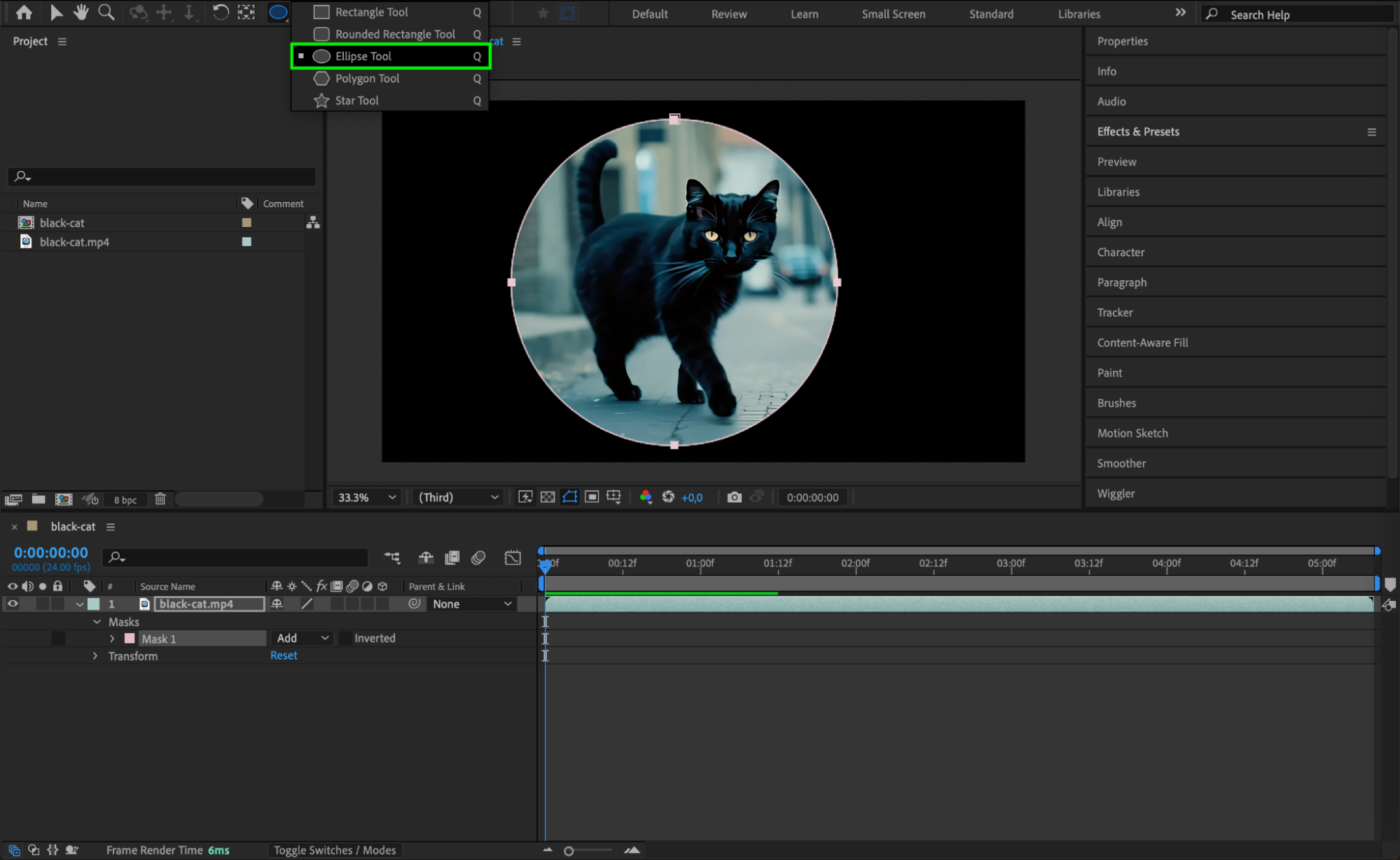

With the video layer selected, go to the toolbar and choose the Shape Tool (Q). Use the tool to draw a shape around the moving object you want to mask. This shape will create an initial mask that you will later animate to follow the object’s movement in the video.Step 3: Track the Mask

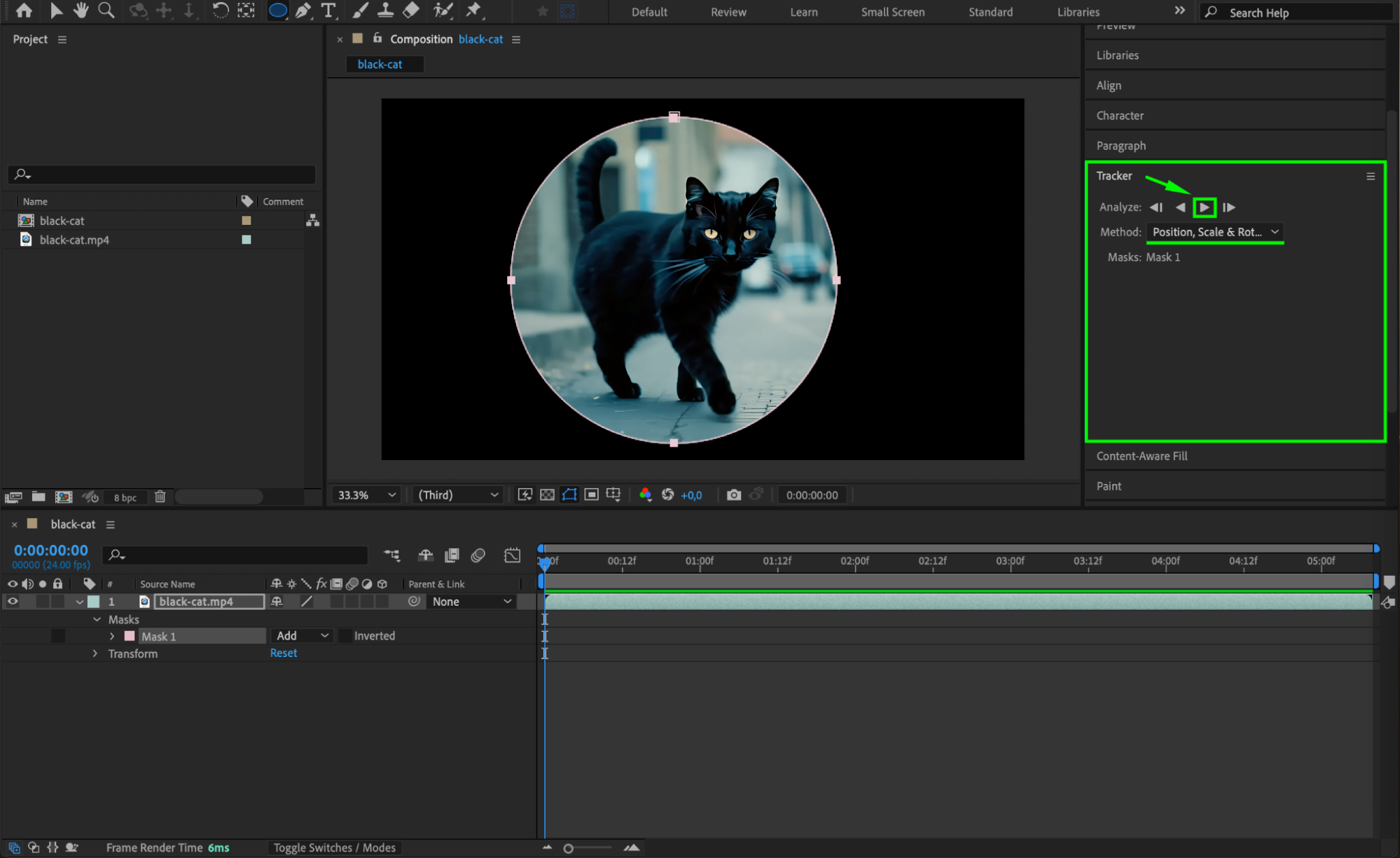

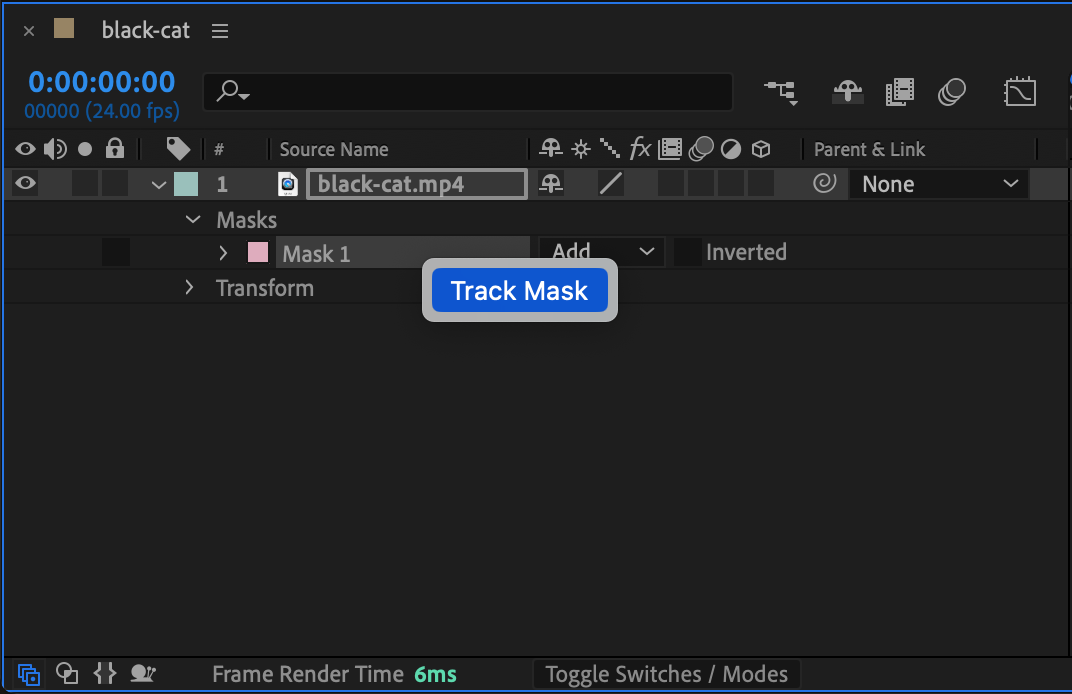

Right-click on the mask you just created and choose “Track Mask” from the dropdown menu. In the Tracker panel, set the tracking method to “Position, Scale & Rotation” to ensure that the mask accurately follows the object’s movements. Then, in the Analyze section, press the “Play” button to begin tracking. After Effects will automatically analyze the movement of the object and adjust the mask accordingly. Step 4: Review Keyframes in Mask Path

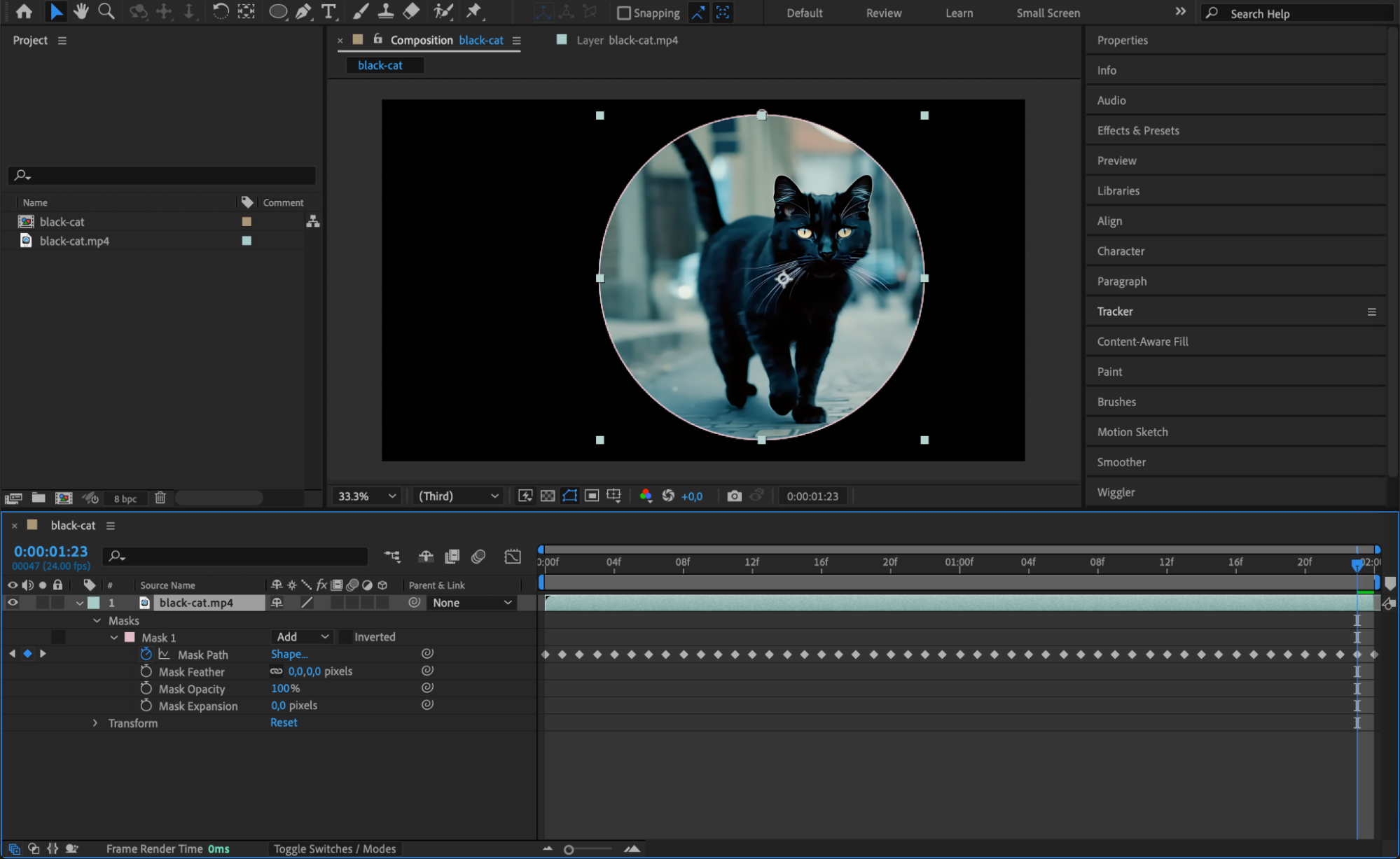

Once the mask tracking is complete, check the Mask Path property under the mask options. You will see that After Effects has created keyframes for the mask, following the movement of your object throughout the footage. These keyframes are essential for maintaining the accuracy of your mask

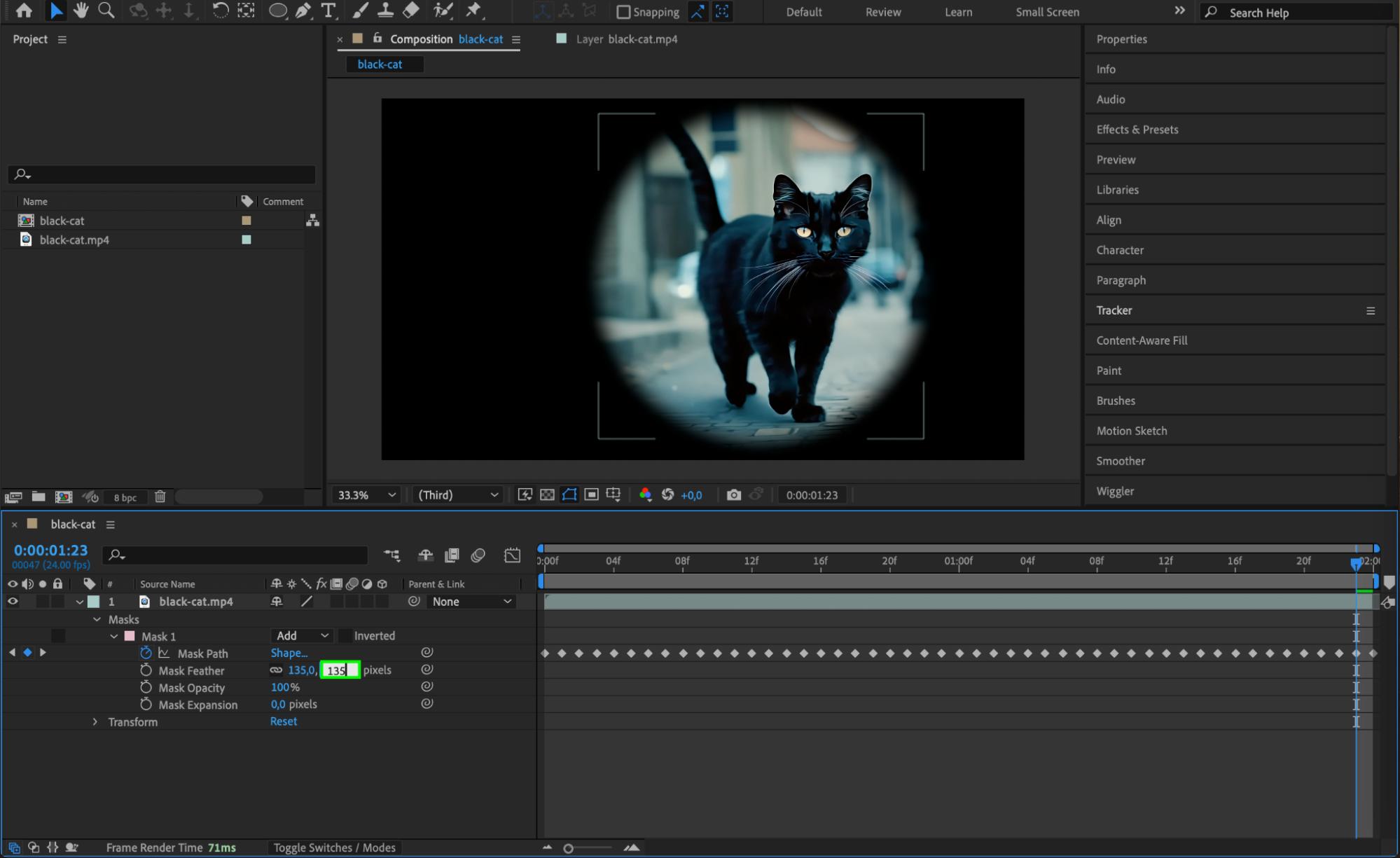

Step 5: Refine the Mask with Feather and Expansion

To make the mask blend more naturally, adjust the Mask Feather and Mask Expansion settings. Feathering softens the mask edges, while expansion adjusts the mask size, allowing for a smoother integration with the surrounding footage. Small adjustments here can make a big difference in the final look of your mask.Step 6: Preview the Masked Footage

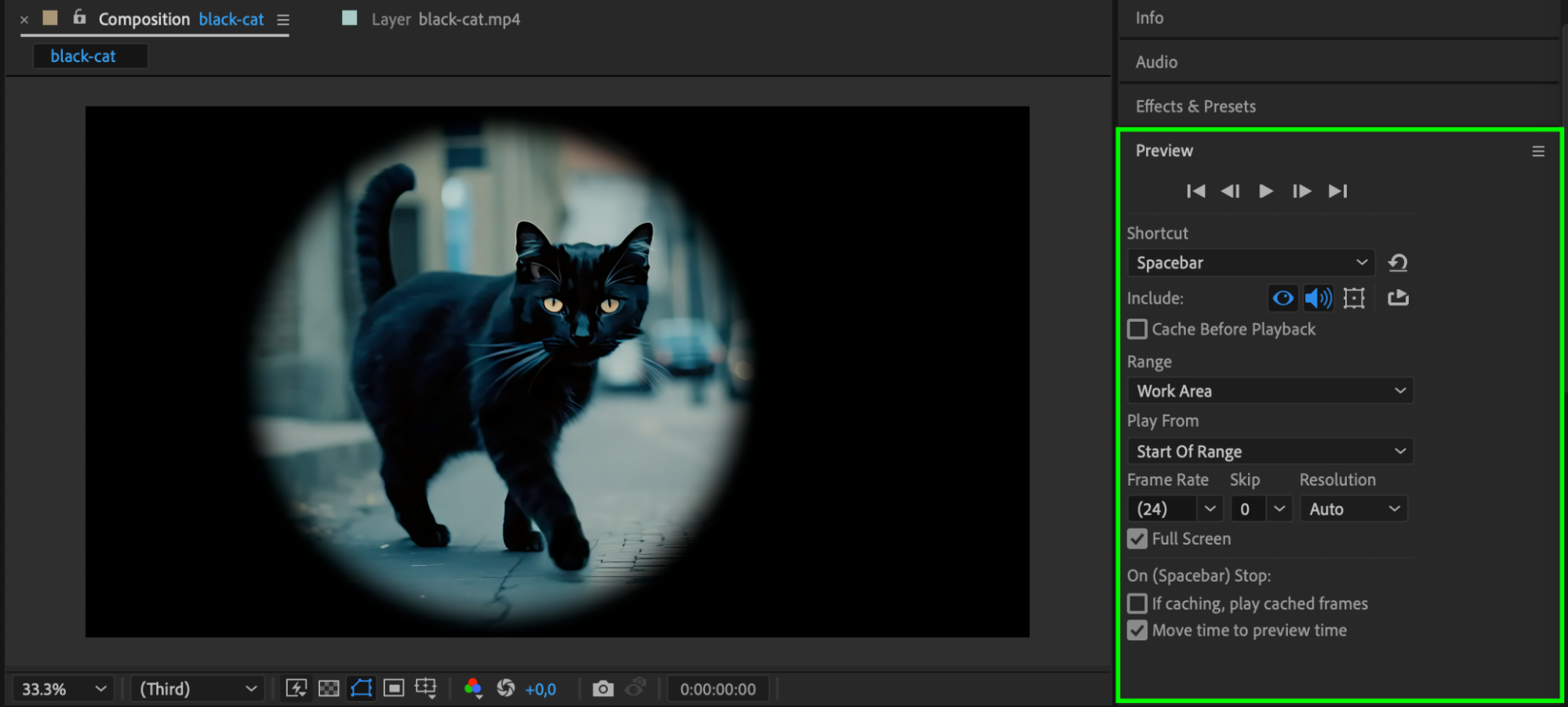

Press Spacebar to play back the composition and review the masked object. Check that the mask accurately follows the object’s movement without any noticeable gaps or rough edges. If adjustments are needed, you can fine-tune the keyframes manually.Step 7: Export the Final Composition

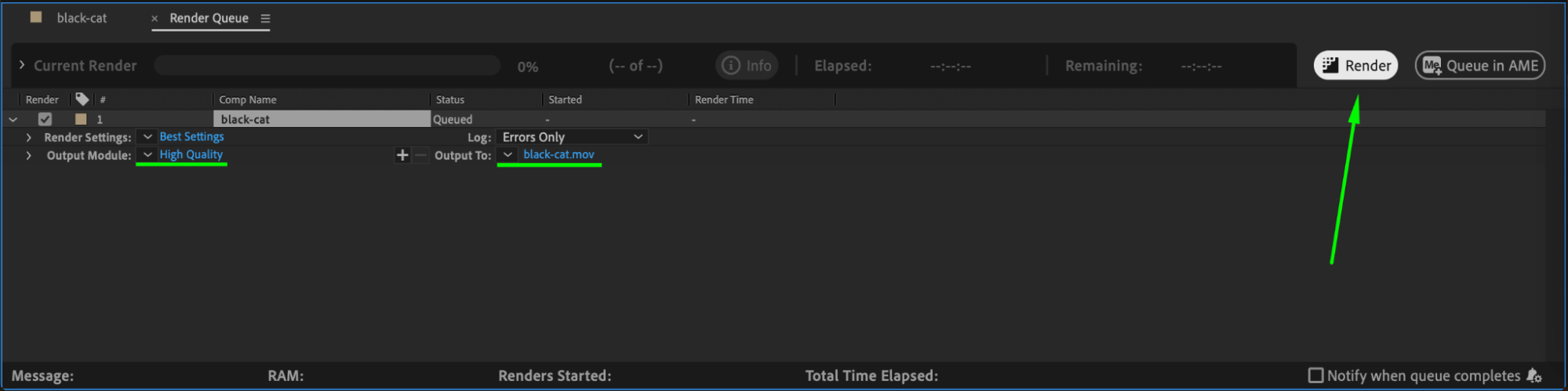

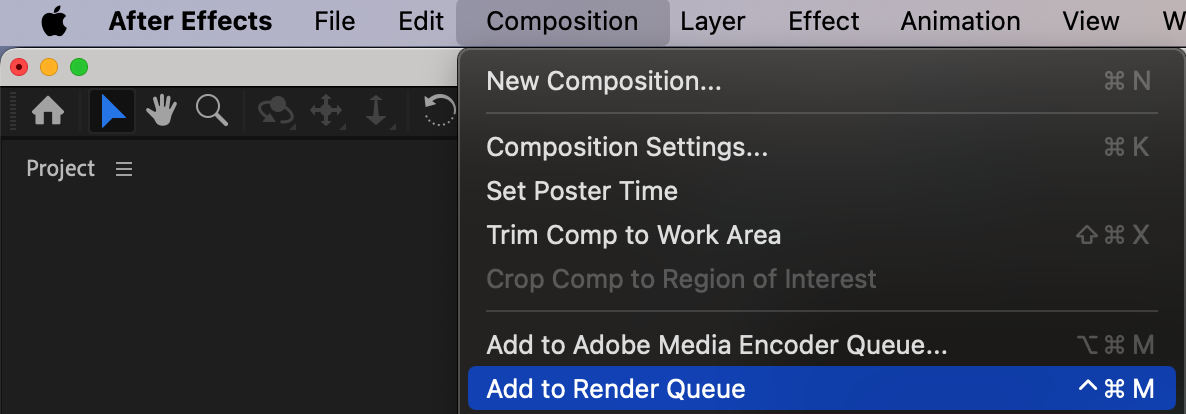

When you’re satisfied with the result, go to Composition > Add to Render Queue. Set your output settings as desired, and click Render. This will export your video with the masked object, ready for further editing or final delivery.

Conclusion

By using After Effects to create a mask for moving objects, you can add professional, targeted effects to specific parts of your footage. Experimenting with mask tracking, feathering, and expansion will allow you to achieve a polished and dynamic look. With these techniques, you can masterfully isolate elements in motion, elevating the quality of your video projects.
