A Complete Guide to Masking Out Objects in After Effects
Introduction – Isolating and Hiding Elements Using Masks in After Effects
In After Effects, masking is a powerful technique that allows you to isolate or hide specific parts of a layer, giving you full control over your composition. Masks can be used for a variety of effects, from creating transitions to removing unwanted elements. In this guide, we’ll cover how to mask out objects using the Pen Tool, Shape Layers, and other masking techniques.
Step 1: Import Your Footage

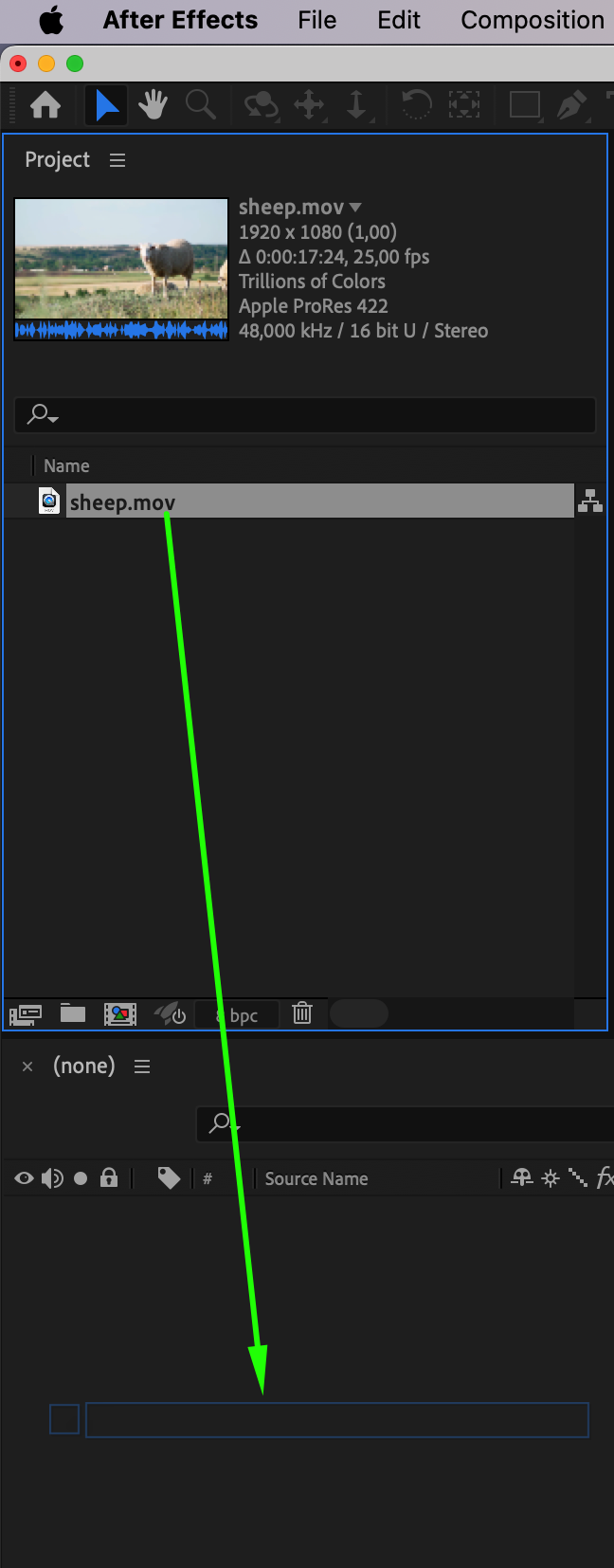

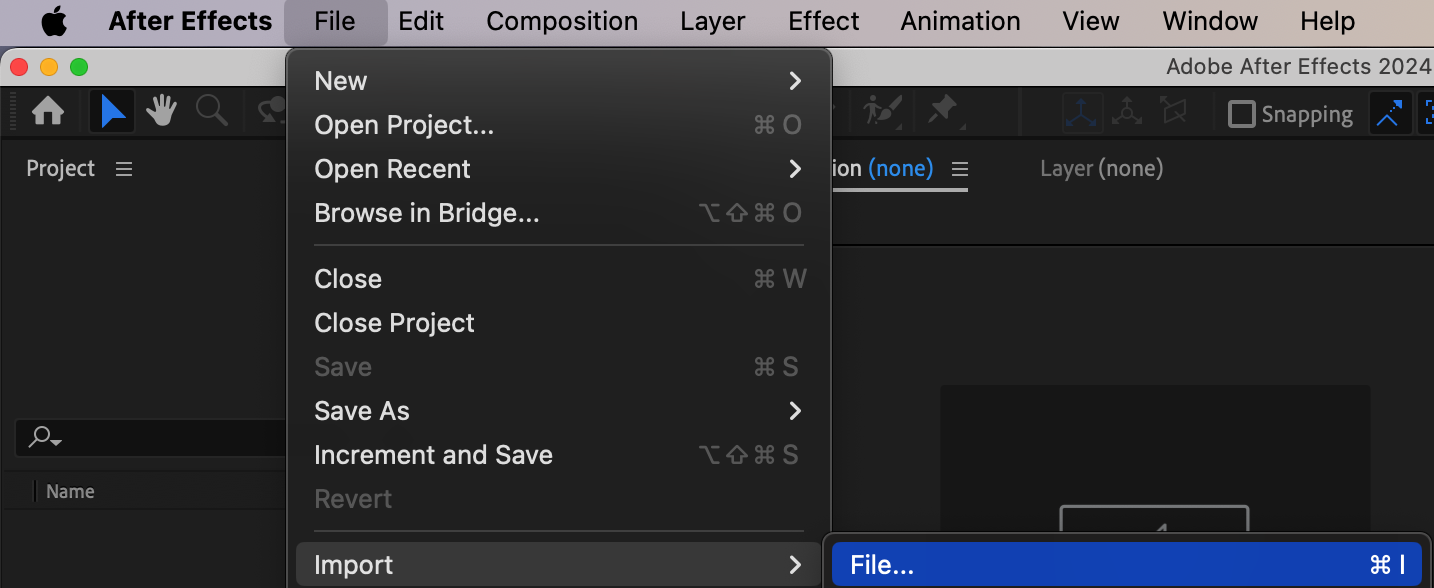

First, import your video or image footage into After Effects. Go to File > Import > File and select the footage you want to work with. Drag the imported file into the timeline to create a new composition.

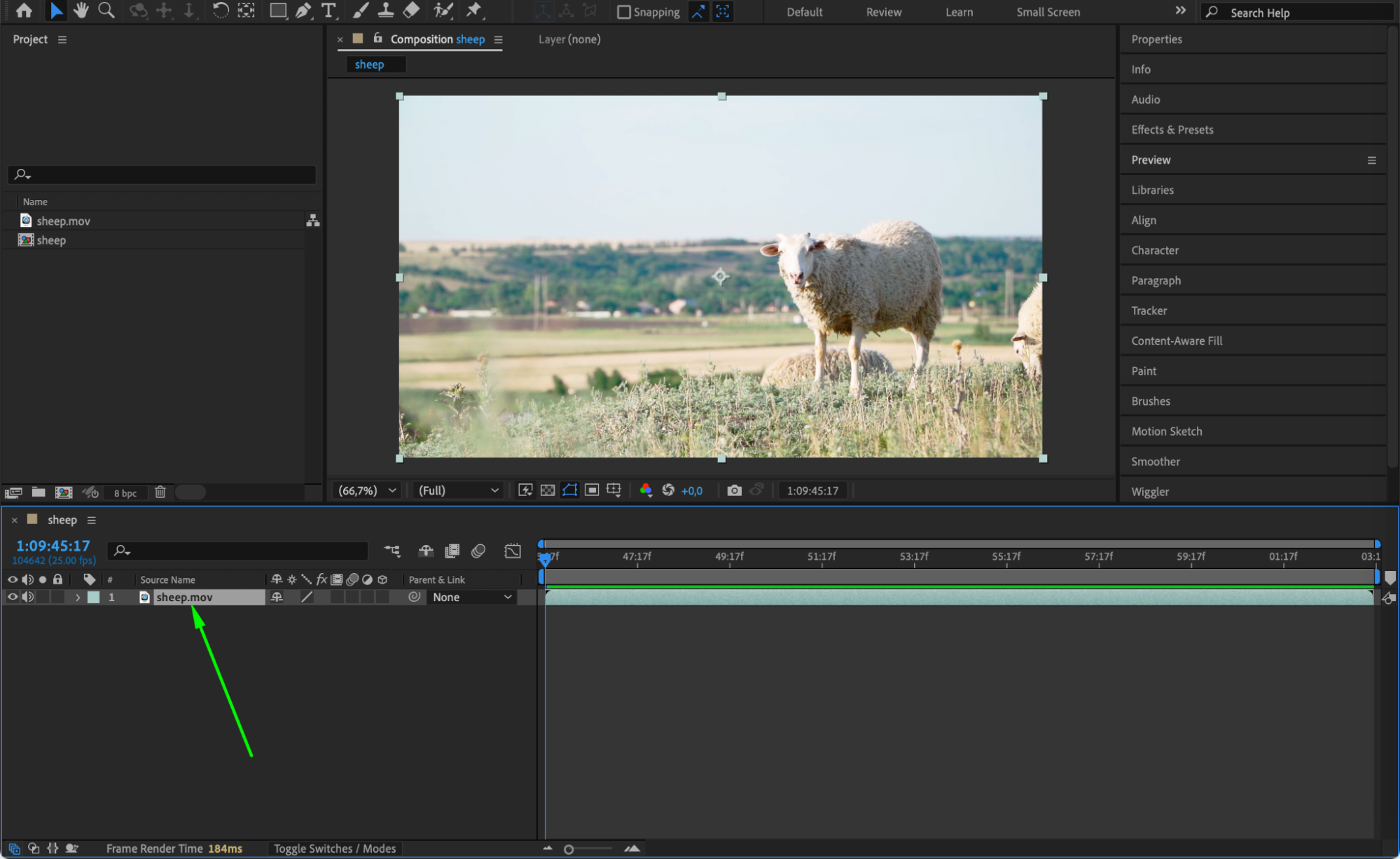

Step 2: Select the Layer You Want to Mask
Click on the layer in the timeline that contains the object you want to mask. This could be a video clip, image, or solid layer. Make sure the layer is selected before proceeding with the next steps.
Step 3: Choose the Masking Tool
To create a mask, you can either use the Pen Tool (G) for custom shapes or the Shape Tool for simple rectangular or elliptical masks. The Pen Tool allows you to draw complex, freeform paths, while the Shape Tool creates basic geometric shapes like rectangles or ellipses.
For the Pen Tool:
Select the Pen Tool (G) from the toolbar.
Click around the edges of the object you want to mask out to create a path.
Close the path by clicking on the starting point.

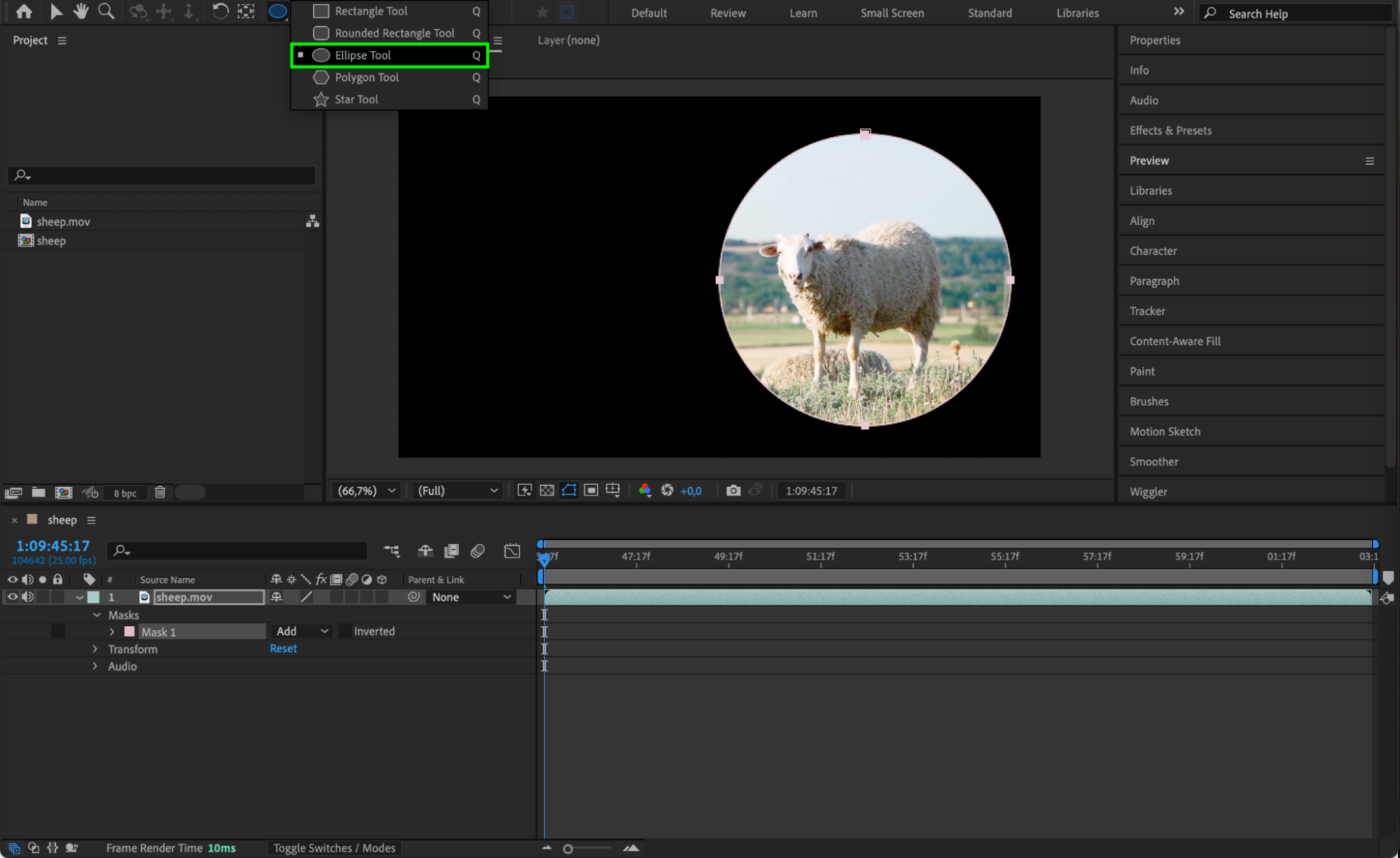

For the Shape Tool:
Select the Rectangle Tool or Ellipse Tool from the toolbar.
Click and drag in the composition panel to create a mask.

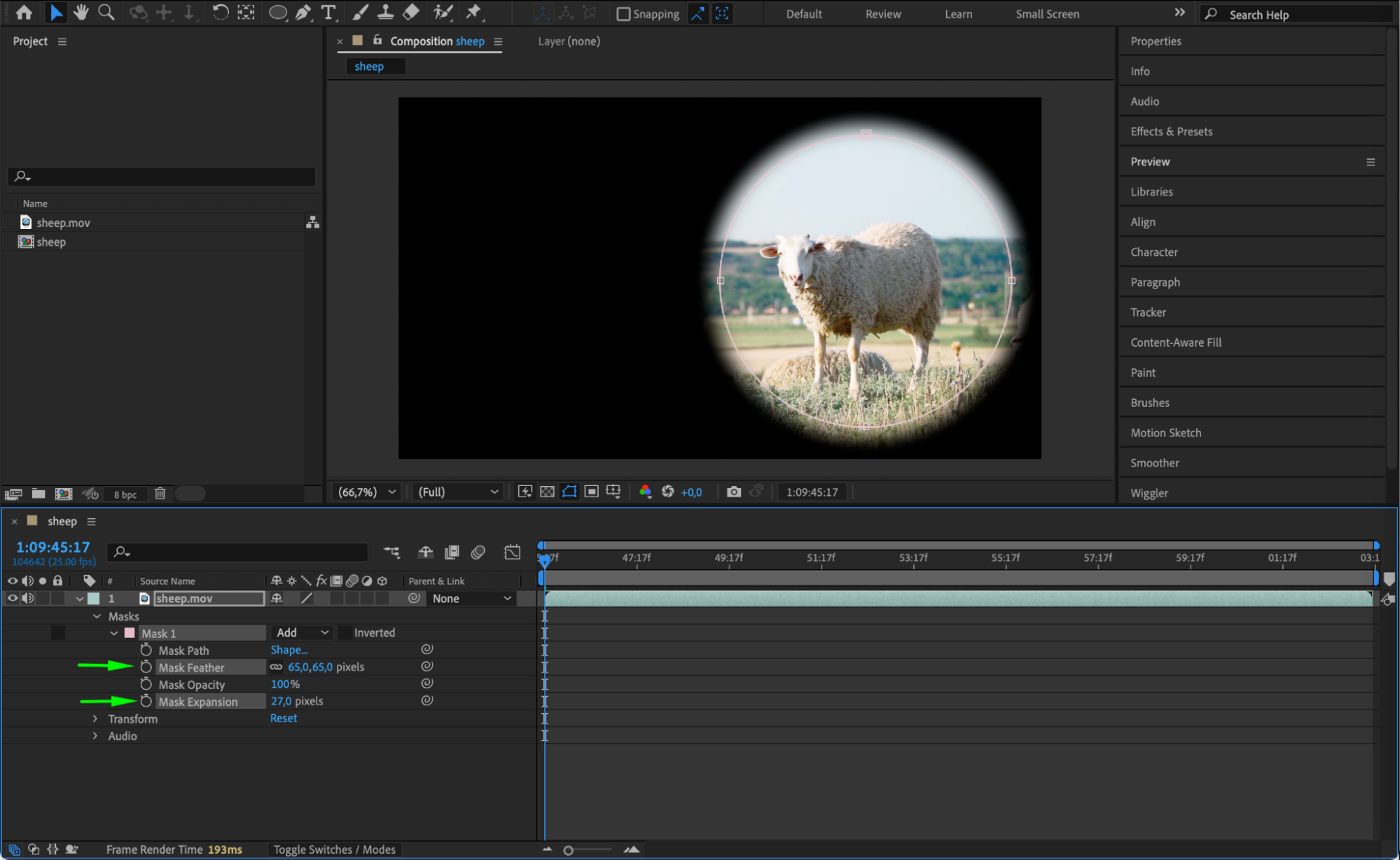

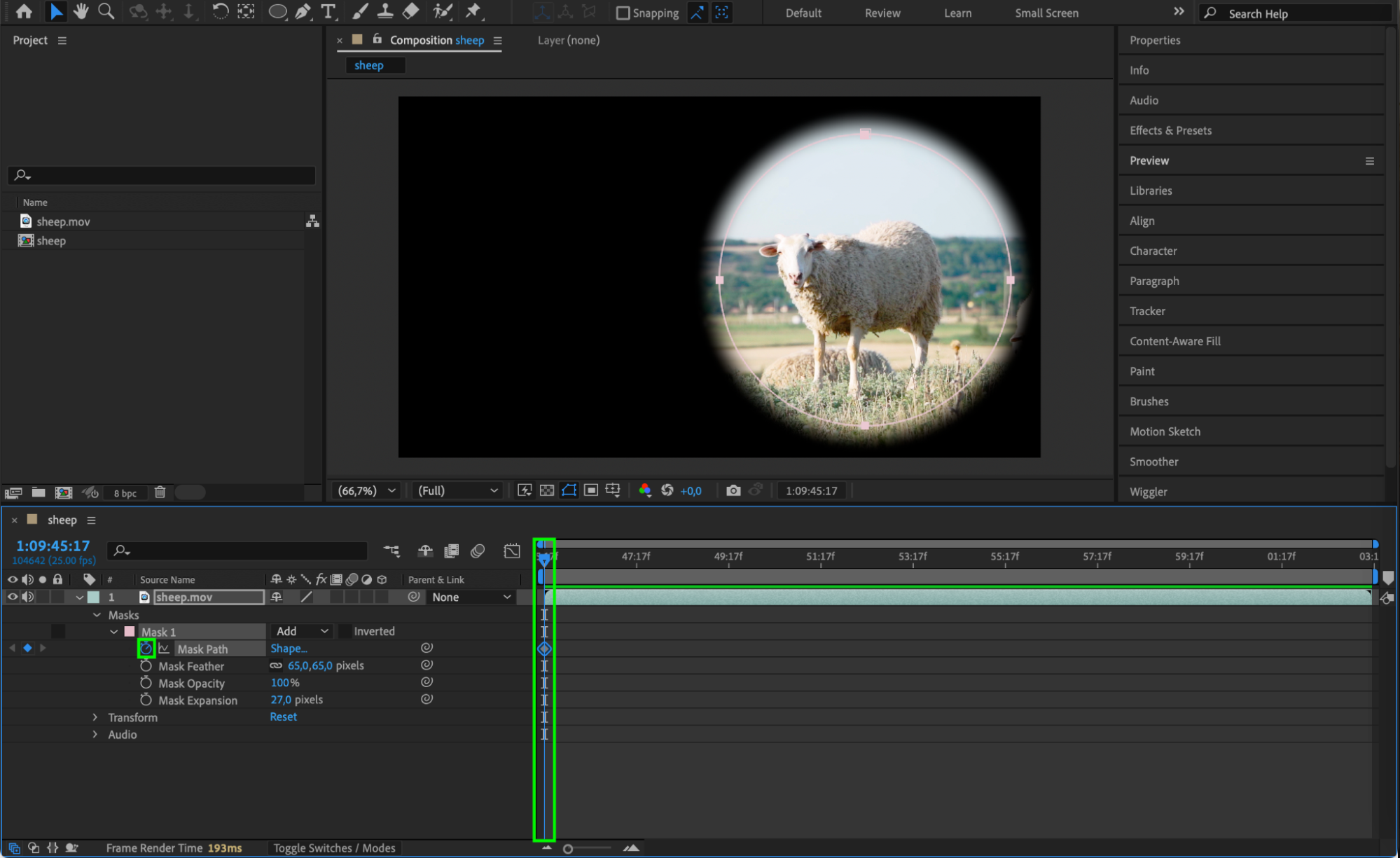

Step 4: Refine the Mask
After creating your mask, refine it by adjusting the mask path, feather, opacity, or expansion. You can do this by selecting the mask in the timeline and expanding its properties. To access these properties, click on the small triangle next to the layer name, and under Masks, adjust the following options:
Mask Path: Modify the points of the mask to better fit the object.
Feather: Soften the edges of the mask for a smoother transition.
Opacity: Adjust the transparency of the masked area.
Expansion: Change the size of the mask to include more or less of the image.

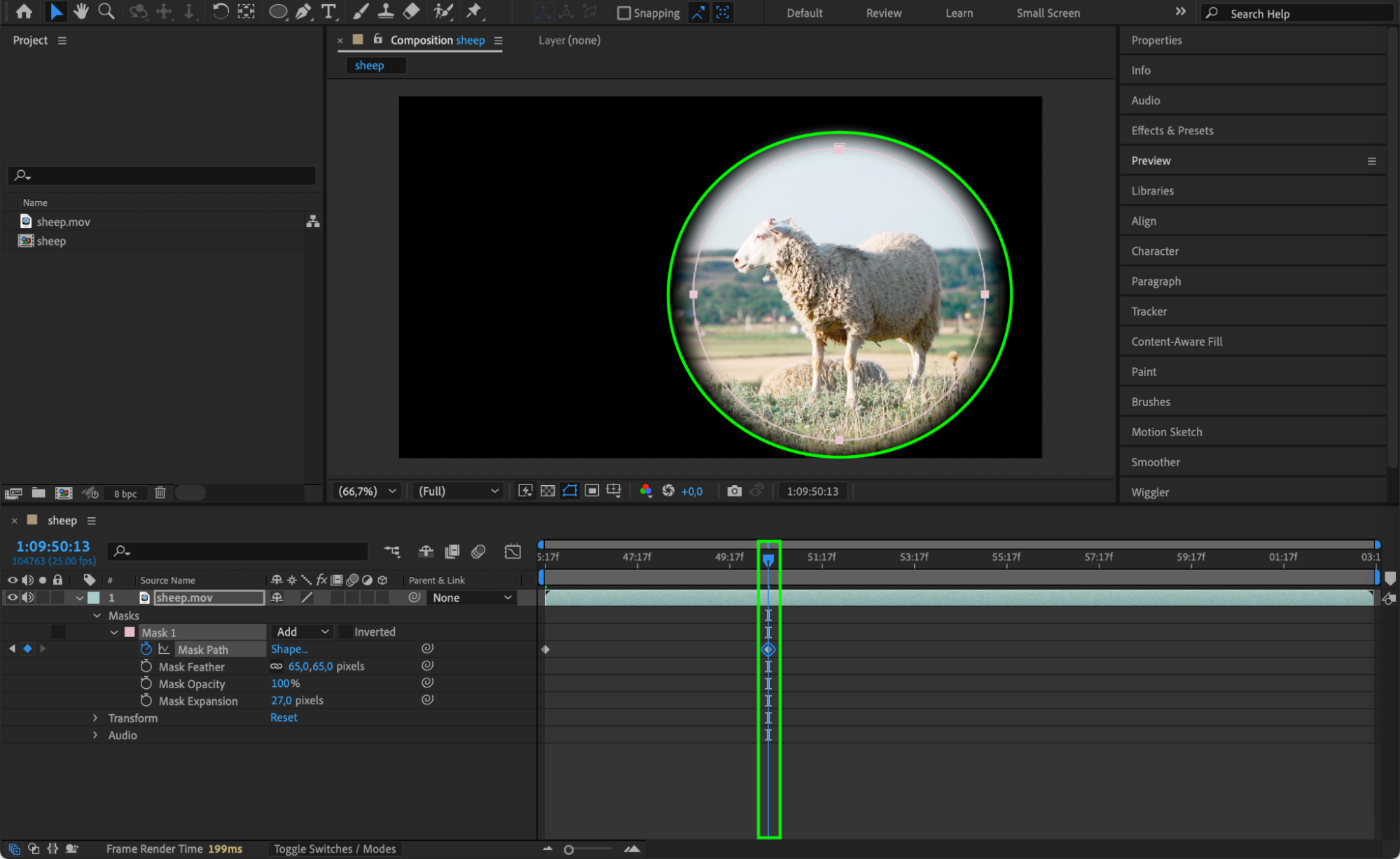

Step 5: Animate the Mask (if necessary)
If the object you are masking out is moving, you will need to animate the mask path.
Select the Mask Path property in the timeline.
Click the stopwatch to create a keyframe at the start position of the mask.
Move forward in the timeline and adjust the mask points to follow the movement of the object. After Effects will automatically create new keyframes for each adjustment.

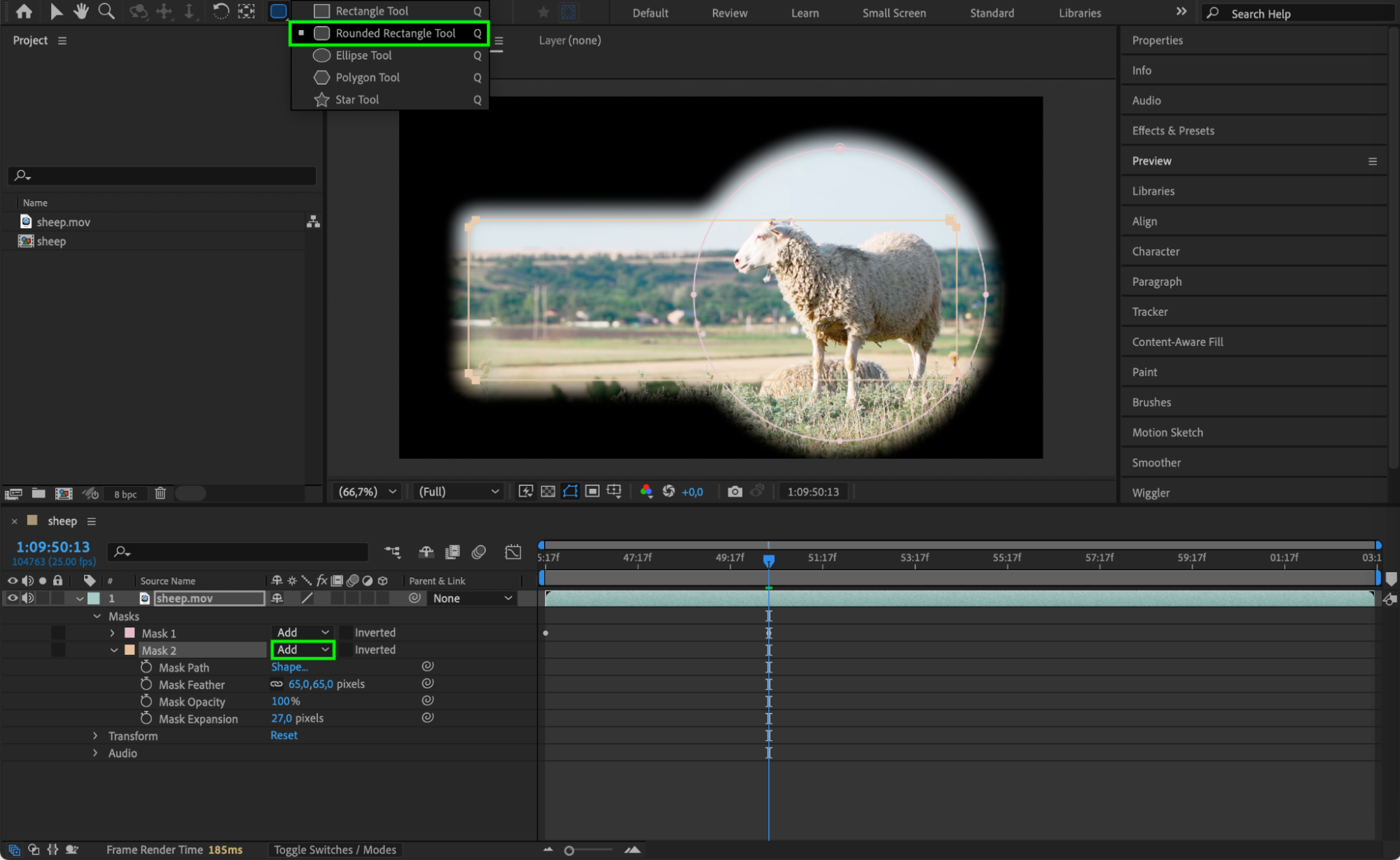

Step 6: Use Multiple Masks (Optional)
For more complex masking, you may want to use multiple masks on the same layer. You can create multiple masks by selecting the Pen Tool or Shape Tool again after creating the first mask. To combine or subtract the masks, go to the Mask properties in the timeline and adjust the Mask Mode settings (Add, Subtract, Intersect, etc.).

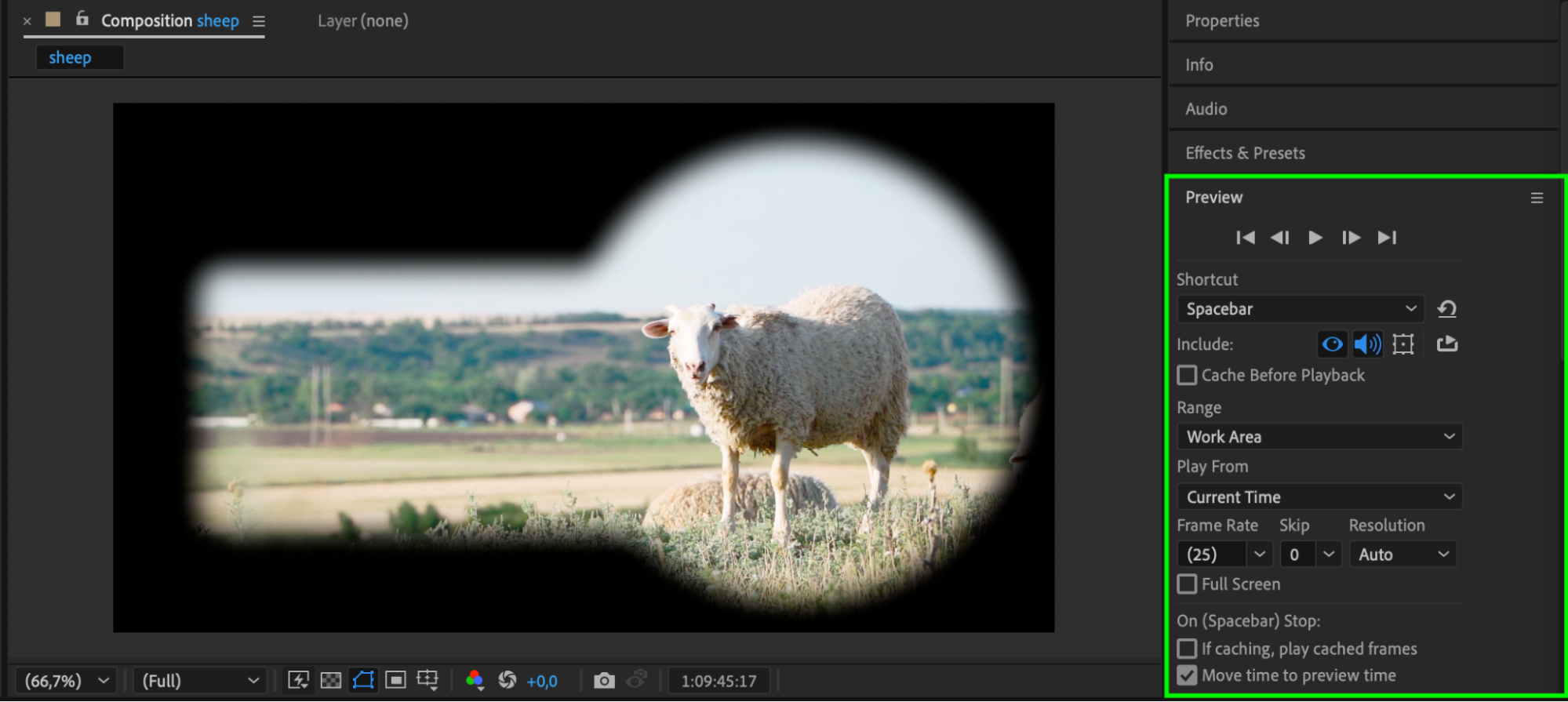

Step 7: Preview and Fine-Tune
Press the Spacebar to preview the composition and check how the mask interacts with the layer. If necessary, adjust the mask’s position, feather, or animation to achieve the desired result.
Step 8: Render the Composition

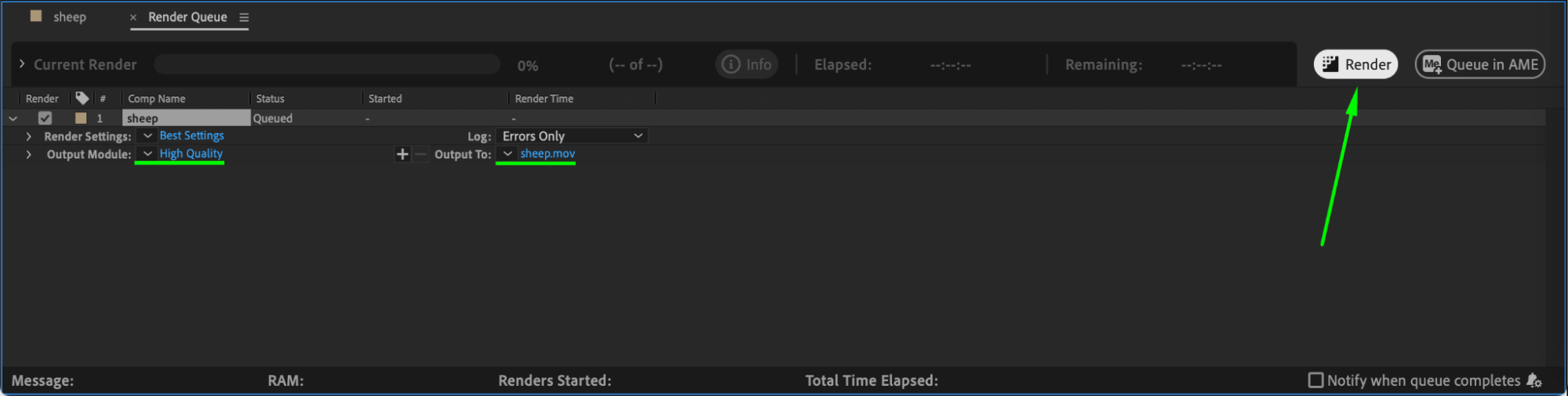

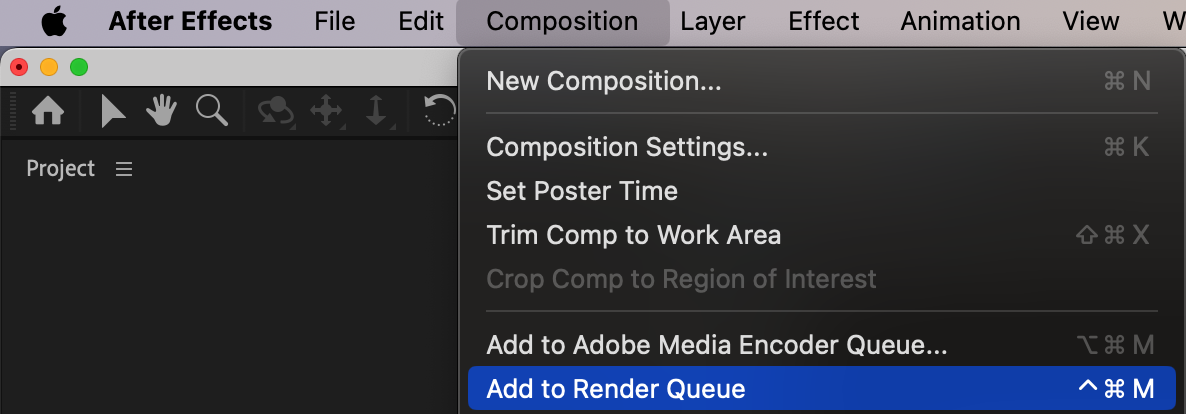

Once you’re satisfied with the mask, render your composition by going to Composition > Add to Render Queue. Choose the output settings, select the desired file format, and click Render to export your final project.
Conclusion
Masking out objects in After Effects is an essential technique for isolating or hiding elements in your composition. By using tools like the Pen Tool, Shape Layers, and animation, you can create precise, seamless effects. Mastering these masking techniques will open up countless possibilities for your video editing and motion graphics projects.
