A Complete Guide to Pinning Text in After Effects

Introduction – Attaching Text to Objects in After Effects

Pinning text in After Effects allows you to link your text to a moving object, ensuring it stays in place relative to the object throughout the animation. This technique is essential for creating professional-grade motion graphics. In this guide, we’ll cover the step-by-step process of pinning text to objects, whether using parenting, null objects, or tracking data.

Step 1: Create a New Composition

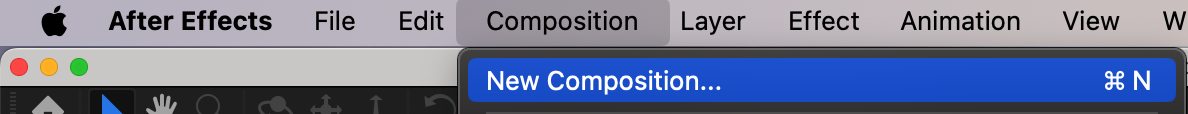

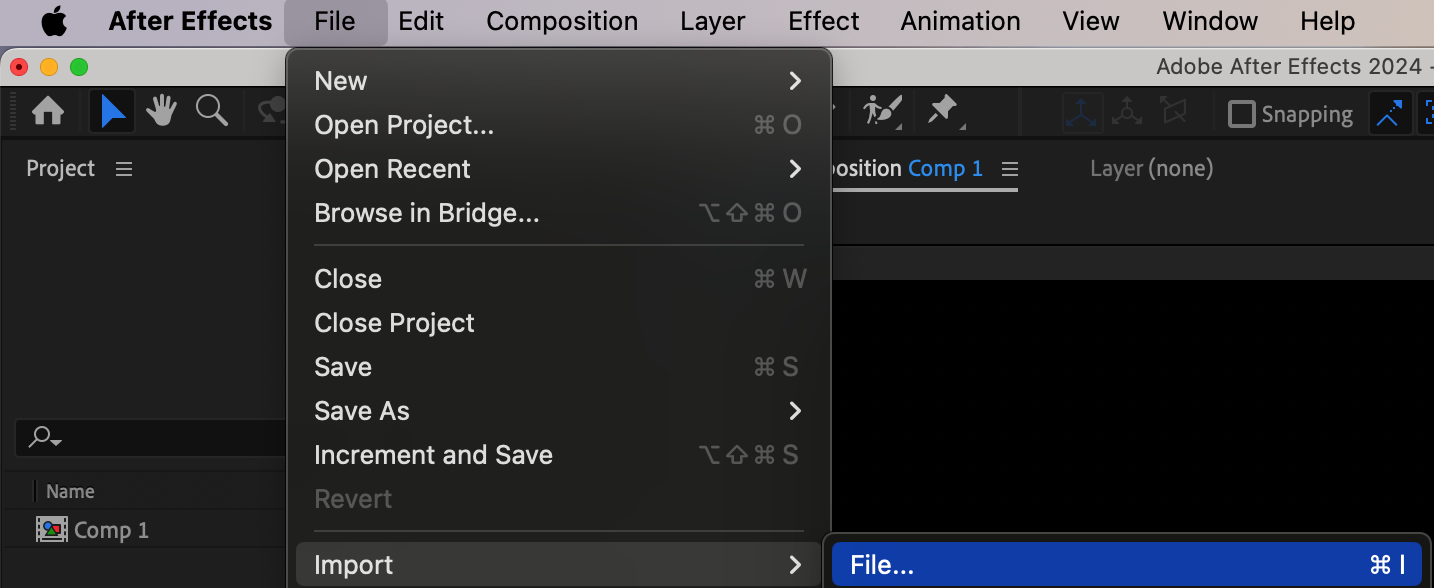

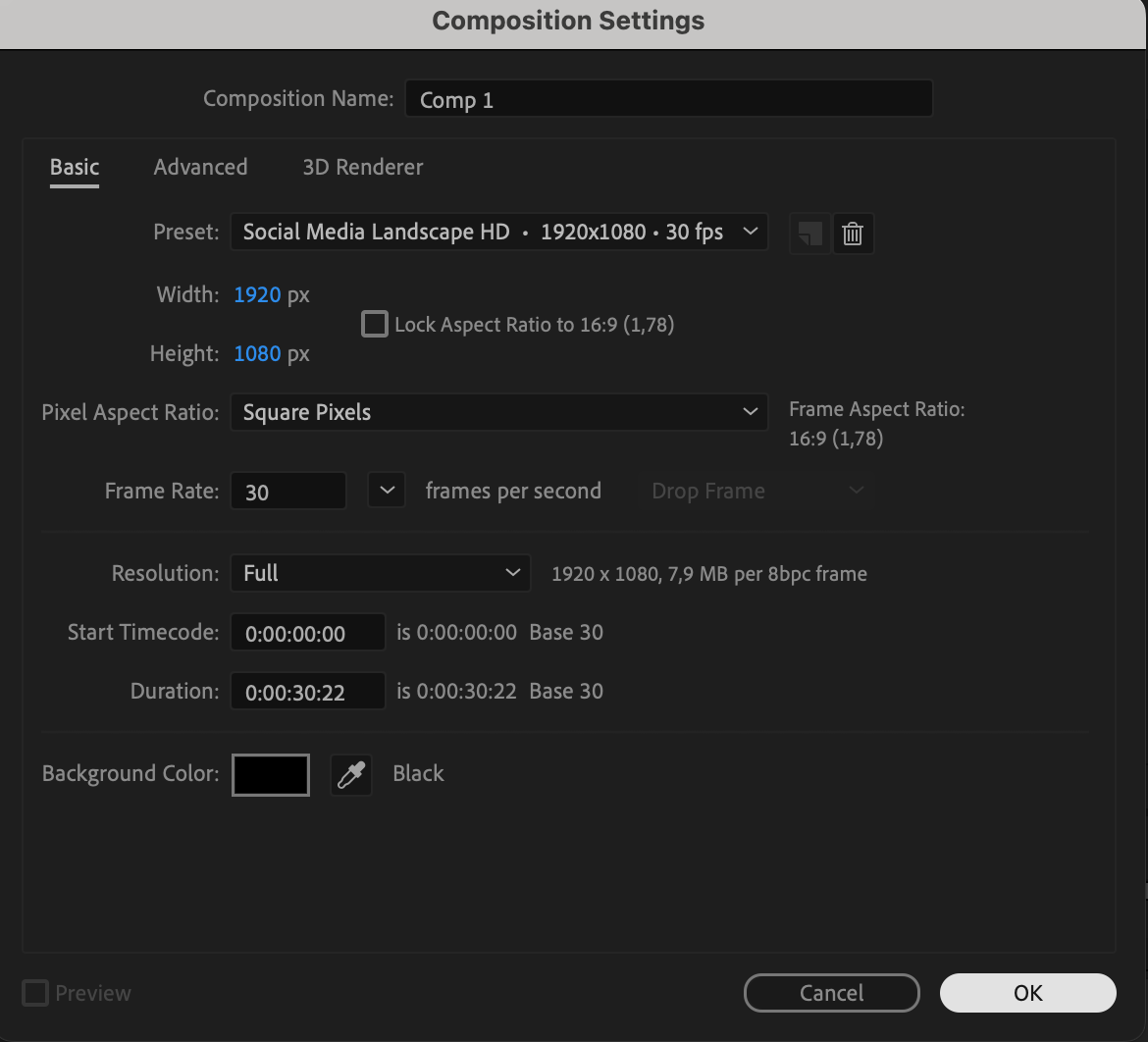

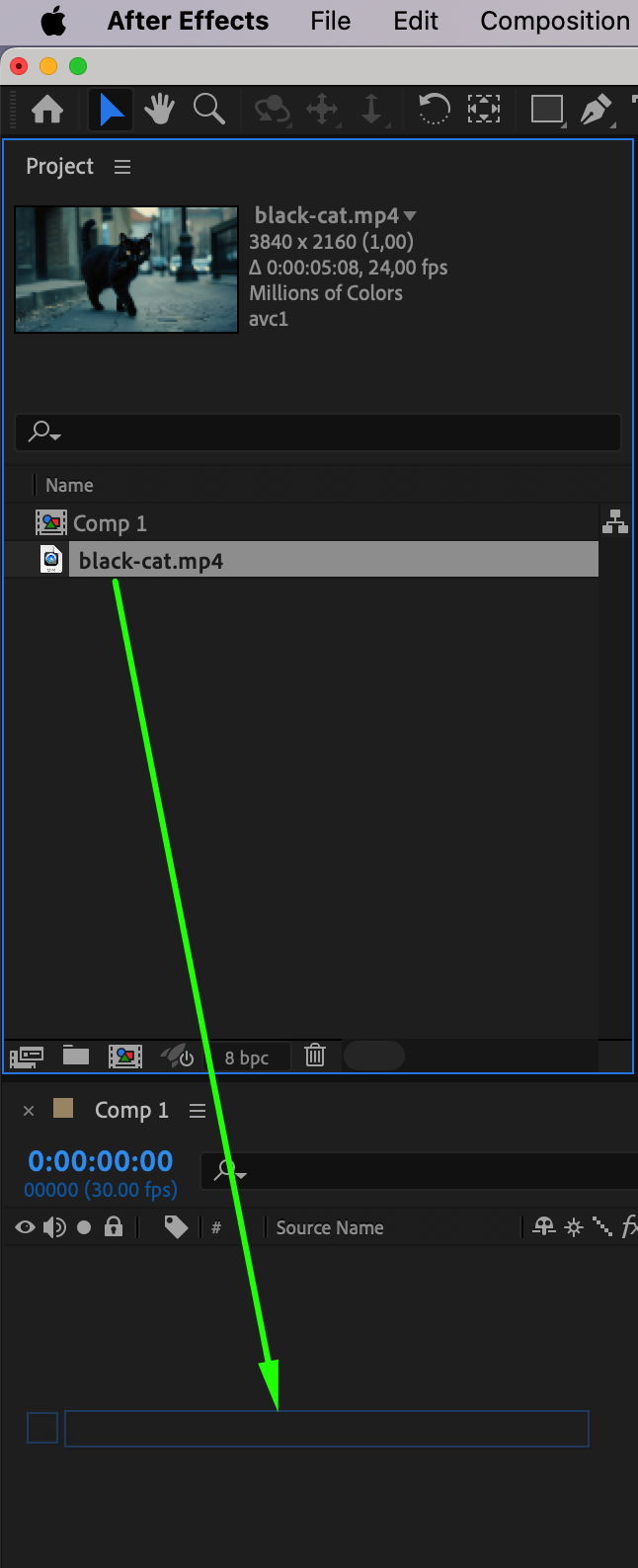

Start by creating a new composition. Go to Composition > New Composition, set your desired resolution and frame rate, and click OK. Then, import your video footage or create the object you want the text to follow. Place it on the timeline.

Step 2: Add Your Text

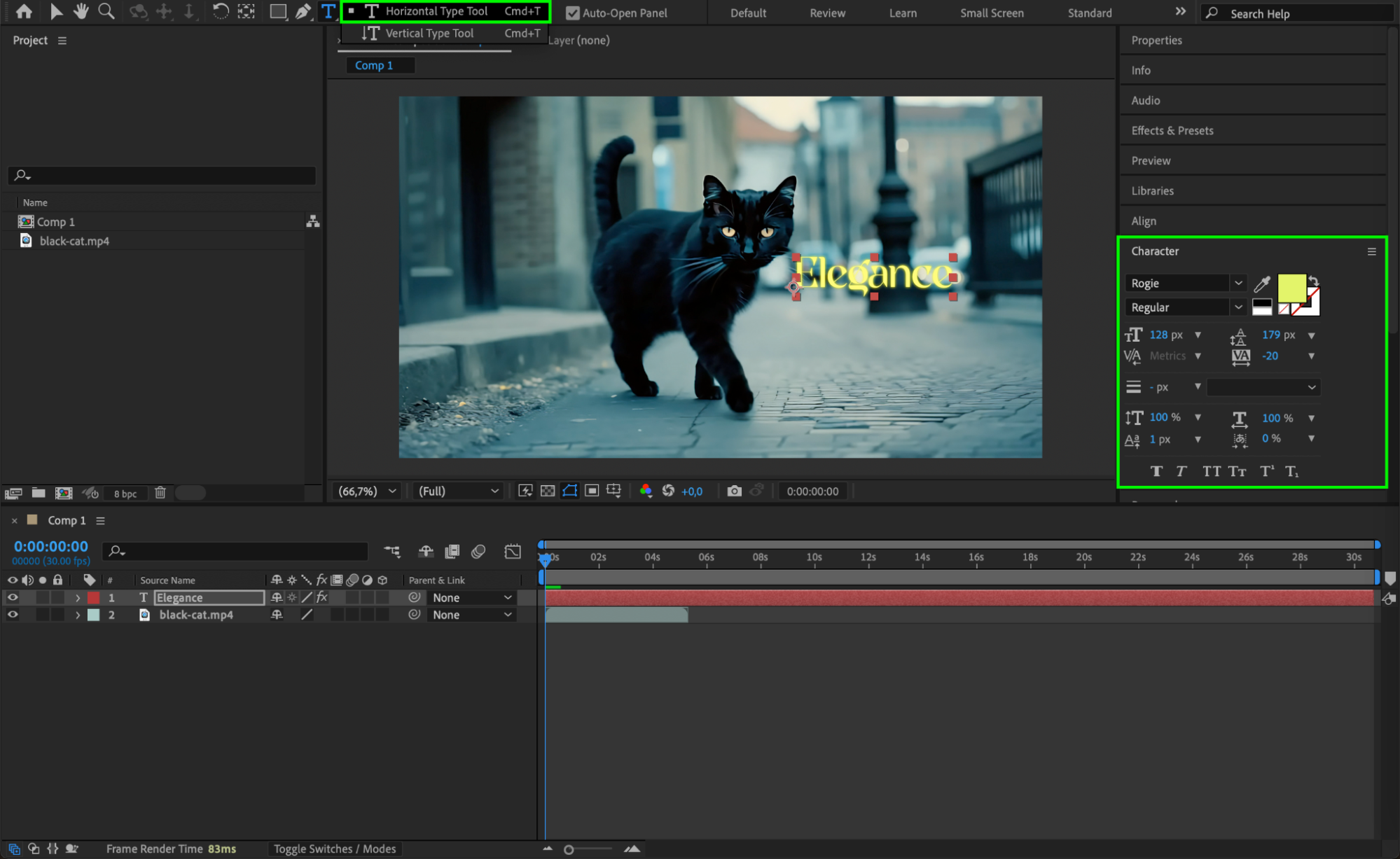

Select the Text Tool (T) from the toolbar and click anywhere in the composition panel to add your text. Type your desired text and adjust its size, font, and color using the Character panel. Position the text layer near the object you want it to follow.Step 3: Create a Null Object (Optional)

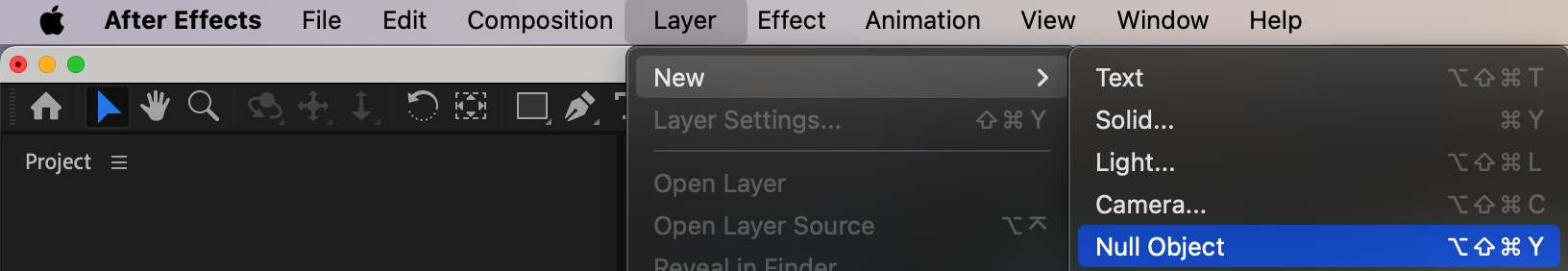

For precise control, create a null object. Go to Layer > New > Null Object. Null objects act as a placeholder that you can parent other layers to, ensuring smooth control over movements. Place the null object near the object you want to track.Step 4: Parent the Text Layer

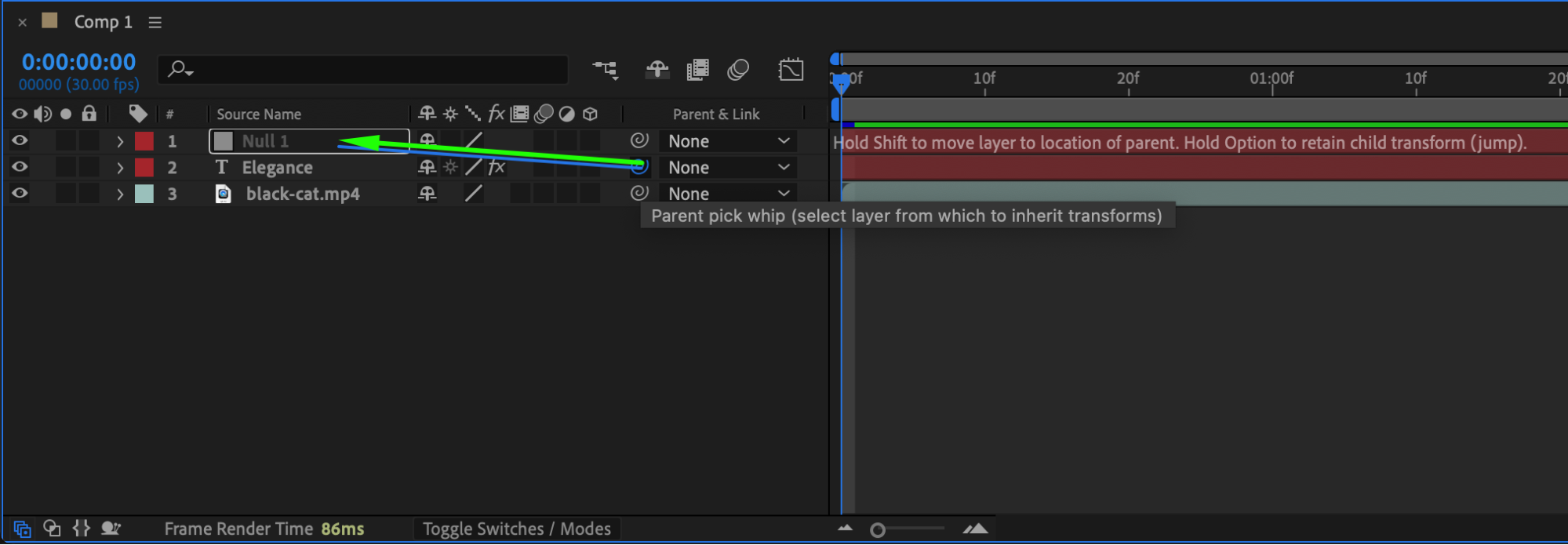

To pin the text to an object or null, use the Pick Whip tool. Select the Text Layer, drag the pick whip icon (next to the layer name) to the object or null layer in the timeline, and release it. This action parents the text to the selected layer, linking their movements.Step 5: Use Motion Tracking for Dynamic Pinning

If the object you want to pin text to moves dynamically:

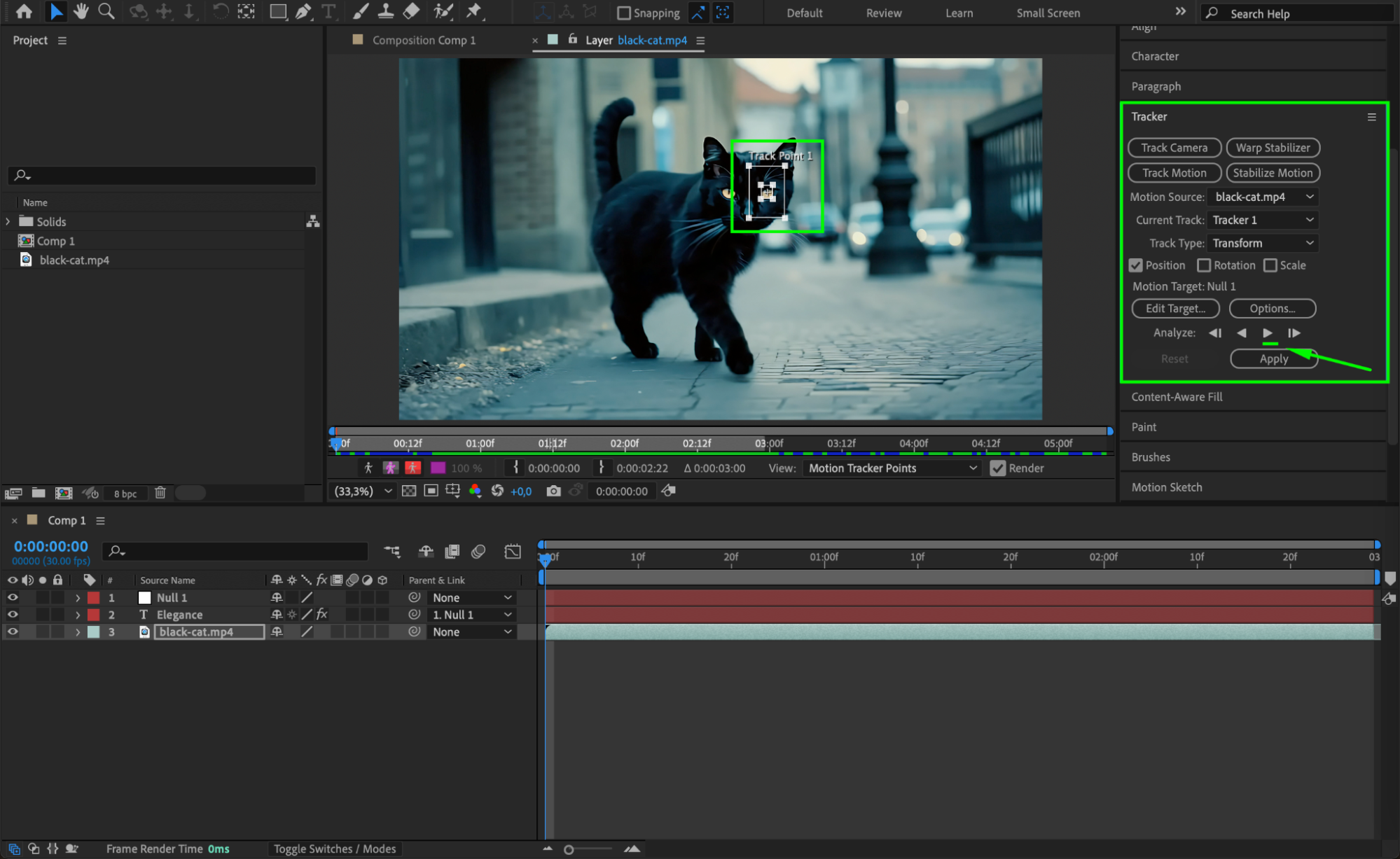

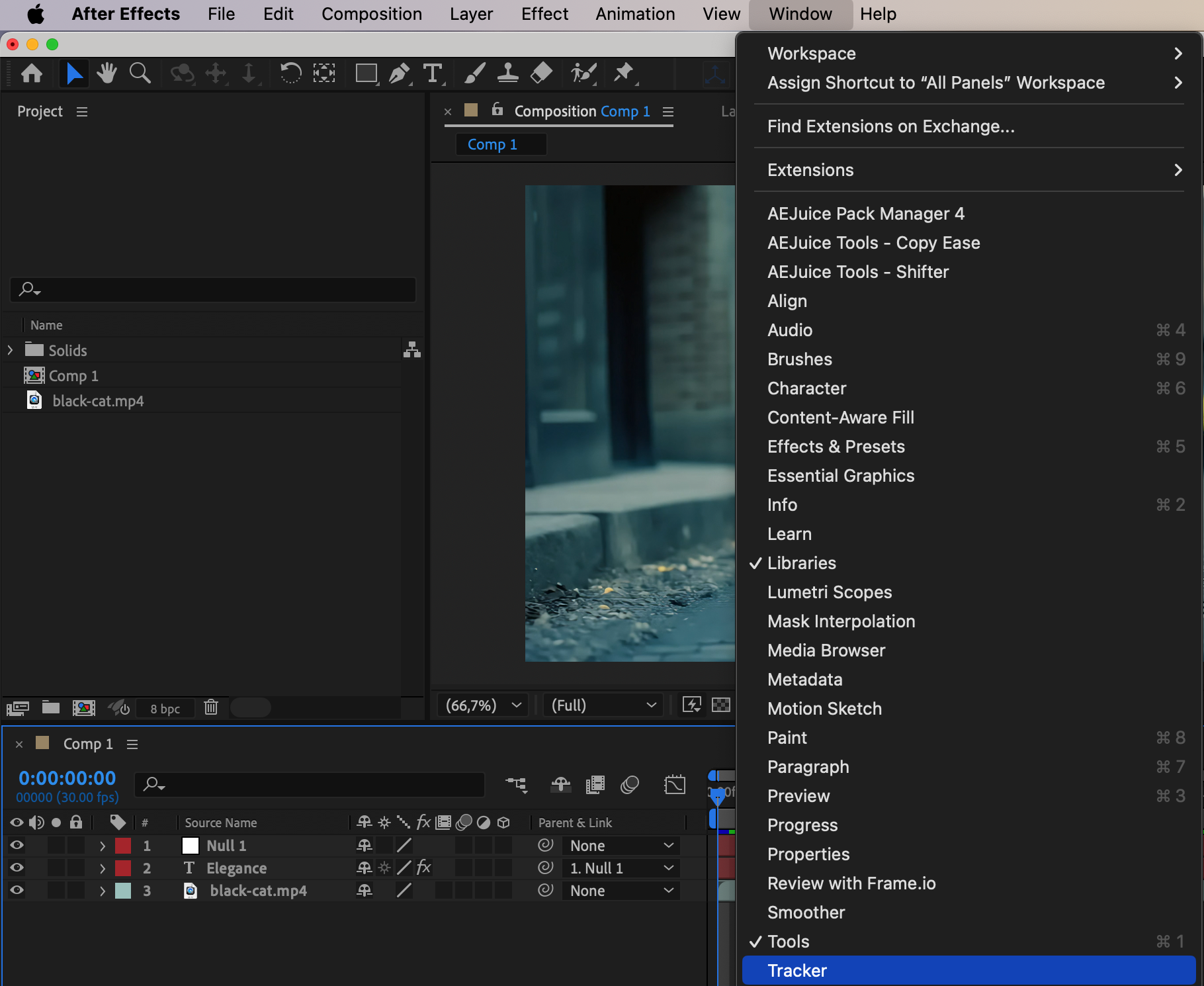

Select the footage layer and open the Tracker panel (Window > Tracker).
Choose Track Motion and set a tracking point on the object.
Click Analyze Forward to track the motion.

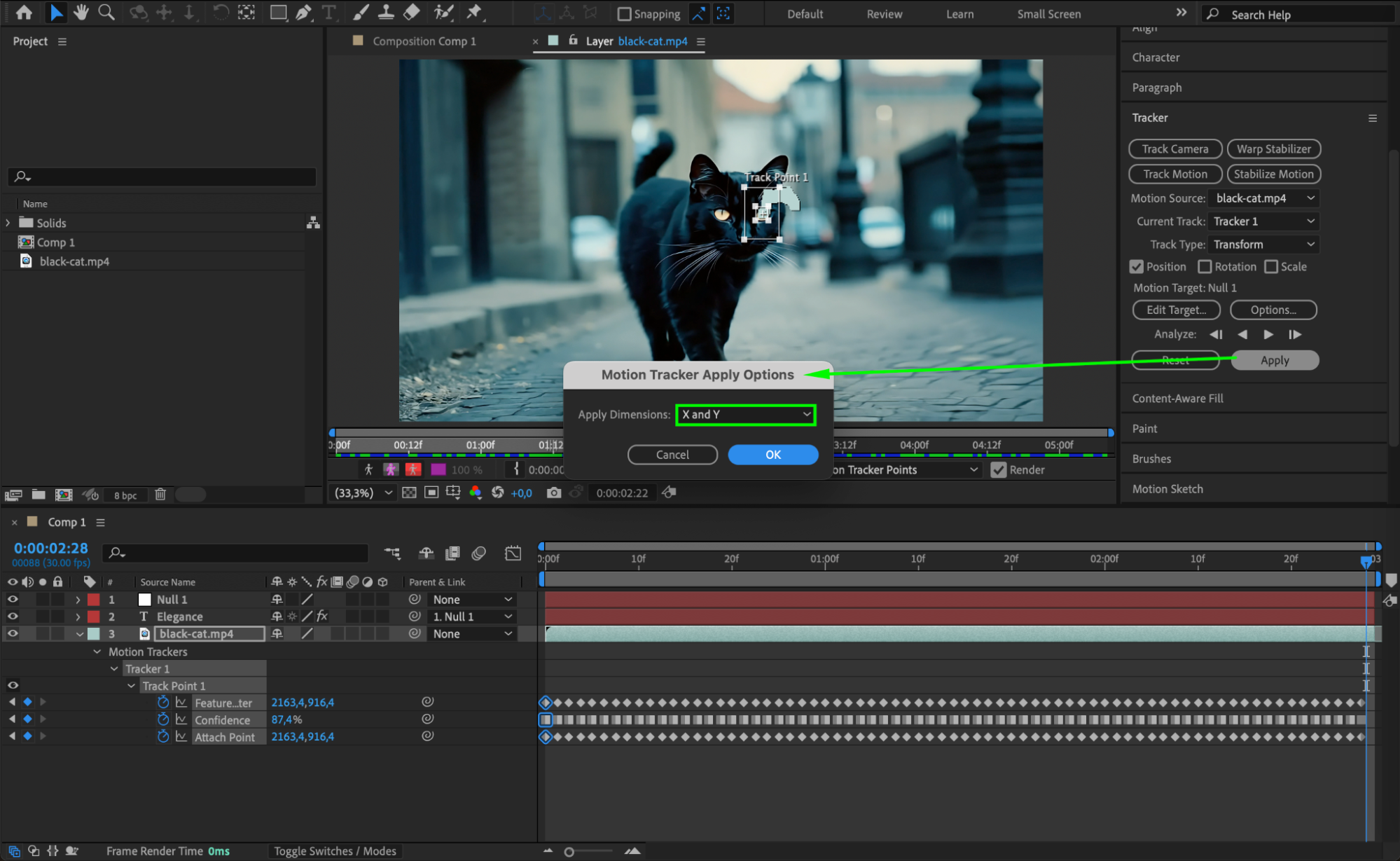

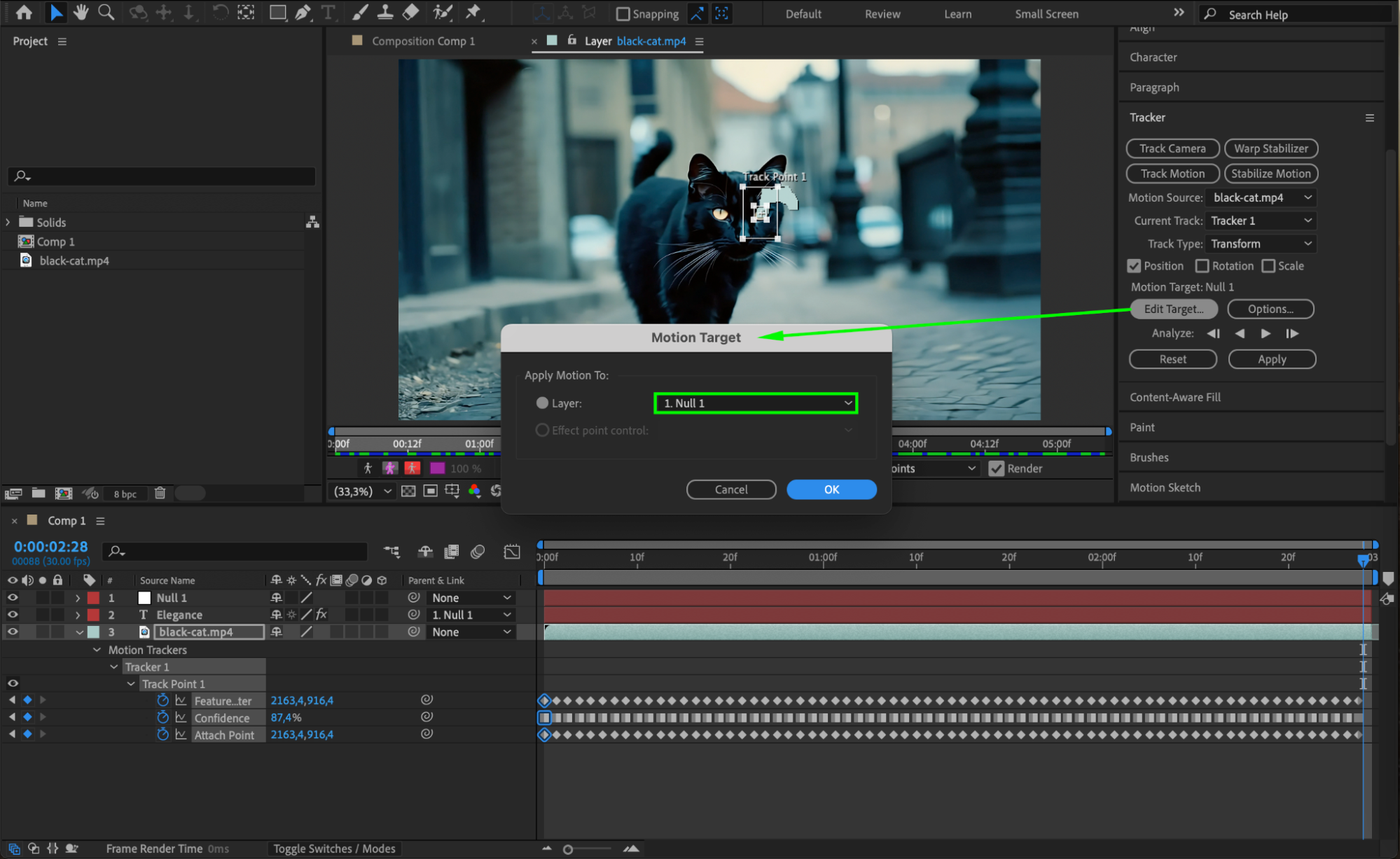

Once tracking is complete, apply the tracking data to a null object.
Parent the text layer to the null object using the pick whip.

Step 6: Adjust the Text Animation

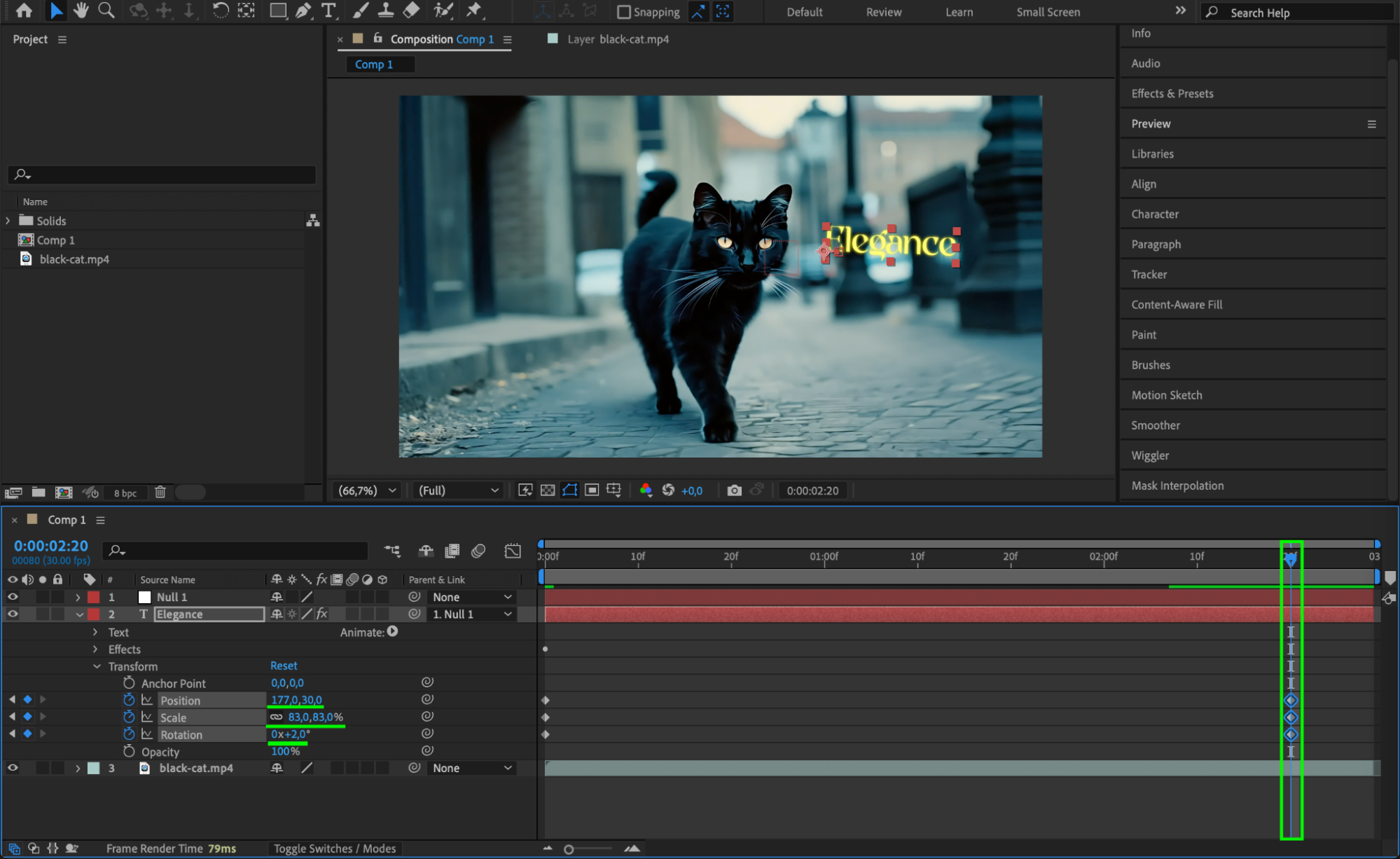

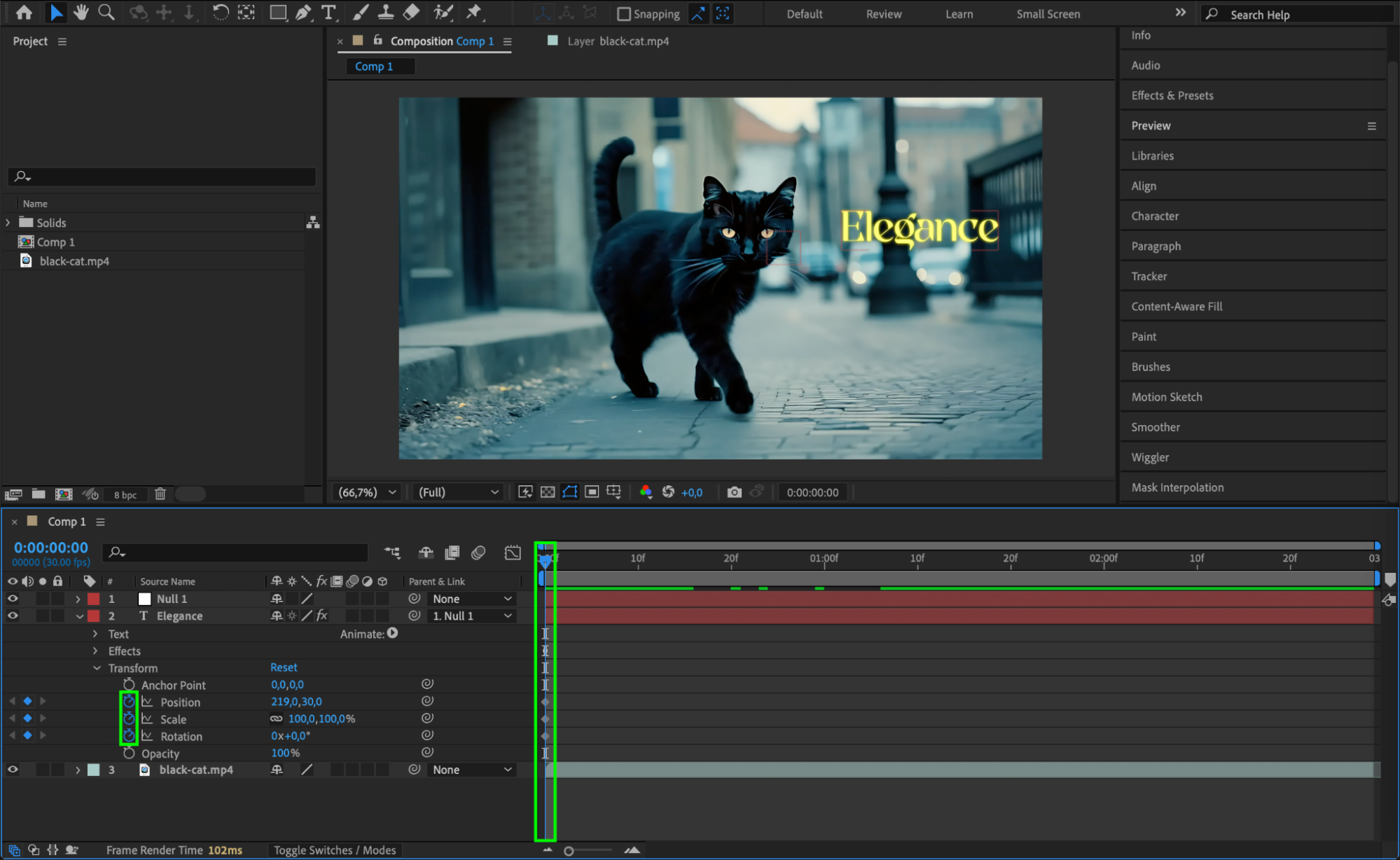

Enhance the appearance of your pinned text by animating its position, opacity, or scale. Select the text layer, press P (Position), T (Opacity), or S (Scale) to reveal these properties. Add keyframes by clicking the stopwatch icon, then adjust the values over time to create dynamic animations.

Step 7: Preview and Refine

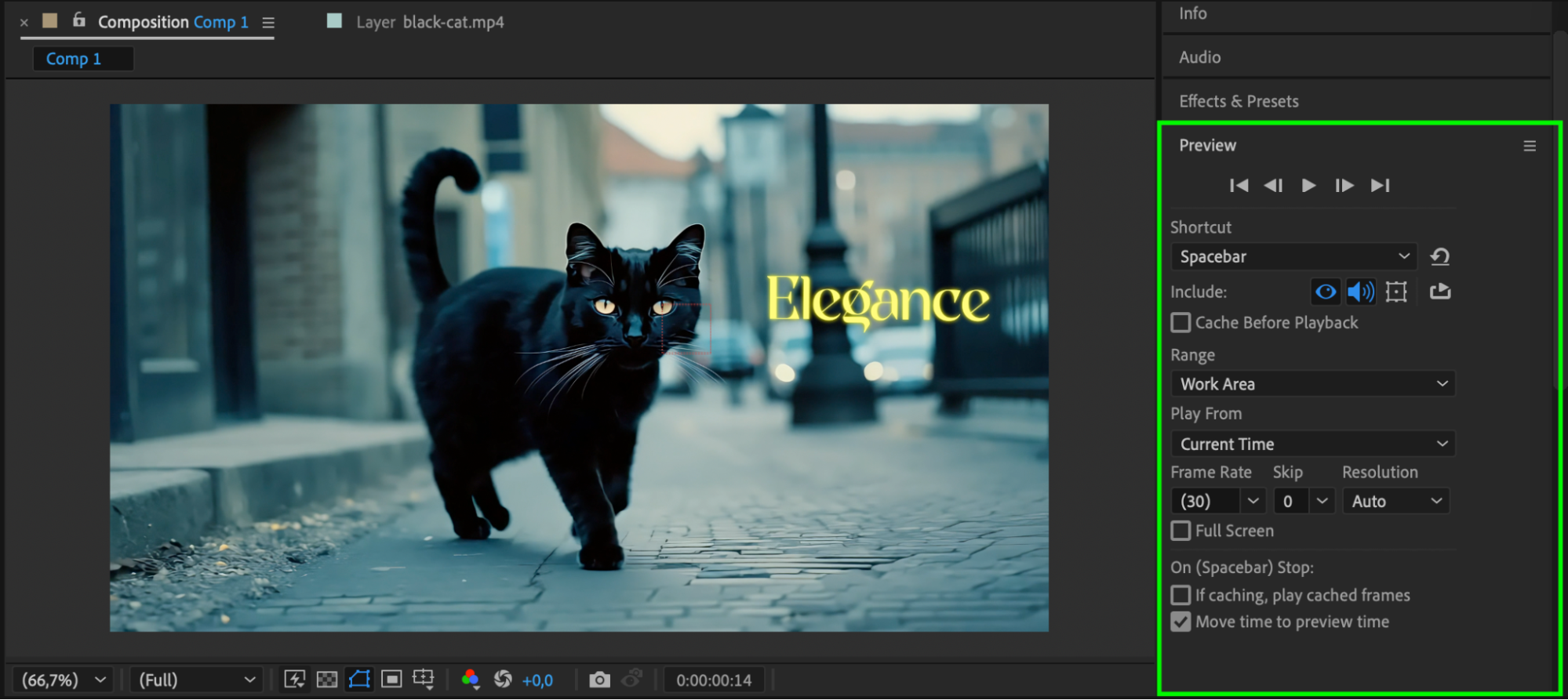

Press the Spacebar to preview your composition. Make any necessary adjustments to the text position or animation to ensure it aligns perfectly with the object.

Step 8: Render Your Composition

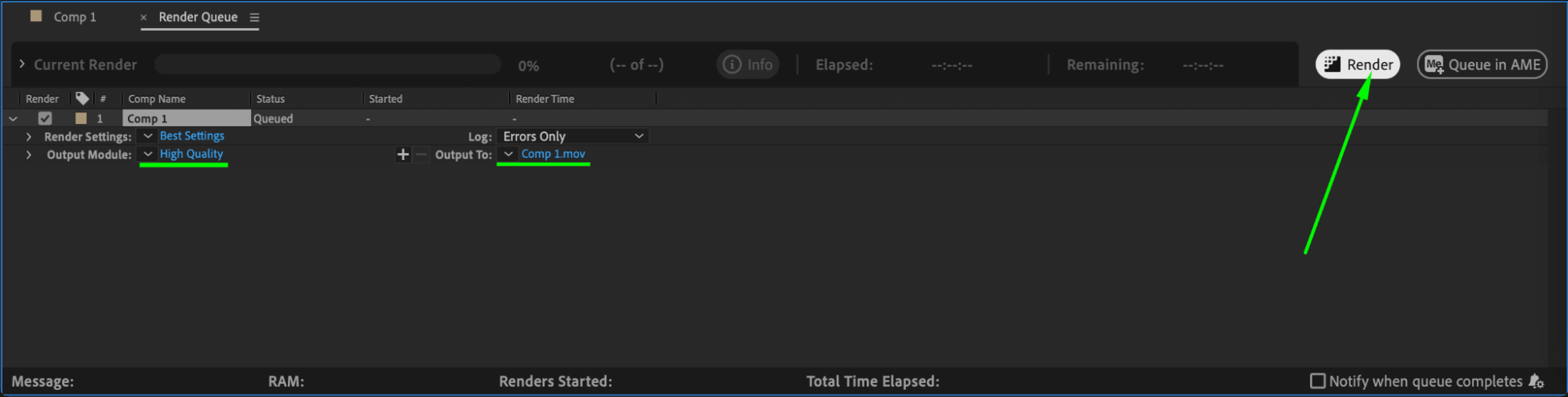

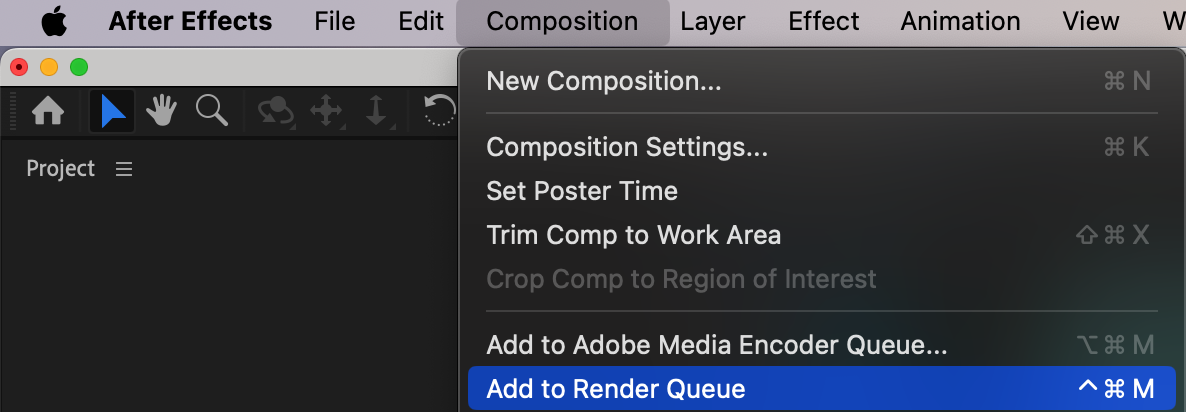

Once satisfied, go to Composition > Add to Render Queue. Configure the output settings, choose a file location, and click Render to export your project.

Conclusion

Pinning text in After Effects is a fundamental skill for creating polished motion graphics. By using parenting, null objects, and motion tracking, you can ensure your text stays seamlessly attached to moving objects in your scene. With practice, this technique will become a staple in your After Effects workflow!
