A Complete Guide to Stopping Loop Expressions in After Effects
Introduction: Controlling Loop Expressions for Precise Animations
Loop expressions in After Effects, such as loopOut() and loopIn(), are powerful tools that allow you to repeat animations automatically. However, there are situations where you may want to limit the looping behavior to a specific duration or stop it altogether. This guide explains how to use loop expressions effectively and modify them with conditional logic for more control.
Step 1: Understand the Loop Expression
The loopOut() expression repeats an animation endlessly after the last keyframe, while loopIn() repeats it before the first keyframe. These expressions work based on the keyframes you’ve created for a property, such as position or scale. Before modifying a loop, ensure you understand its default behavior by applying a basic loopOut() expression and previewing its effect.

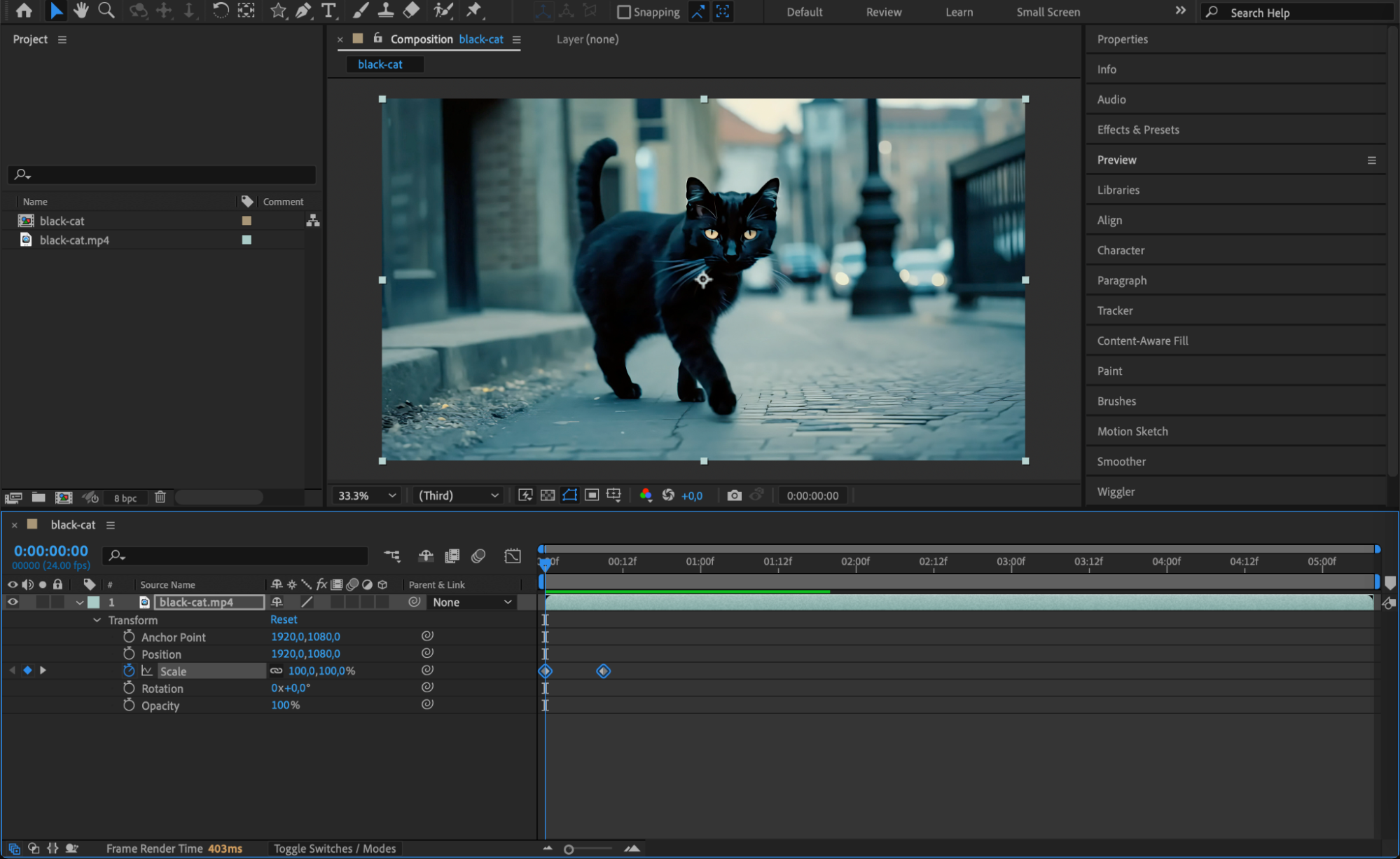

Step 2: Create an Animation
Select the layer you want to animate and expand its properties in the timeline. Choose a property to animate, such as Scale, and create keyframes. Place the CTI (Current Time Indicator) at the start of the timeline and adjust the scale value. Move the CTI forward in time, change the scale again, and After Effects will automatically create a second keyframe.
Step 3: Add a Loop Expression

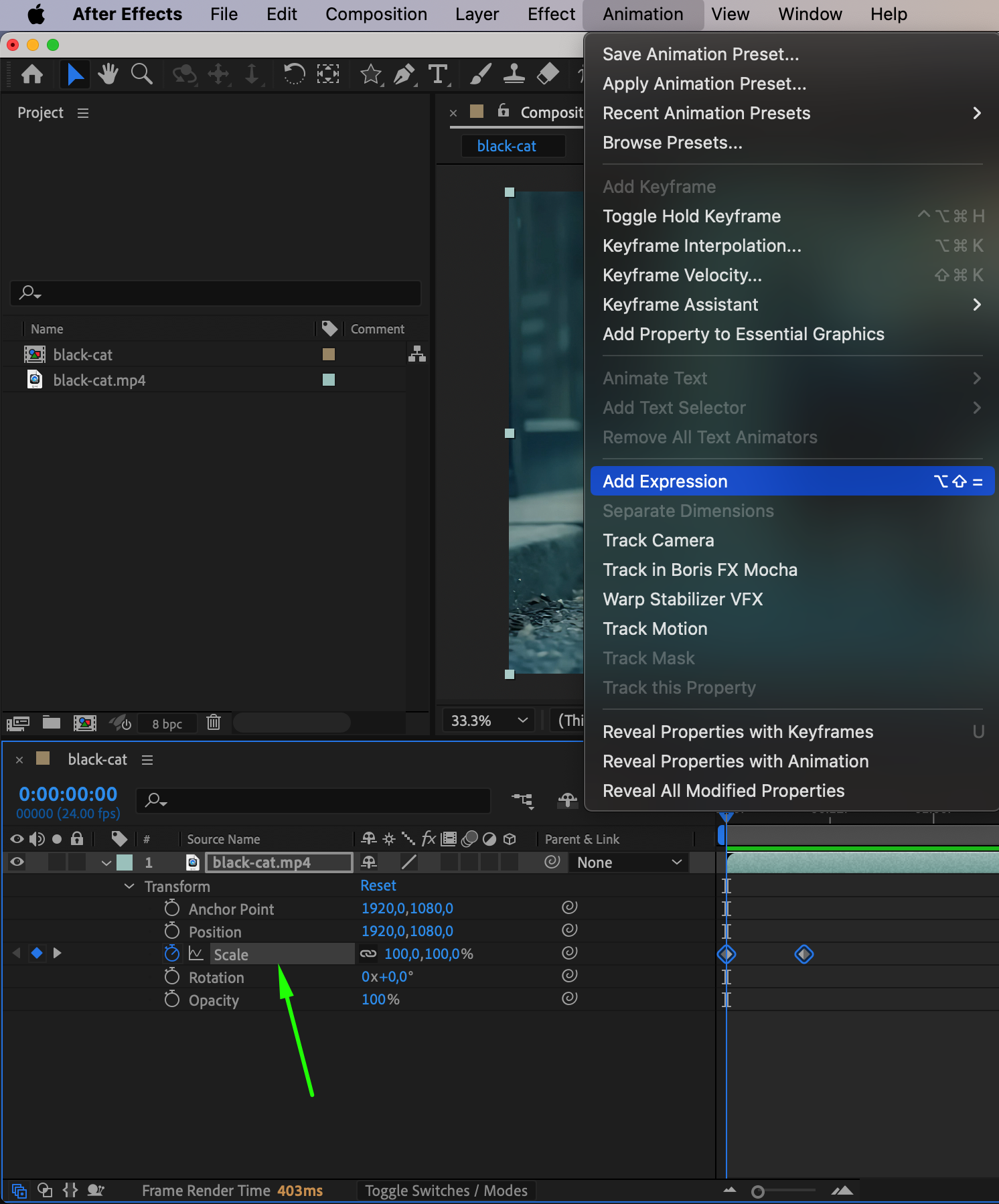

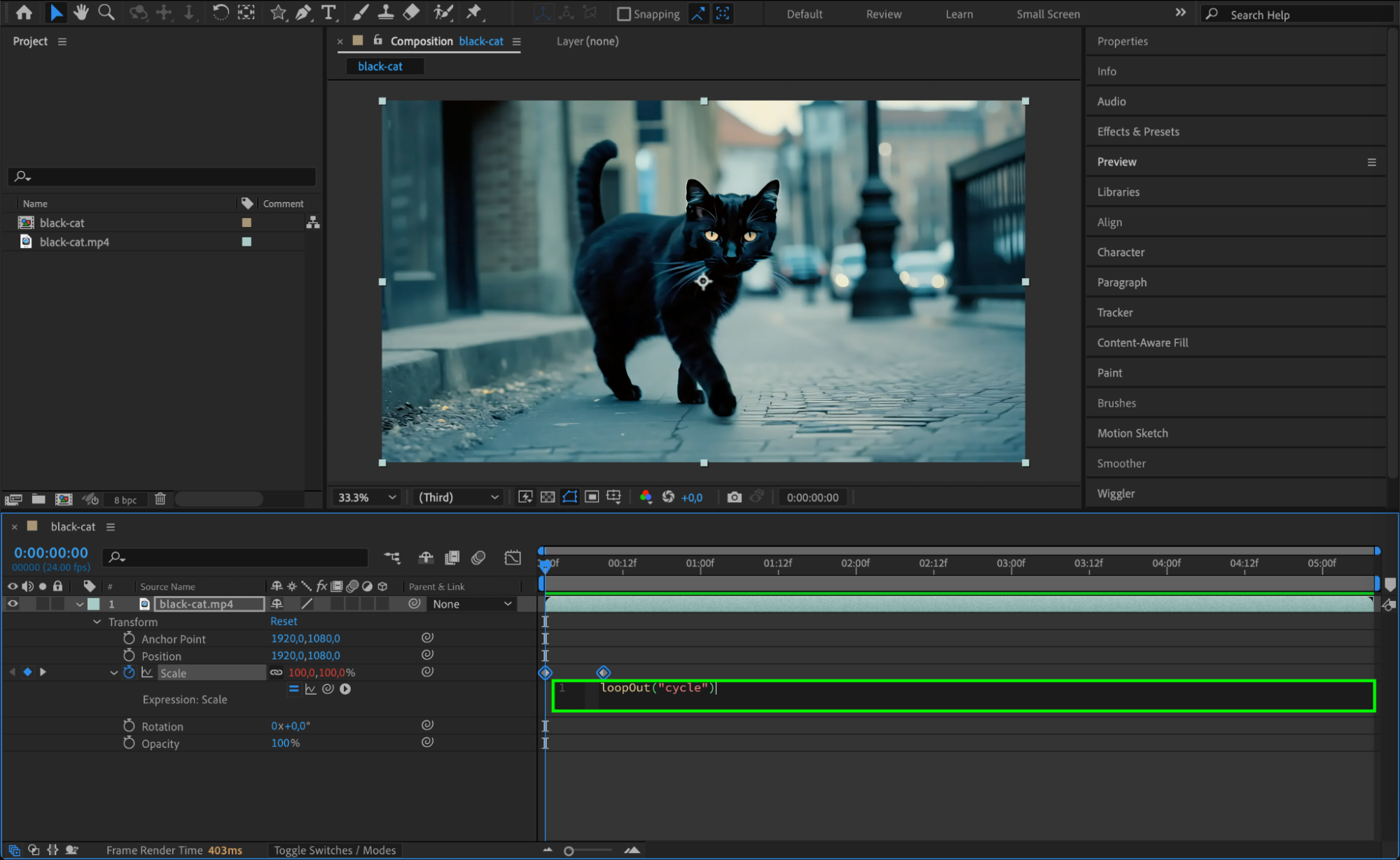

Click on the animated property (e.g., Scale) in the timeline, then go to Animation > Add Expression. An expression editor will appear below the property. In the editor, type:
loopOut(“cycle”)

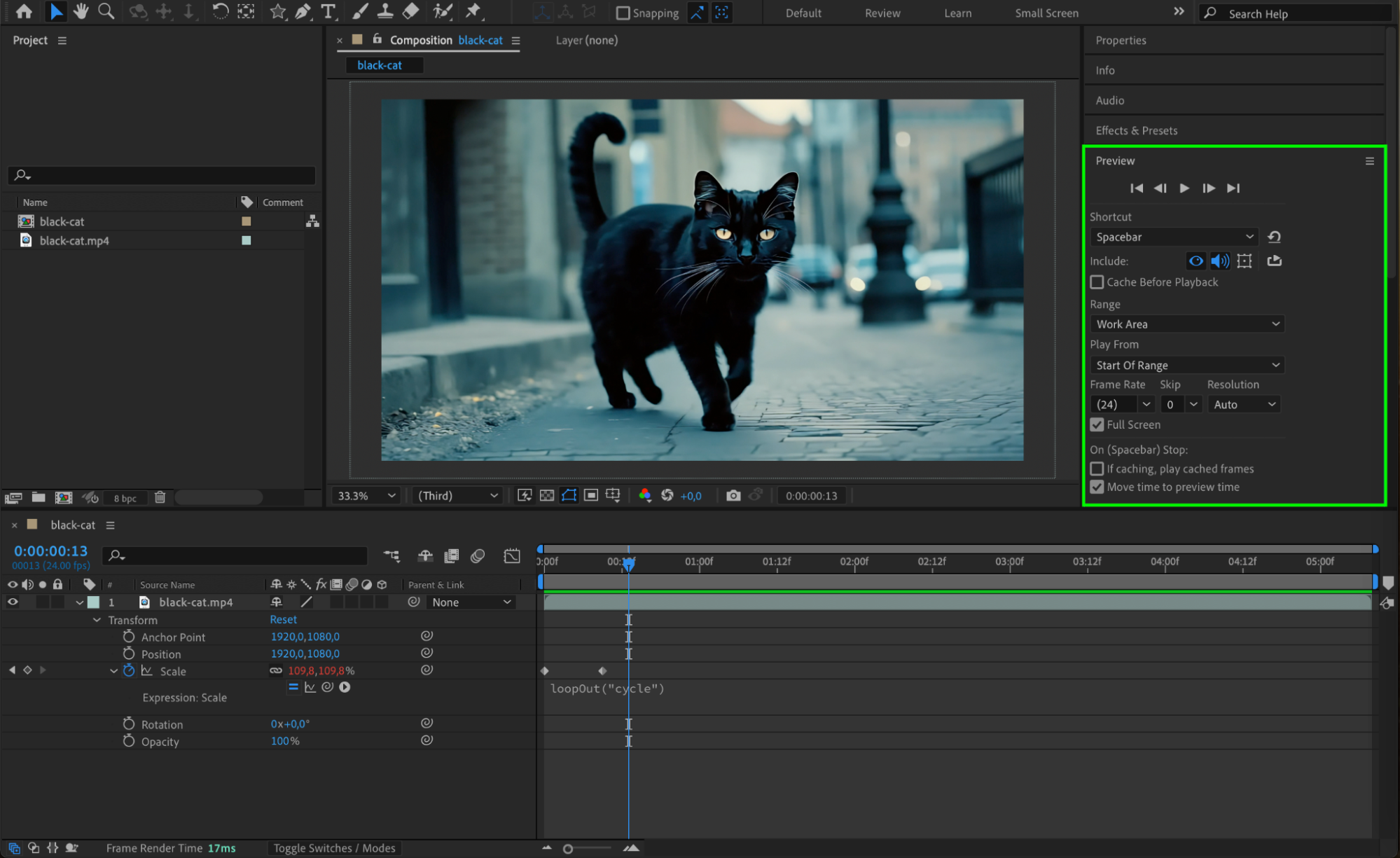

This expression creates a continuous loop of your animation after the last keyframe, repeating the changes indefinitely. Press Spacebar to preview how the animation loops.
Step 4: Modify the Loop Expression with Conditional Logic

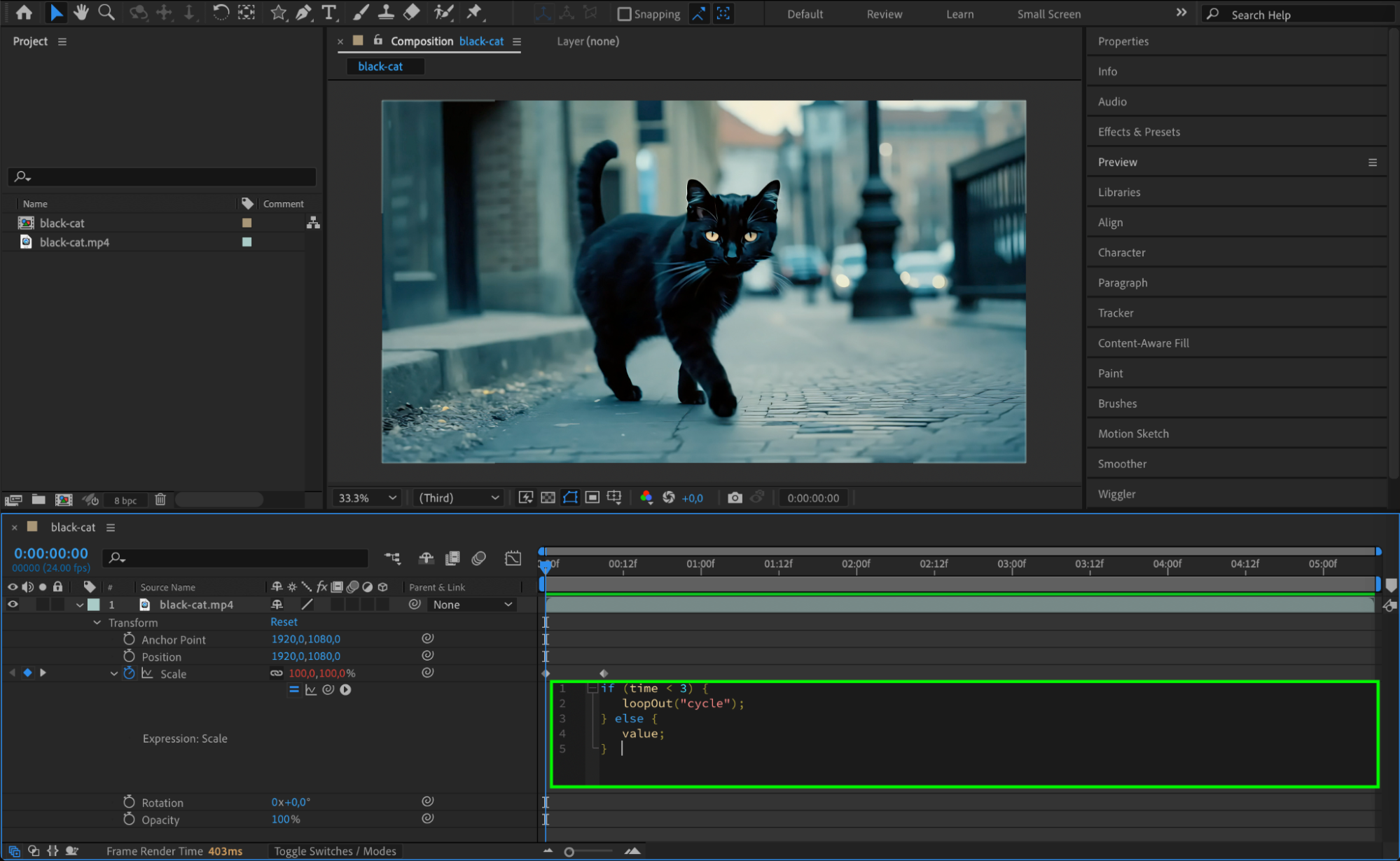

To stop the loop at a specific point, you can add conditional logic to the expression. Replace the previous code with the following:
if (time < 3) {
loopOut(“cycle”);
} else {
value;
}

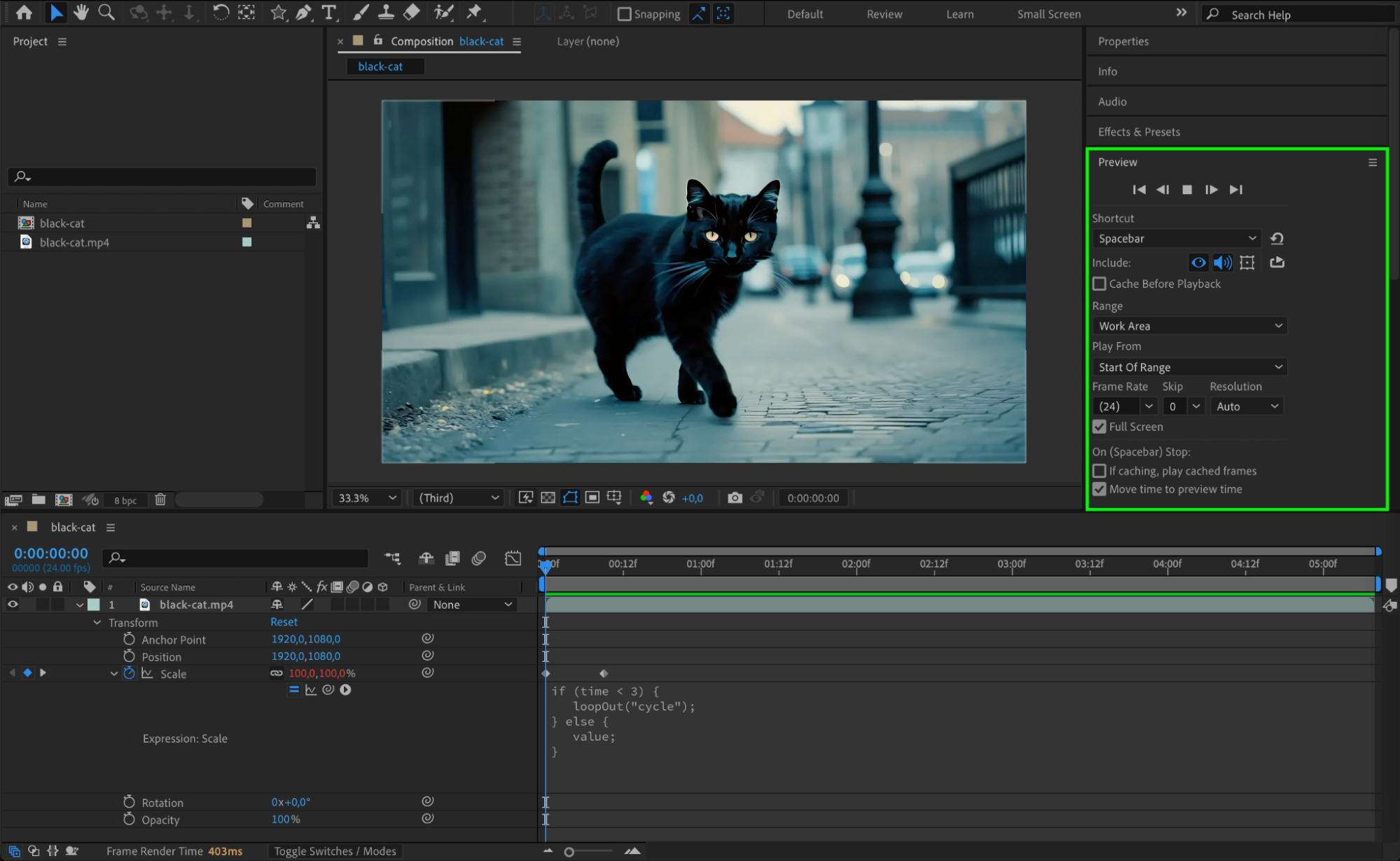

This expression will make the loop run until the composition time reaches 3 seconds. After that, the property will maintain the value it had at that time. You can adjust the time value (3) to match your desired stopping point. Test the expression by previewing the animation and observing how the loop stops at the specified time.
Step 5: Fine-Tune and Test
After applying the conditional logic, refine your animation as needed. Check if the stopping point aligns with your design requirements. You can also experiment with other loop modes, such as “pingpong” or “offset”, within the loopOut() expression for varied effects.
Step 6: Render the Final Animation

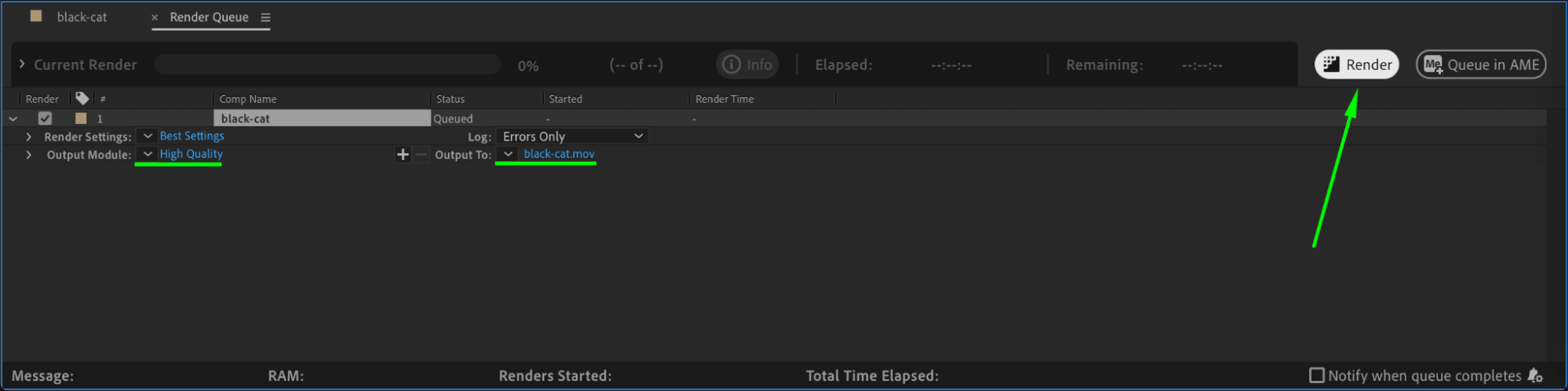

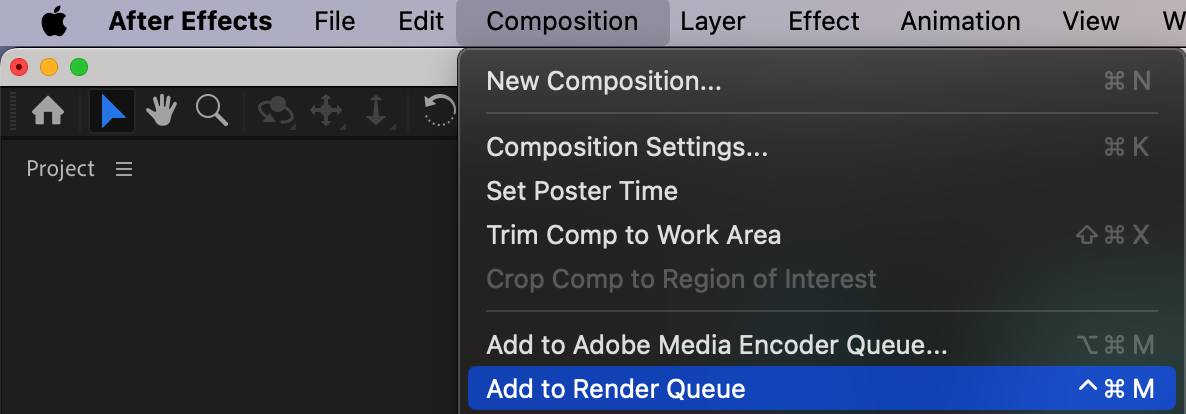

Once satisfied with the controlled loop animation, render the project. Go to Composition > Add to Render Queue, adjust the output settings, and click Render. Your animation will now include a defined loop that stops at the specified time, ensuring precision and control in your project.
Conclusion
By combining loop expressions with conditional logic, you can achieve precise control over animations in After Effects. Whether you’re working on text animations, motion graphics, or other elements, this method allows you to define specific durations for loops, enhancing your design flexibility. Experiment with different conditions and properties to create dynamic and tailored animations for your projects.
