Mastering Mocha Tracking in After Effects

Introduction – “Exploring Mocha’s Power: Elevate Your Motion Tracking Skills”

Have you ever wondered how filmmakers seamlessly incorporate complex visual effects into their projects? One integral technique to achieve such precision is motion tracking. While Adobe After Effects offers its built-in tracking tools, Mocha tracking takes the process to a whole new level. Mocha, developed by Imagineer Systems, is a powerful planar tracking software that can track objects, mask out areas, and apply effects with exceptional precision.

This article will explore the fundamentals of using Mocha tracking in After Effects, providing you with the knowledge and skills to elevate your motion tracking abilities. Let’s dive in and unlock the potential of Mocha’s capabilities!

Step 1: Import Your Footage

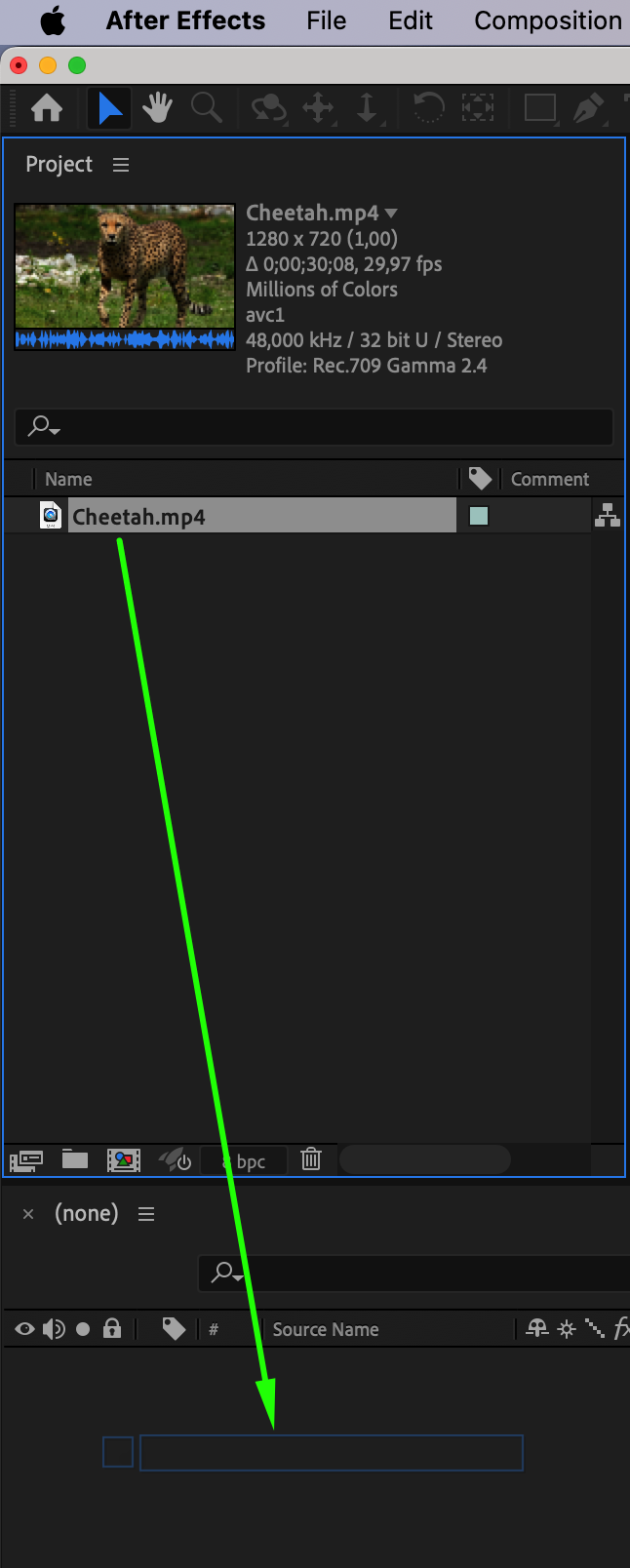

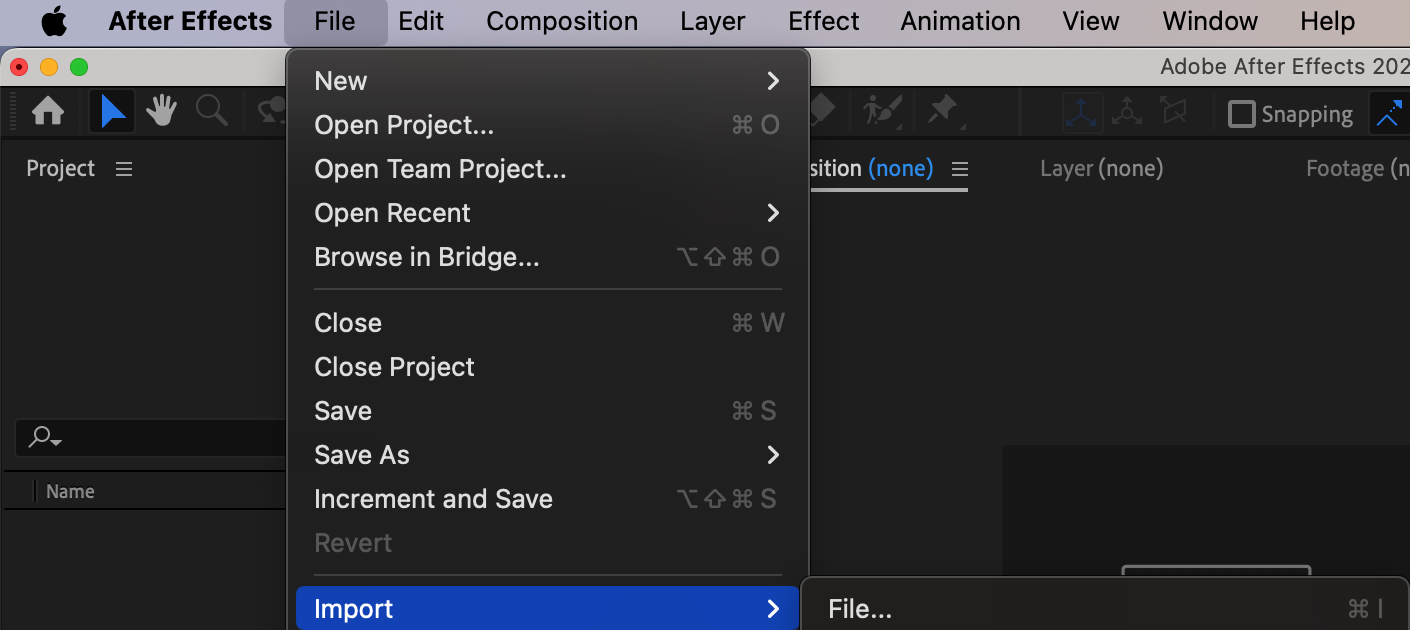

Open Adobe After Effects and import your video file by selecting “File” > “Import” > “File…”. Once imported, drag the video file from the Project panel to the Timeline panel.

Step 2: Trim Your Video Layer

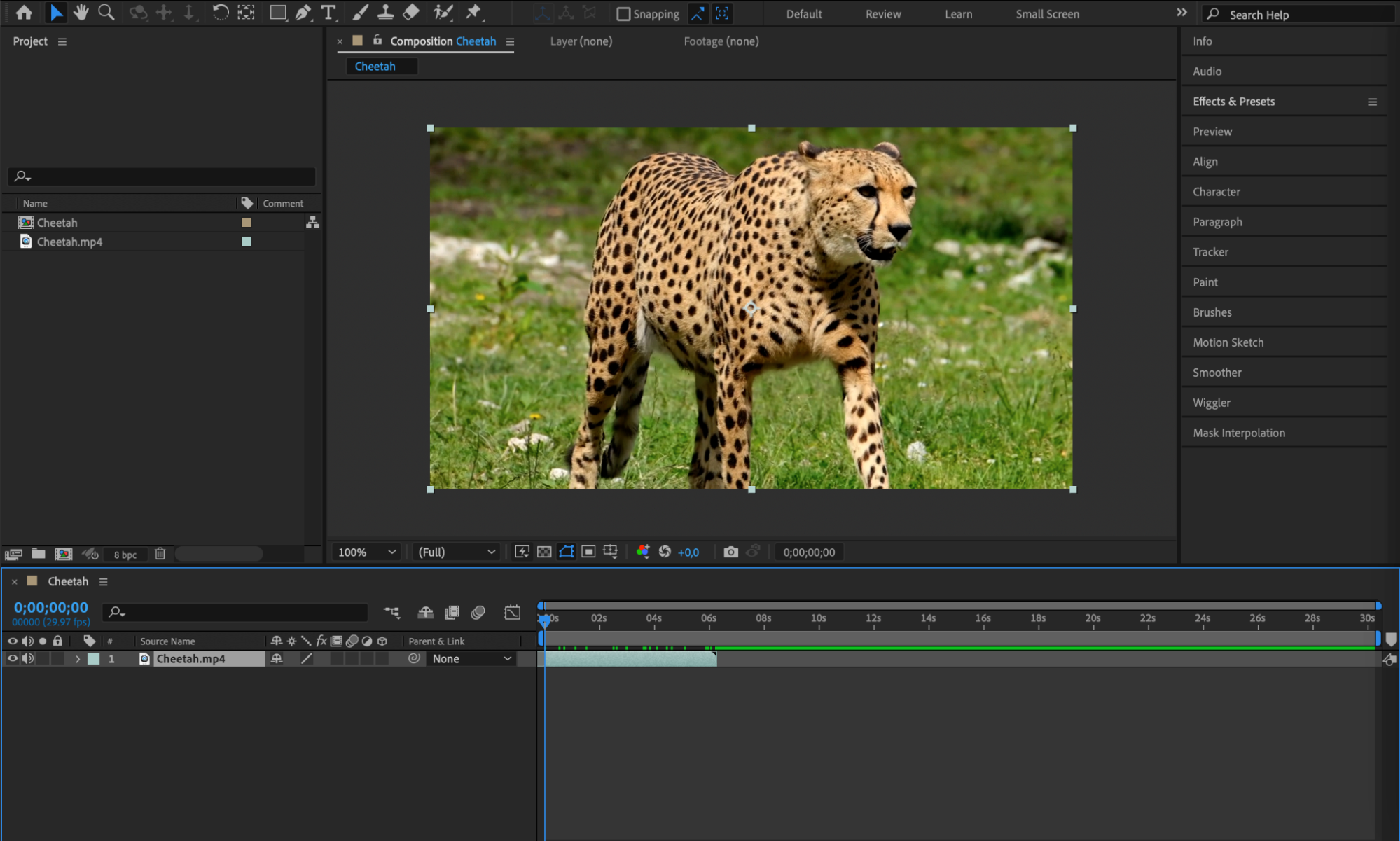

Select the video layer in the Timeline. To trim the layer to the desired segment for tracking, use the hotkeys “Alt/Option + ]” to set the end point and “Alt/Option + [“ to set the start point.

Step 3: Apply Mocha AE

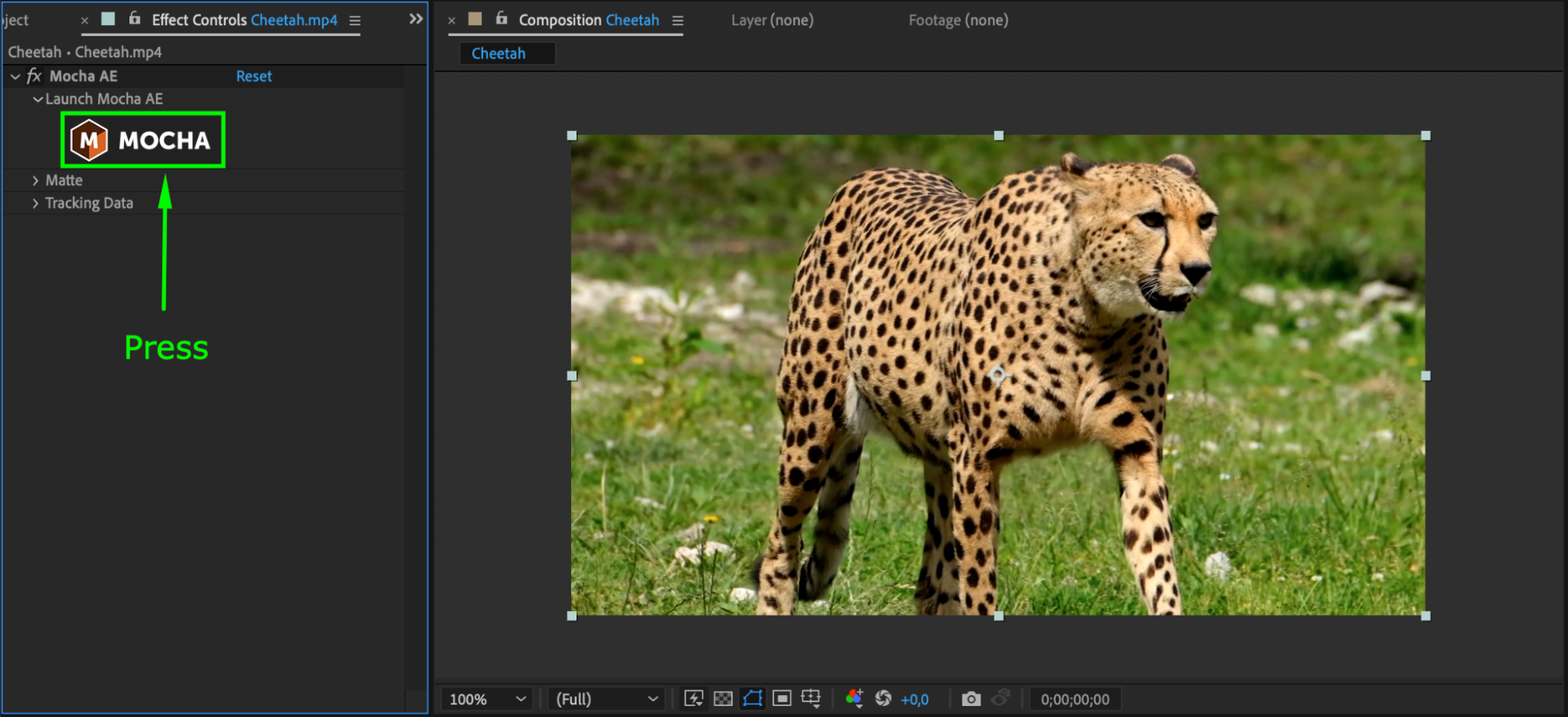

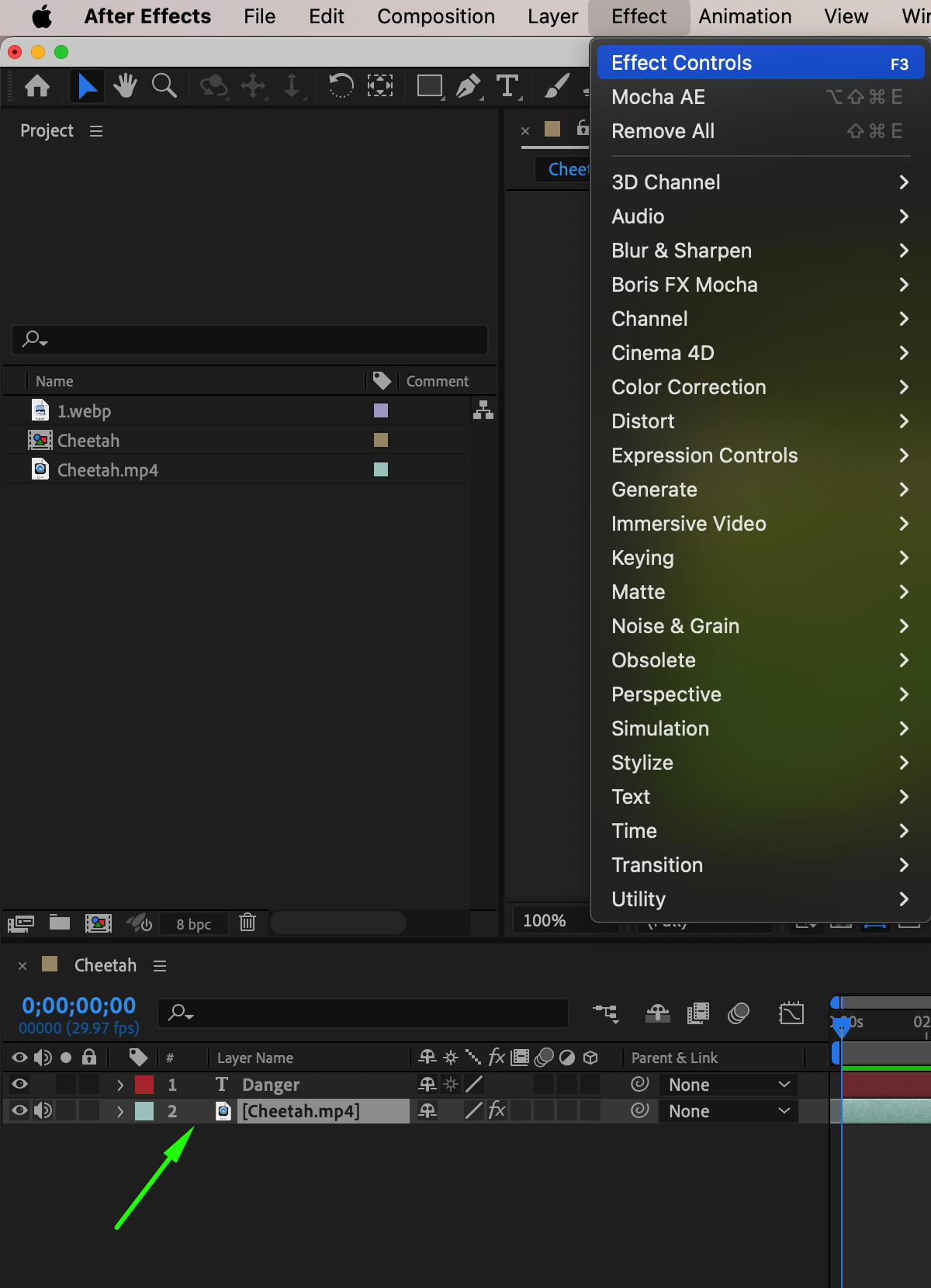

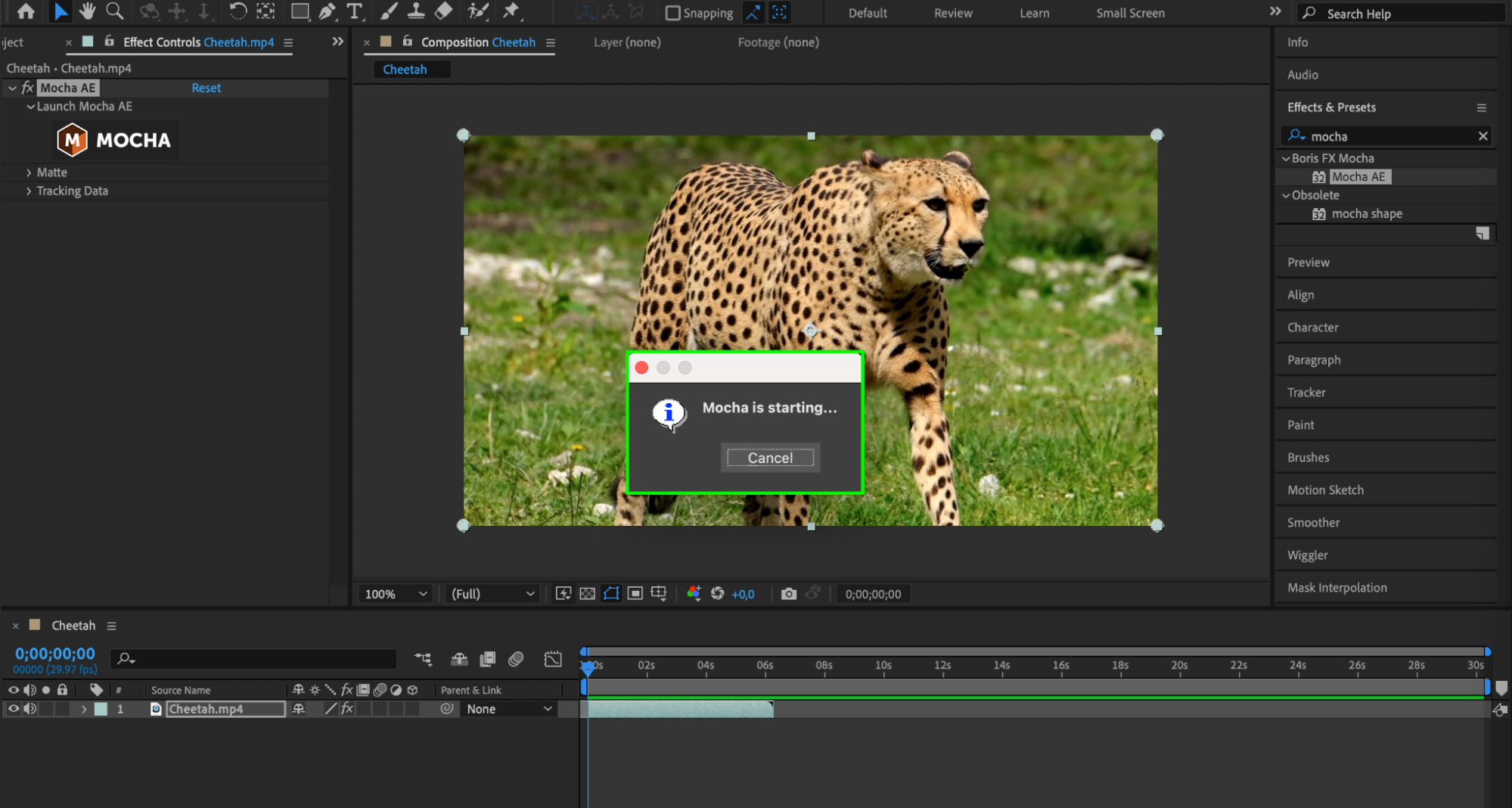

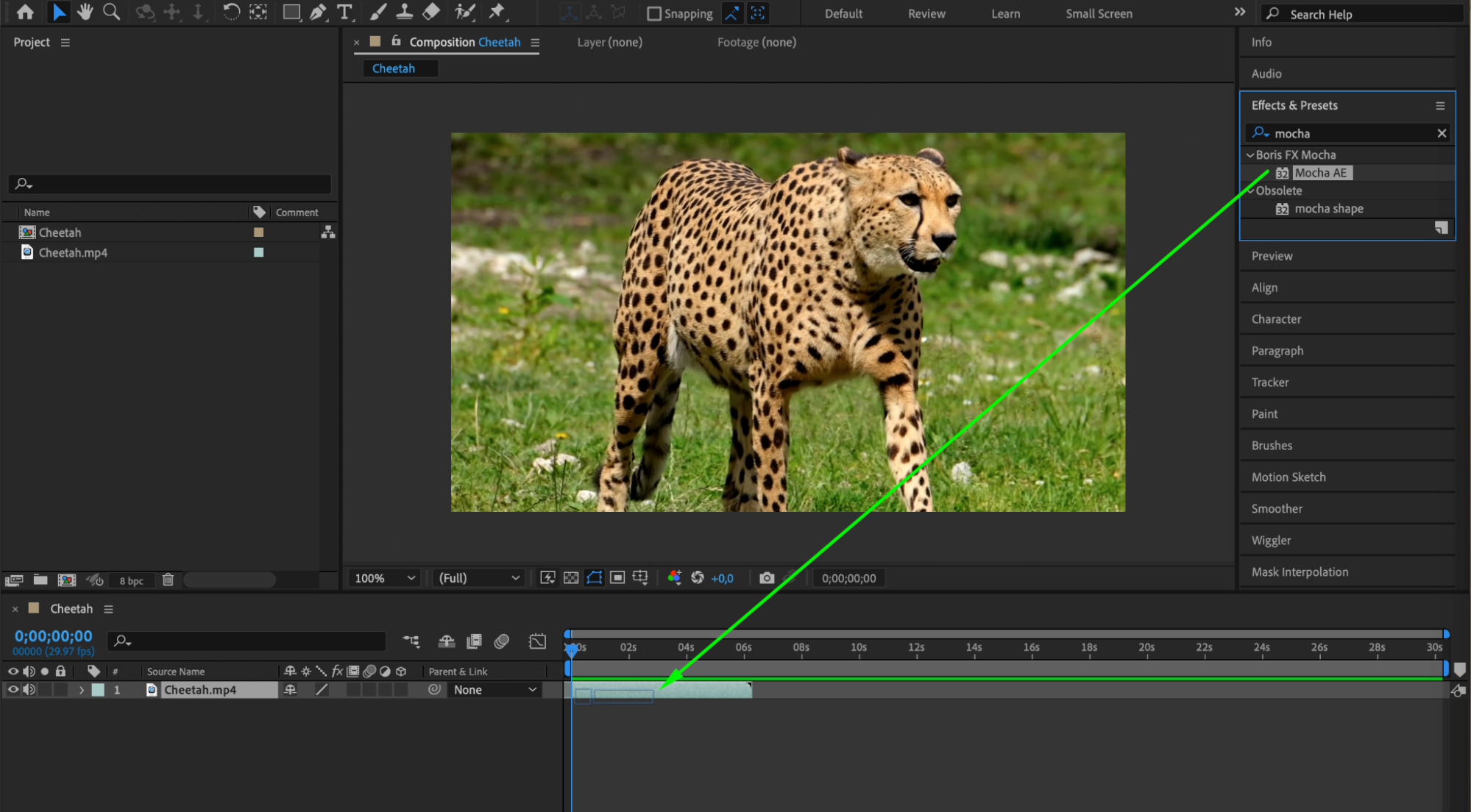

Go to the “Effects & Presets” panel and type “Mocha AE” in the search bar. Drag the Mocha AE effect onto your video layer. In the “Effect Controls” panel, click the Mocha button to open Mocha AE.

Step 4: Set Up Tracking in Mocha AE

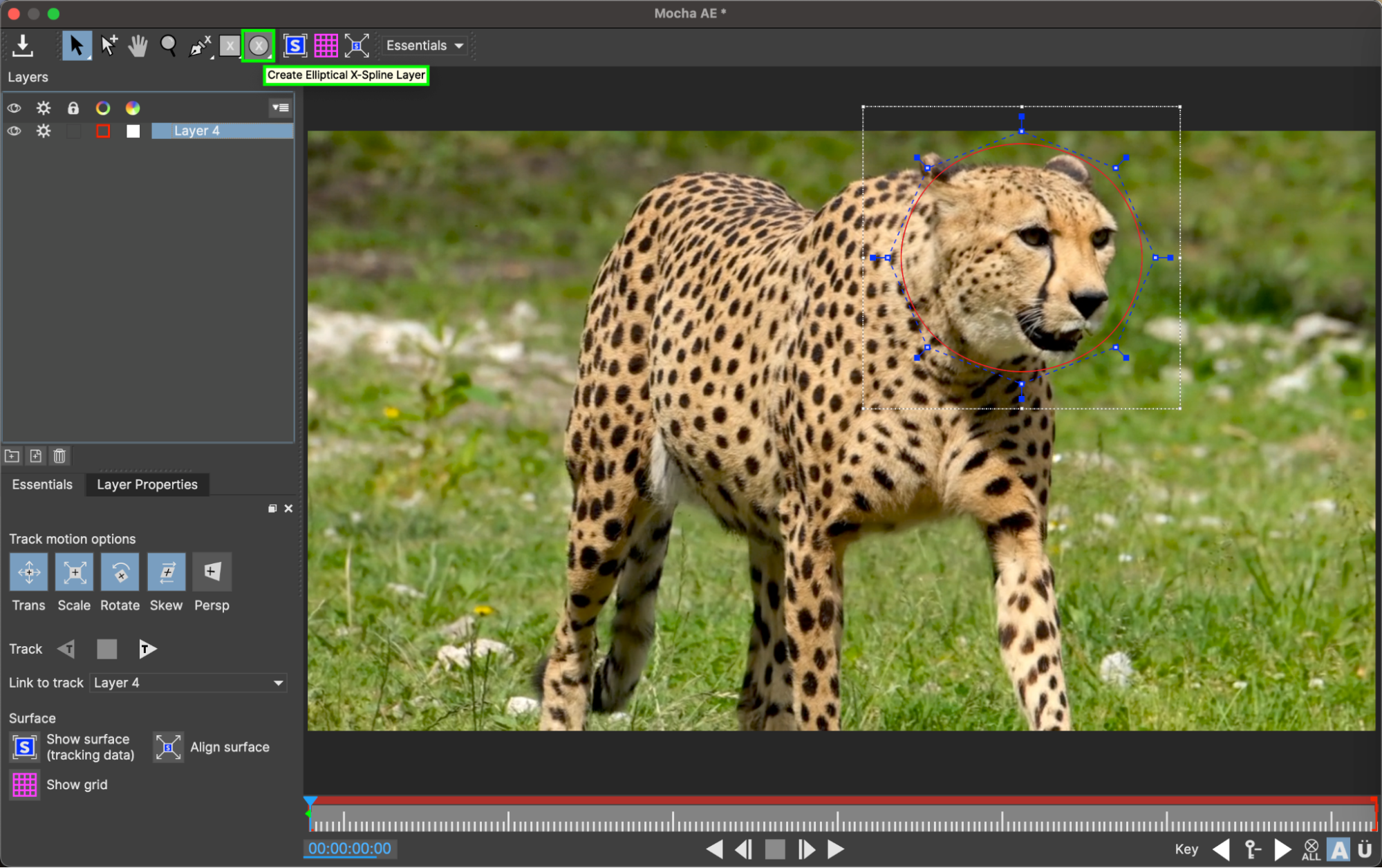

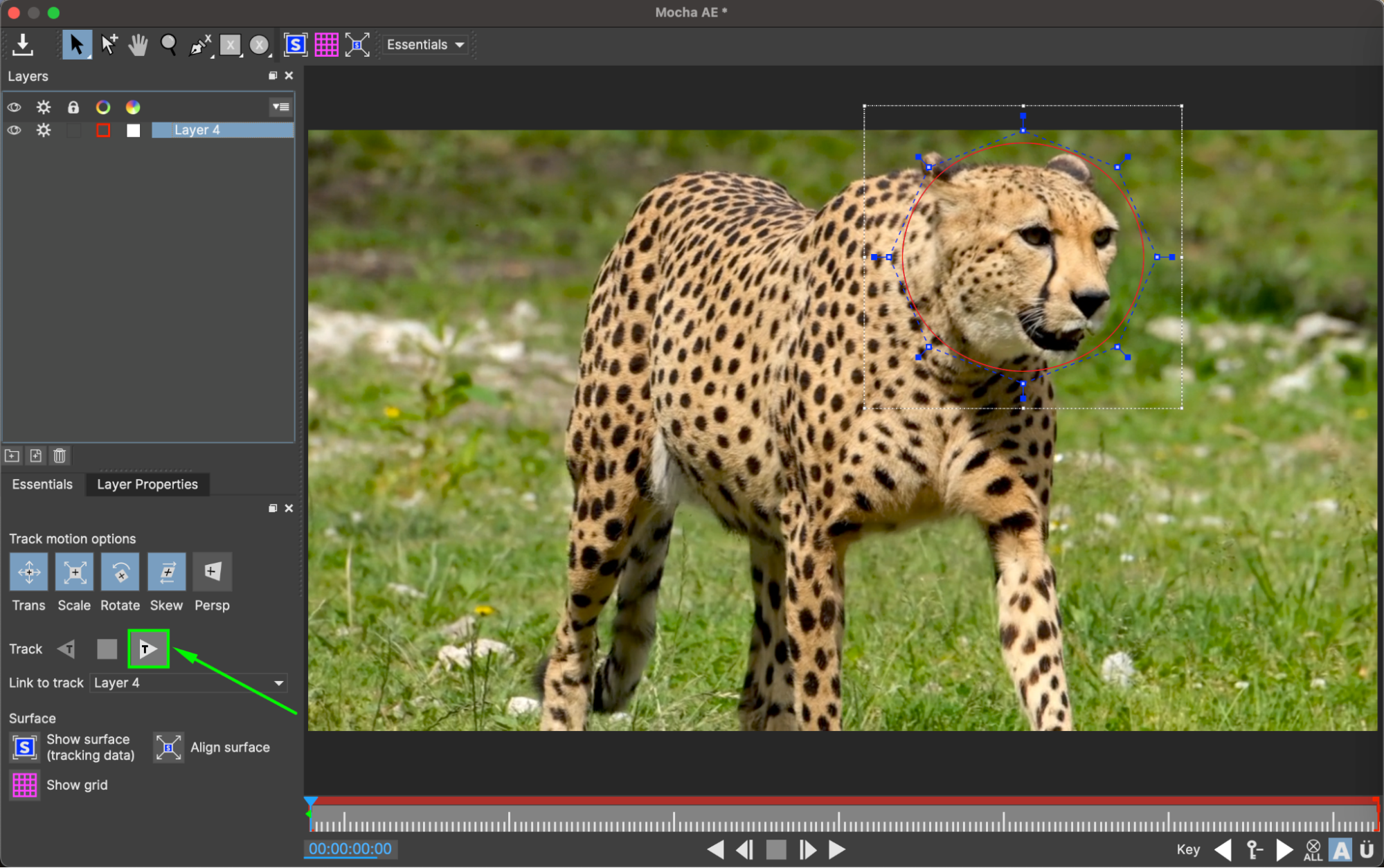

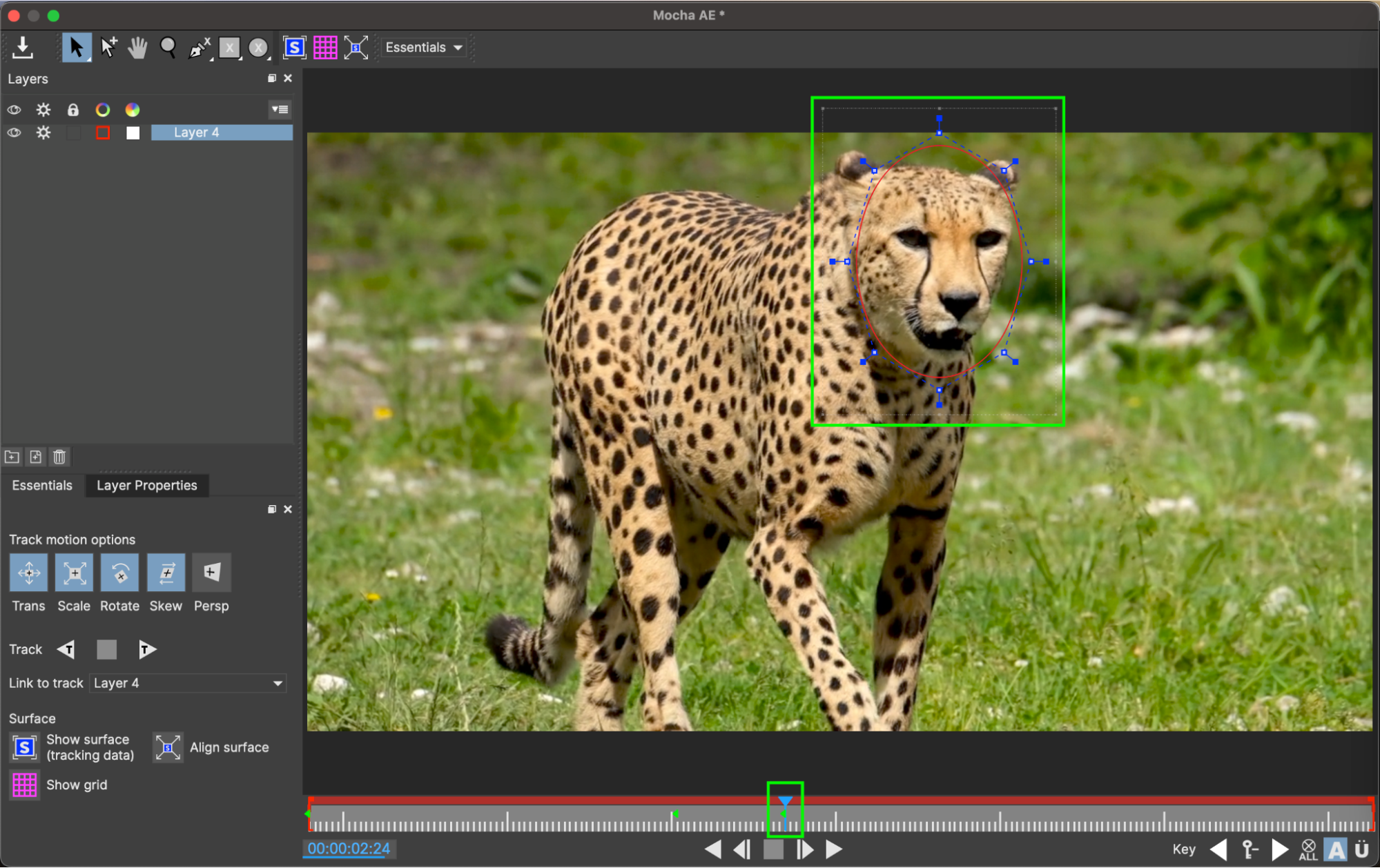

Use the Pen, Rectangle, or Ellipse tool to create an X-spline layer around the object or area you want to track. In the Track section, click the “Play” button to start the tracking process. Mocha AE will track the selected area frame by frame. Monitor the tracking process to ensure accuracy and adjust the spline manually if necessary.

Step 5: Export Tracking Data from Mocha AE

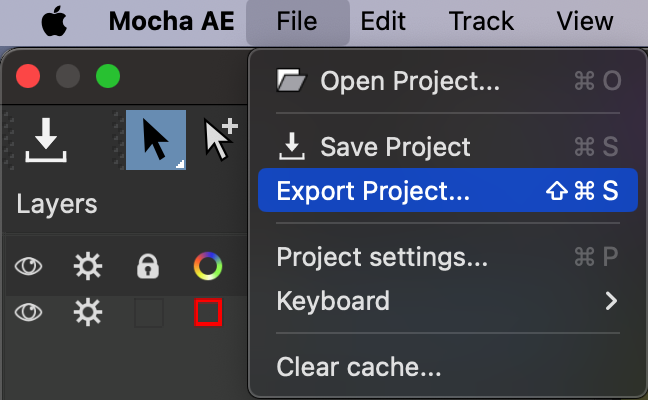

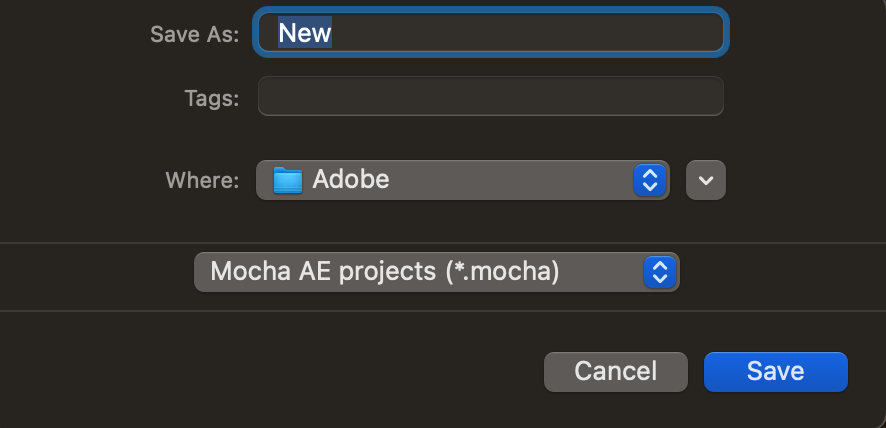

Once the tracking is complete, go to “File” > “Export Project” and save your work. After saving, close the Mocha AE window to return to After Effects.

Step 6: Create Track Data in After Effects

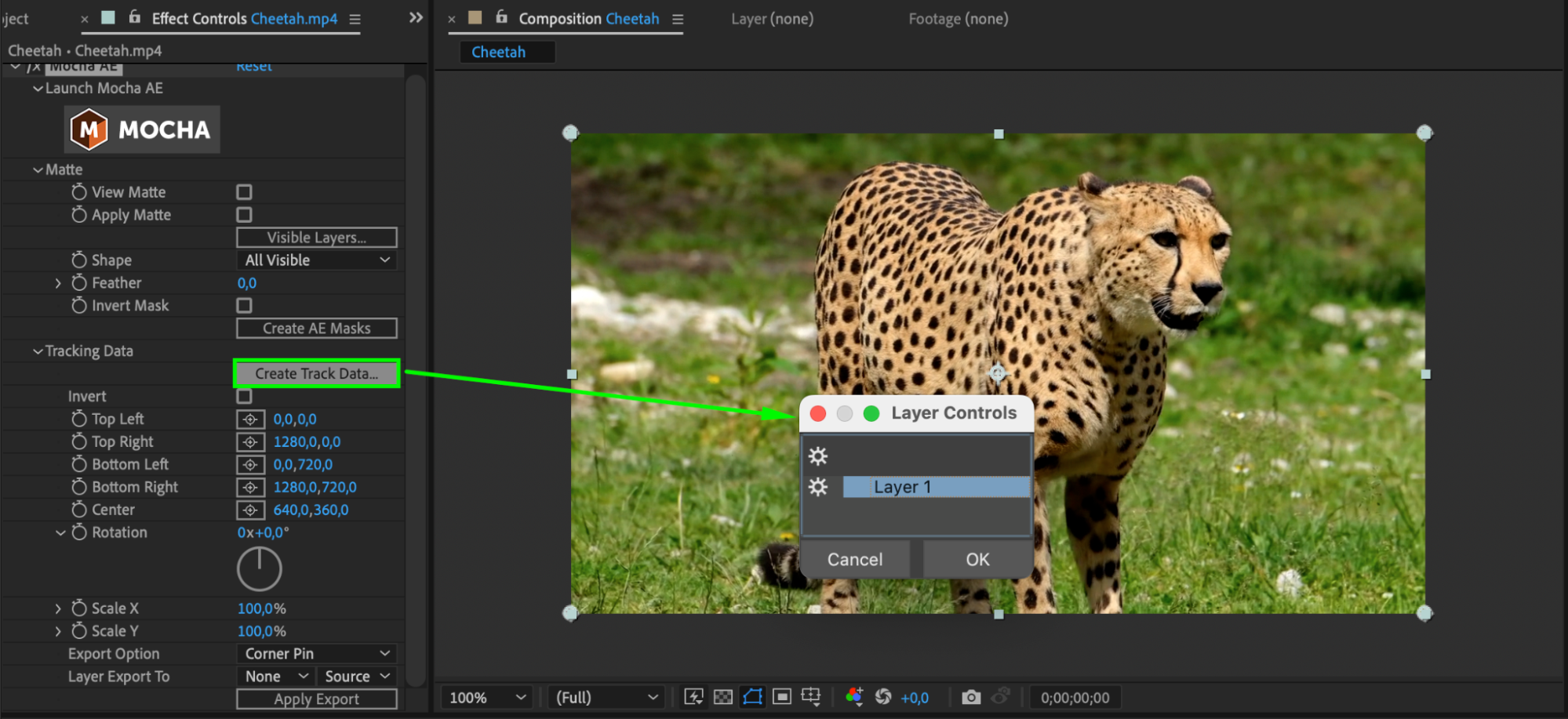

In After Effects, go to the “Effect Controls” panel. Click the “Create Track Data” button. From the “Layer Controls” window, choose the layer you tracked in Mocha AE and click OK.

Step 7: Apply the Tracking Data

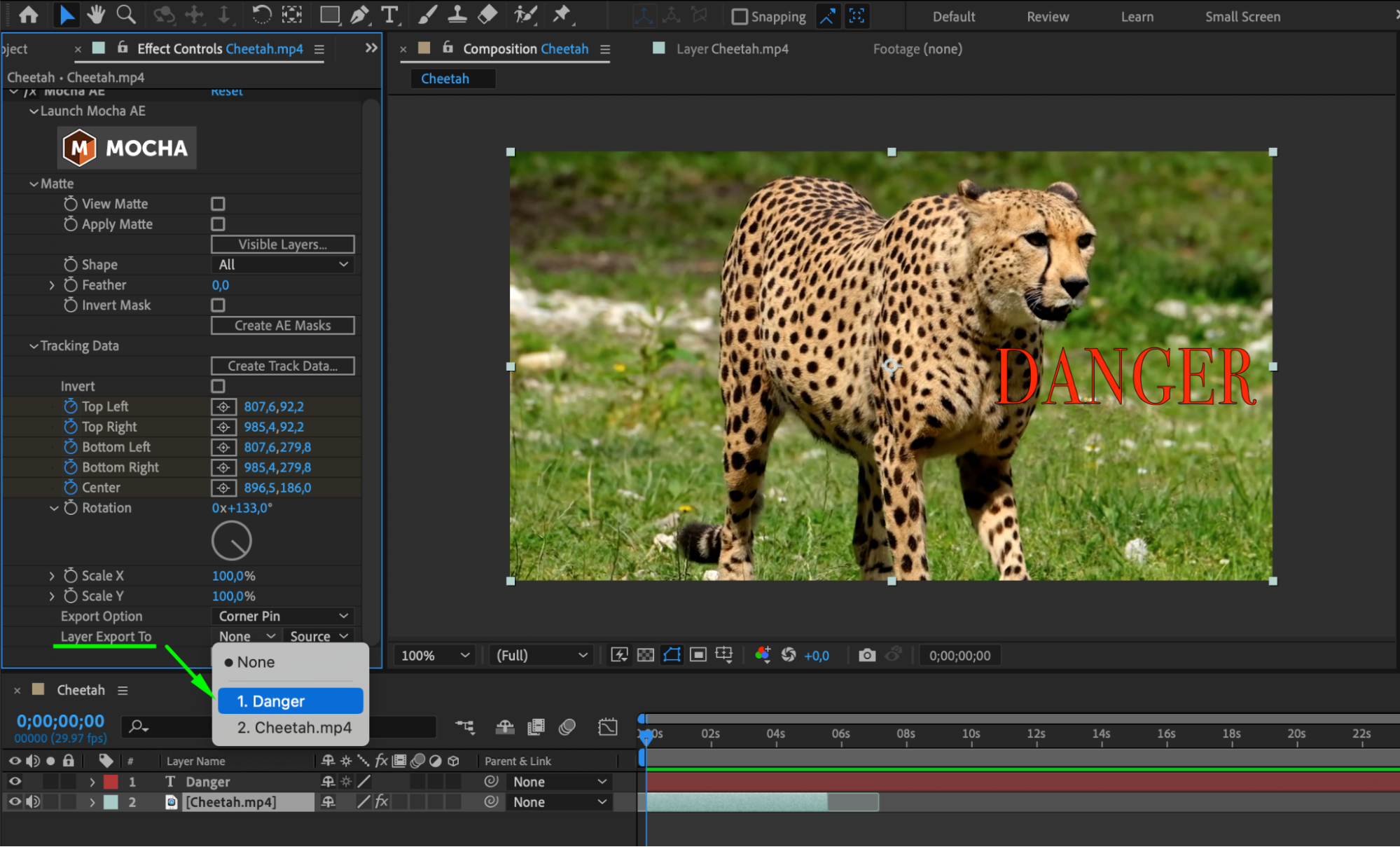

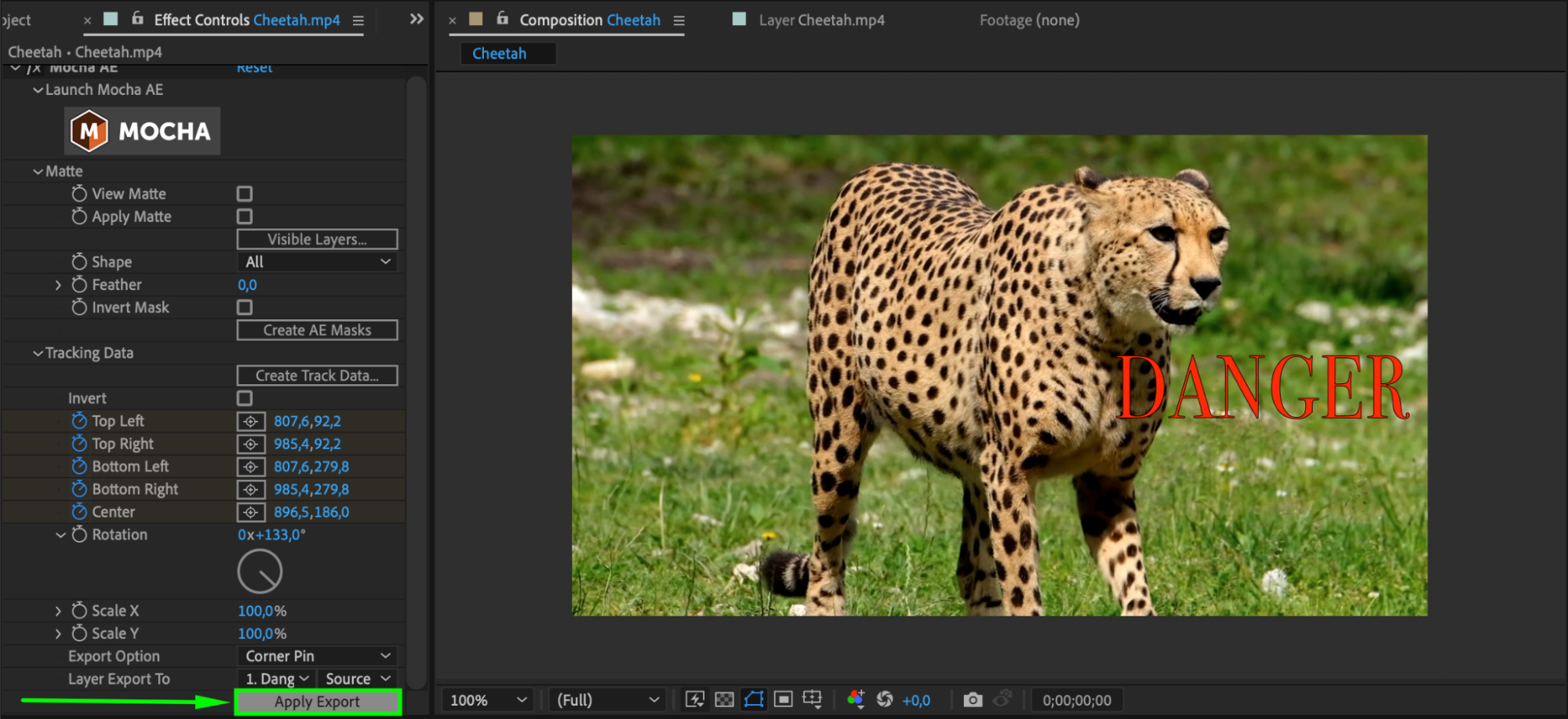

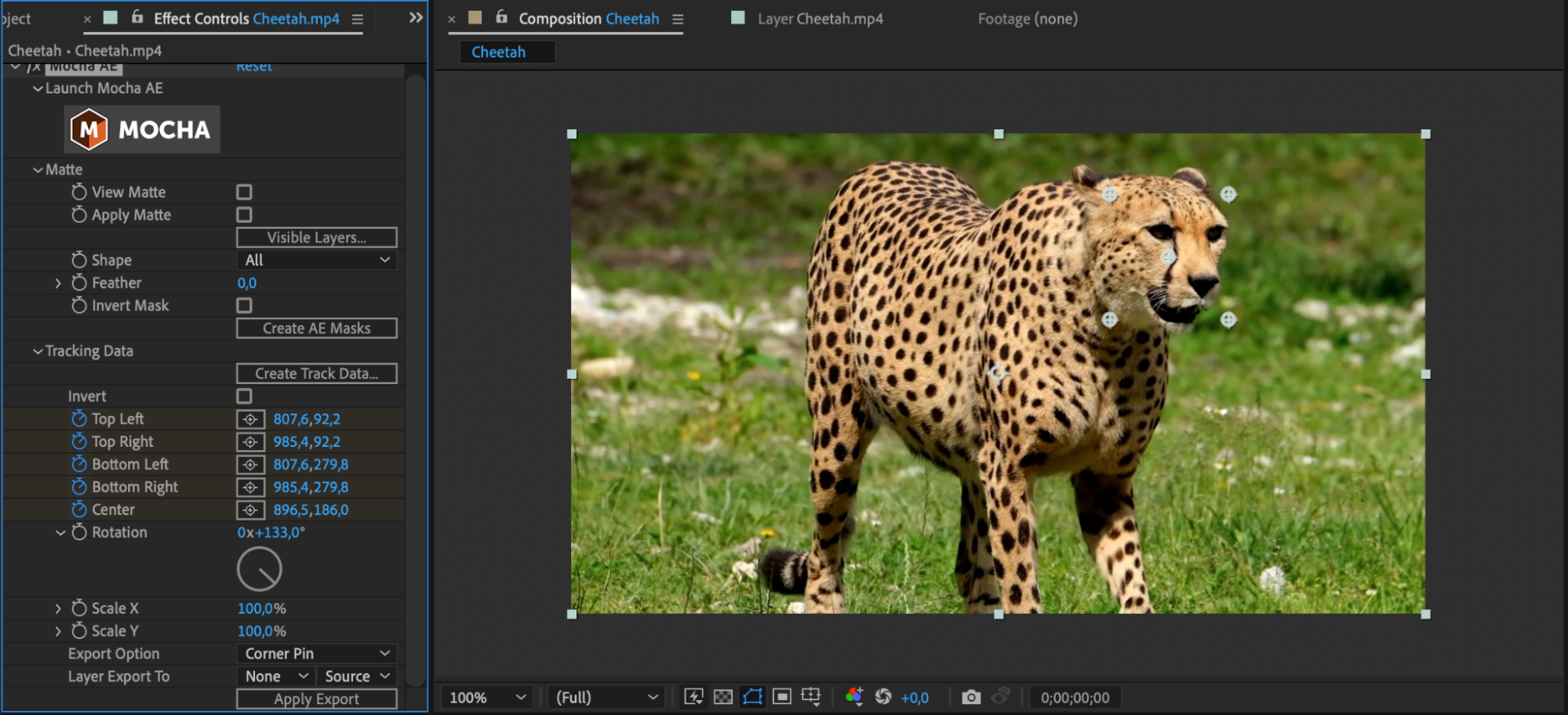

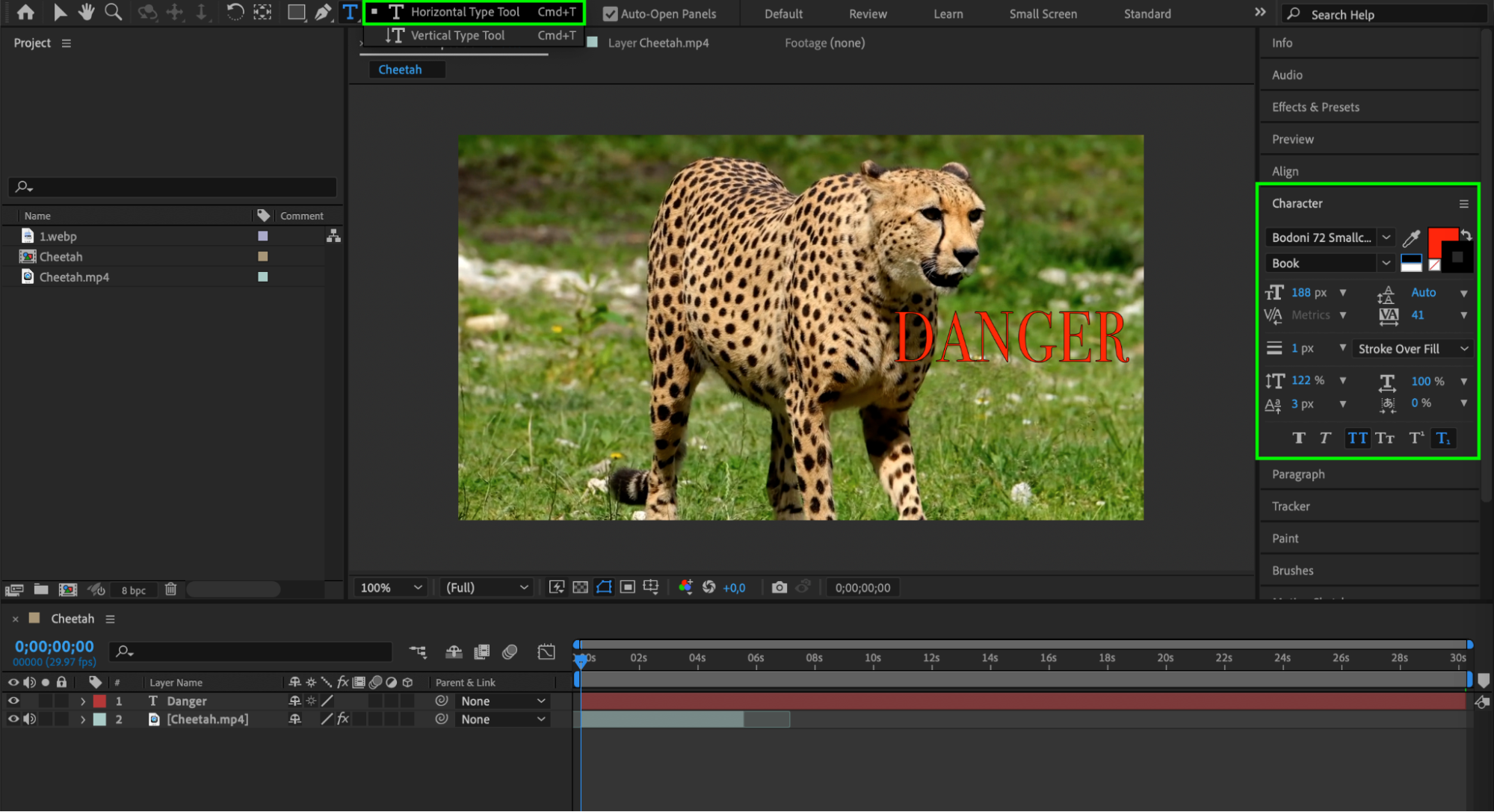

Import or create the shape, image, mask, or text that you want to place in the tracked area. In the “Effect Controls” panel of your video layer, find the “Layer Export To” parameter. Choose your replacement object from the list and click “Apply Export” to attach the tracked data to your replacement object.

Step 8: Adjust and Refine

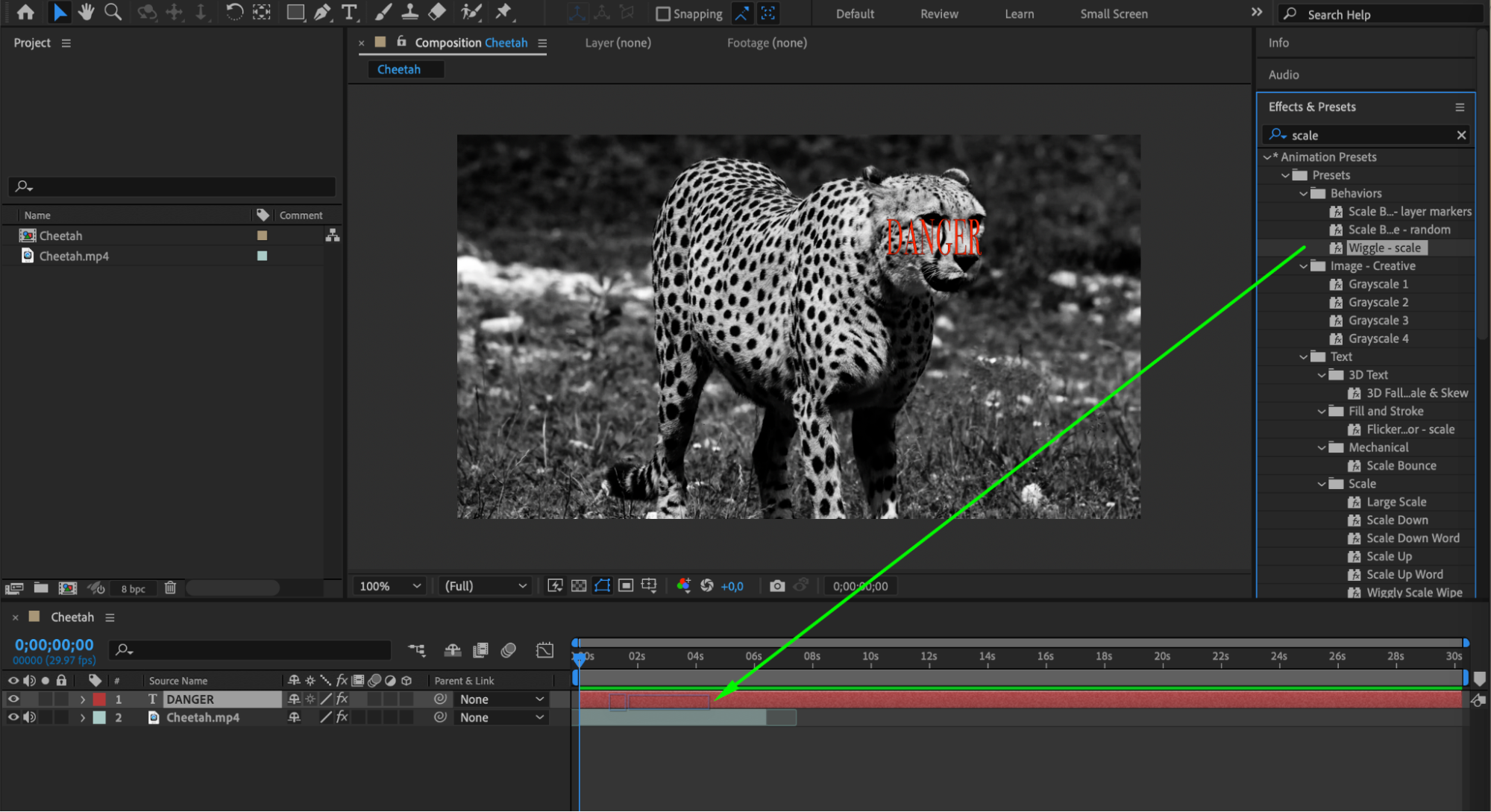

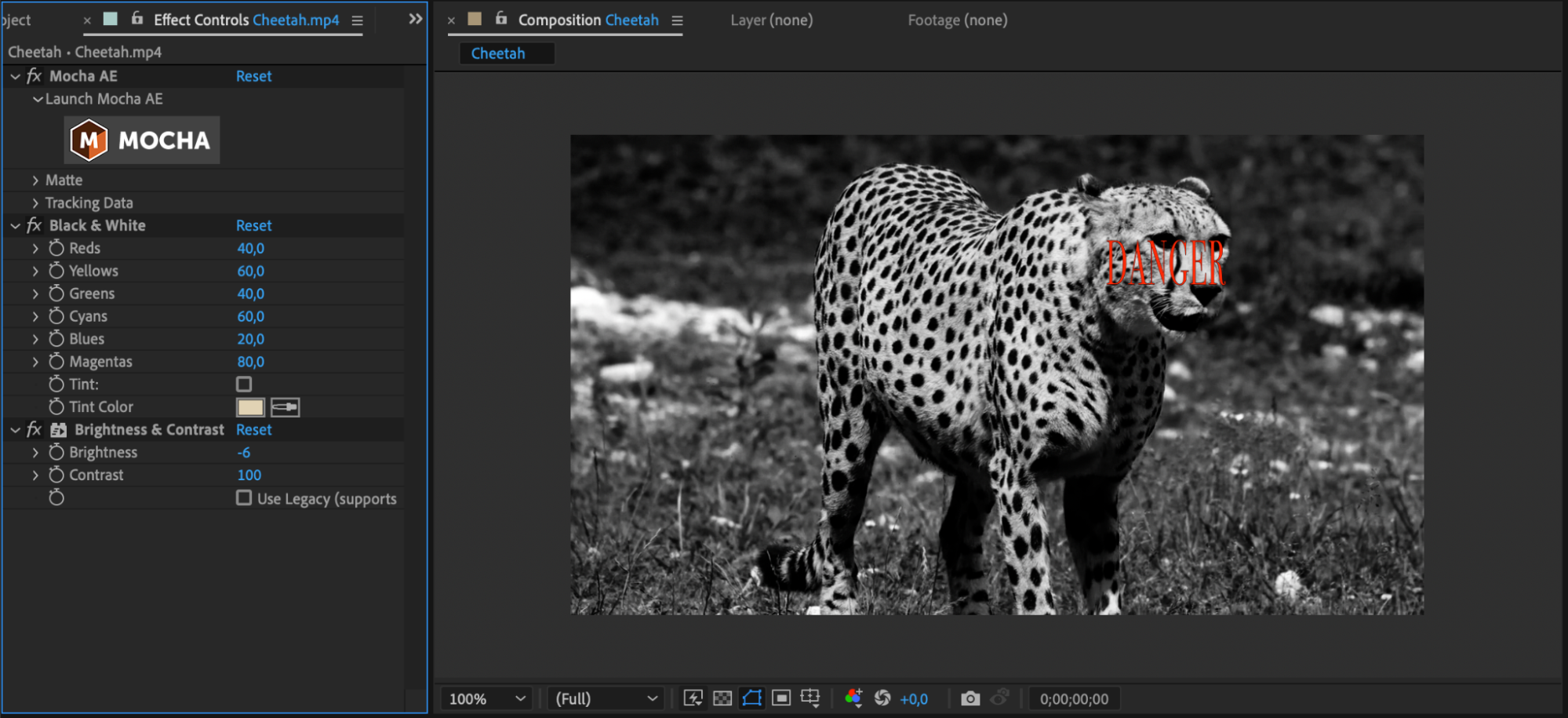

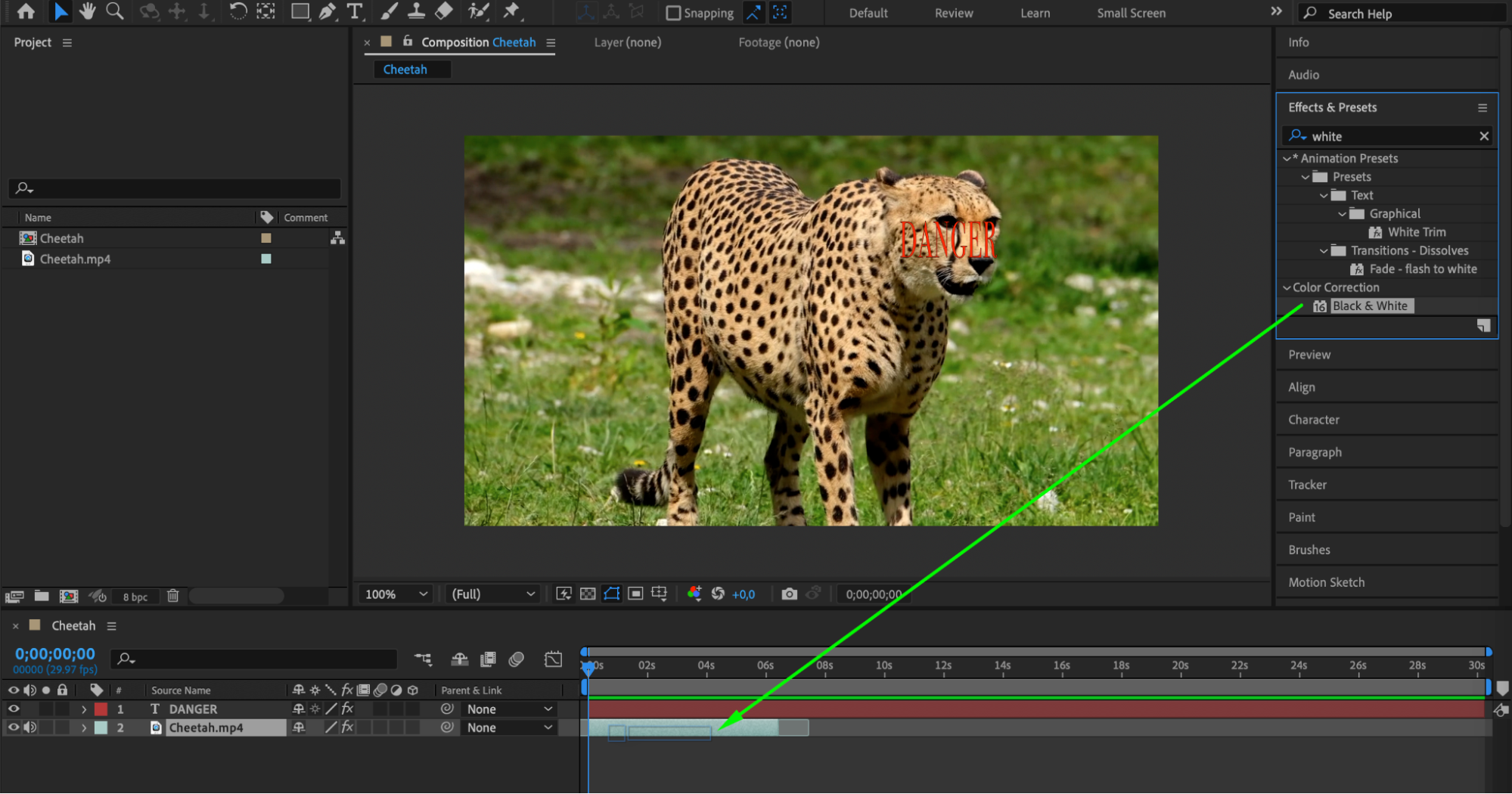

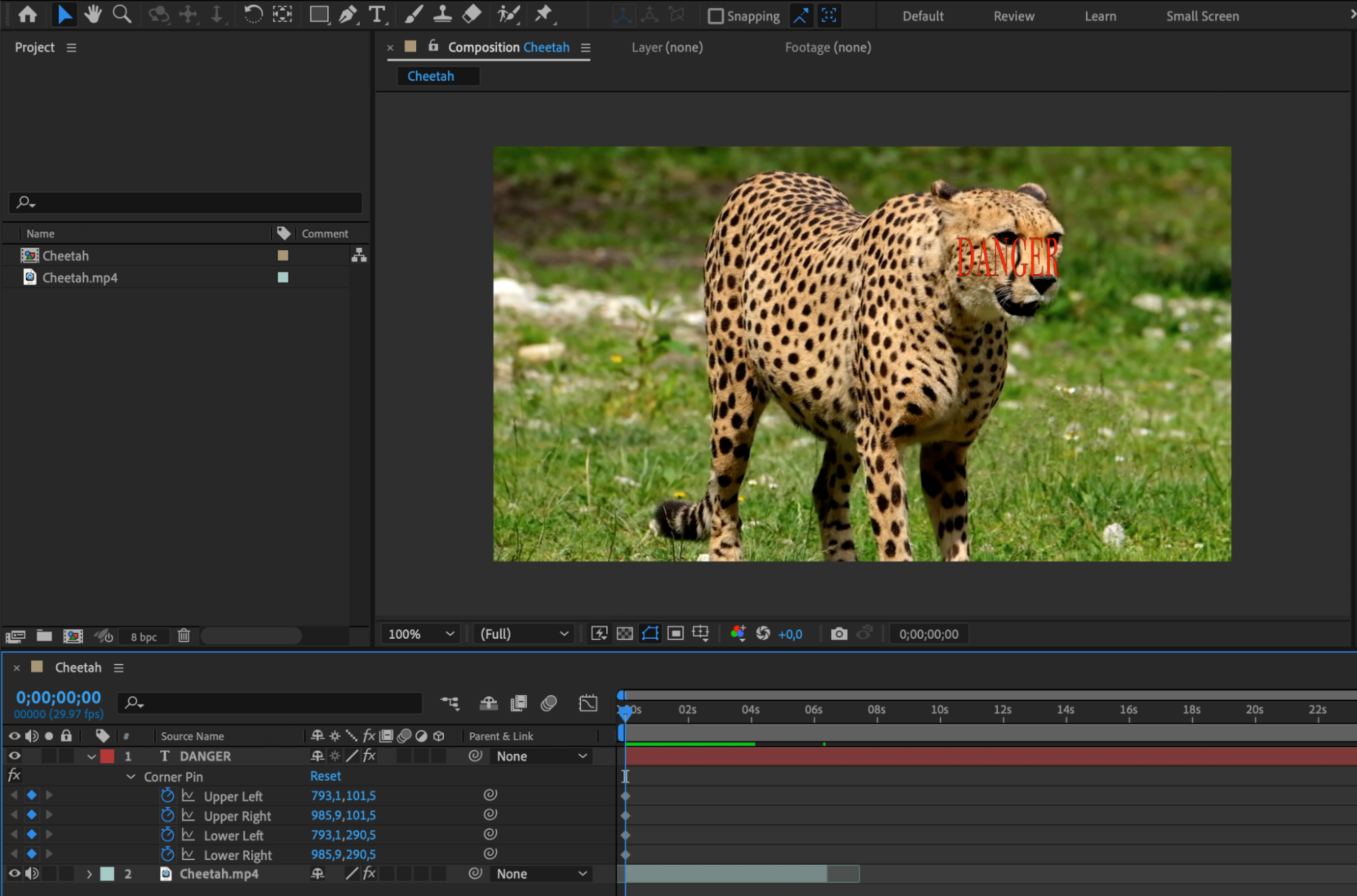

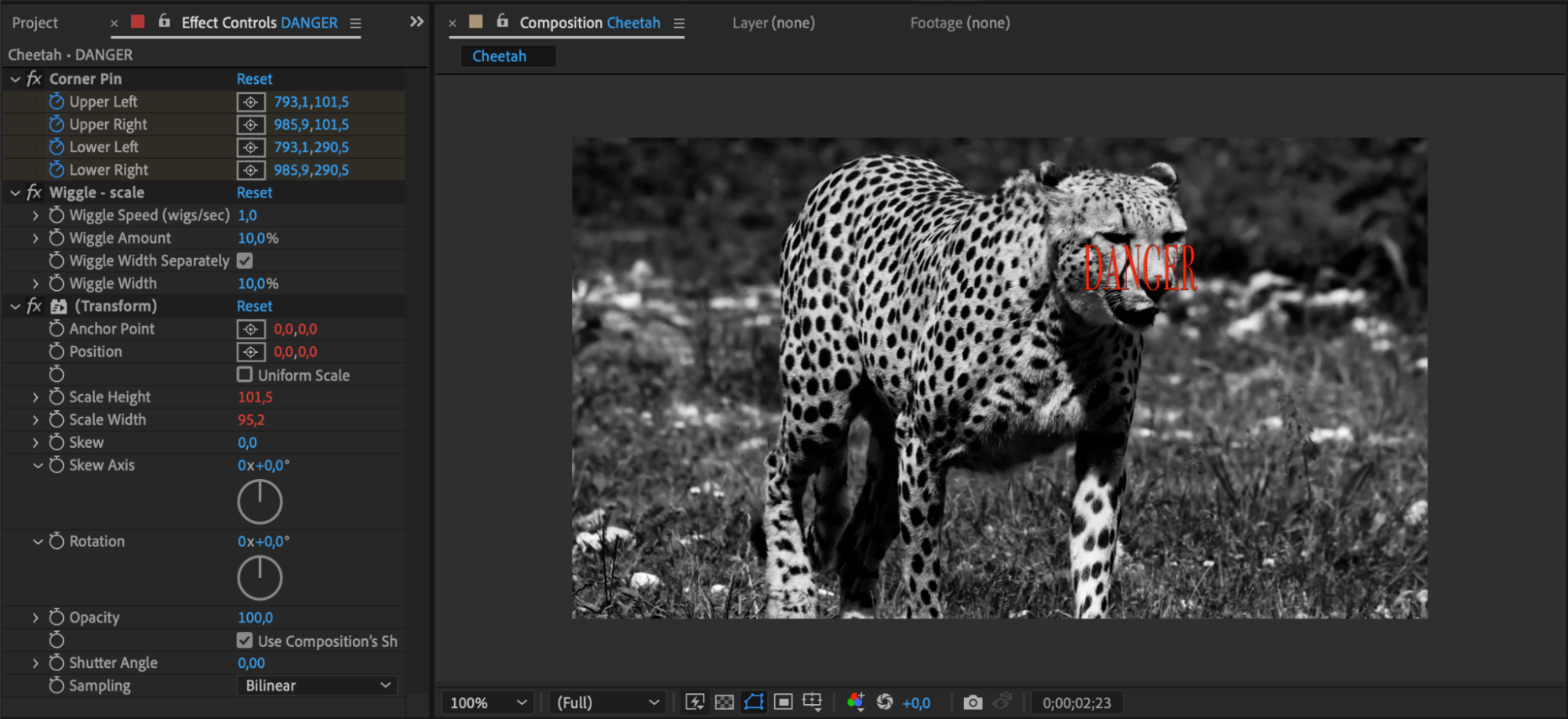

Use the Transform controls to fine-tune the position, scale, and rotation of your replacement object. Use the preview function to check how well the object follows the tracked movement. Add additional effects and experiment with keyframes to enhance your composition.

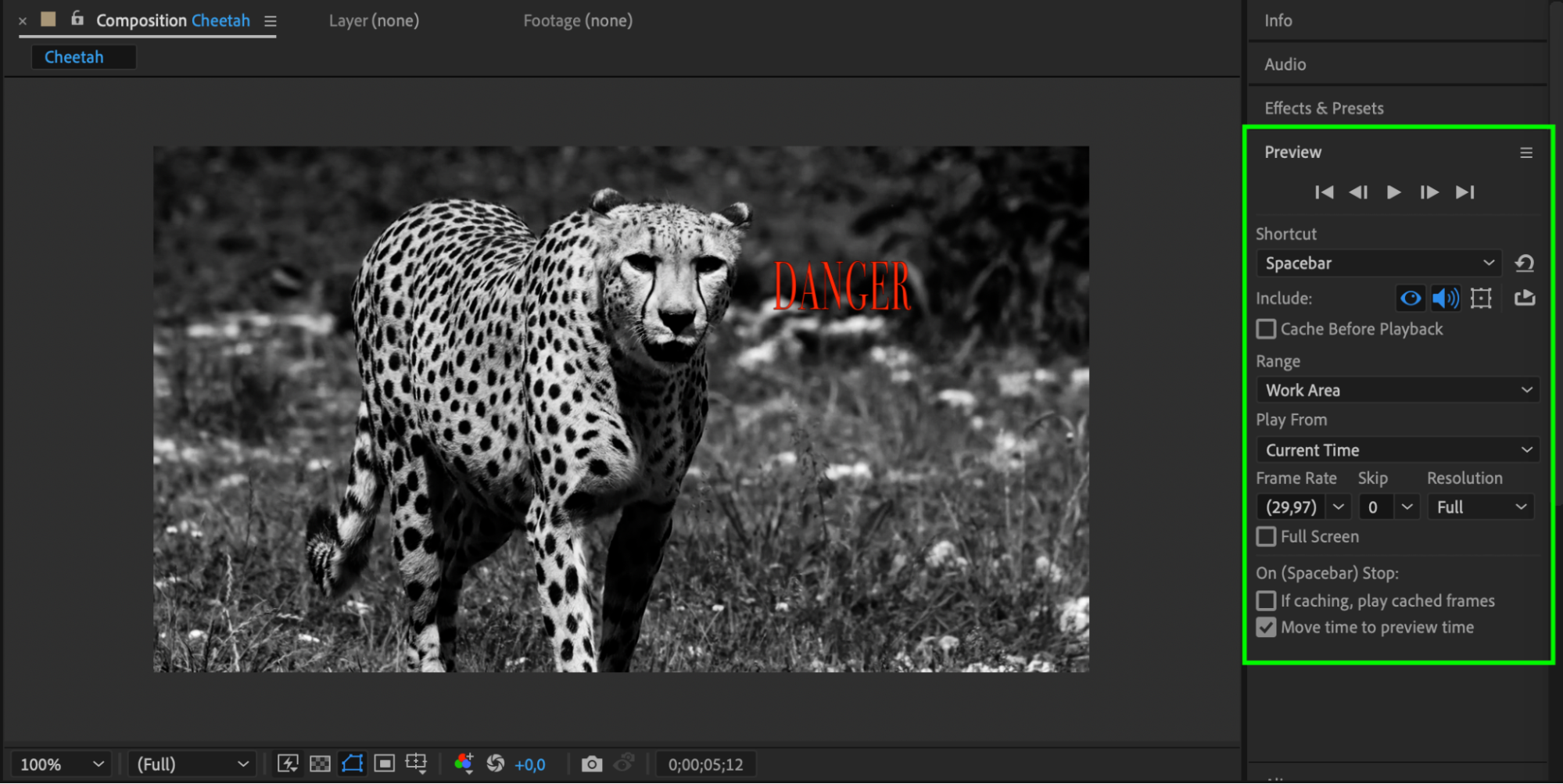

Step 9: Preview Your Composition
Scrub through the timeline to ensure everything is tracked and positioned correctly. Make any final adjustments to the parameters as needed to achieve the best result.

By following these steps, you can effectively use Mocha AE for tracking in After Effects, allowing you to integrate tracked elements seamlessly into your video projects. Experiment with different objects and effects to achieve the desired result.

Conclusion

Mastering Mocha tracking in After Effects opens up exciting possibilities for adding impressive visual effects and motion graphics to your projects. By following the tips and techniques outlined in this article, you can harness the power of Mocha to achieve precise and seamless tracking results.

With practice and experimentation, you’ll unlock Mocha’s potential and enhance your ability to create captivating visual effects. So, go forth, explore, and elevate your motion tracking skills in After Effects. Skyrocket your creativity and bring your visions to life with Mocha tracking!
