Mastering the Mesh Warp Tool in After Effects
Introduction: What is Mesh Warp and How to Use It?
The Mesh Warp effect in After Effects allows you to distort and reshape your visuals using a customizable grid. Whether you’re working with text, shapes, or videos, this tool provides precise control to create unique and eye-catching animations. In this guide, you’ll learn how to apply and customize the Mesh Warp effect step by step.

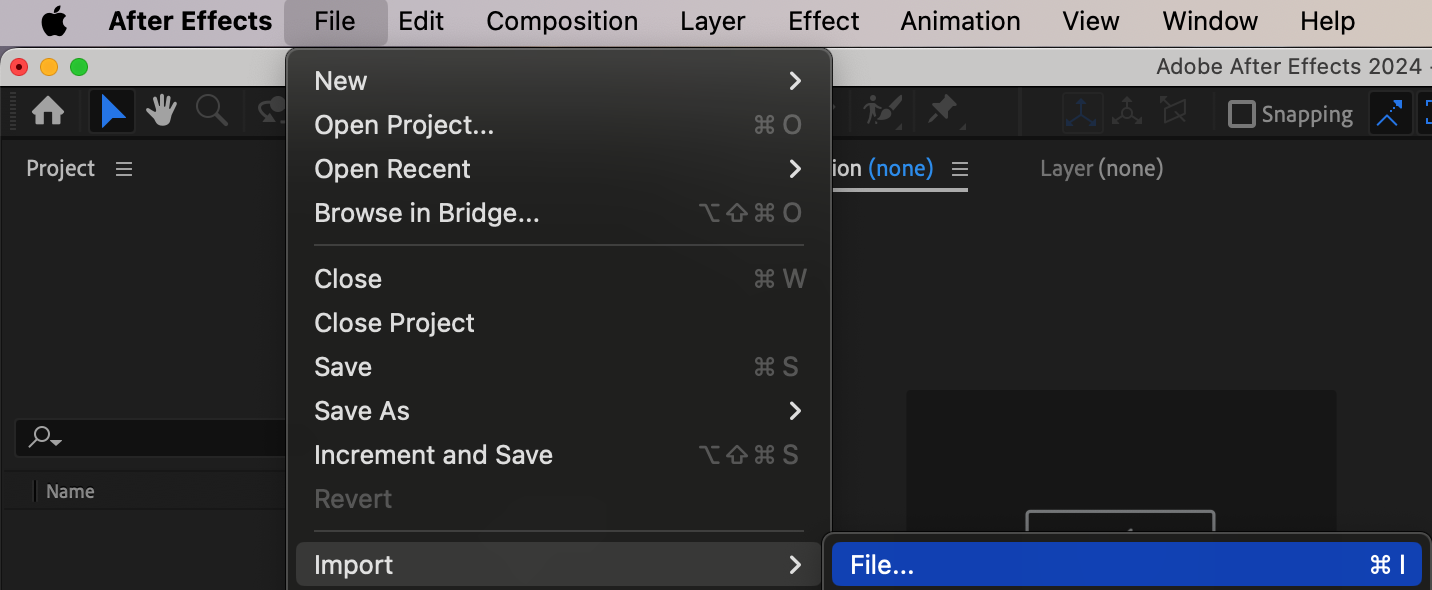

Step 1: Import Your Video
Start by importing the video or media file you want to edit. Go to File > Import > File, select your desired file, and click Open. This ensures you have your base footage ready for the project.

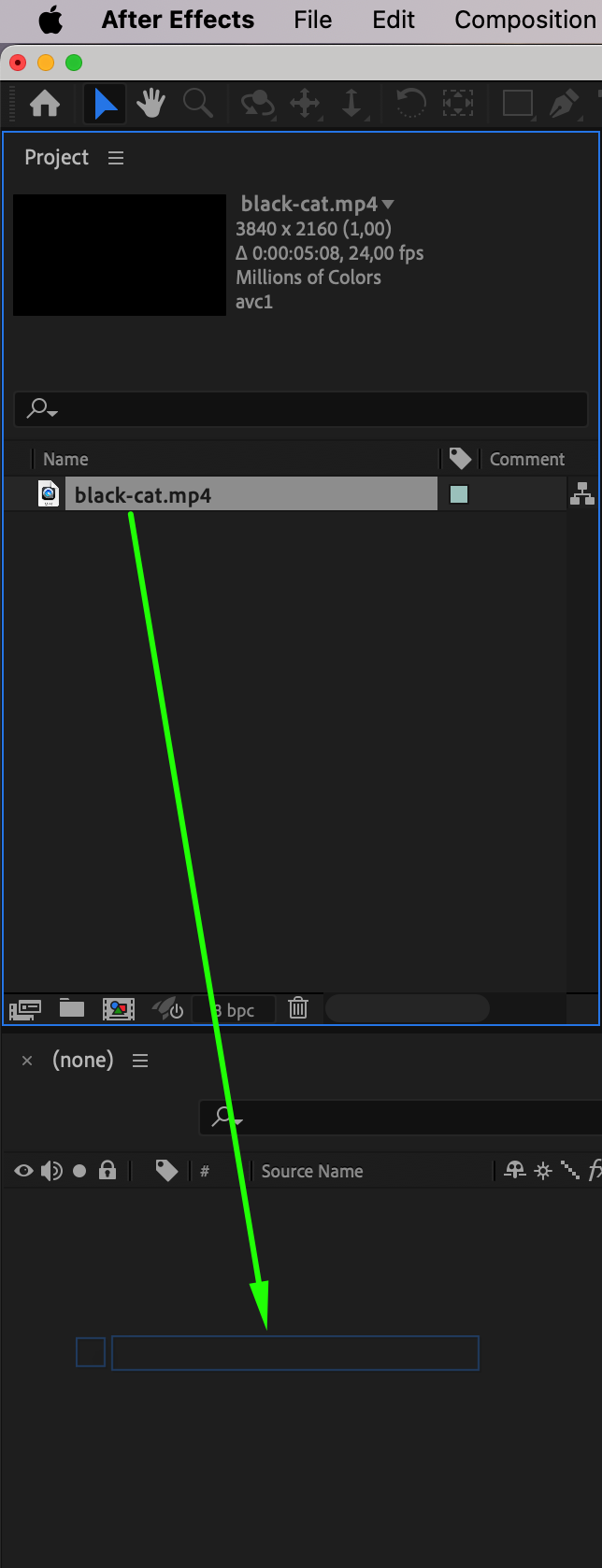

Step 2: Add the File to the Timeline
Drag your imported file from the Project Panel to the timeline. Adjust its position and duration as needed. This sets up your composition for applying the Mesh Warp effect.

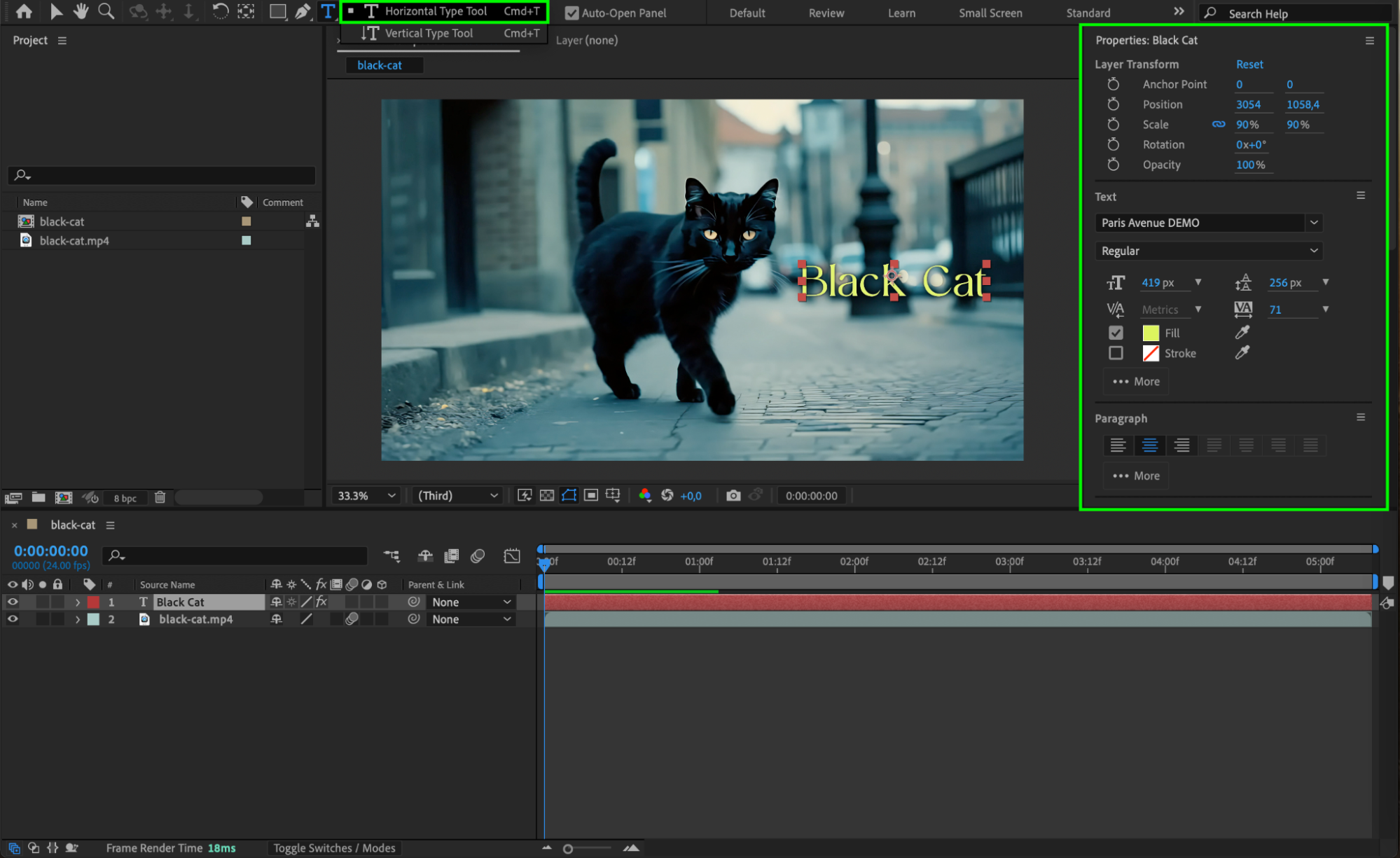

Step 3: Create Text or Shape Layers (Optional)
If you want to apply the Mesh Warp effect to text or shapes rather than the video, use the Text Tool (Ctrl/Cmd + T) or the Shape Tool (Q) to add a layer to your composition. Customize the text or shape as desired. If you’re editing the video directly, skip this step and proceed to Step 5.

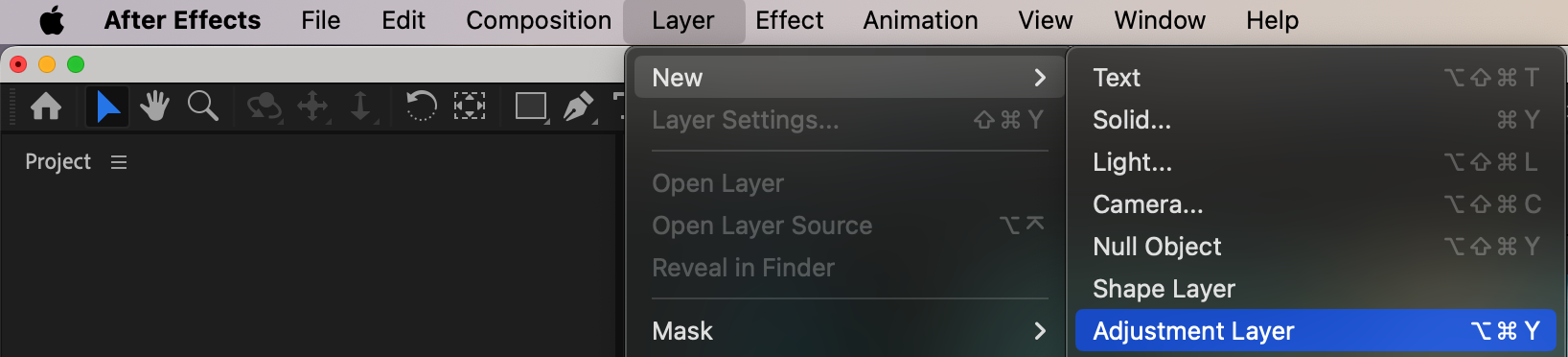

Step 4: Add an Adjustment Layer
To apply the Mesh Warp effect on top of multiple elements without altering the original layers, create an adjustment layer. Go to Layer > New > Adjustment Layer. Position it above the layers you want to affect in the timeline.

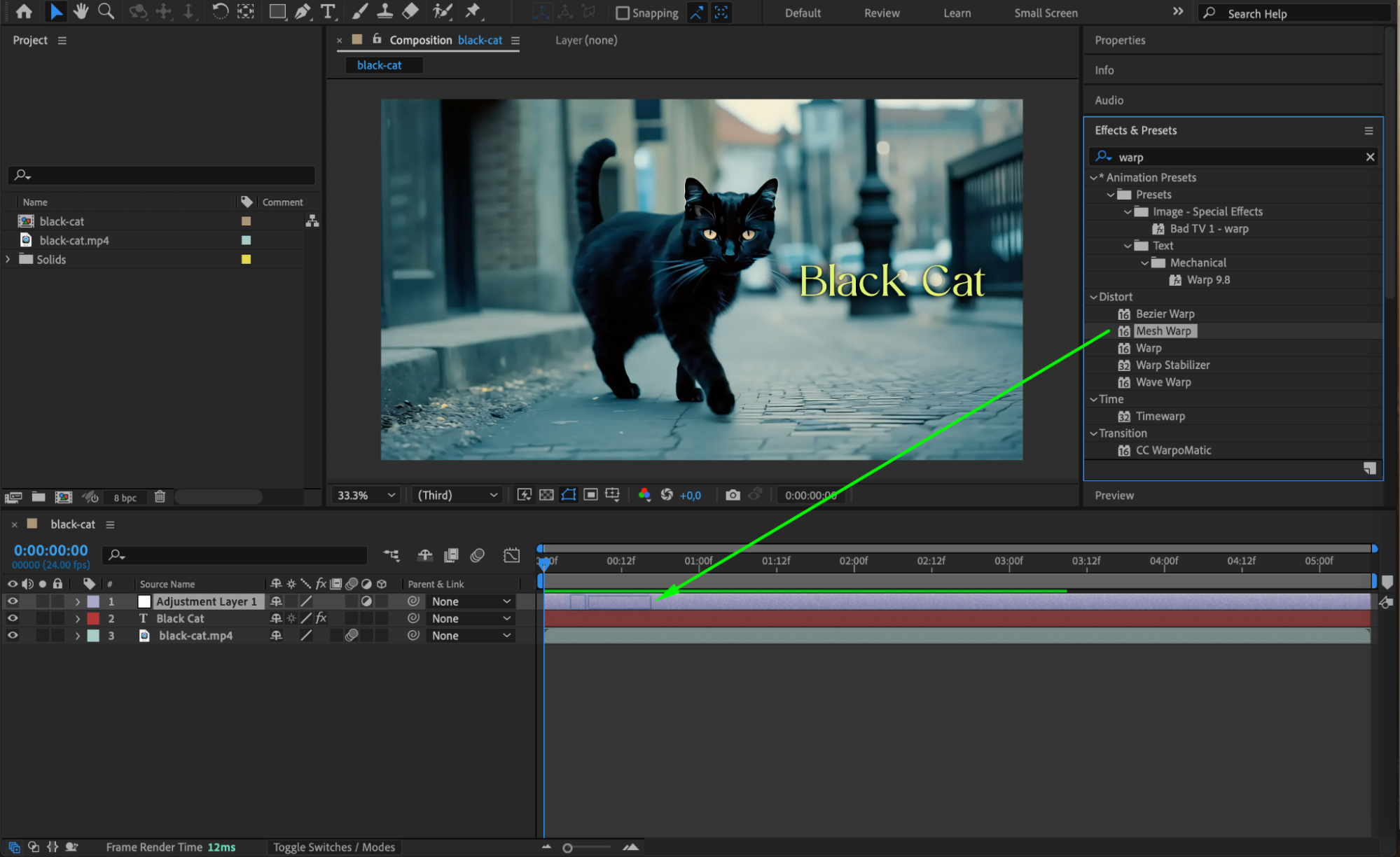

Step 5: Apply the Mesh Warp Effect
Locate the Mesh Warp effect in the Effects & Presets panel under the Distort category. Drag and drop the effect onto your adjustment layer. This adds a customizable grid overlay to your layer.

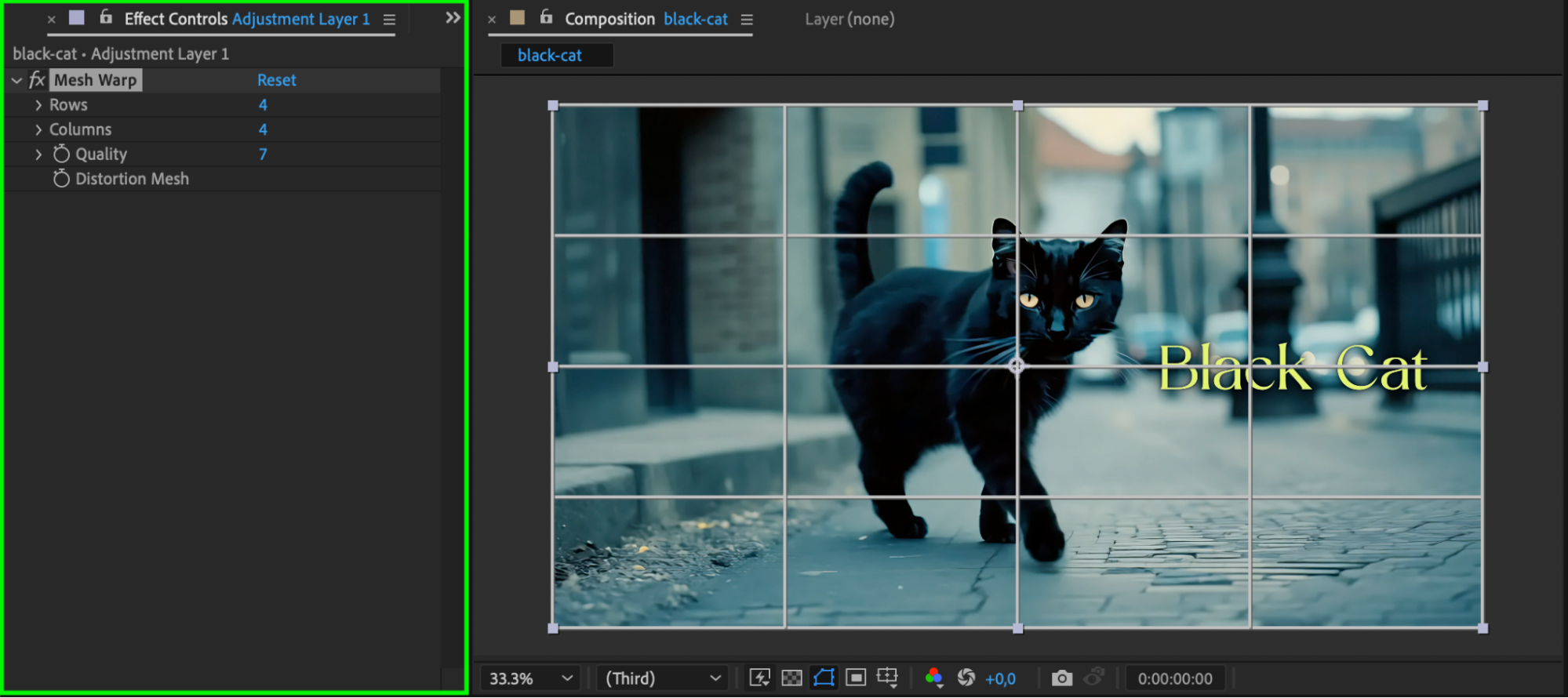

Step 6: Adjust the Mesh Warp Settings
In the Effect Controls panel, adjust parameters like:
Rows and Columns: Define the number of grid points for precise control.
Quality: Adjust for smoother deformations or faster performance.
Tweak these settings to match the level of detail required for your project.

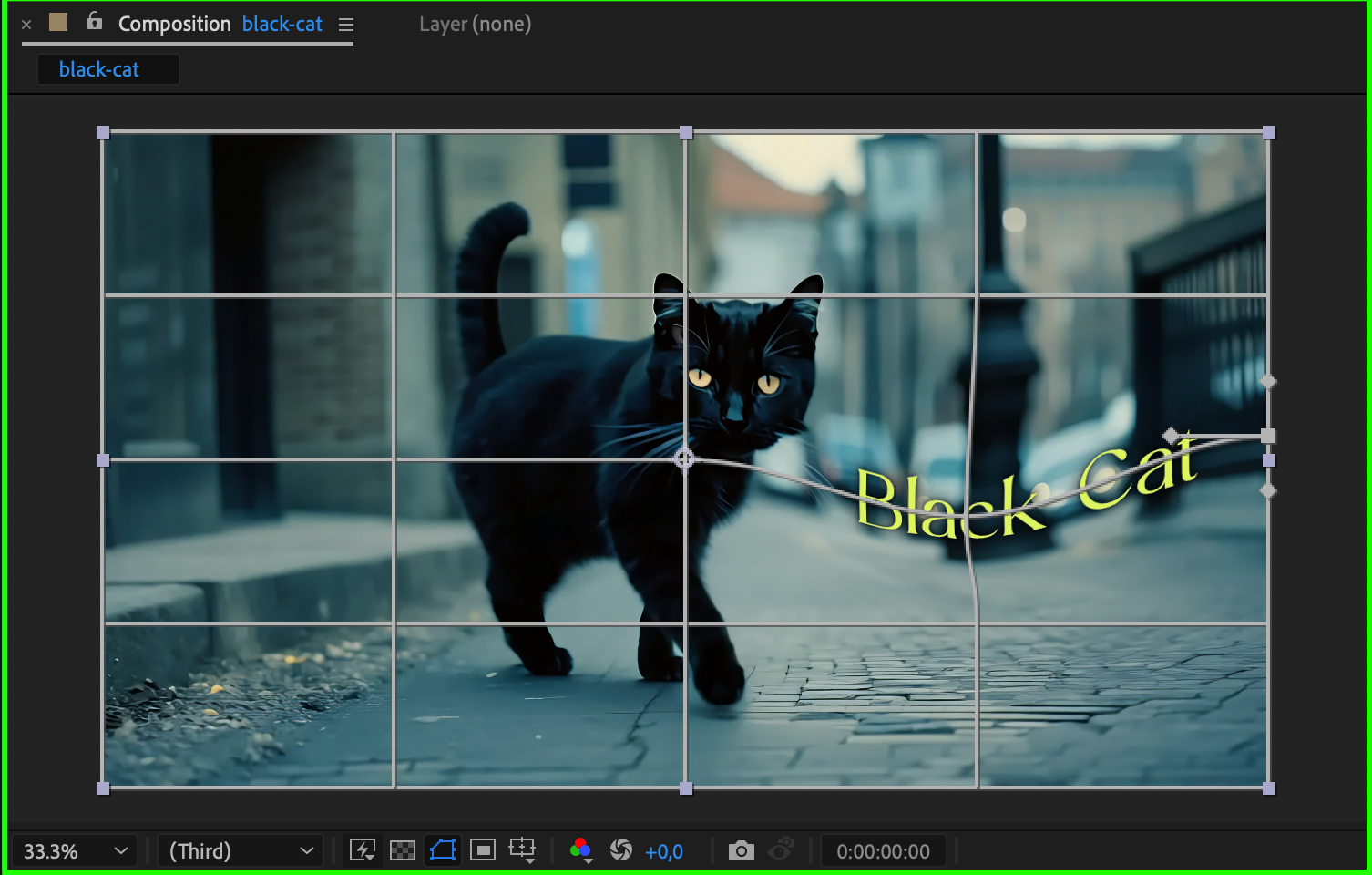

Step 7: Edit the Mesh Grid in the Composition Panel
In the composition panel, manipulate the mesh grid by clicking and dragging the control points. Adjust the grid to warp your text, shape, or video creatively. Experiment with different distortions to achieve the desired visual effect.

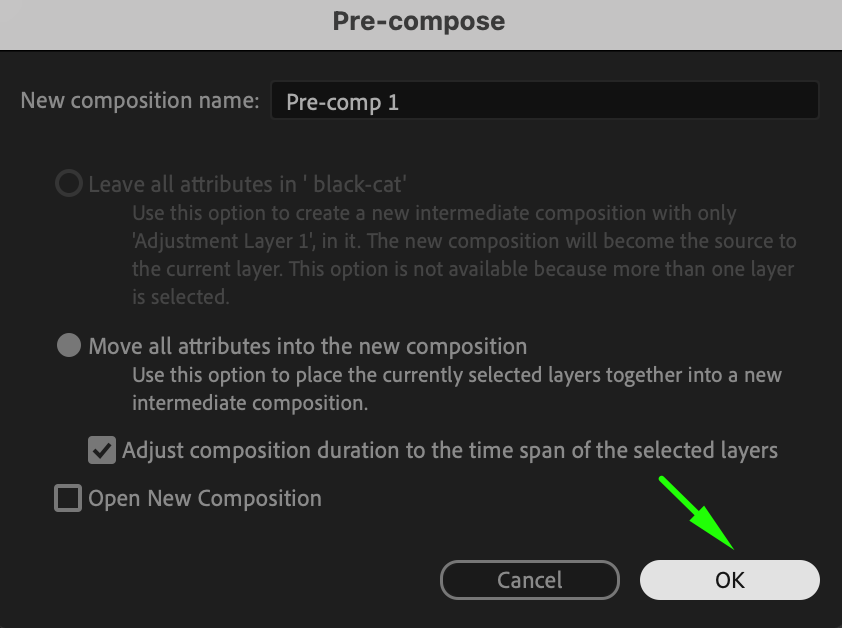

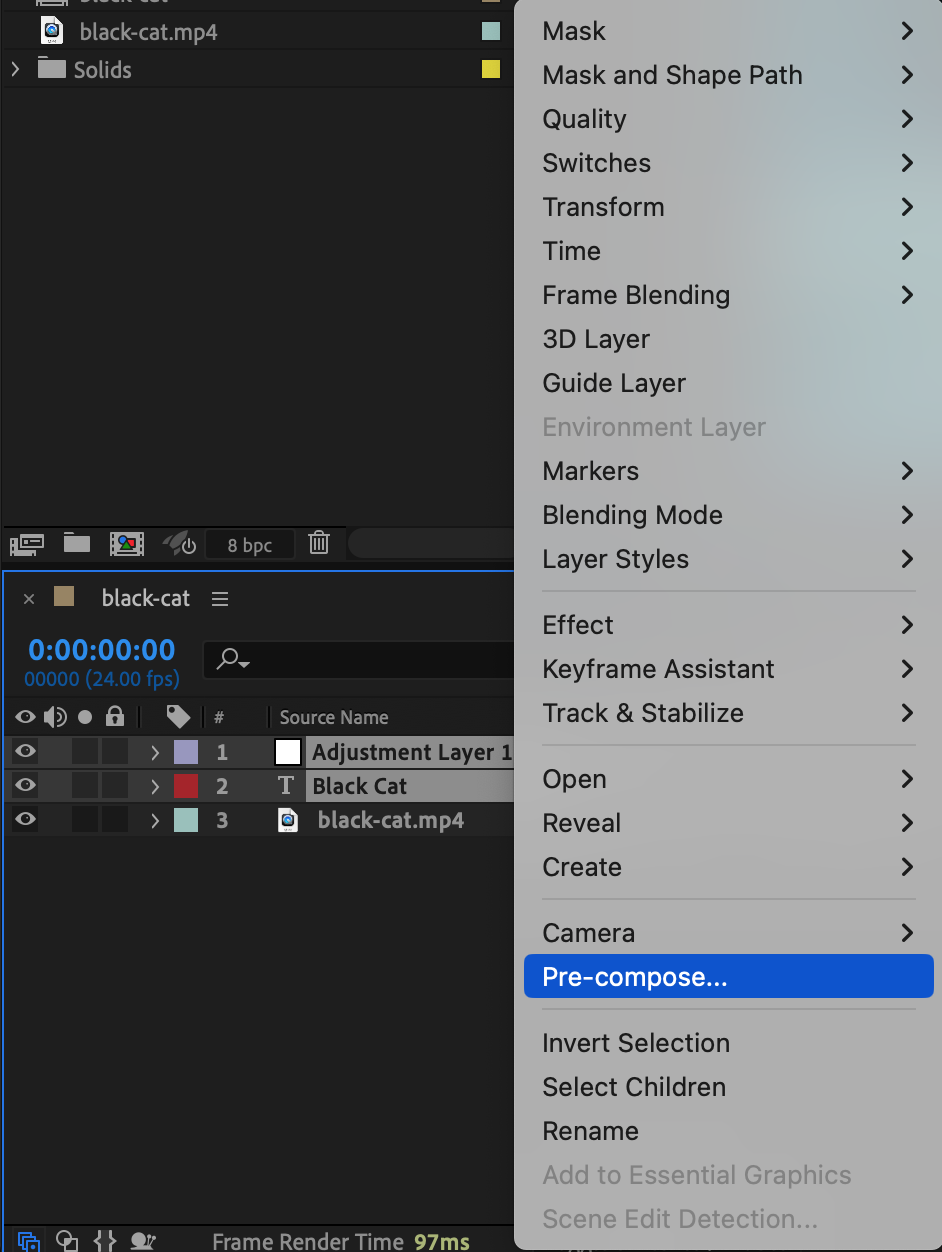

Step 8: Isolate the Effect with Pre-Composition (Optional)
If you want the Mesh Warp effect to apply only to a specific layer (e.g., text), select the adjustment layer and the target layer (e.g., text), right-click, and choose Pre-compose from the context menu. This combines the layers into a single composition, isolating the effect.

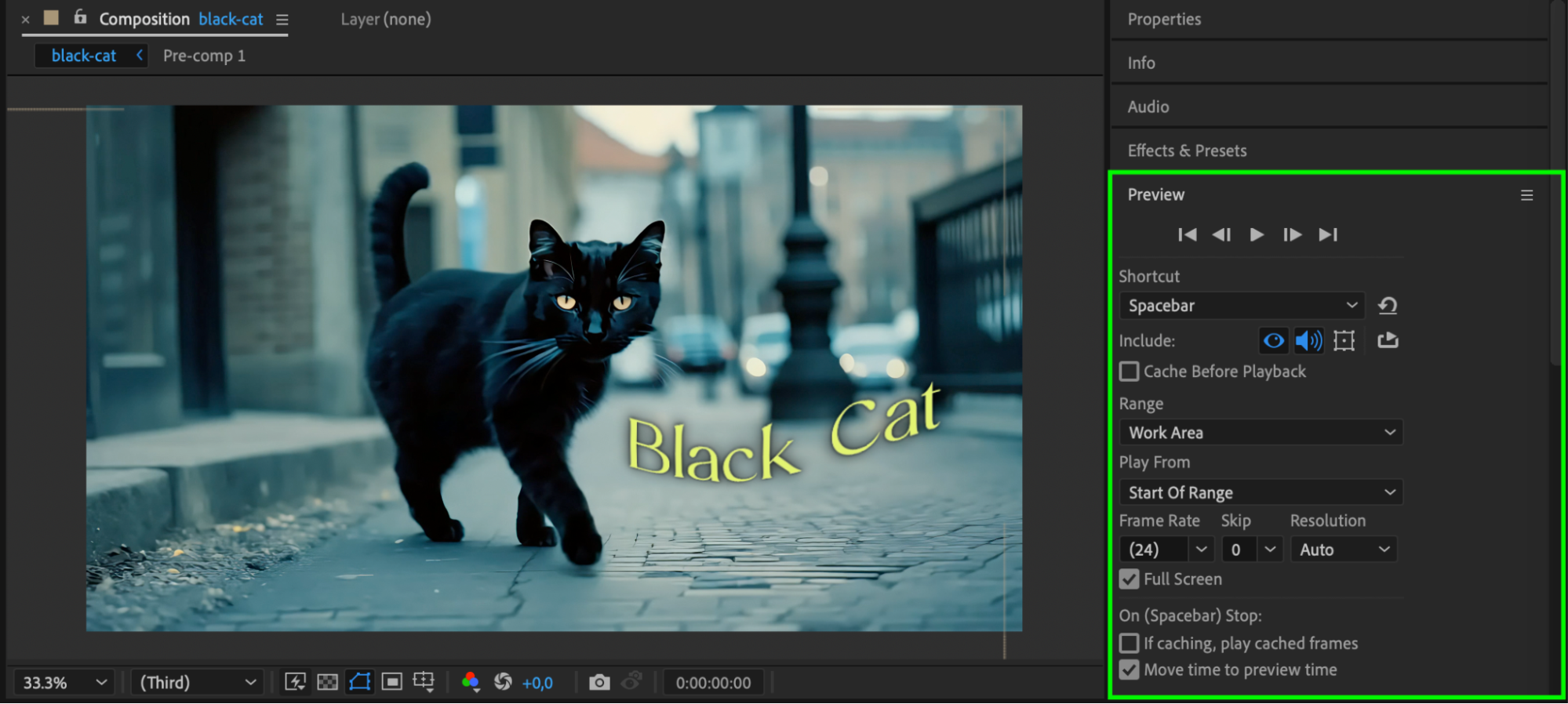

Step 9: Preview the Result
Press Spacebar to play back your animation and preview the effect. Check for smoothness, alignment, and overall quality. Make any necessary adjustments to the mesh or settings.

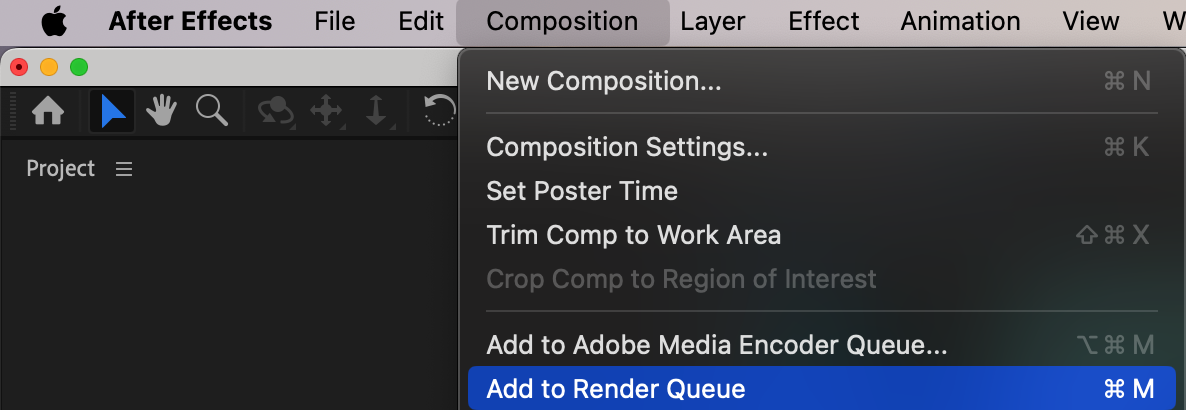

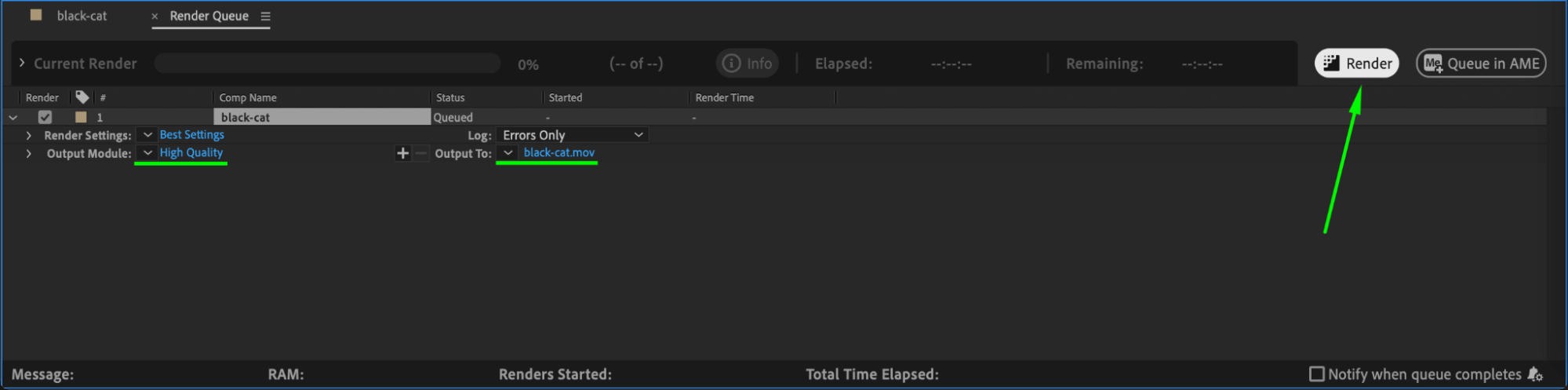

Step 10: Render the Final Composition
When satisfied with the result, render your project. Go to Composition > Add to Render Queue, configure the output settings, and click Render. Your composition with the Mesh Warp effect is now ready for use.
Conclusion
The Mesh Warp tool is a versatile feature in After Effects, allowing for detailed distortions and unique animations. Whether you’re warping text, shapes, or video, following these steps ensures precision and creativity. With practice, this tool can enhance your projects with stunning visual effects and dynamic transformations.
