A Complete Guide to Writing and Using Expressions in After Effects

Introduction: Unlock the Power of Expressions in After Effects

Expressions in After Effects are snippets of code that allow you to automate animations, link properties, and create dynamic, responsive animations that would be challenging or time-consuming to achieve manually. By using expressions, you can speed up your workflow, make complex animations more efficient, and enhance the interactivity between different layers and properties. In this guide, we’ll walk you through the process of writing and using expressions in After Effects to unlock the full potential of this powerful tool.

Step 1: Open the Expression Editor

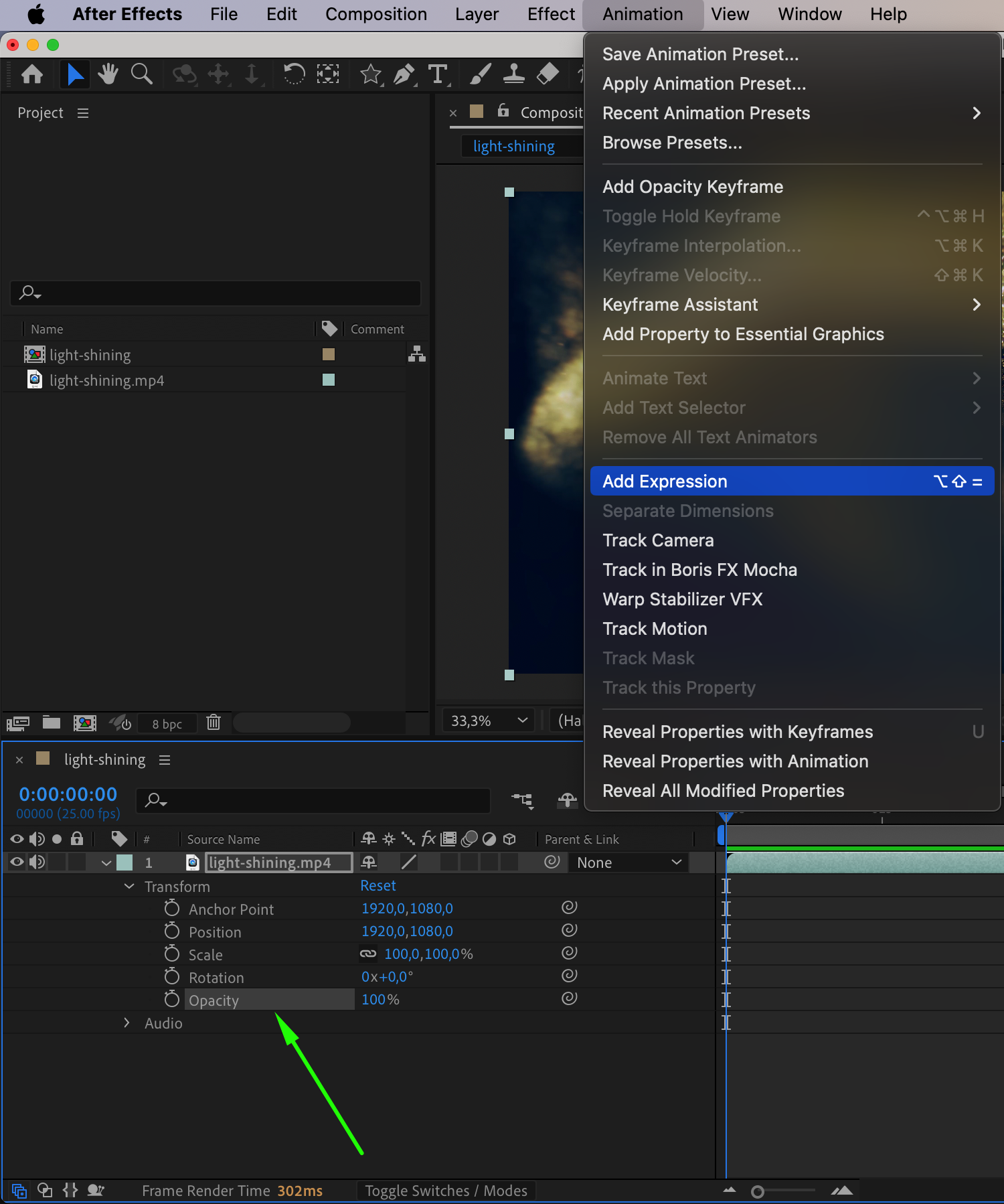

To start writing an expression, first select the property you want to animate, such as Opacity. Hold Alt (Windows) or Option (Mac) and click the stopwatch icon next to the property, or alternatively, go to Animation > Add Expression from the menu. This action opens the expression editor, where you can type your code directly. Expressions are written in JavaScript, so while a basic understanding of scripting can be helpful, many commonly used expressions can be written without coding experience. Experiment with simple expressions to get comfortable with this powerful feature.Step 2: Use Simple Expressions

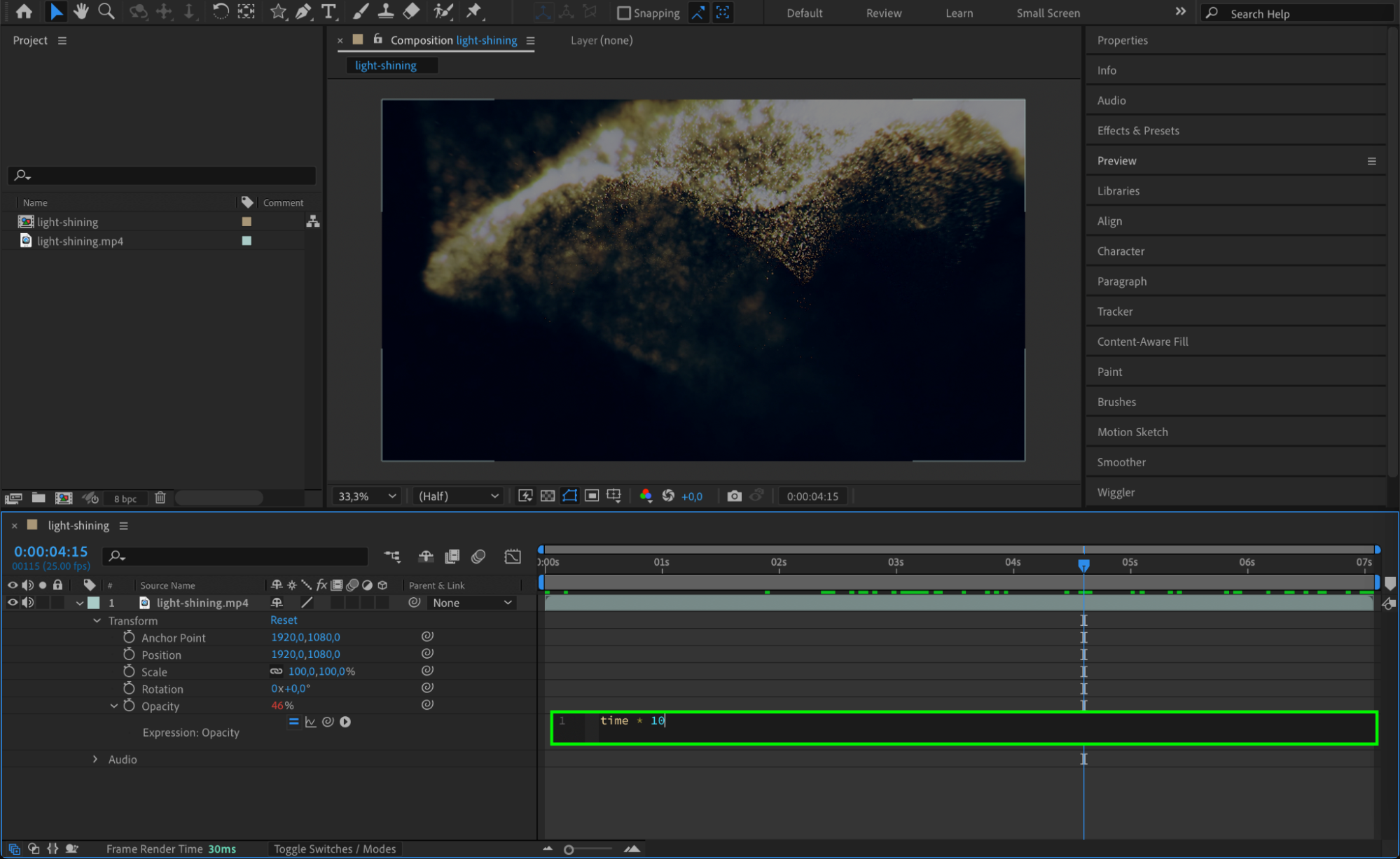

Start with a simple expression to animate Opacity over time. For example, to gradually fade in an object, you can use the following expression:

time * 10

This expression increases the opacity value by 10% per second. As a result, the object’s opacity will continue to rise indefinitely, creating a smooth fade-in effect. You can adjust the multiplier (e.g., change 10 to another number) to control the speed at which the opacity increases. Experimenting with basic expressions like this helps you become familiar with how expressions work in After Effects.Step 3: Apply Built-In Expressions

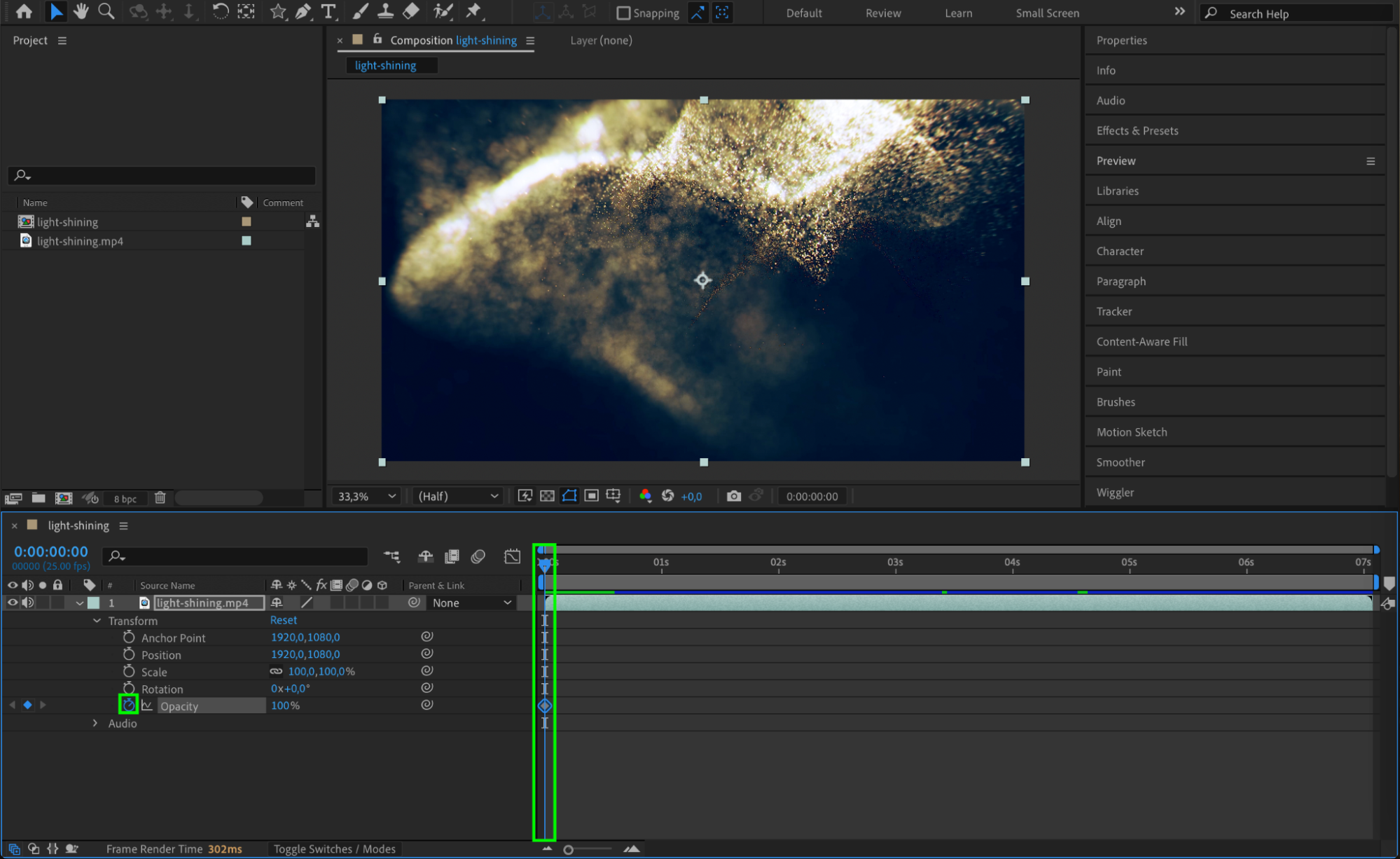

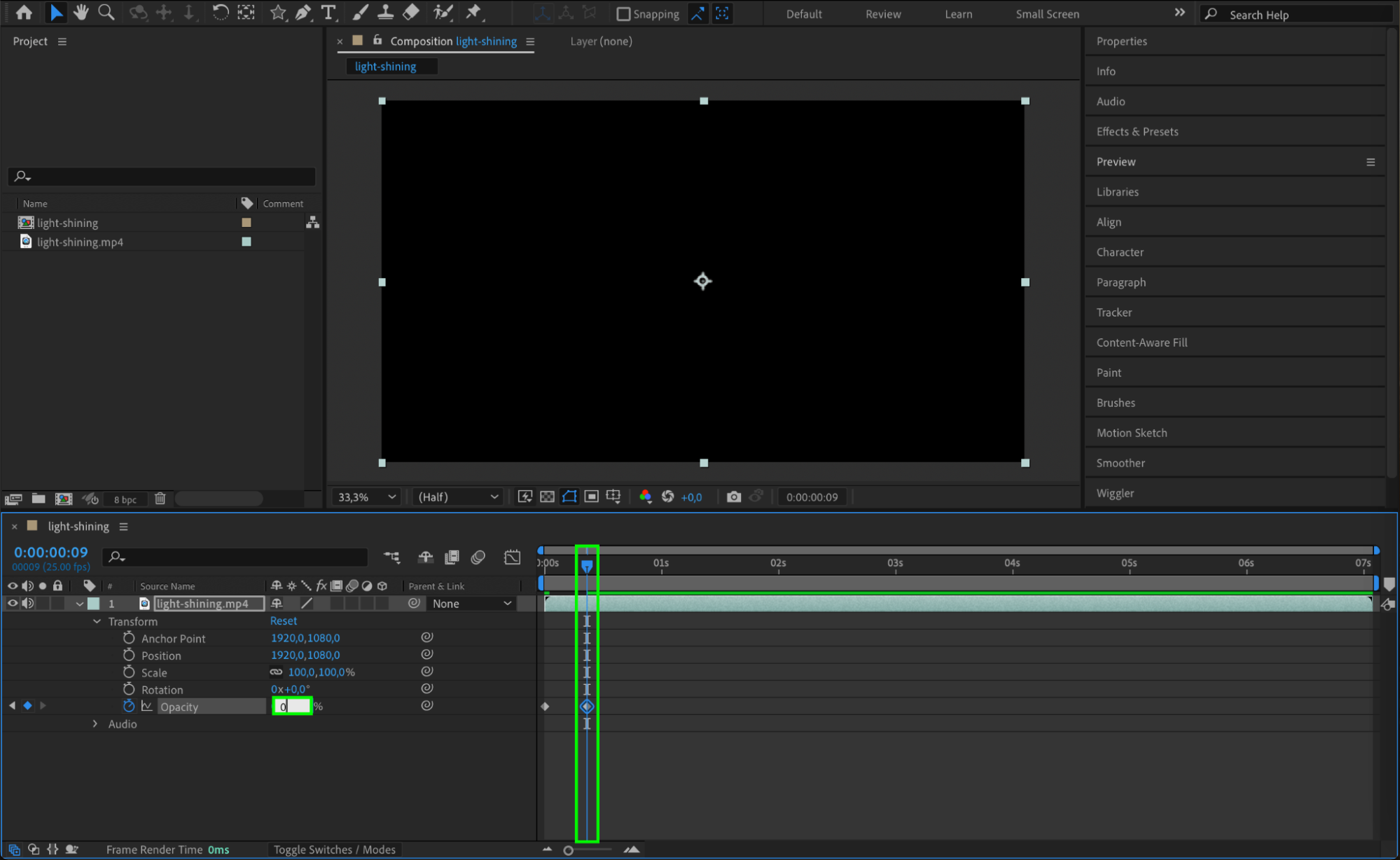

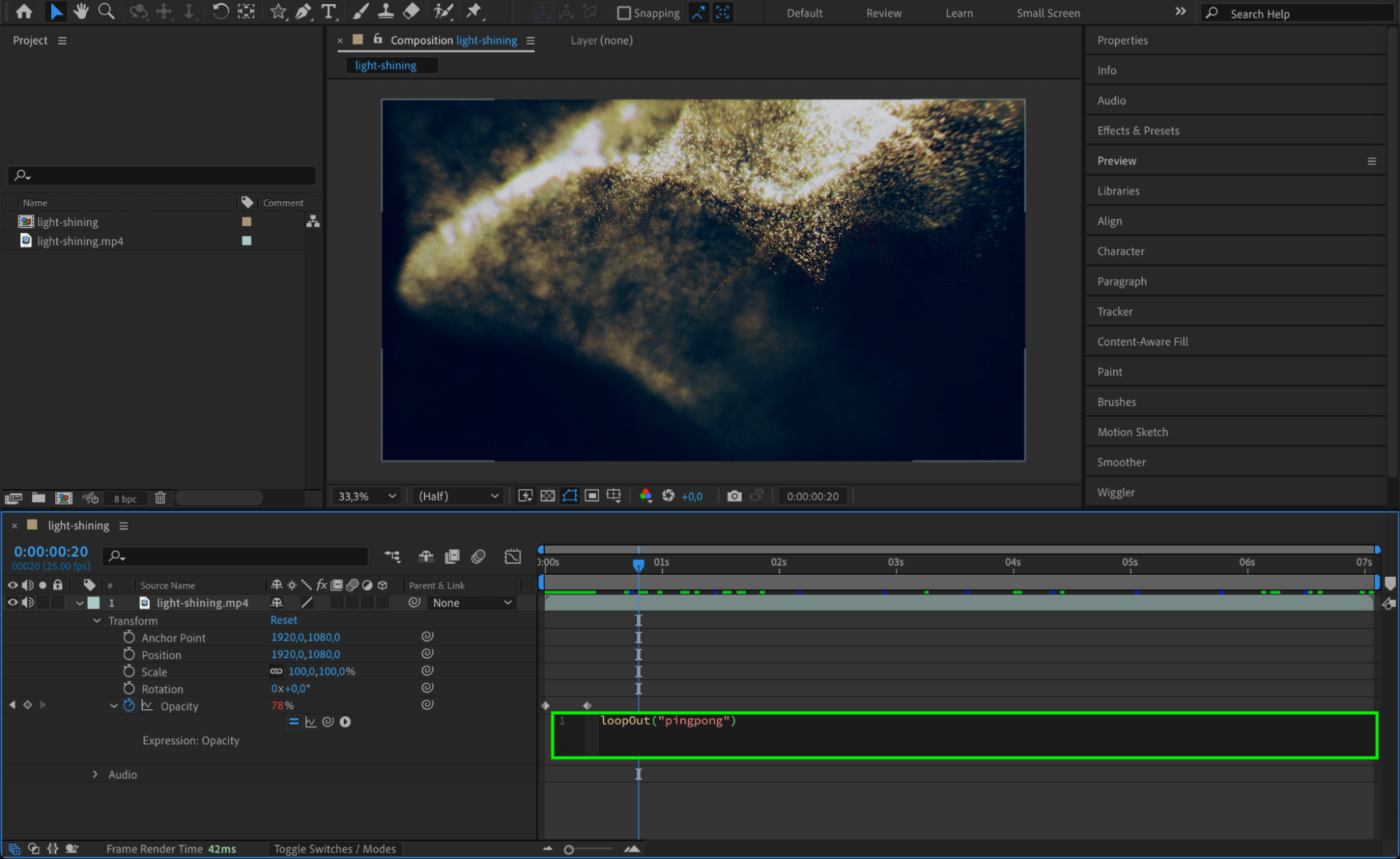

After Effects offers several built-in expressions that can automate common animation scenarios. To use one, simply type it into the expression editor. For example, after creating keyframes for opacity (100% at the start and 0% at the end), you can use the loopOut(“pingpong”) expression to make the opacity animation loop back and forth:

loopOut(“pingpong”)

This expression causes the opacity to cycle between the two keyframe values in a ping-pong fashion (i.e., fading in and out continuously). You can adjust the loop type or parameters to suit different animation needs, making built-in expressions a powerful tool for quick results. Step 4: Add Parameters for More Complex Effects

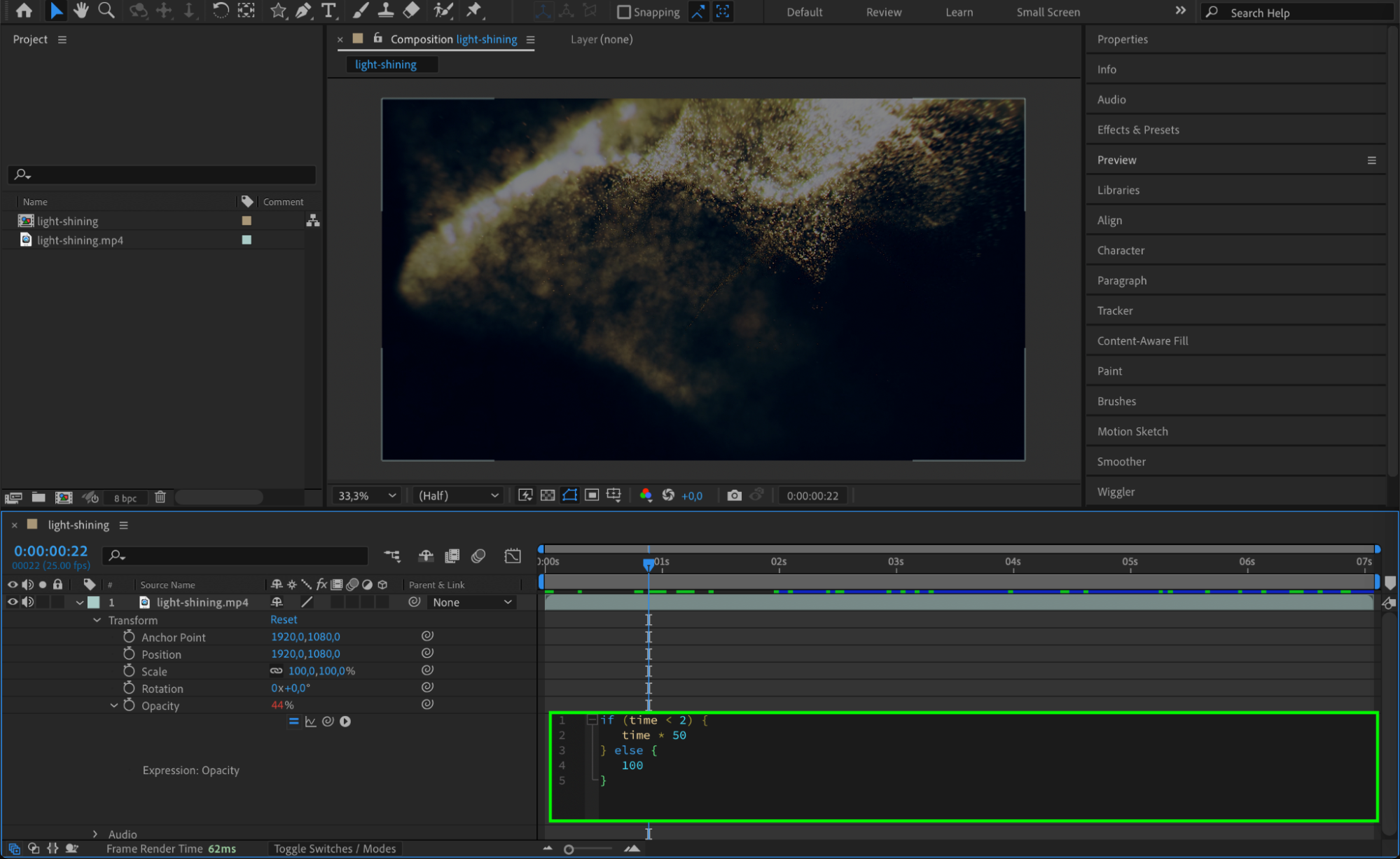

Expressions can be customized further by adding parameters or combining multiple expressions. For example, if you want the opacity to fade in during the first 2 seconds and then hold at 100%, you can use this:

if (time < 2) {

   time * 50

} else {

   100

}

In this case, the opacity increases by 50% per second during the first 2 seconds, and once that time has passed, it holds the opacity at 100%. By combining conditional logic (such as if statements) with expressions, you can create more dynamic and responsive animations that adapt to different time-based conditions or other properties.

Step 5: Troubleshoot and Correct Expression Errors

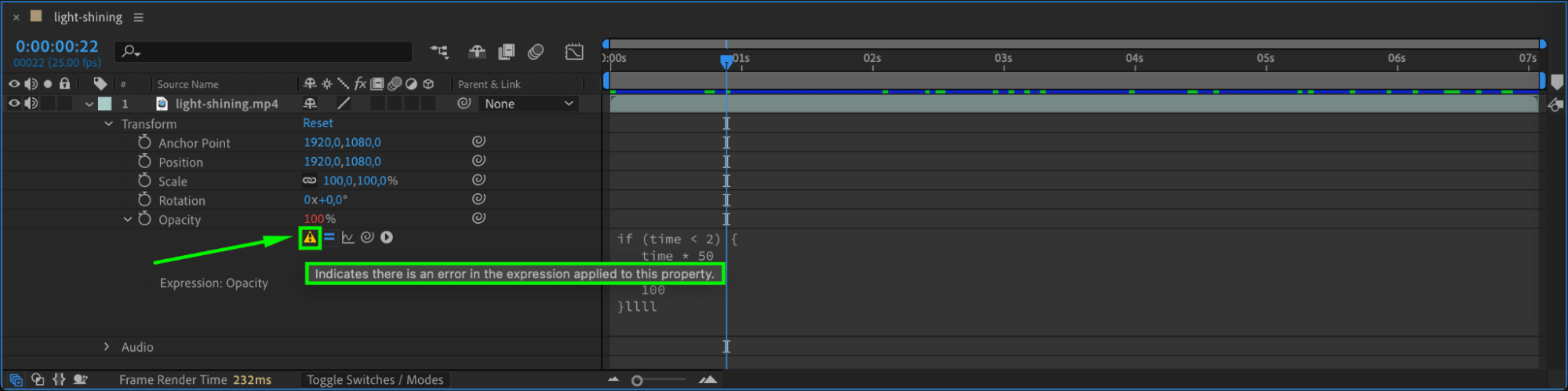

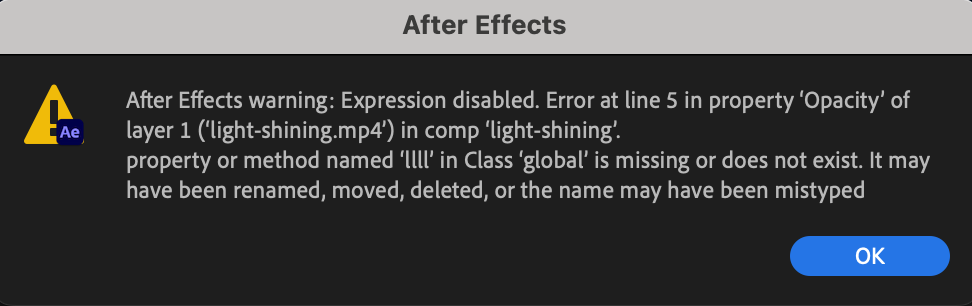

If your expression has a syntax error, you’ll see a yellow triangle with an exclamation mark next to the property. This indicates that something is wrong with the expression. To troubleshoot, click on the warning triangle, and After Effects will provide more detailed information about the error. Common mistakes include missing parentheses, incorrect function names, or using incompatible properties together. Understanding the error messages and resolving issues will help you become more efficient in writing accurate expressions. Step 6: Apply Expressions to Multiple Layers

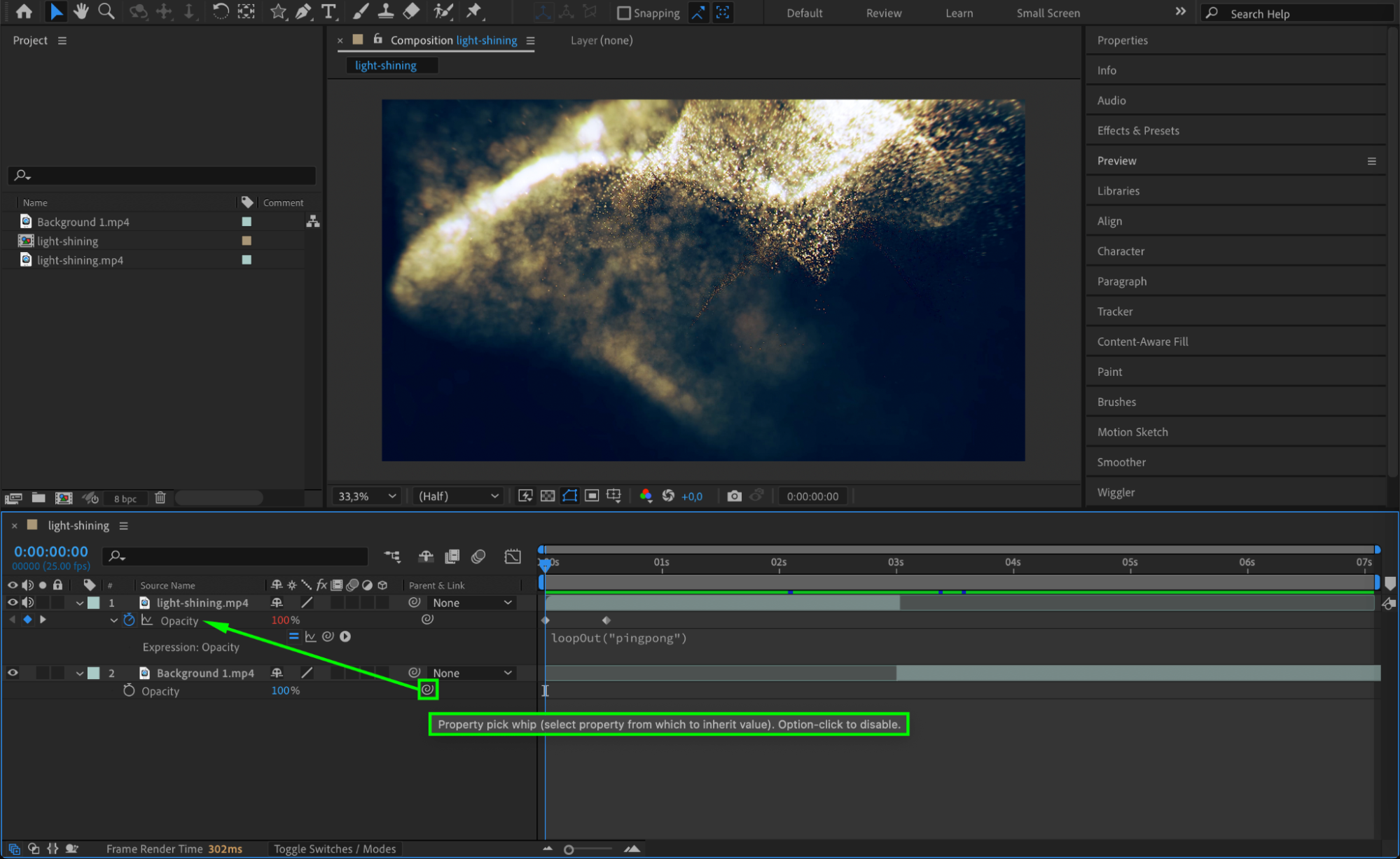

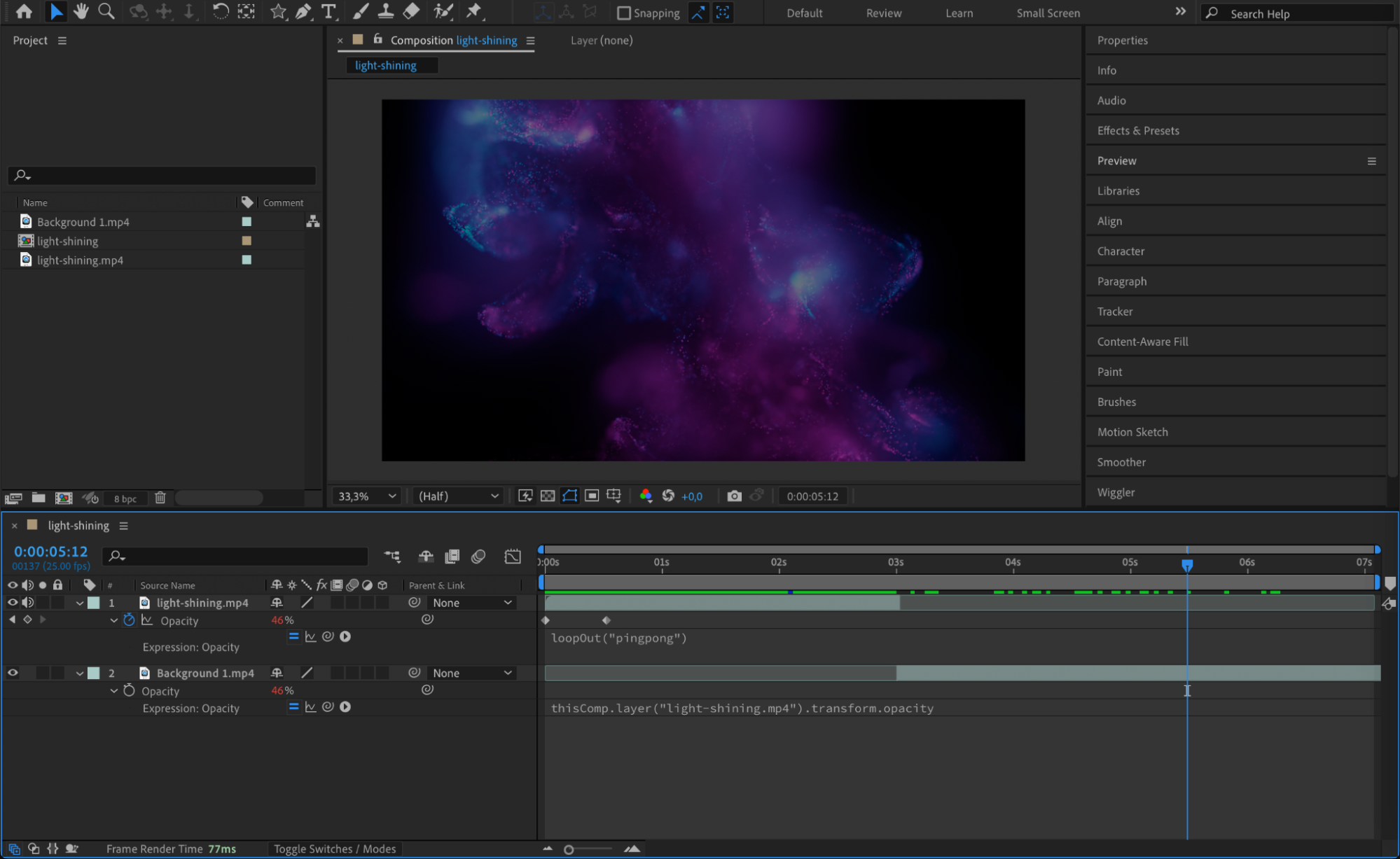

One of the advantages of expressions is their ability to be applied to multiple layers. You can copy and paste an expression to other layers, or link multiple layers together using the Pick Whip tool. For example, if you want multiple layers to have the same opacity animation, you can drag the pick whip from one layer’s opacity property to another’s. This creates a link between the two layers, so both will share the same animation and update simultaneously. This is a great way to keep animations synchronized across multiple elements in your composition. Conclusion

Expressions are an essential tool in After Effects, enabling you to automate animation, create complex effects, and enhance your workflow. By learning how to write and use expressions effectively, you can create dynamic, responsive animations that save time and improve the quality of your projects. Start with simple expressions, experiment with built-in options, and combine them for more advanced results. As you gain experience, expressions will become a key component of your After Effects toolkit, empowering you to take your animations to the next level.
