How to Align Objects on a Diagonal Axis in After Effects

Introduction

After Effects does not have a built-in diagonal alignment tool, but you can easily achieve precise diagonal alignment by using guides, snapping, and a temporary reference line. This method is perfect for clean motion design, layouts, and stylized compositions.

Step 1: Open Your Project

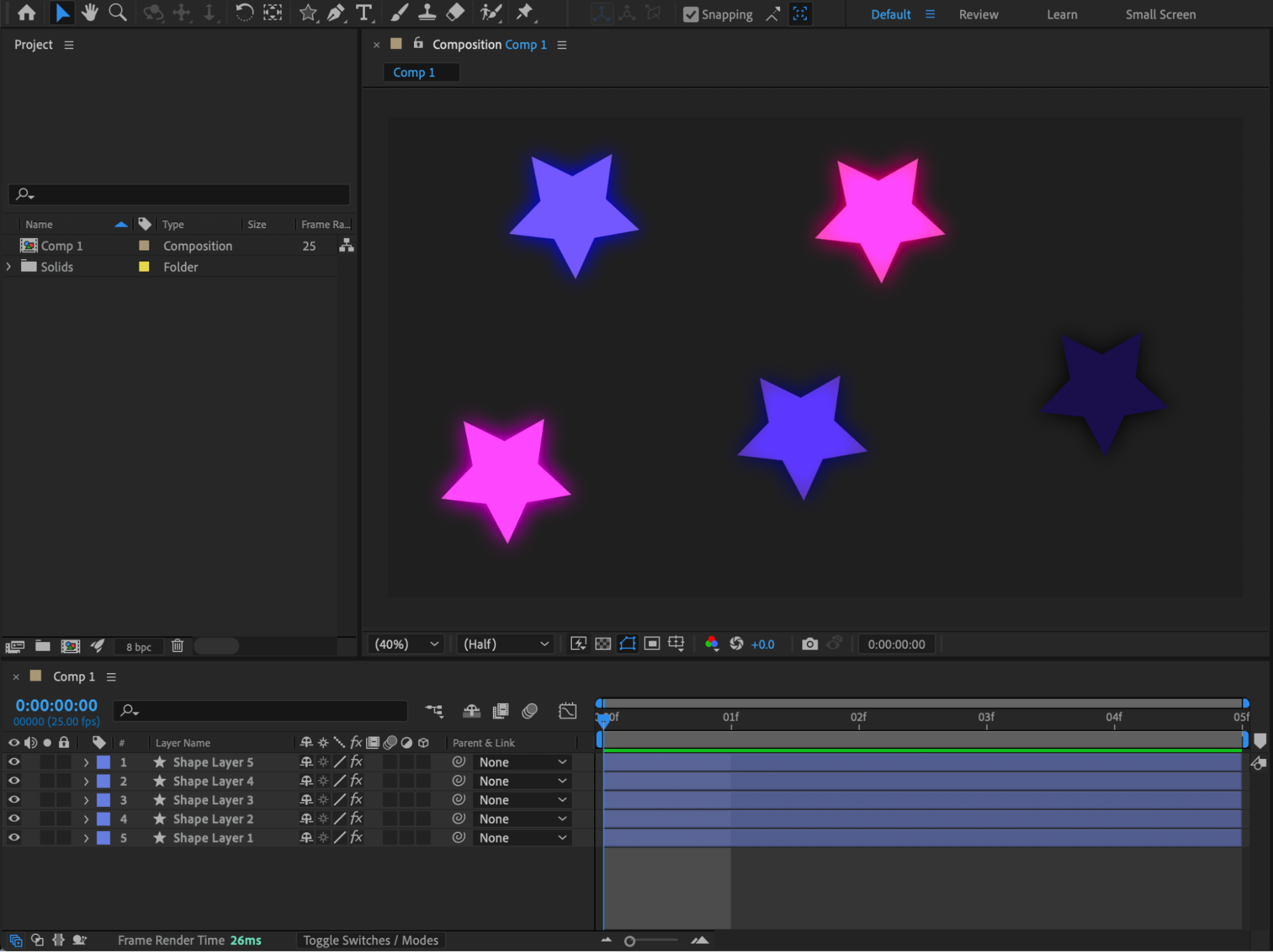

Open the project and composition containing the layers you want to align.Step 2: Center Anchor Points

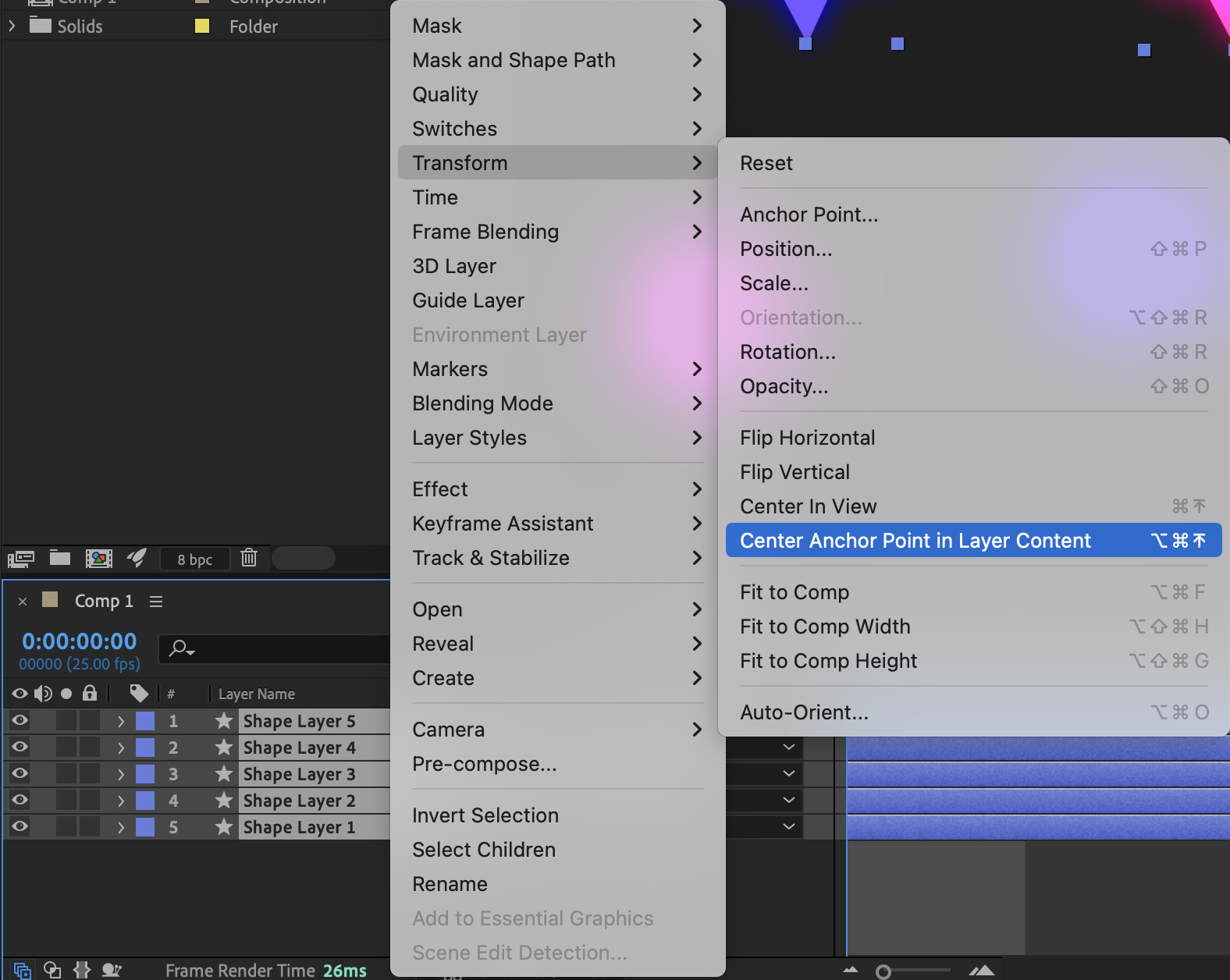

Select all layers you want to align. Right-click and choose Transform > Center Anchor Point in Layer Content. This ensures accurate snapping and alignment.Step 3: Enable Title/Action Safe Guides

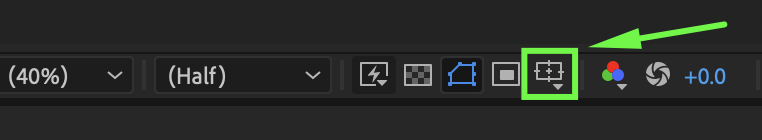

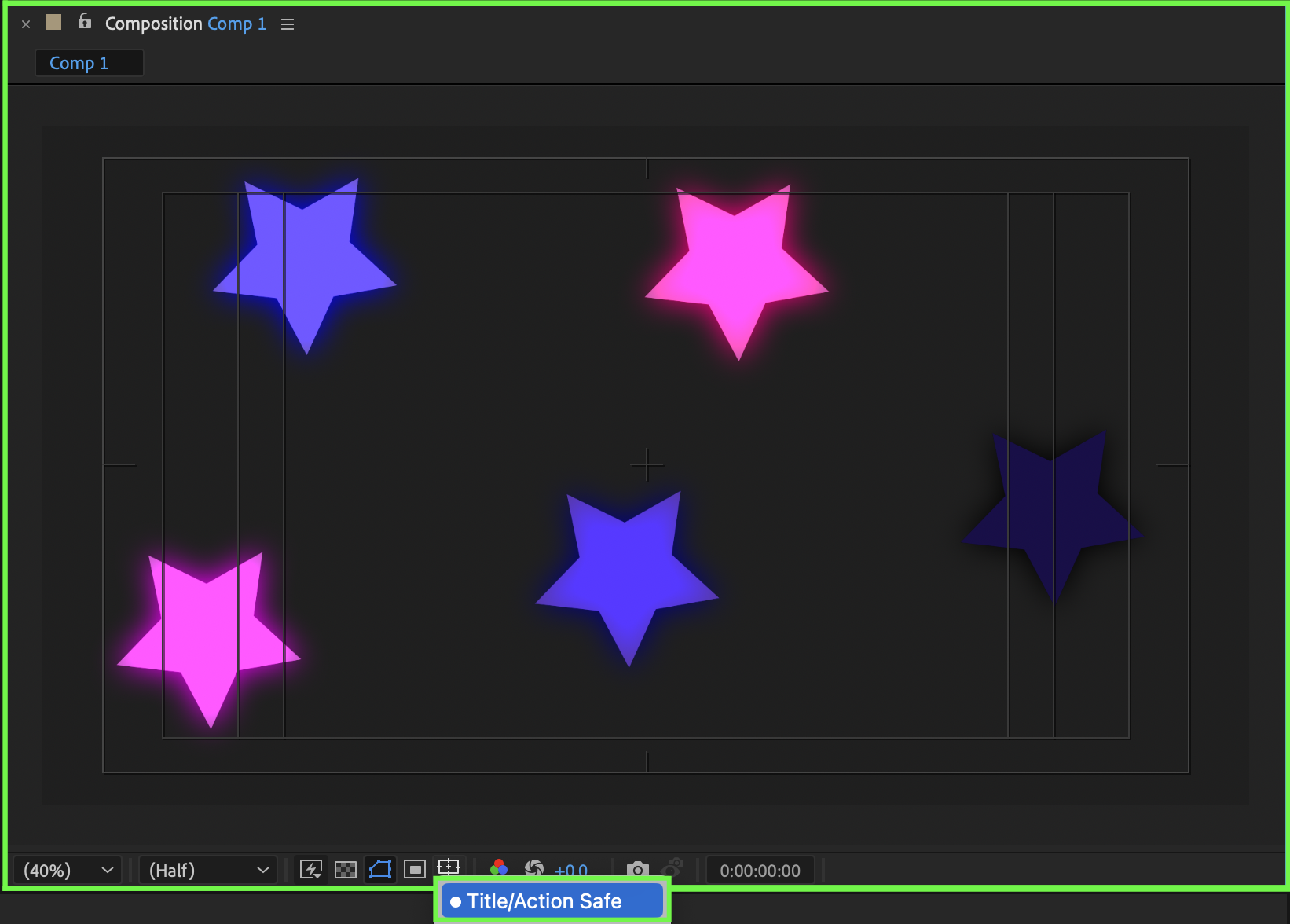

At the bottom of the Composition panel, click the Rectangle with a dot in the center icon. Enable Title/Action Safe to display reference guides and the center cross. Step 4: Draw a Diagonal Guide Line

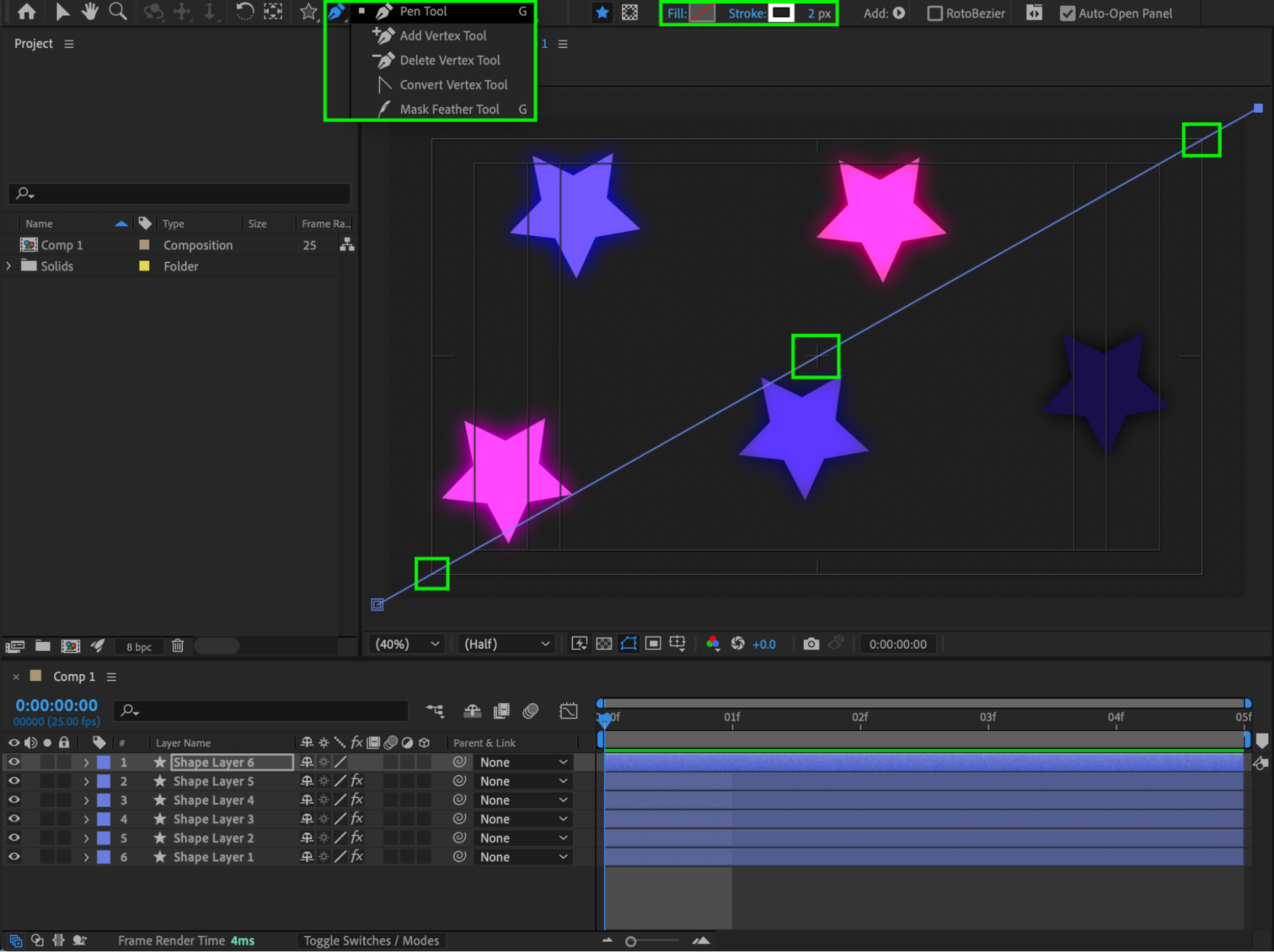

Use the Pen Tool (G) to create a shape layer. Set Fill to None, choose a white stroke, and set the Stroke Width to 2 px. Draw a diagonal line that:

Starts at the bottom-left corner of the outer safe rectangle
Passes exactly through the center cross
Ends at the top-right corner of the outer safe rectangle

This line will serve as your diagonal alignment guide.Step 5: Align Objects Using Snapping

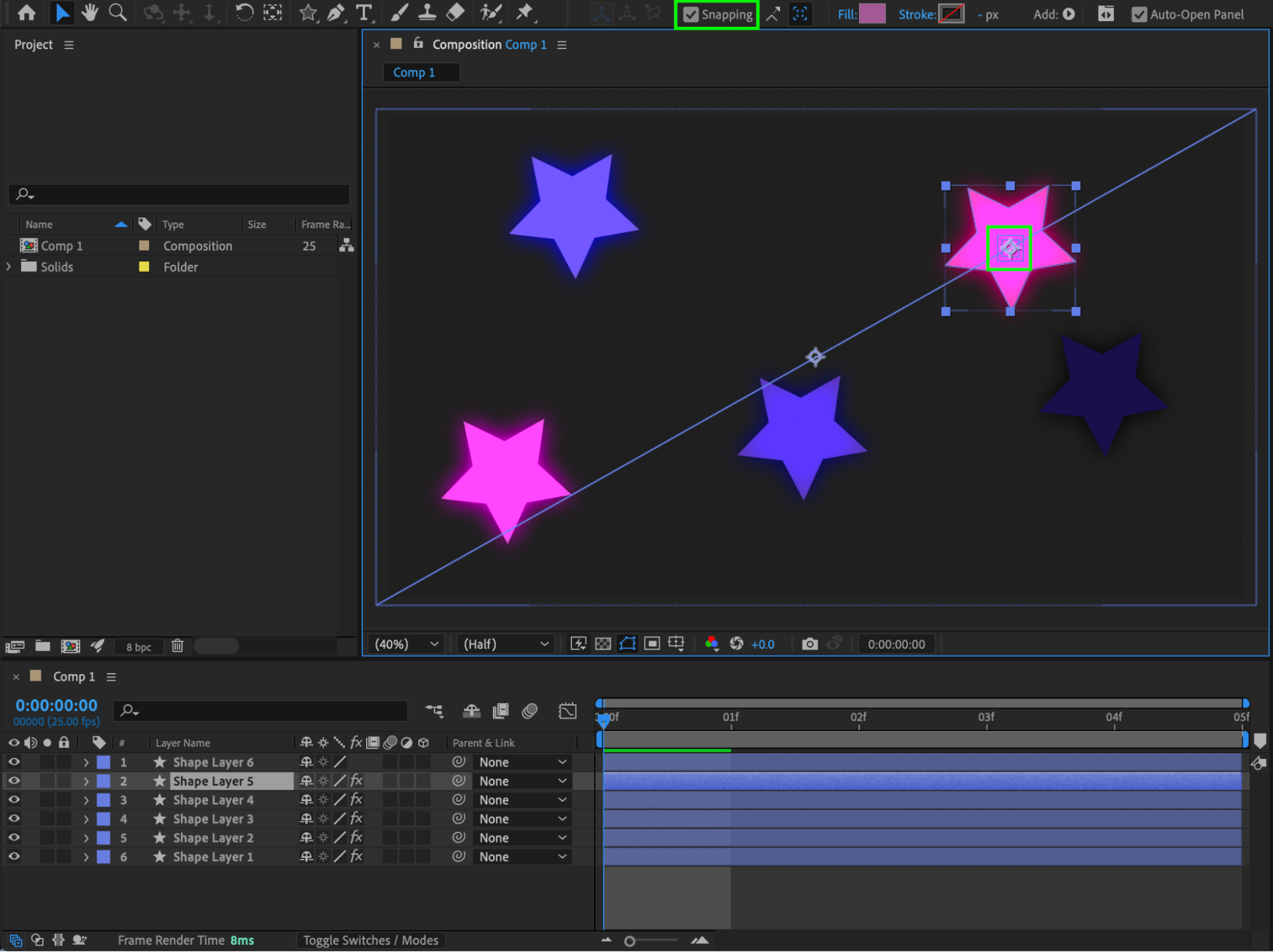

Enable Snapping in the Composition panel. Select each object and move it so its anchor point snaps precisely to the diagonal guide line.Step 6: Remove the Guide Line

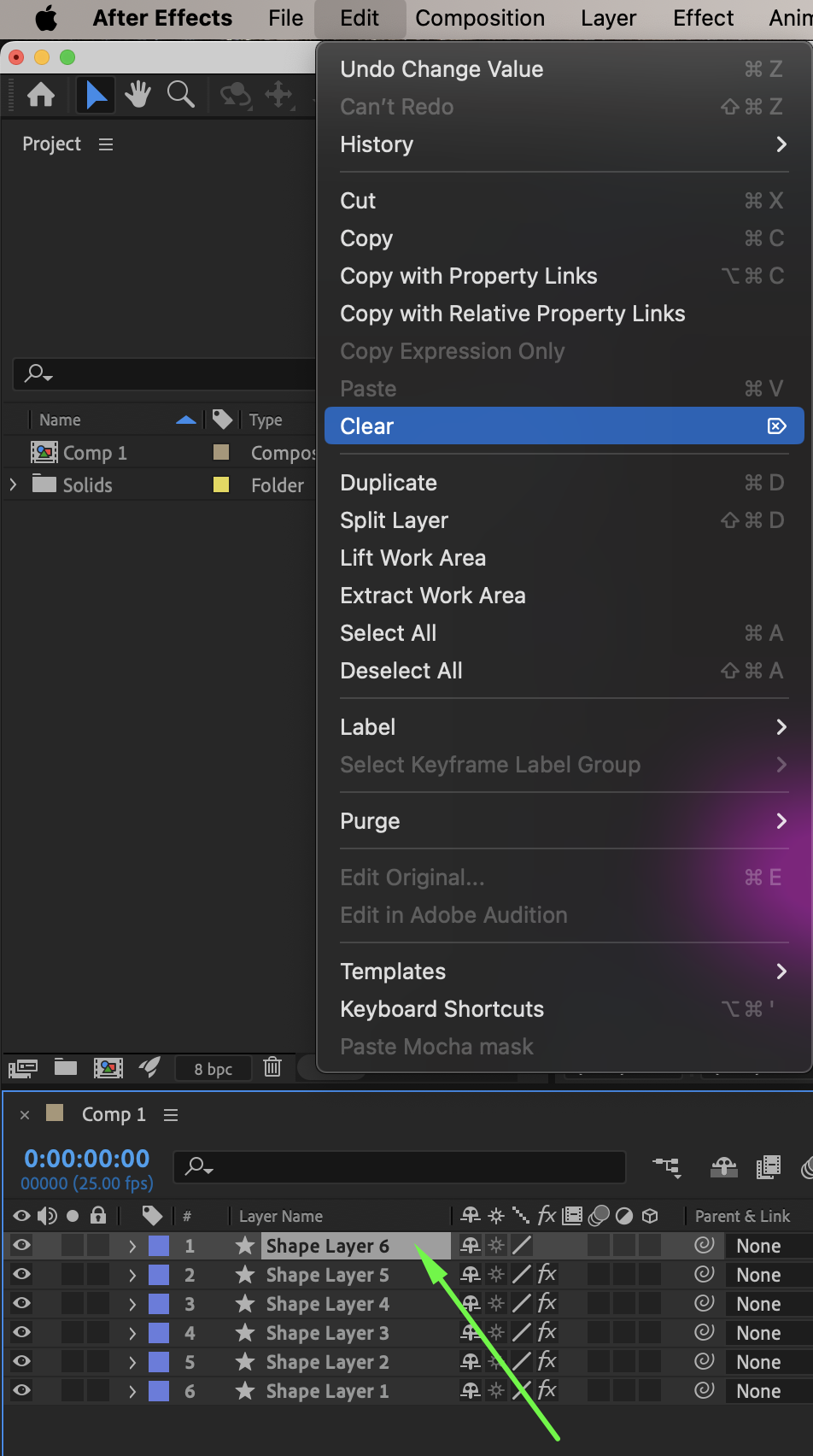

Once all objects are aligned, delete the diagonal line shape layer. Step 7: Preview the Result

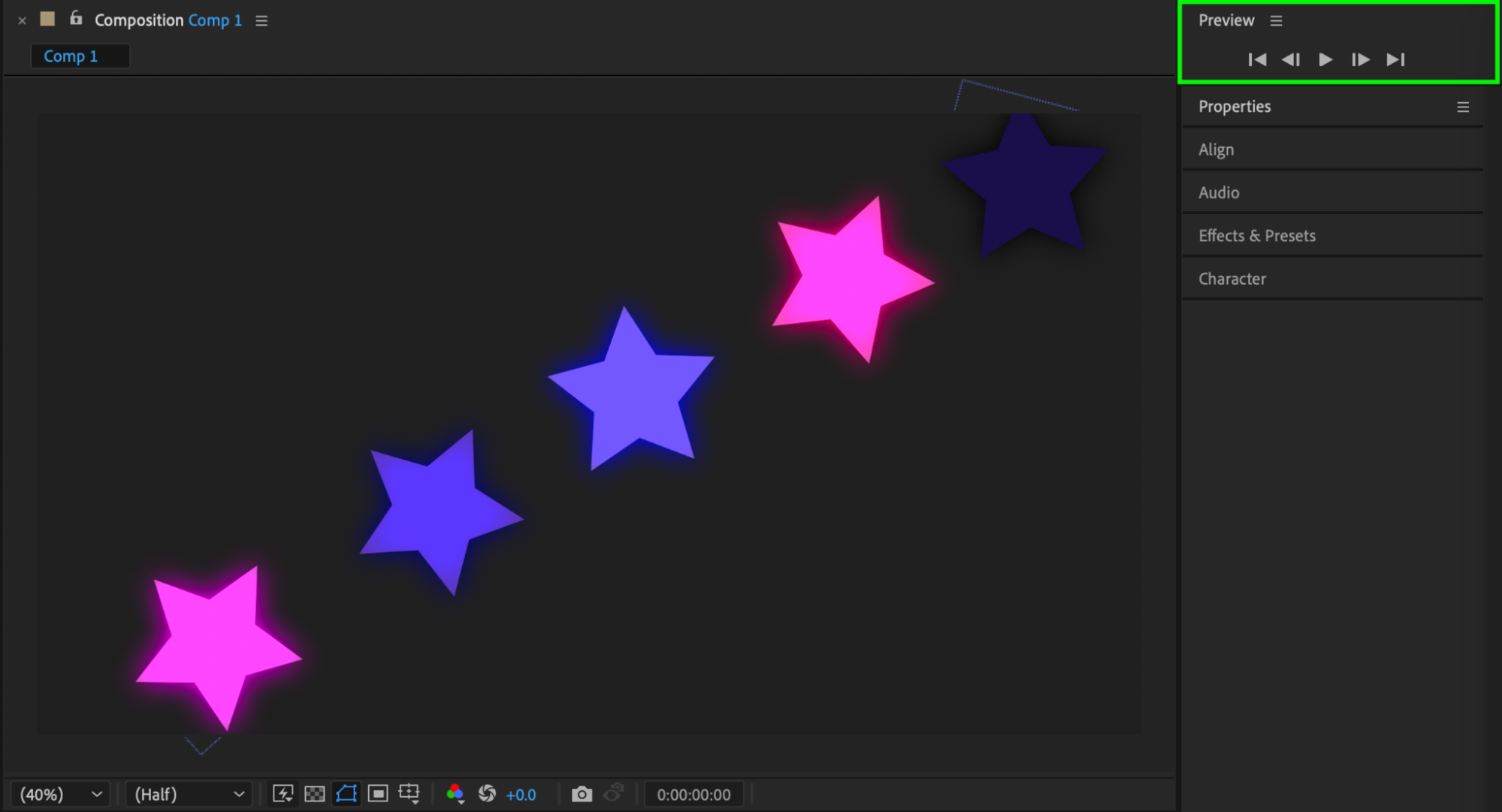

Preview the composition and make any final adjustments if needed.

Conclusion

By creating a temporary diagonal guide and using snapping, you can precisely align objects along a diagonal axis in After Effects. This technique is ideal for clean layouts, dynamic compositions, and professional motion graphics.
