How to Animate a Magician’s Wand in After Effects

Learn how to track a magician’s wand and create a glowing magical trail using motion tracking, shape layers, and visual effects in After Effects.

Introduction

Animating a magical wand effect is a classic visual effect technique in After Effects. By combining motion tracking with glowing animated lines and distortion effects, you can create a convincing magical trail that follows the wand naturally.

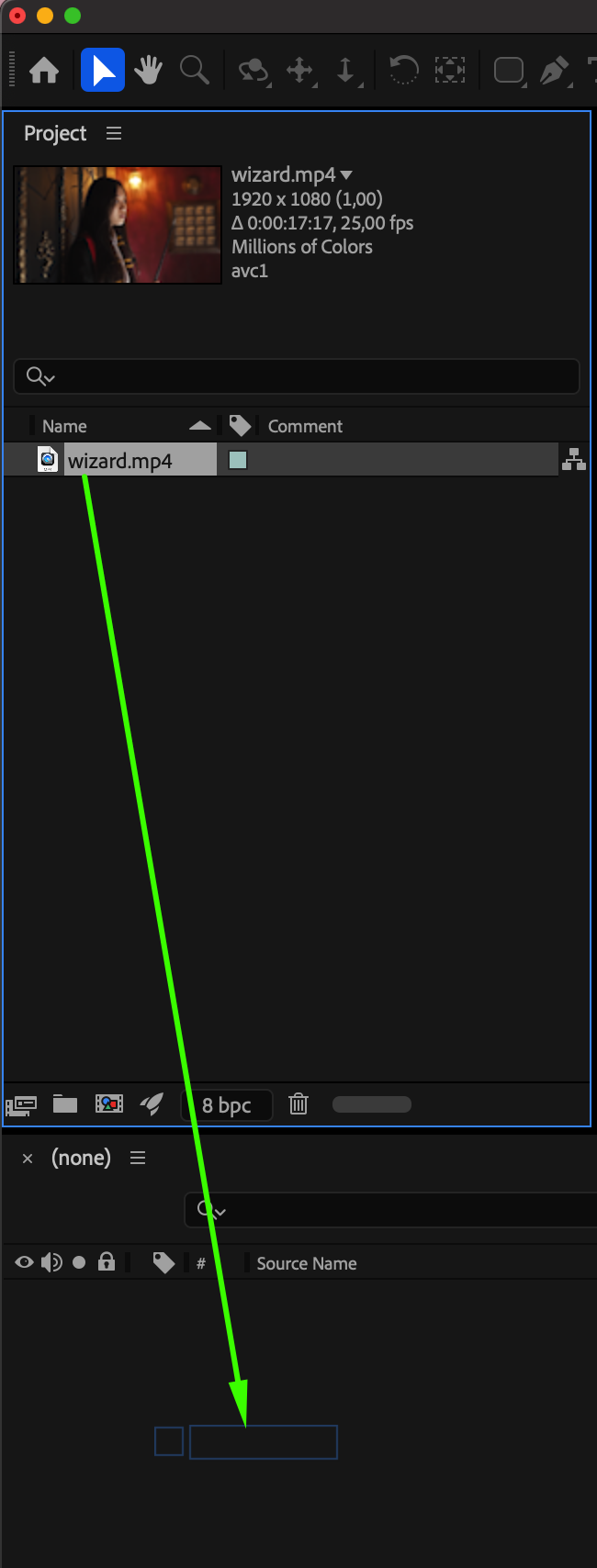

Step 1: Import and Place Your Footage

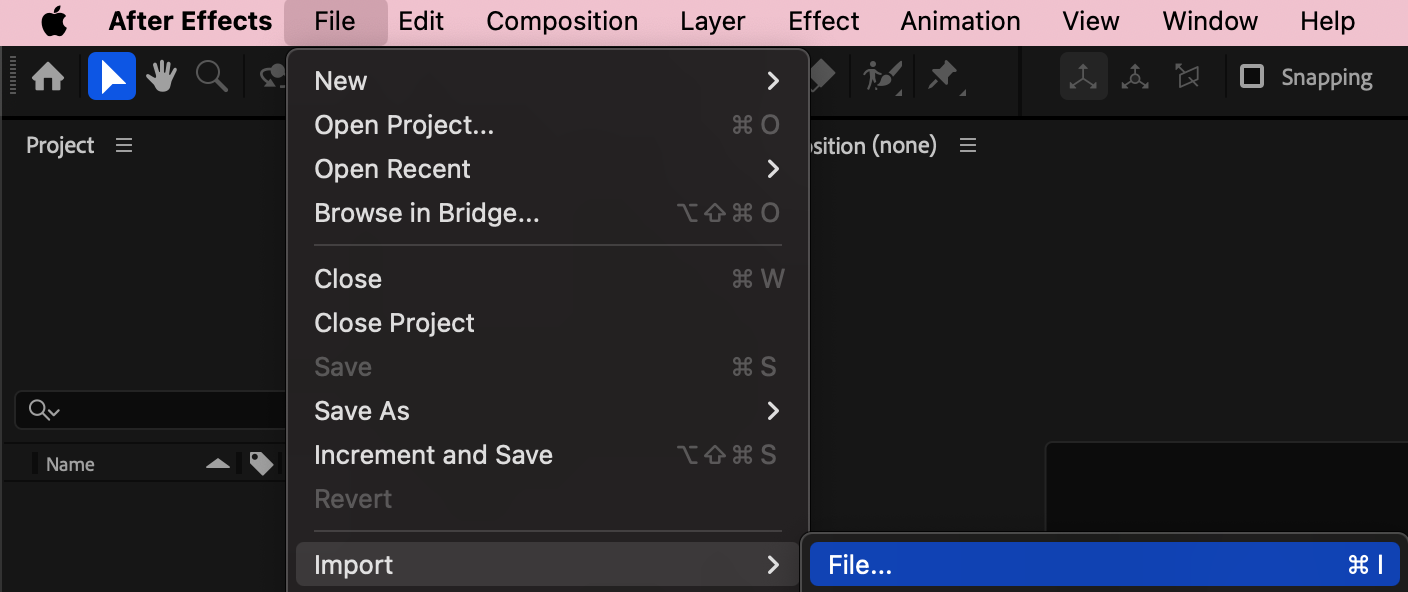

Go to File > Import > File and import your video footage. Drag the video onto the timeline. Step 2: Track the Wand Tip

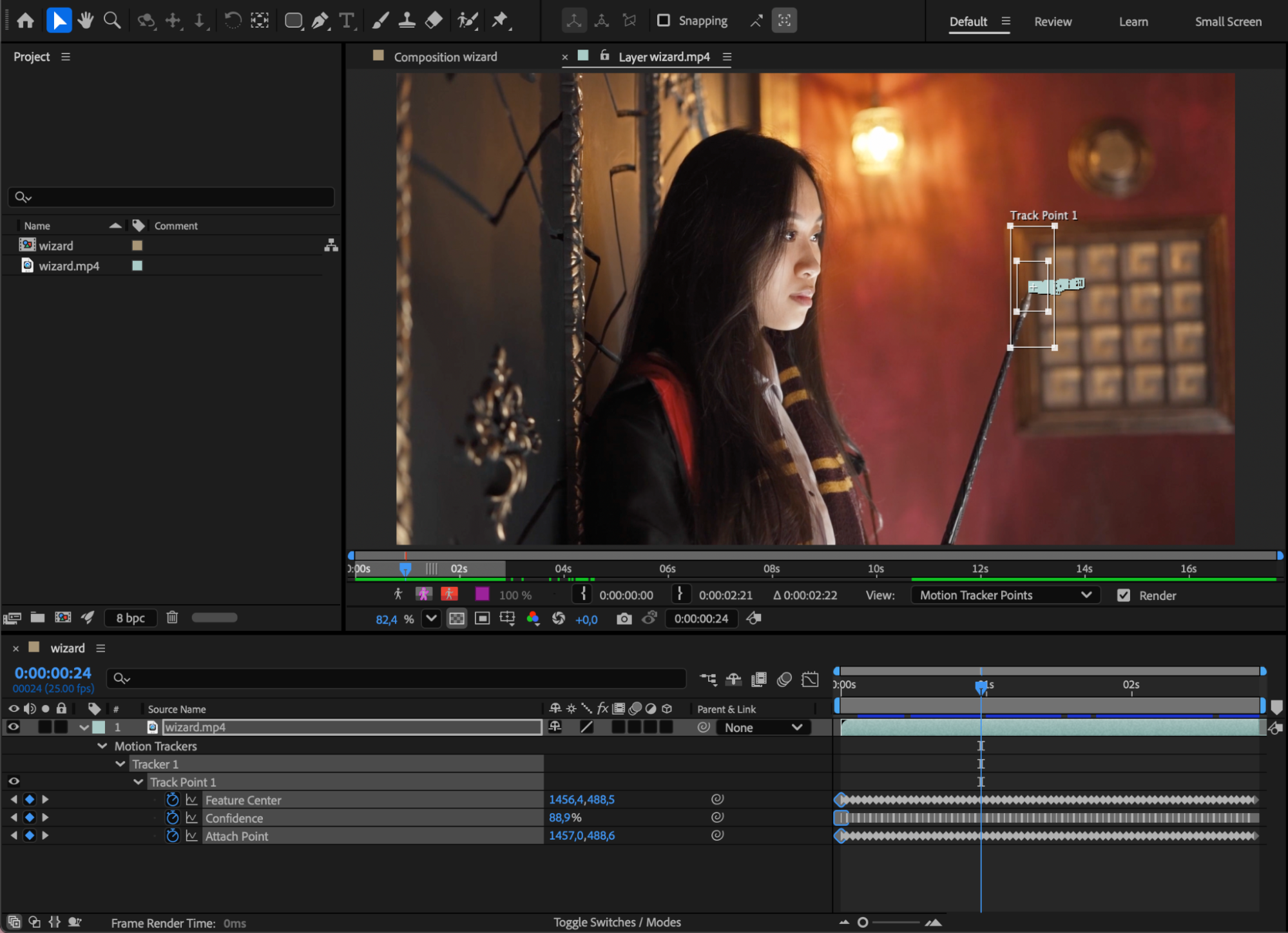

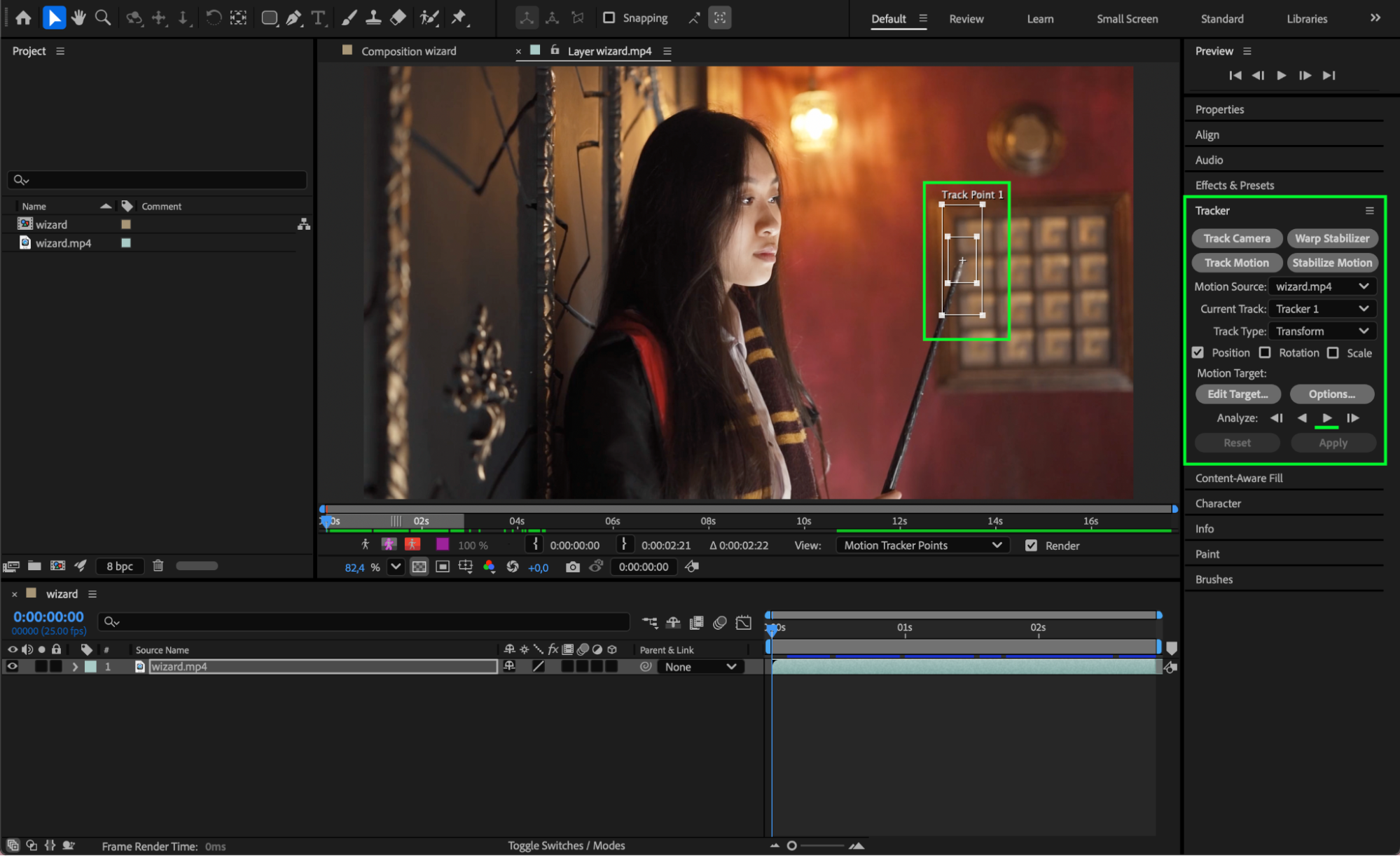

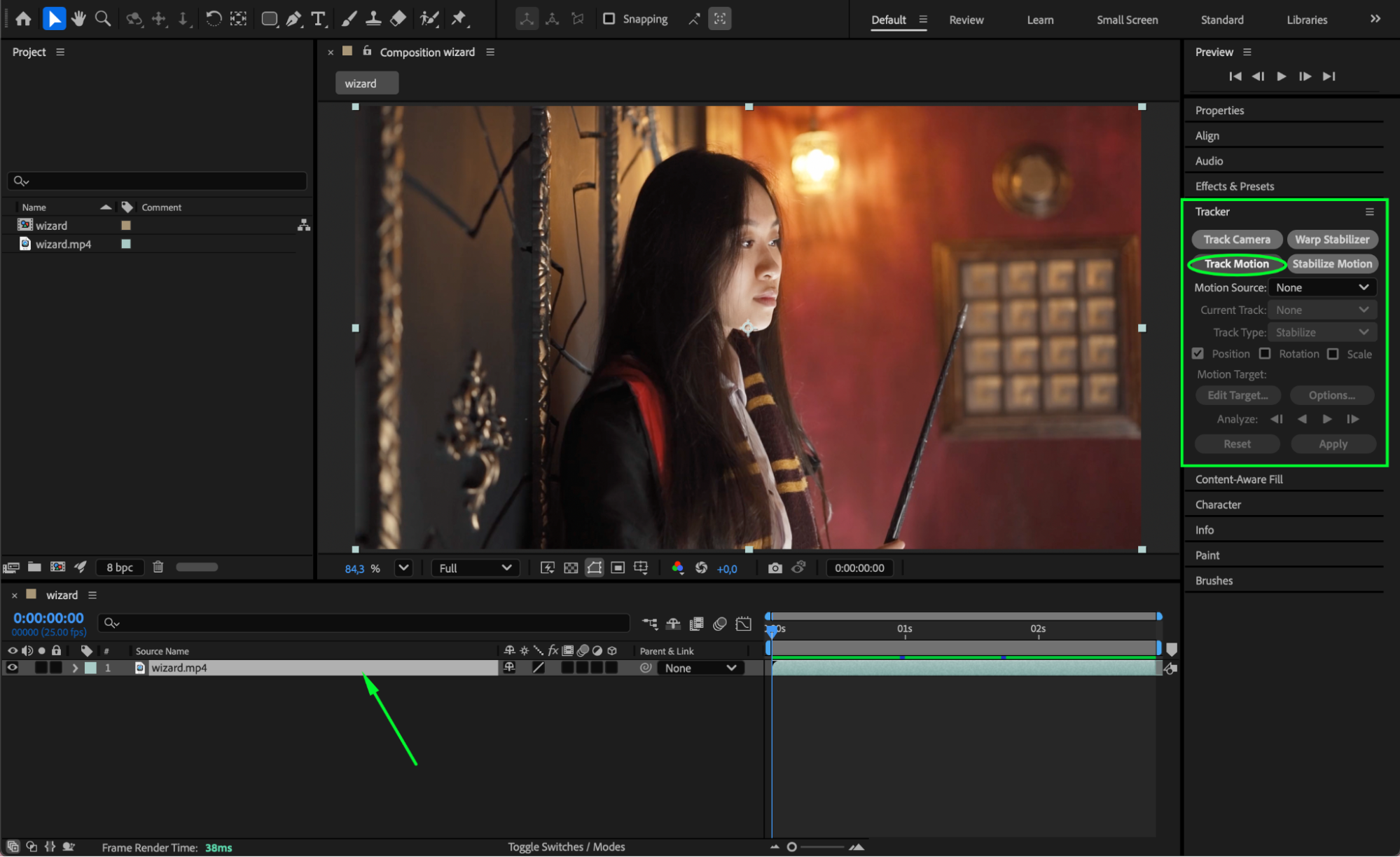

Open the Tracker panel and click Track Motion. Place Track Point 1 at the tip of the magician’s wand. Press Play in the Analyze section to track the movement automatically.

Step 3: Apply Tracking Data to a Null Object

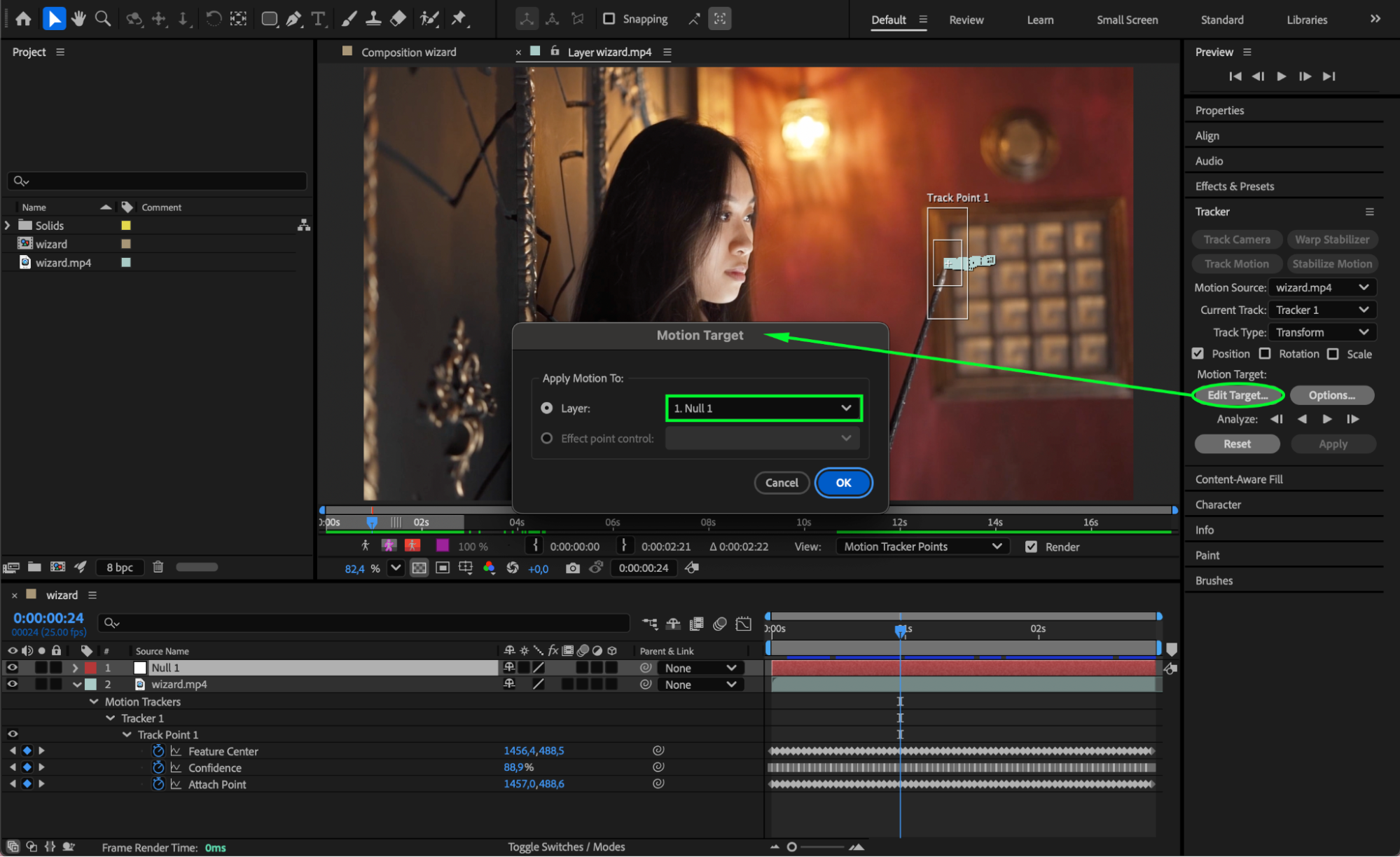

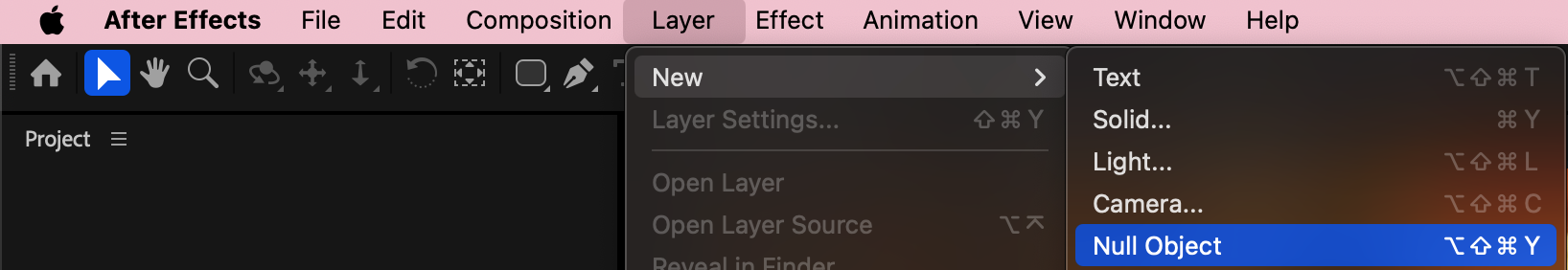

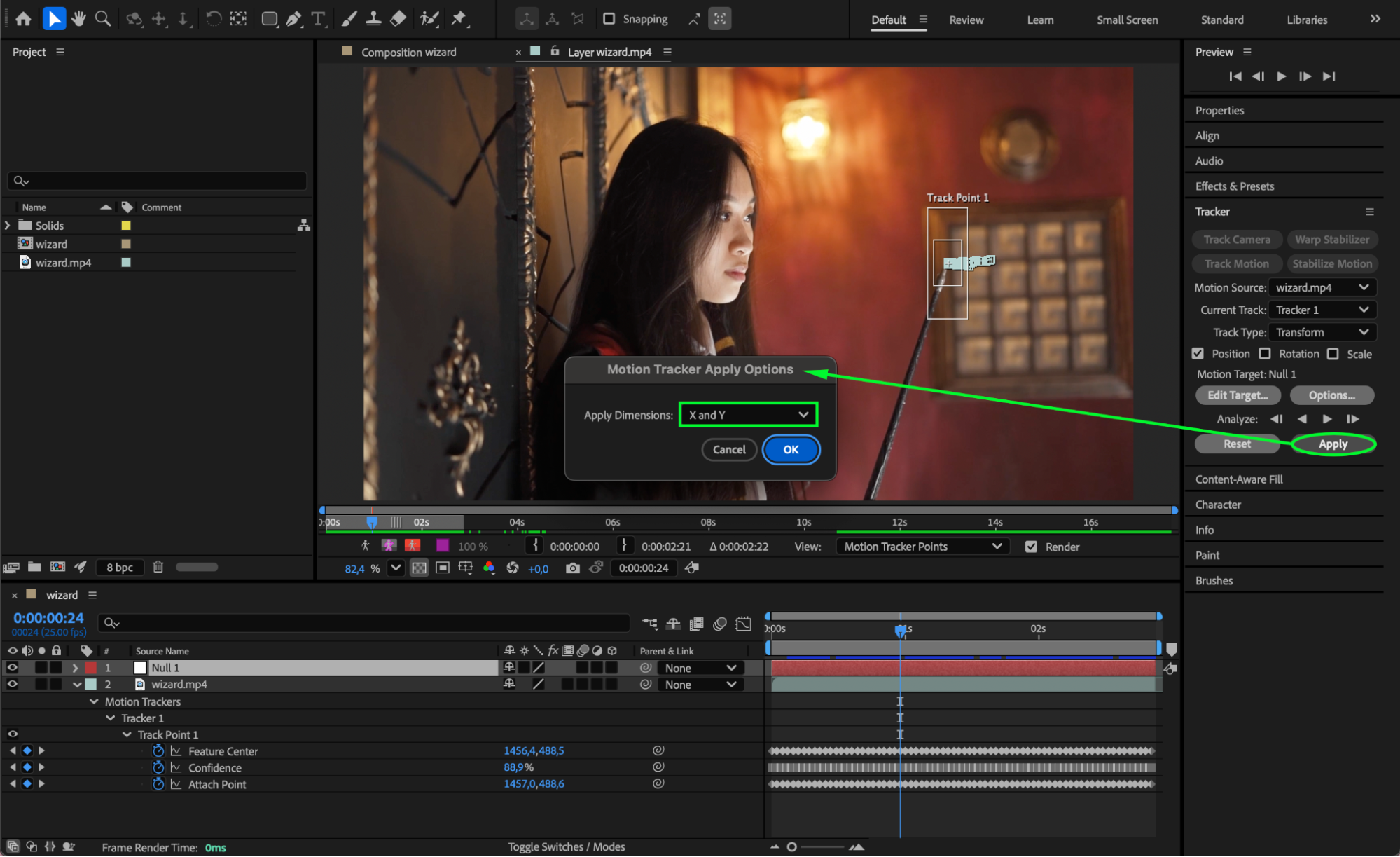

Go to Layer > New > Null Object. In the Tracker panel, click Edit Target and select the Null Object. Press Apply and choose X and Y for the applied dimensions. This creates a controller that follows the wand’s motion.

Step 4: Create the Magical Line

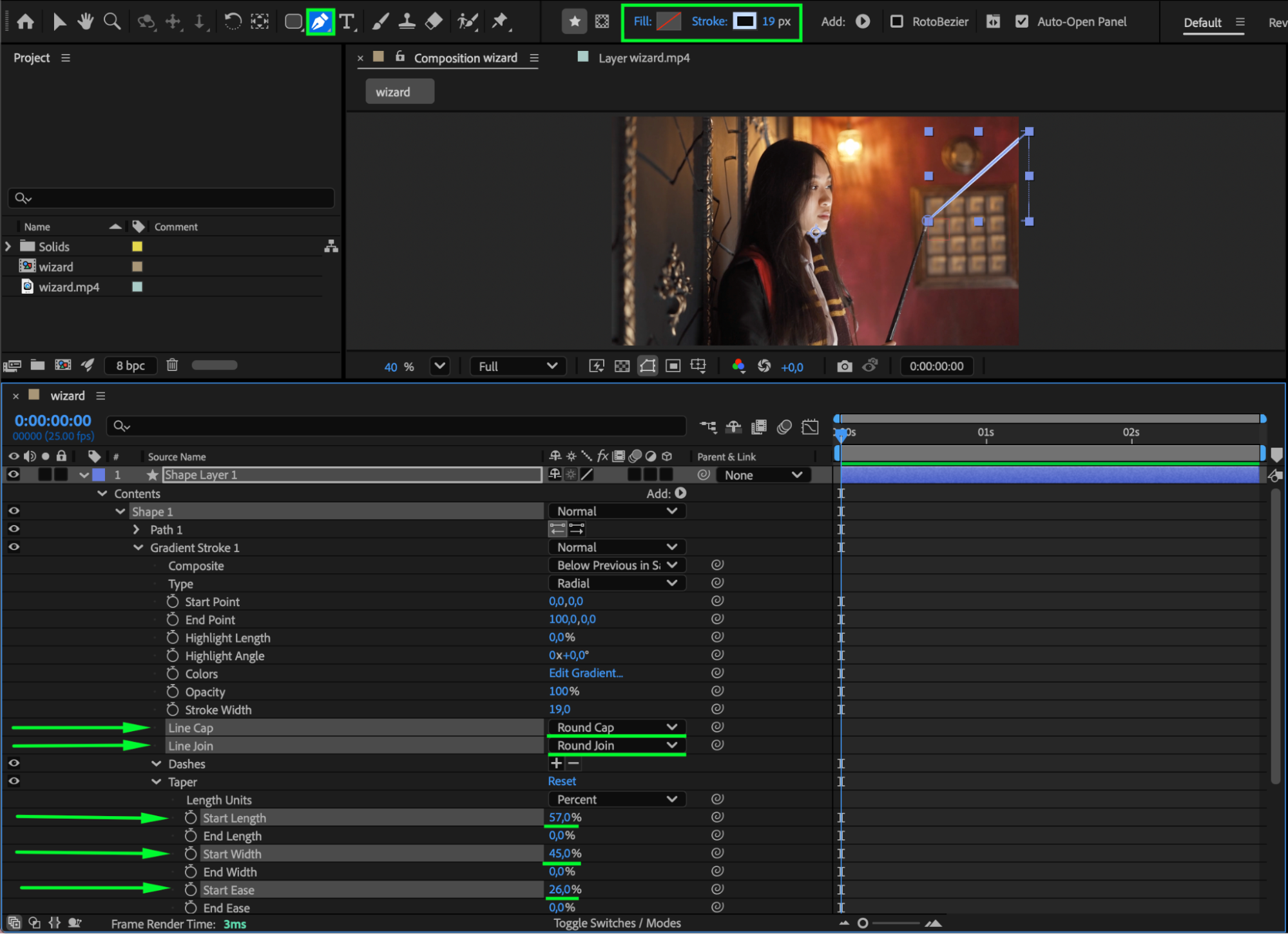

Use the Pen Tool (G) to draw a white line starting from the wand tip and extending beyond the composition frame. Set:

Fill: None
Stroke Color: White
Stroke Width: 19 px
Line Cap: Round Cap
Line Join: Round Join
Start Length: 57
Start Width: 45
Start Ease: 26Step 5: Parent the Line to the Null Object

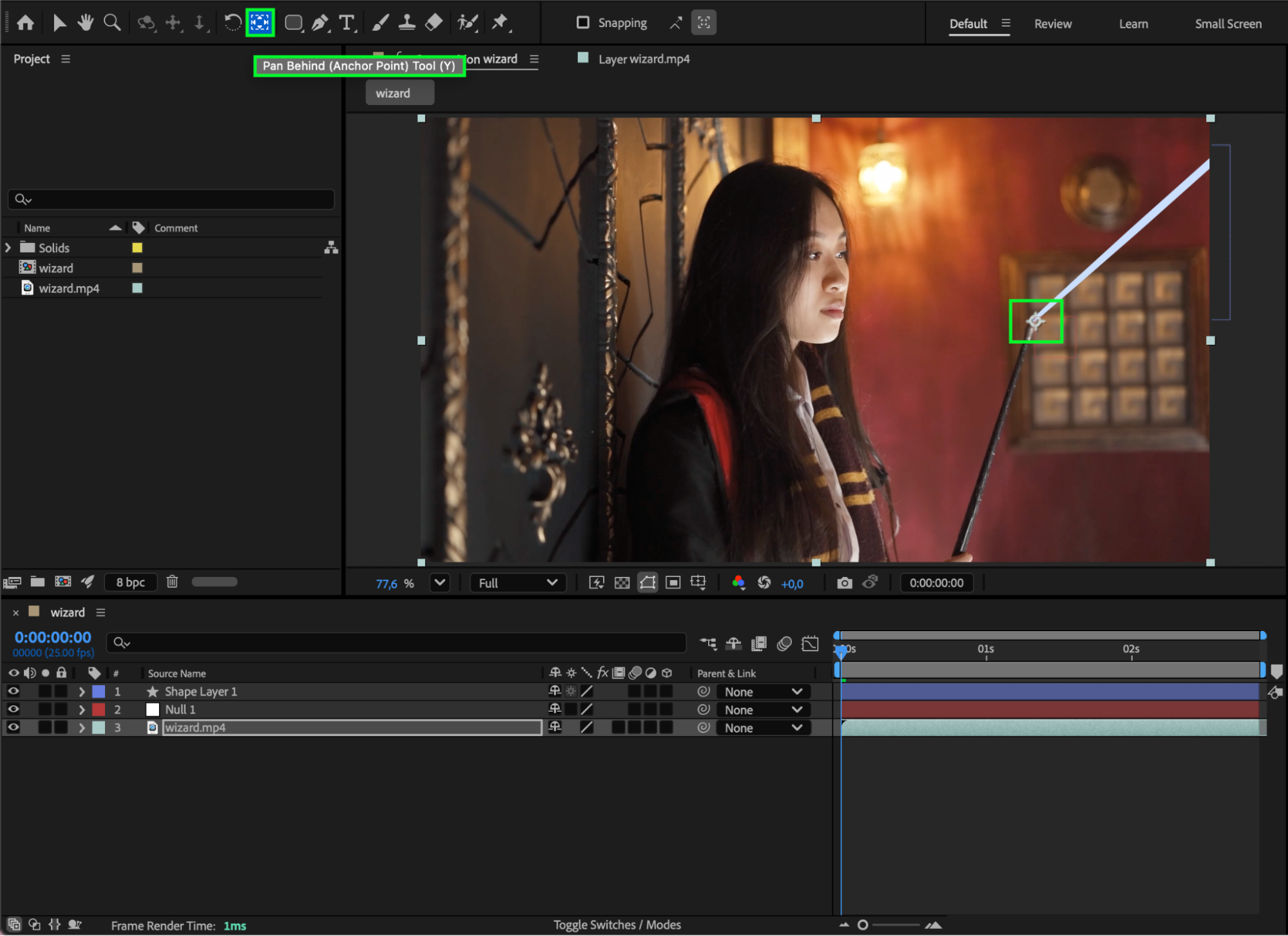

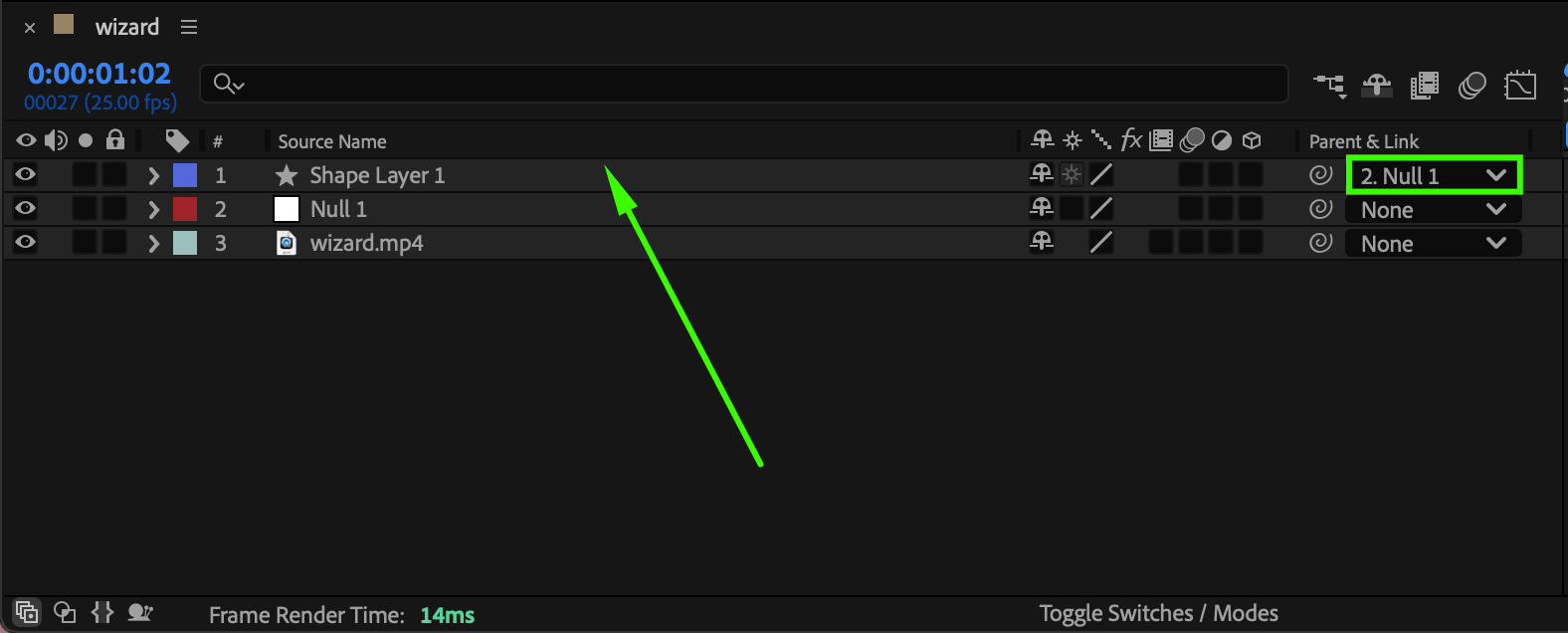

Use the Pan Behind Tool (Y) to move the line’s Anchor Point to the wand tip. Parent the line layer to the Null Object using the Pick Whip. Now the line follows the tracked wand perfectly.

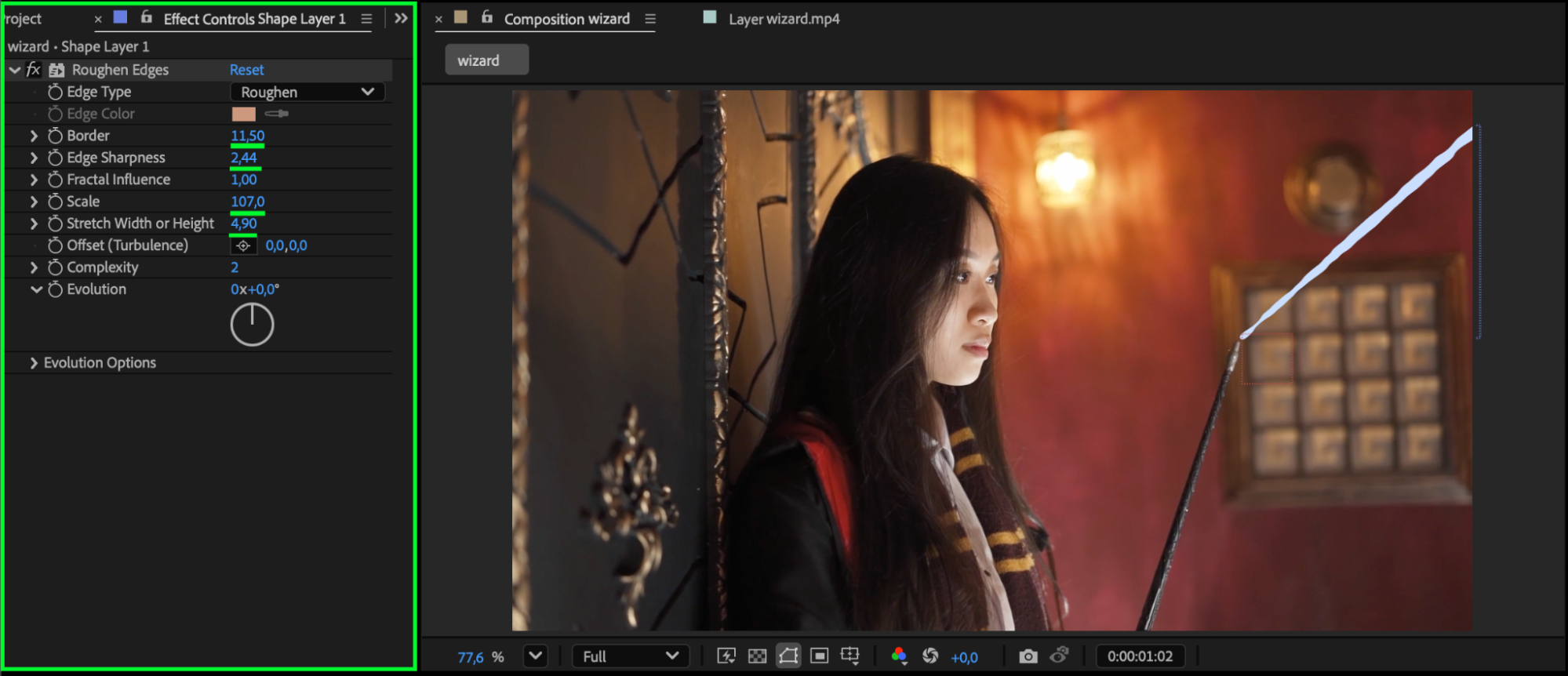

Step 6: Add Roughen Edges for Energy

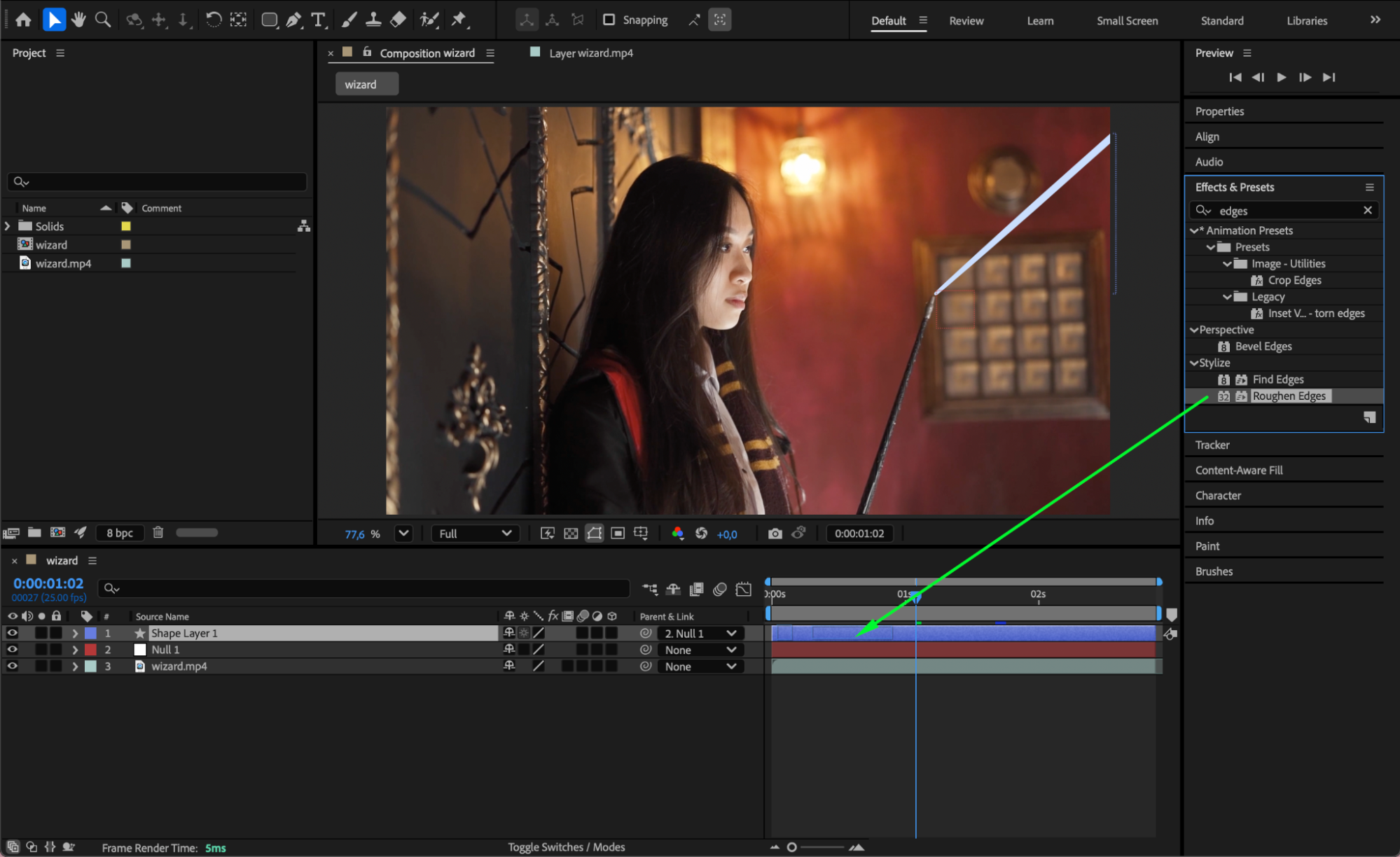

Apply Roughen Edges from the Effects & Presets panel to the line layer. Set:

Border: 11.5
Edge Sharpness: 2.44
Scale: 107
Stretch Width/Height: 4.9

This gives the trail a magical, unstable look.

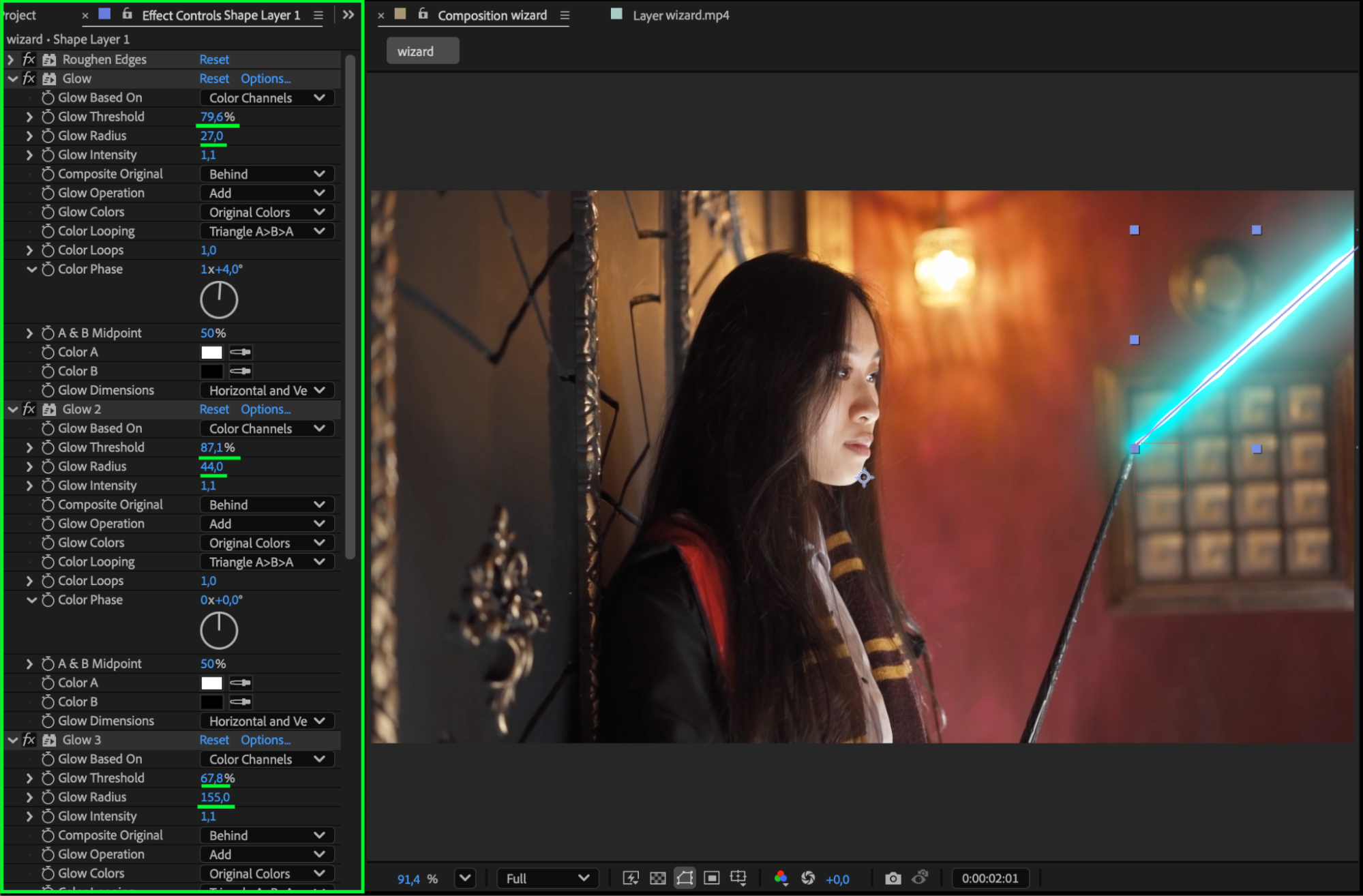

Step 7: Stack Multiple Glow Effects

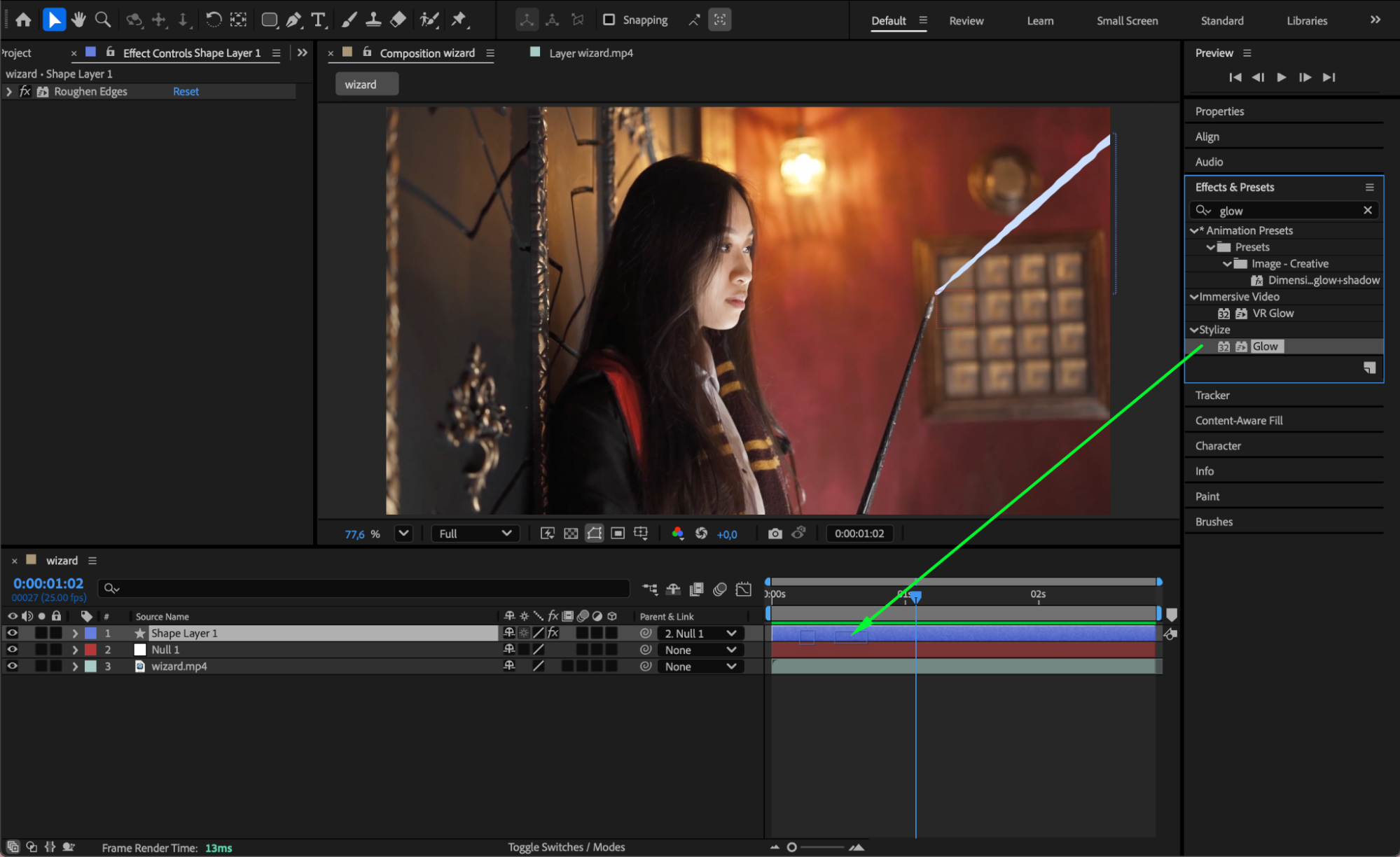

Apply Glow to the line layer four times. Example settings:

Glow 1: Threshold 79.6, Radius 27
Glow 2: Threshold 87.1, Radius 44
Glow 3: Threshold 67.8, Radius 155
Glow 4: Threshold 42.4, Radius 260

Stacking Glow effects creates a rich magical aura.

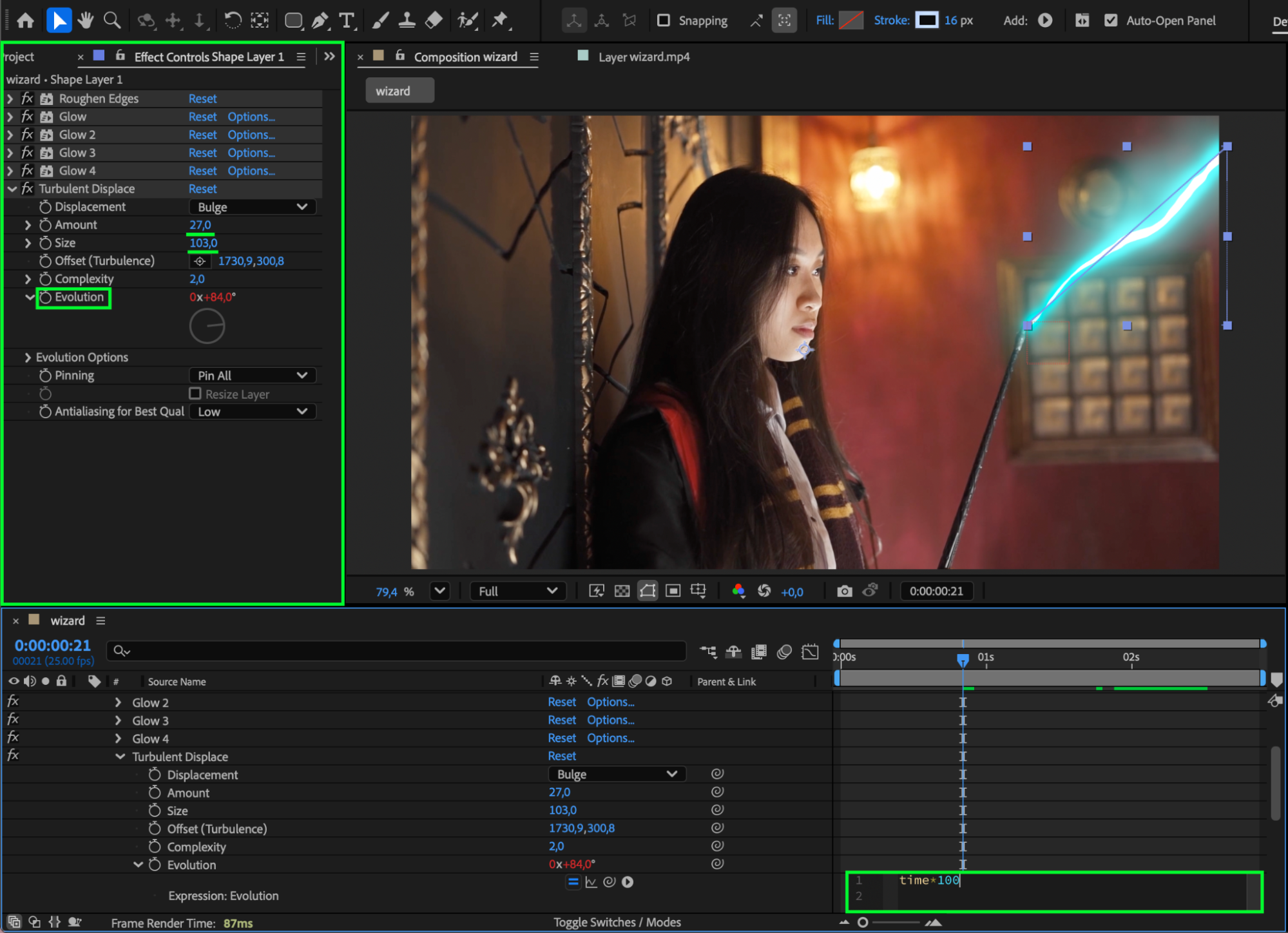

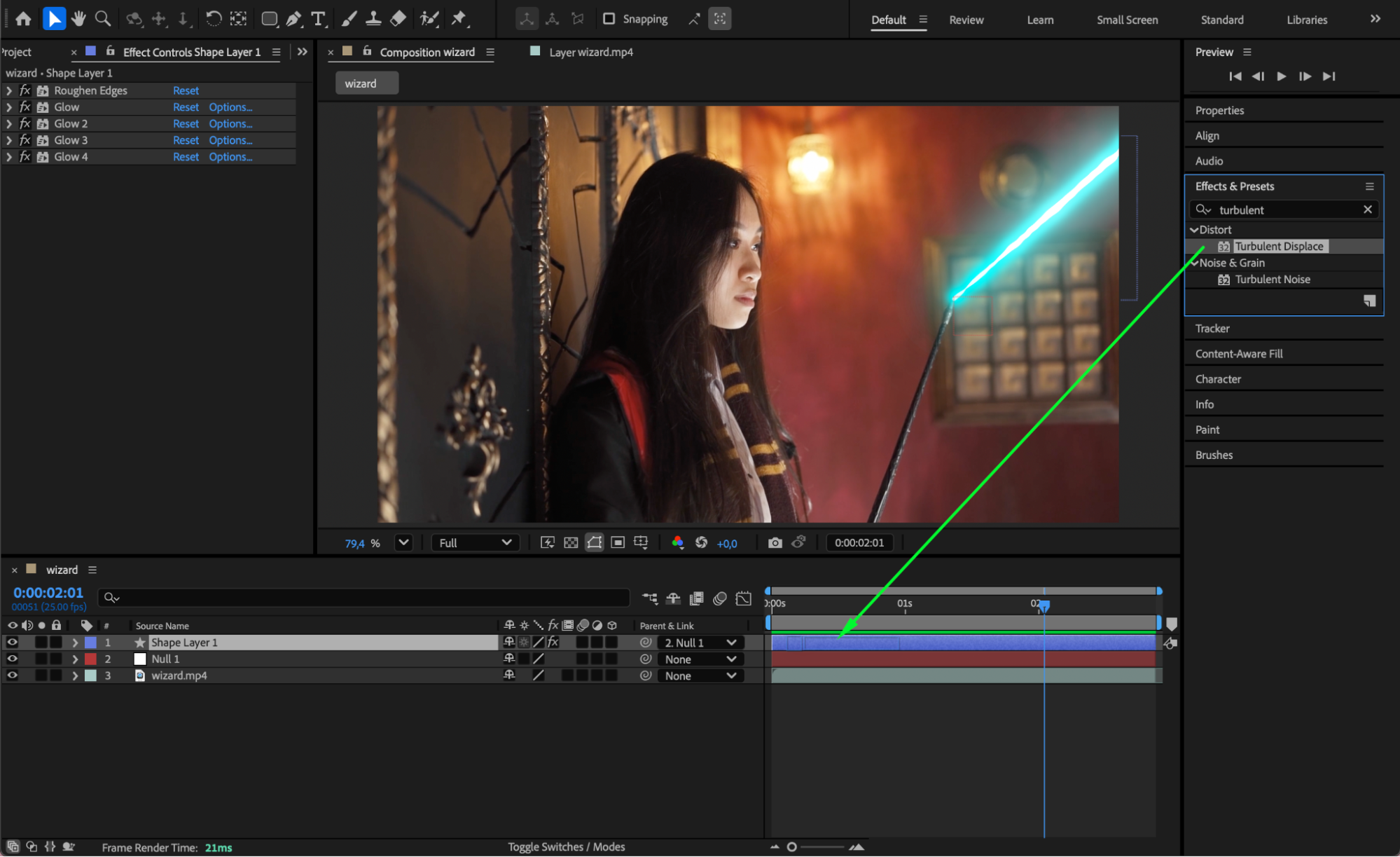

Step 8: Animate the Trail with Turbulent Displace

Apply Turbulent Displace to the line. Set:

Amount: 27
Size: 103
Alt/Option-click the Evolution stopwatch and add the expression: time * 100

This adds continuous movement to the magic trail.

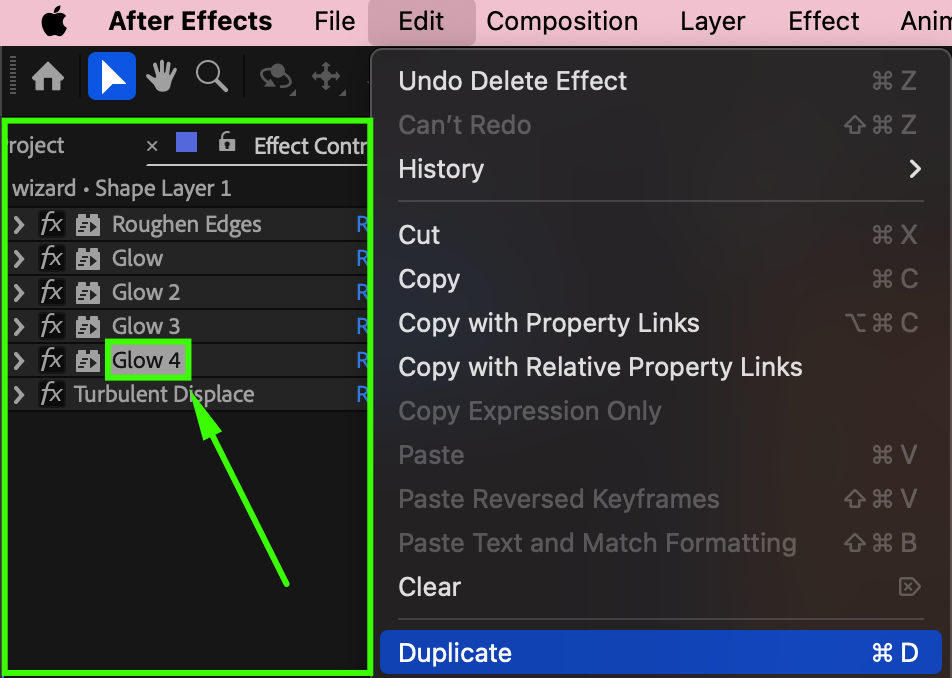

Step 9: Enhance the Glow

Duplicate the fourth Glow effect to intensify the brightness and energy.Step 10: Add Directional Blur

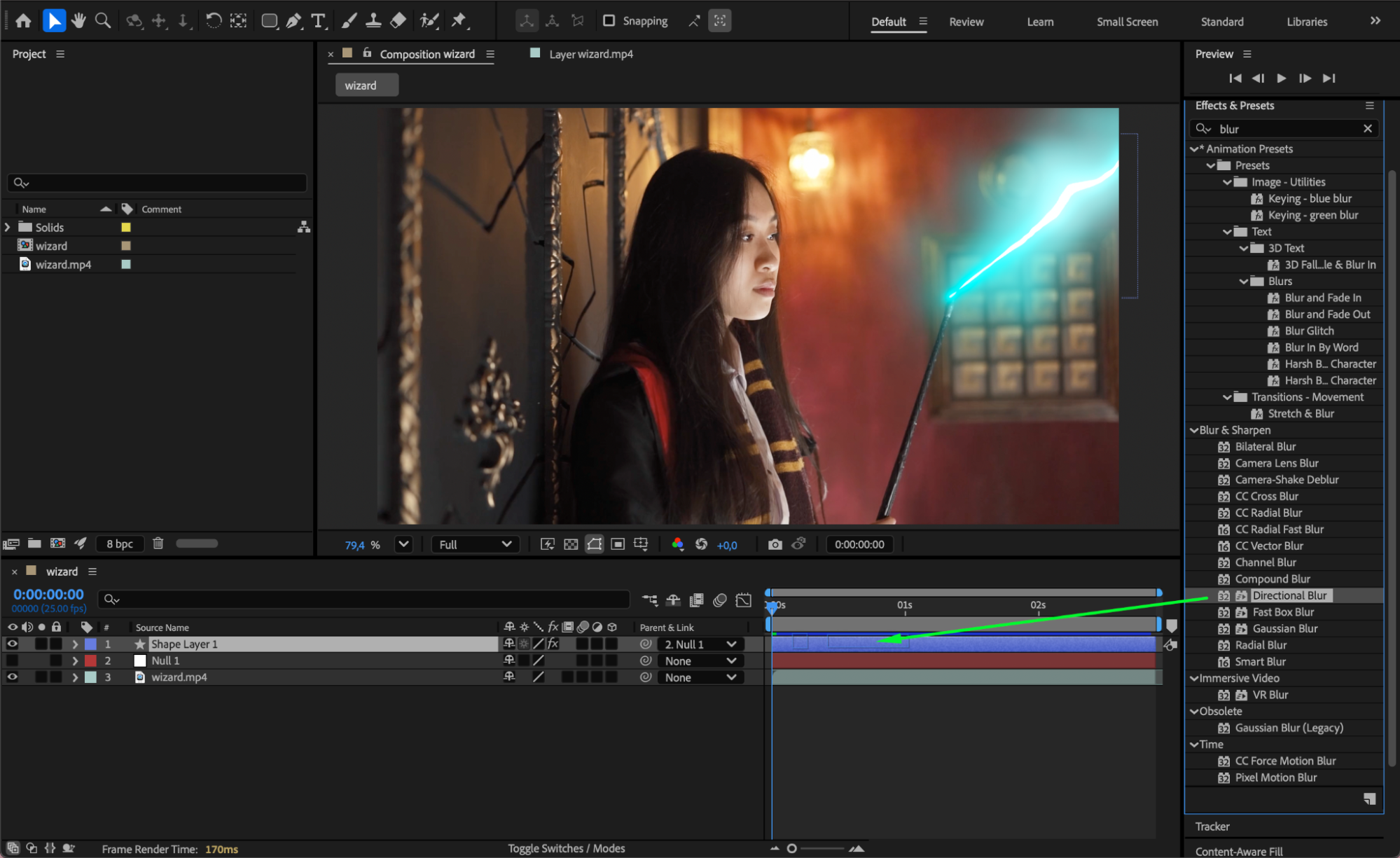

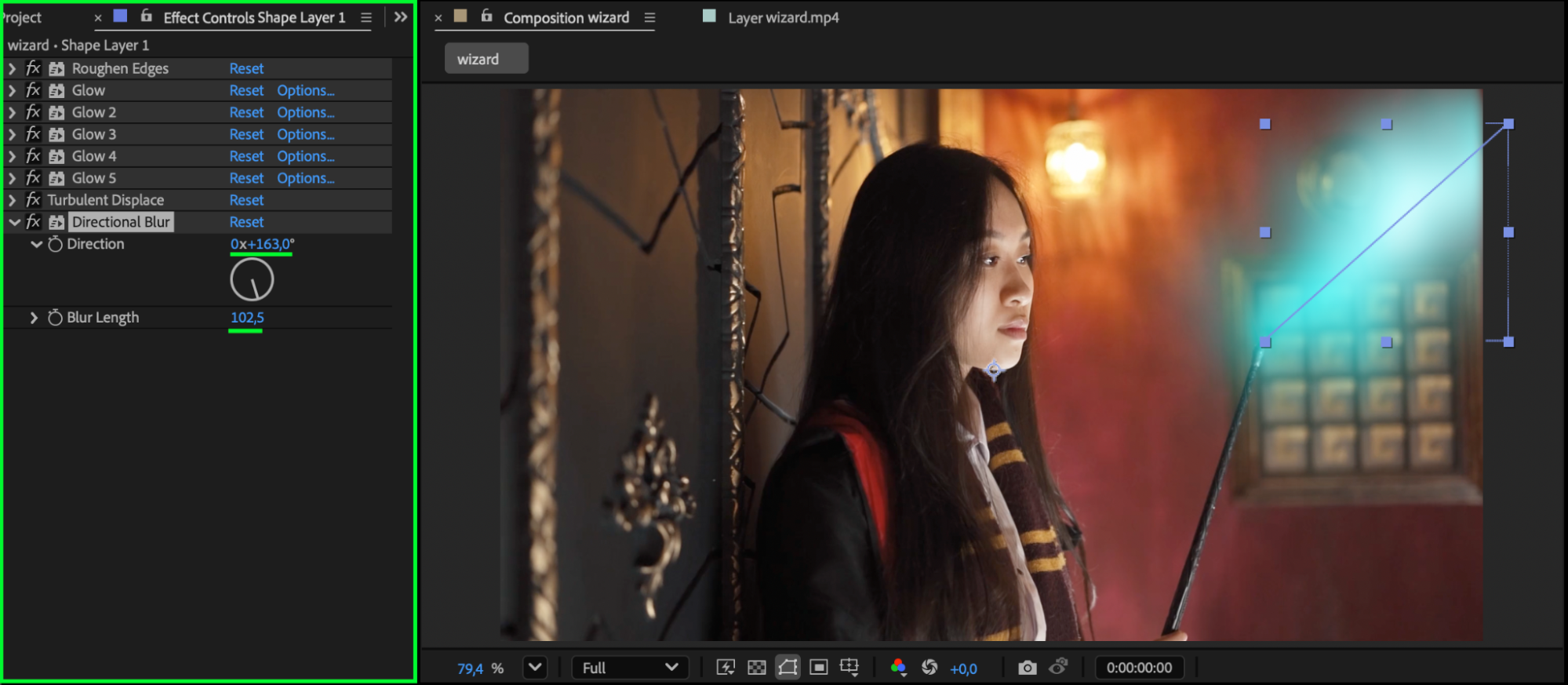

Apply Directional Blur to the line. Set:

Direction: 163
Blur Length: 102.5

This adds motion streaks to the magic effect. Step 11: Create a Soft Secondary Glow Layer

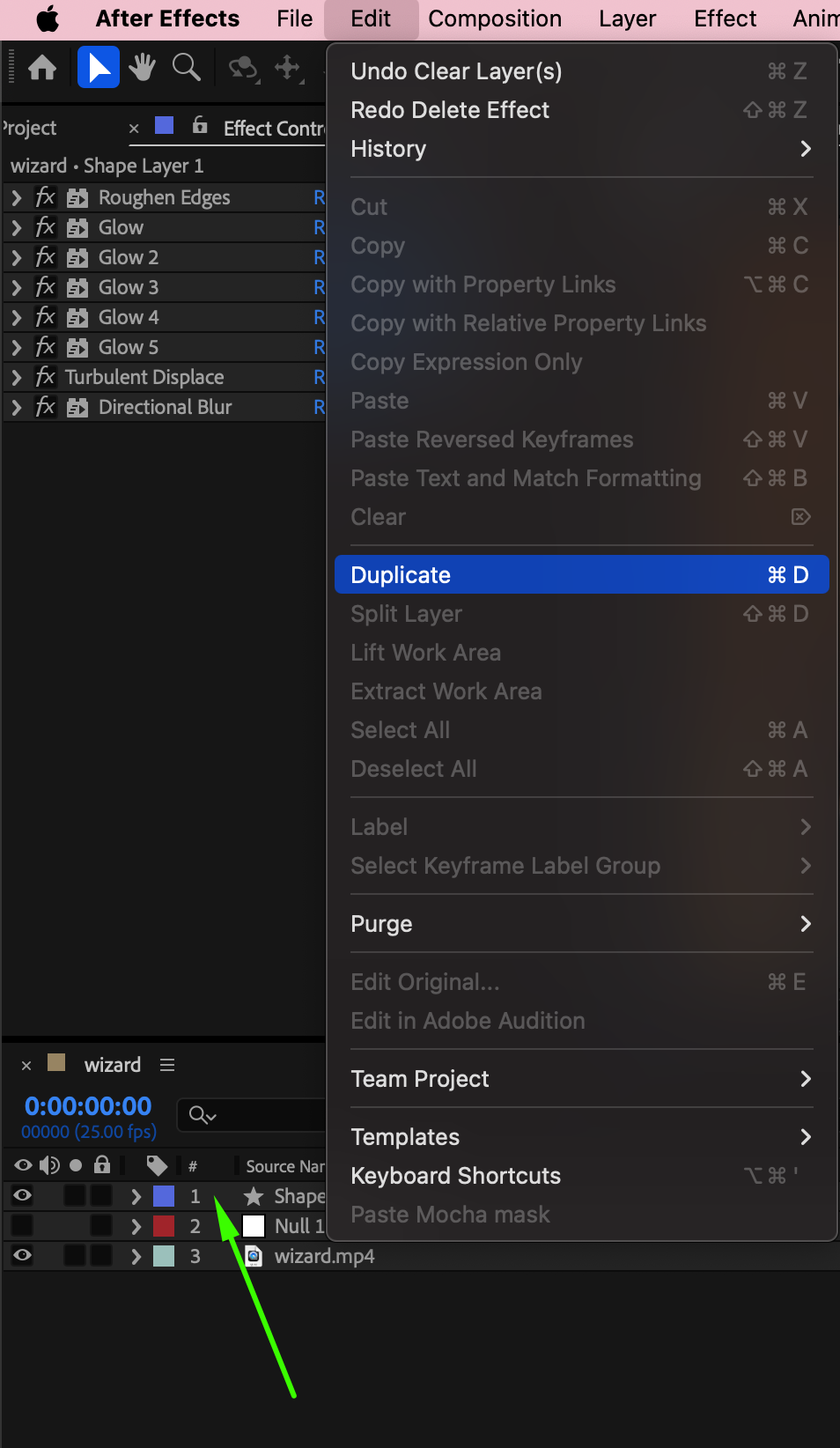

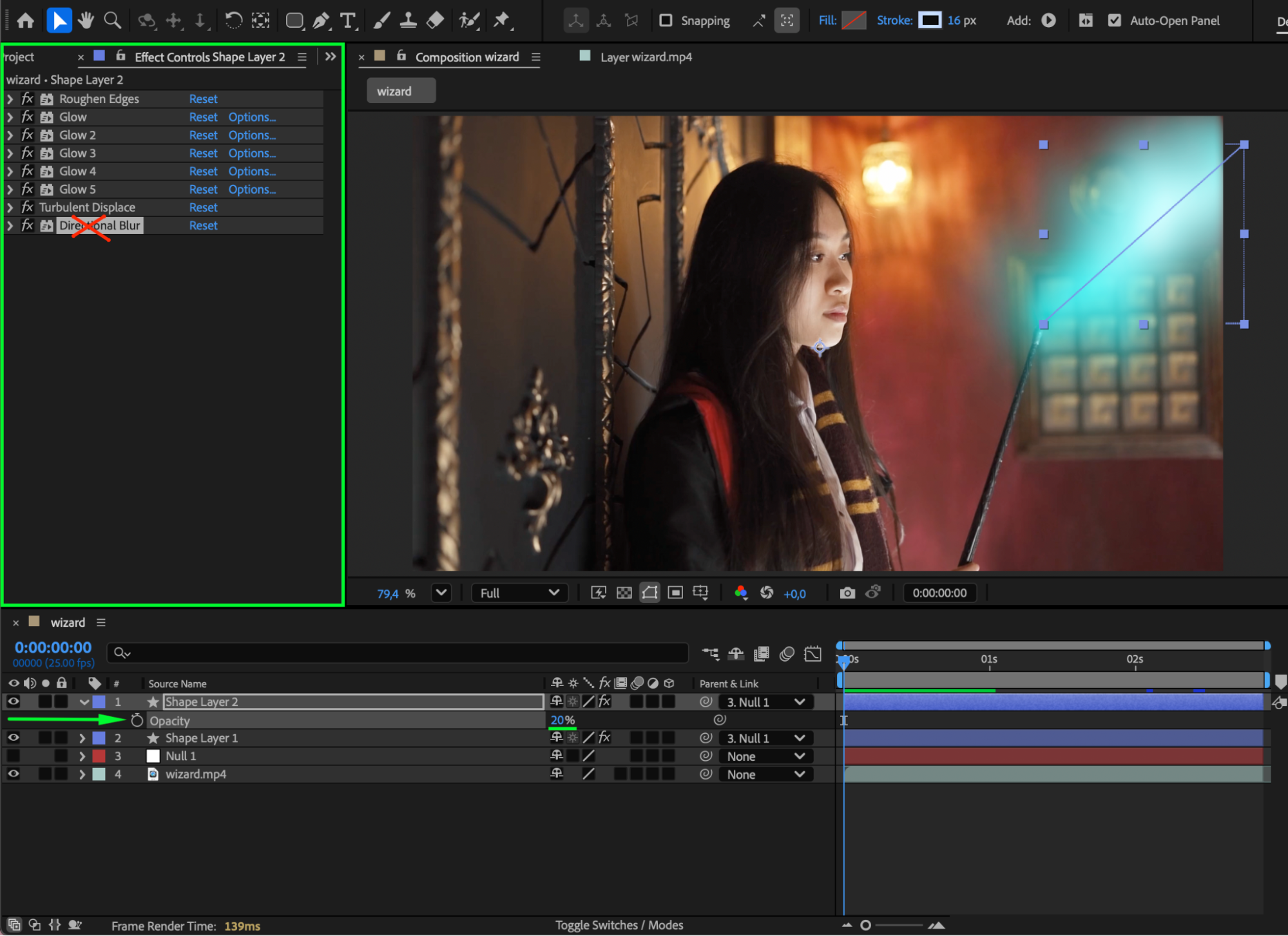

Duplicate the line layer. Remove the last applied effect from the duplicate. Set the duplicate layer’s Opacity to 20%. This adds depth and softness to the magical trail.

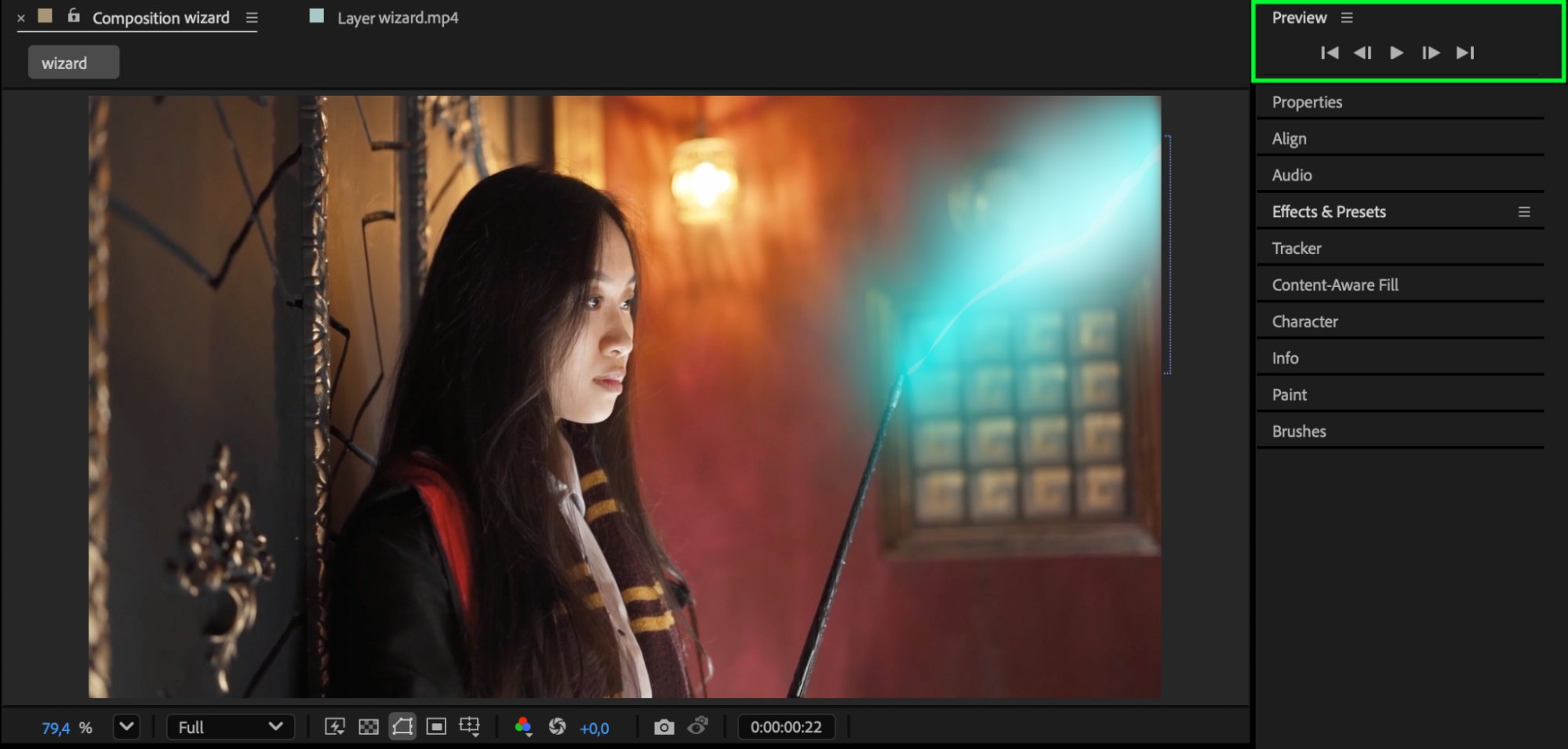

Step 12: Preview and Refine

Press Spacebar to preview your animation. Fine-tune glow intensity, blur, and distortion until the magic feels smooth and natural.

Conclusion

By combining motion tracking, shape layers, glow stacking, and distortion effects, you can create a professional magician’s wand animation in After Effects. This technique works perfectly for fantasy scenes, magical transitions, and visual storytelling effects.
