Step-by-Step Guide to Creating a Heart Shape in After Effects
Introduction – Designing a Heart in After Effects
Creating custom shapes like a heart in After Effects allows you to personalize your projects and add meaningful visuals to your animations. In this tutorial, we’ll guide you through the process of designing a heart using simple shape tools and adjusting its properties to fit your project needs. Whether it’s for a Valentine’s Day animation, a logo, or a fun graphic, you’ll master the basics of crafting a heart shape.
Step 1: Create a New Composition

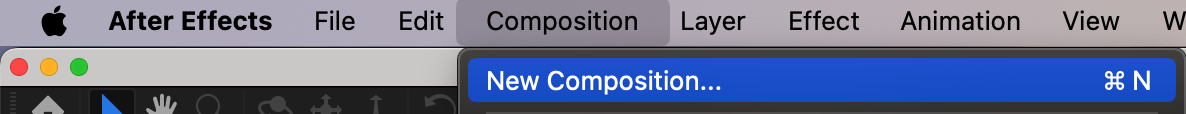

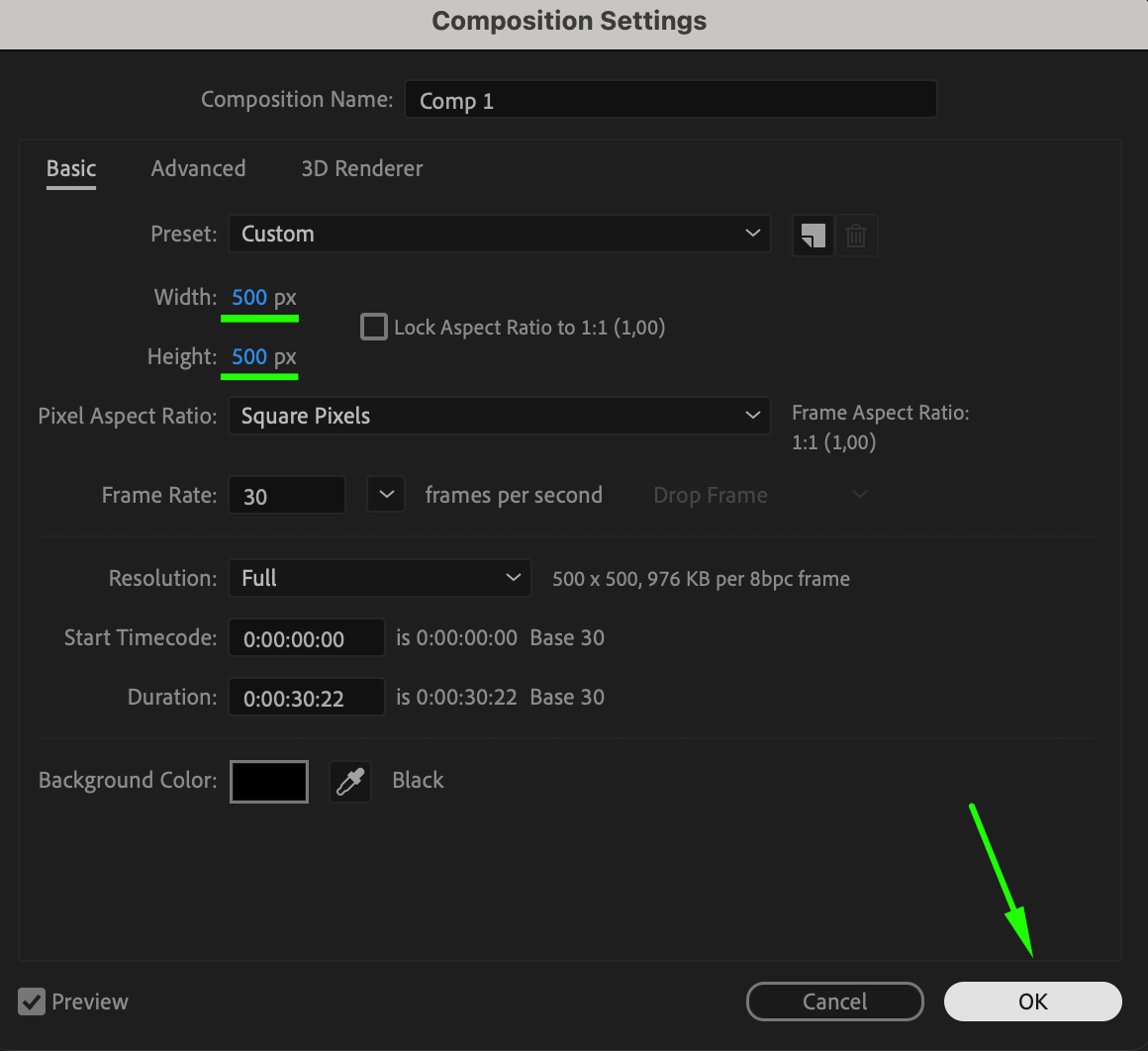

Start by creating a square composition. Go to Composition > New Composition, and set the Width and Height to 500×500 pixels. This ensures the workspace is perfectly square, making it easier to align the shapes for the heart. Adjust the frame rate and duration based on your project, and click OK.
Step 2: Draw the Base Square

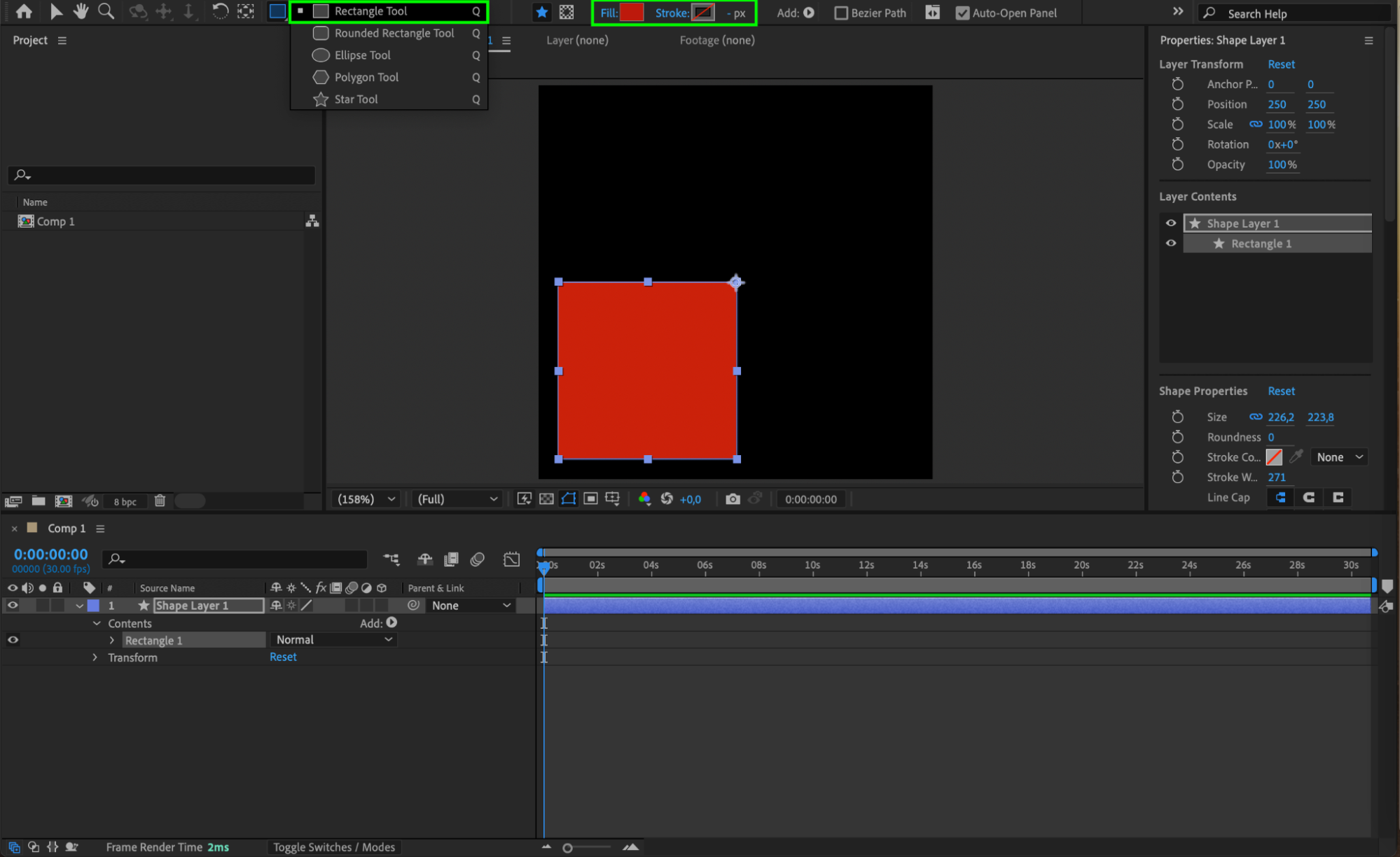

From the toolbar, select the Rectangle Tool (Q). Hold the “Shift” key and draw a square in the bottom-left area of the composition. This will form the base of the heart. In the Fill settings, choose a red color to give your heart a vibrant look. Ensure the Stroke is disabled for a cleaner design.
Step 3: Add a Circle to the Top of the Square

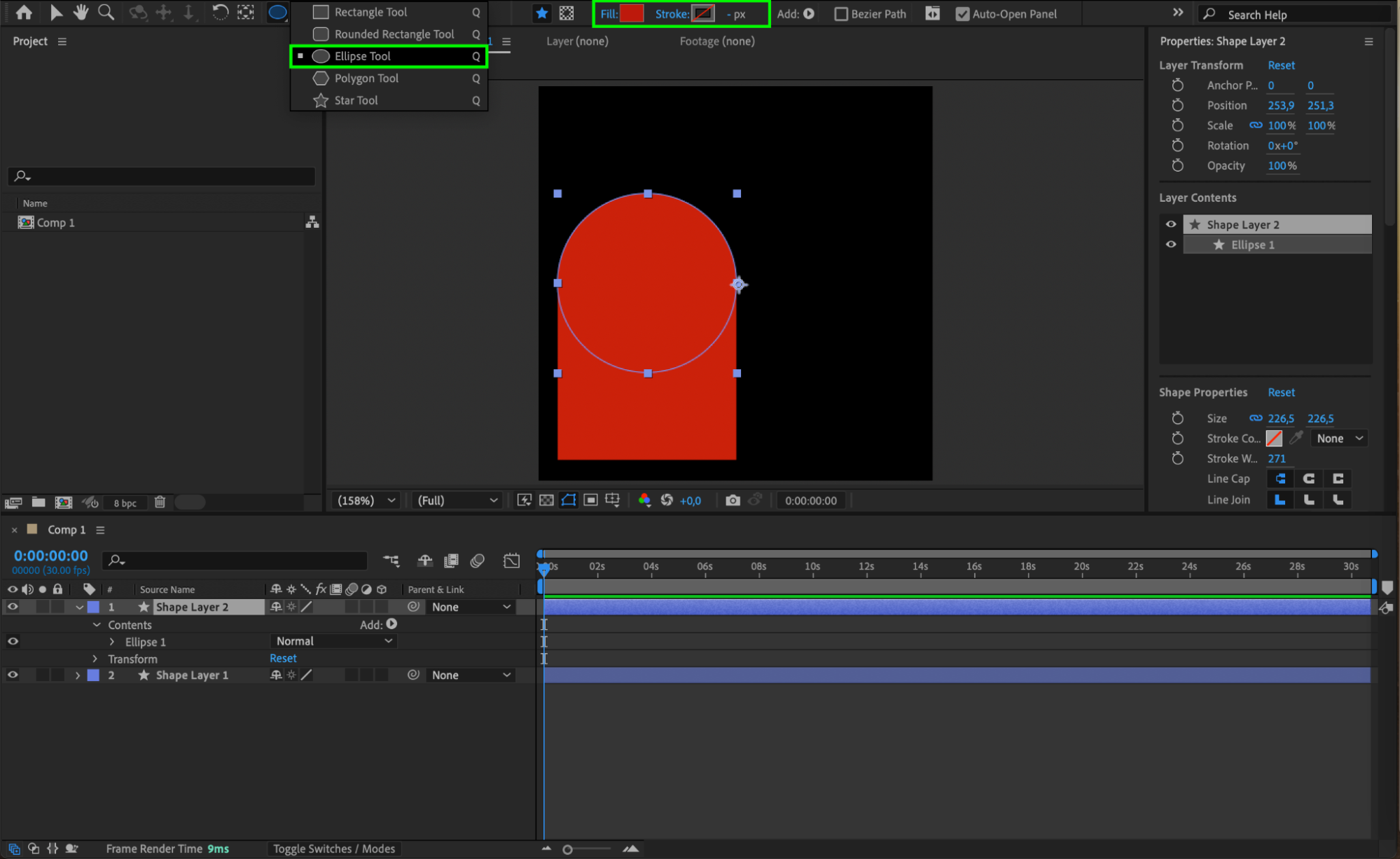

Switch to the Ellipse Tool (Q) in the toolbar. Hold “Shift” and “Ctrl/Cmd”, and draw a circle starting from the middle of the square’s top edge. This circle will form one half of the heart’s top curve. Use the Snapping feature to ensure the circle aligns seamlessly with the square.
Step 4: Duplicate and Position the Second Circle

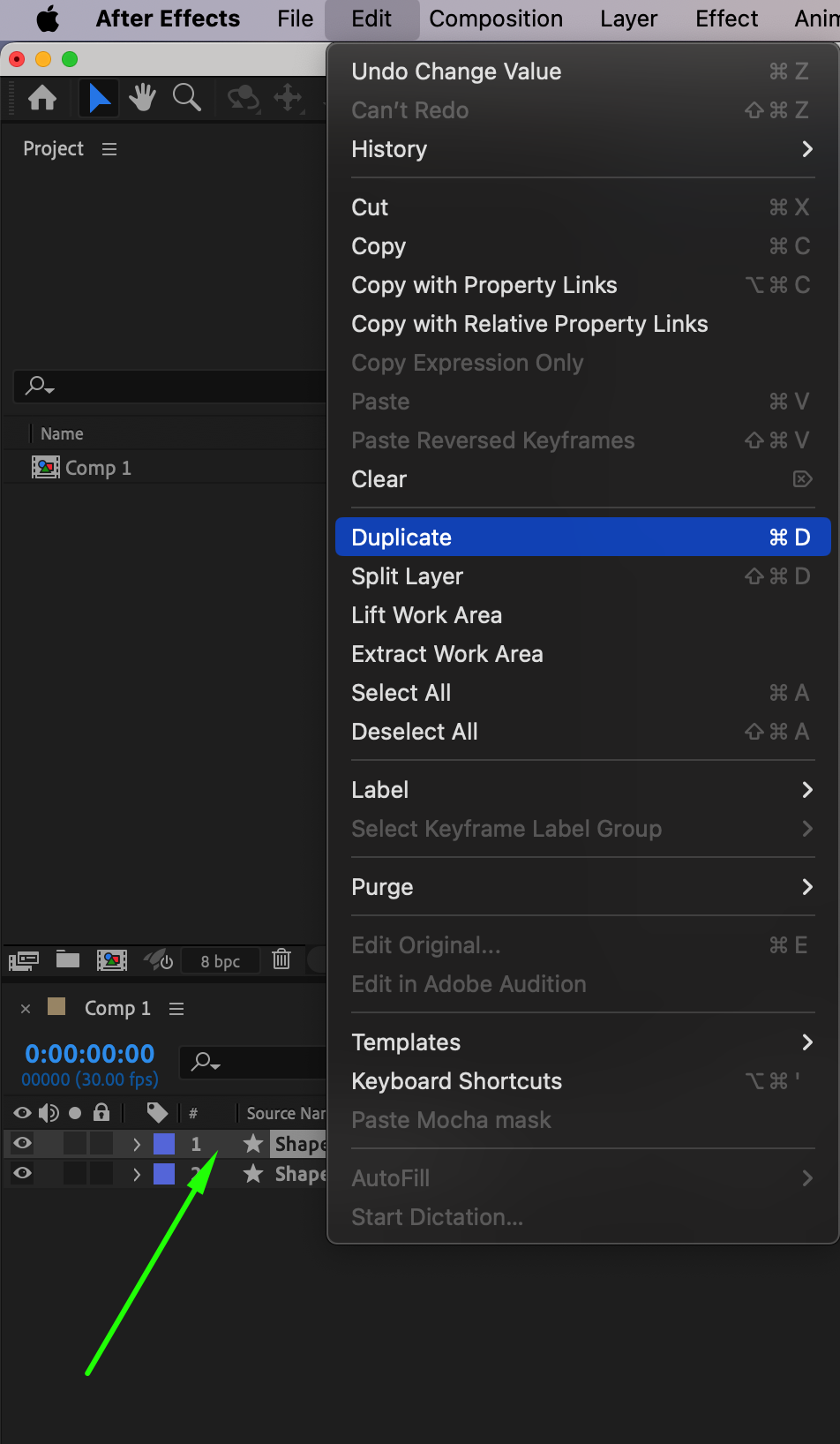

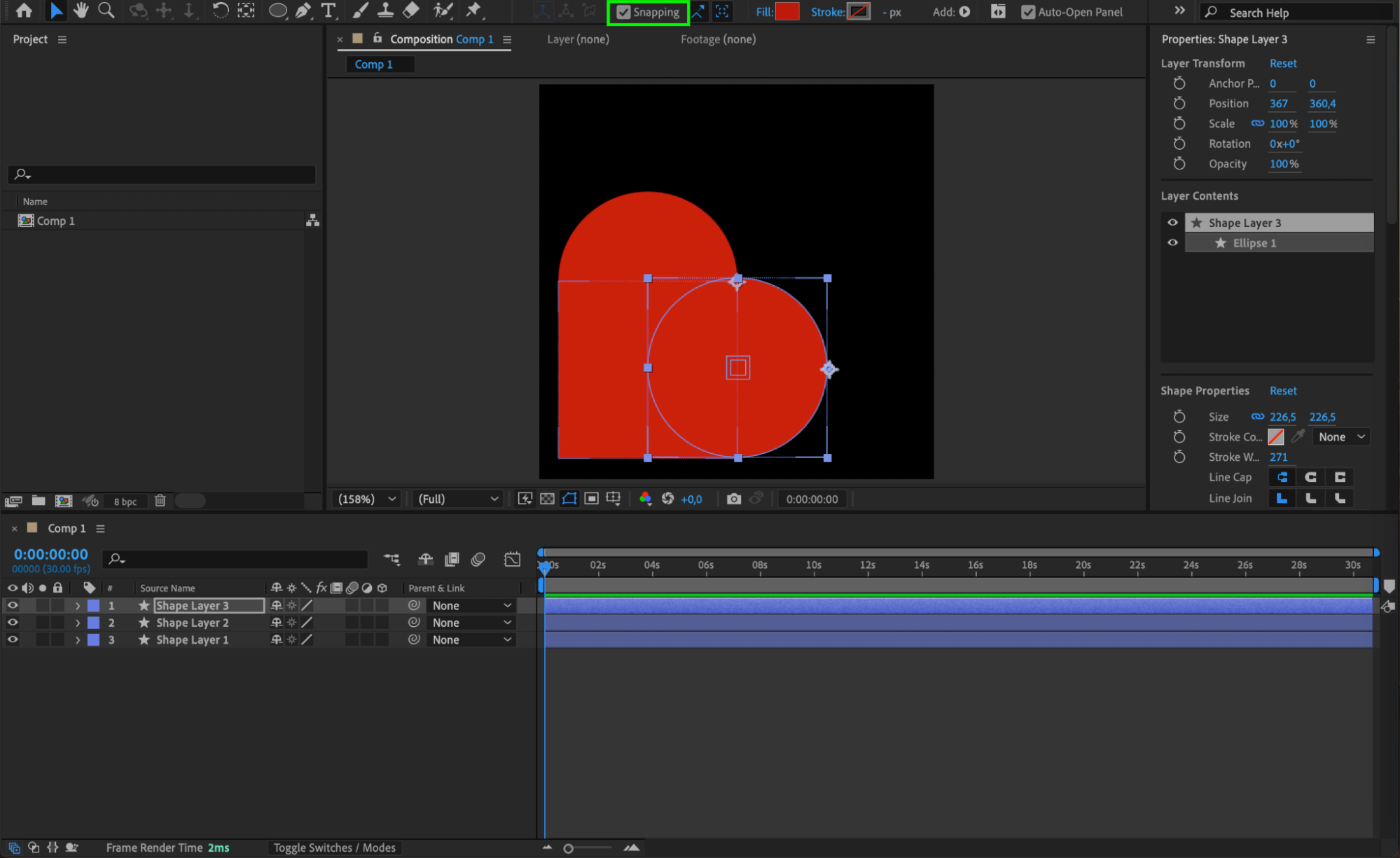

With the first circle selected, press “Ctrl/Cmd + D” to duplicate it. Drag the duplicate to the top-right edge of the square, ensuring it aligns perfectly to form the other half of the heart’s top curve. Enable Snapping in the toolbar to make precise alignment easier. Together, the shapes will now resemble a heart.
Step 5: Pre-Compose the Shapes

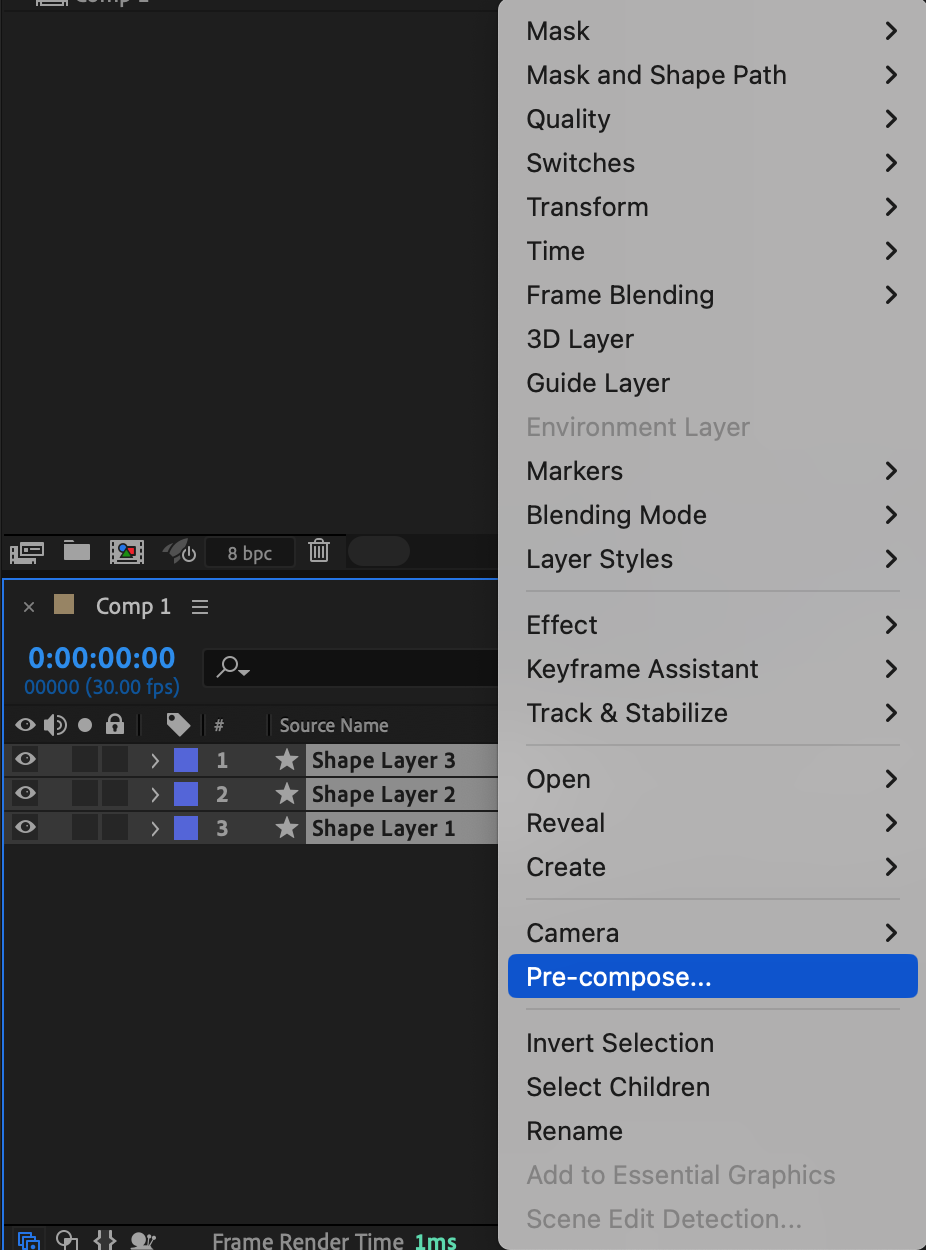

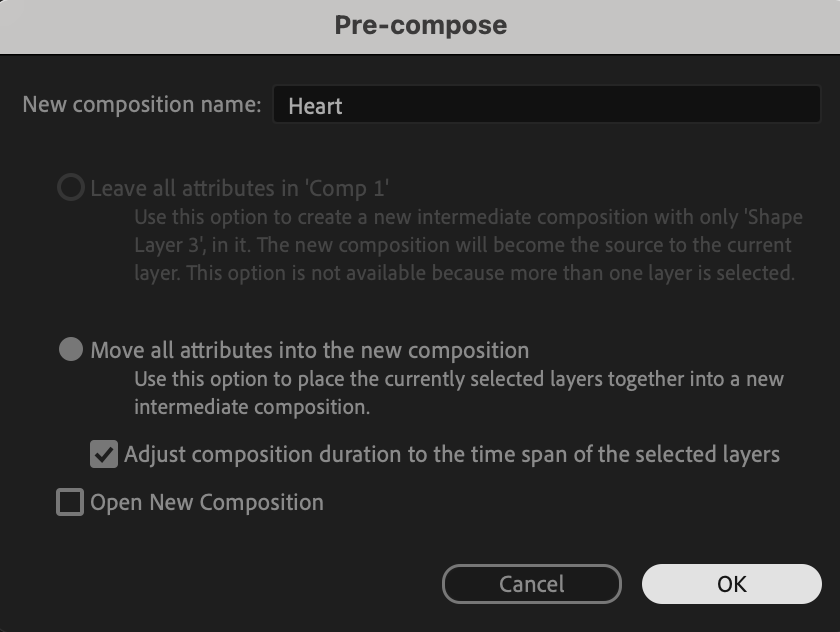

Select all the shape layers (the square and two circles) in the timeline by holding “Shift” and clicking each layer. Then, go to Layer > Pre-compose and name the new pre-composition “Heart”. This groups the shapes into a single layer, allowing you to adjust and animate them as one unit.
Step 6: Adjust the Composition Size

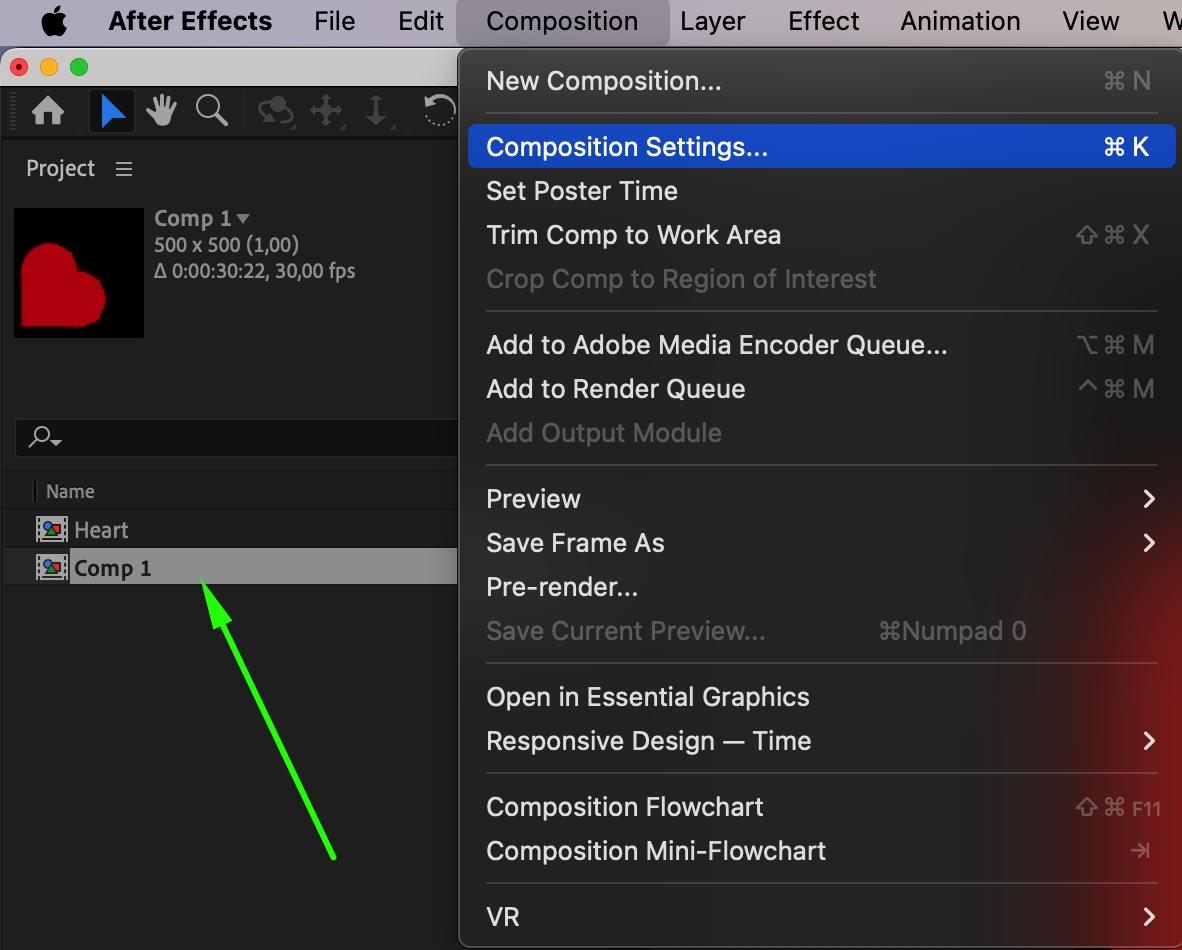

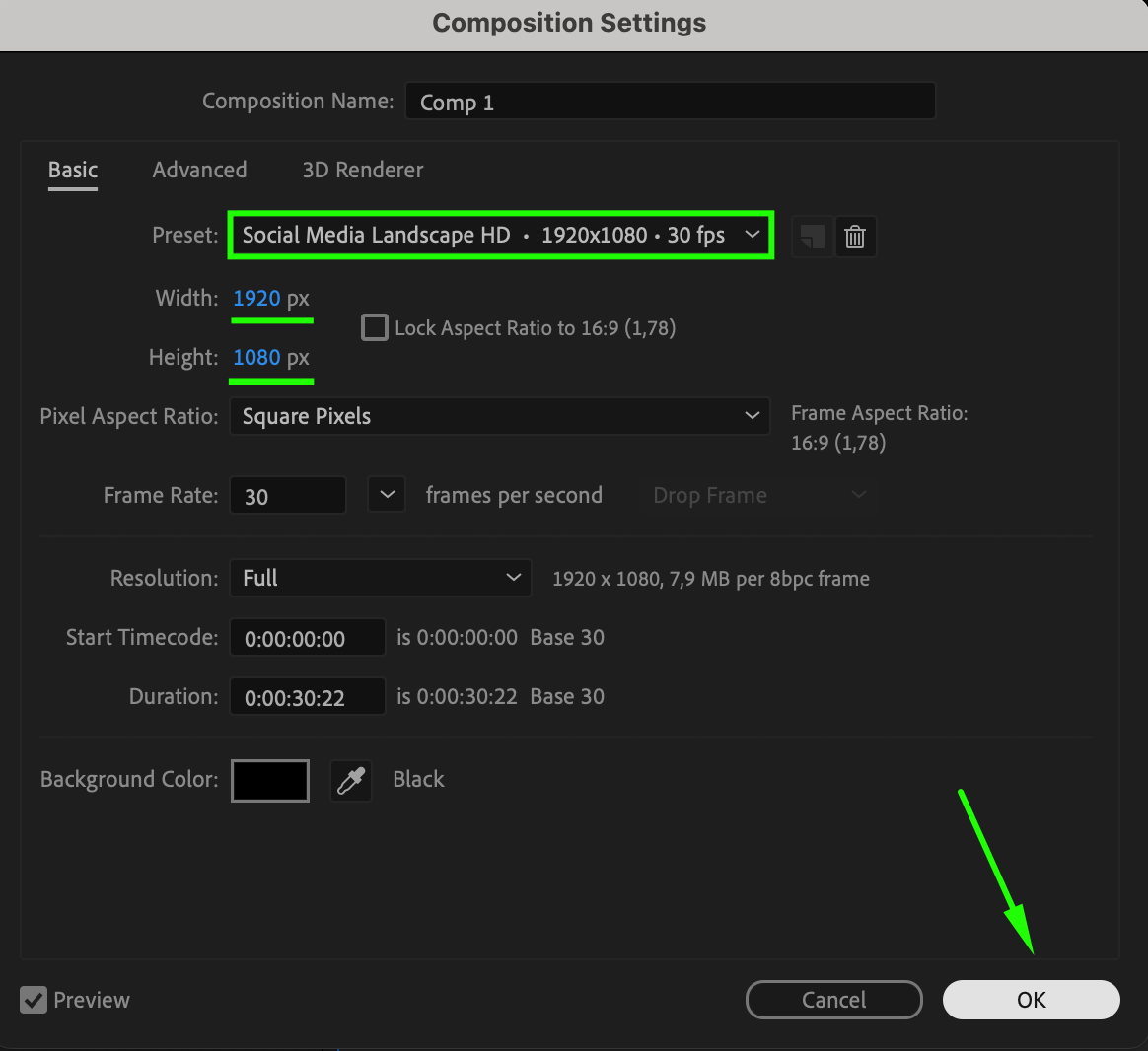

In the Project Panel, select your square composition and go to Composition > Composition Settings. Change the preset to a widescreen format, such as 1920×1080 pixels, or manually set the dimensions. This ensures the heart can be positioned and scaled in a standard video format.

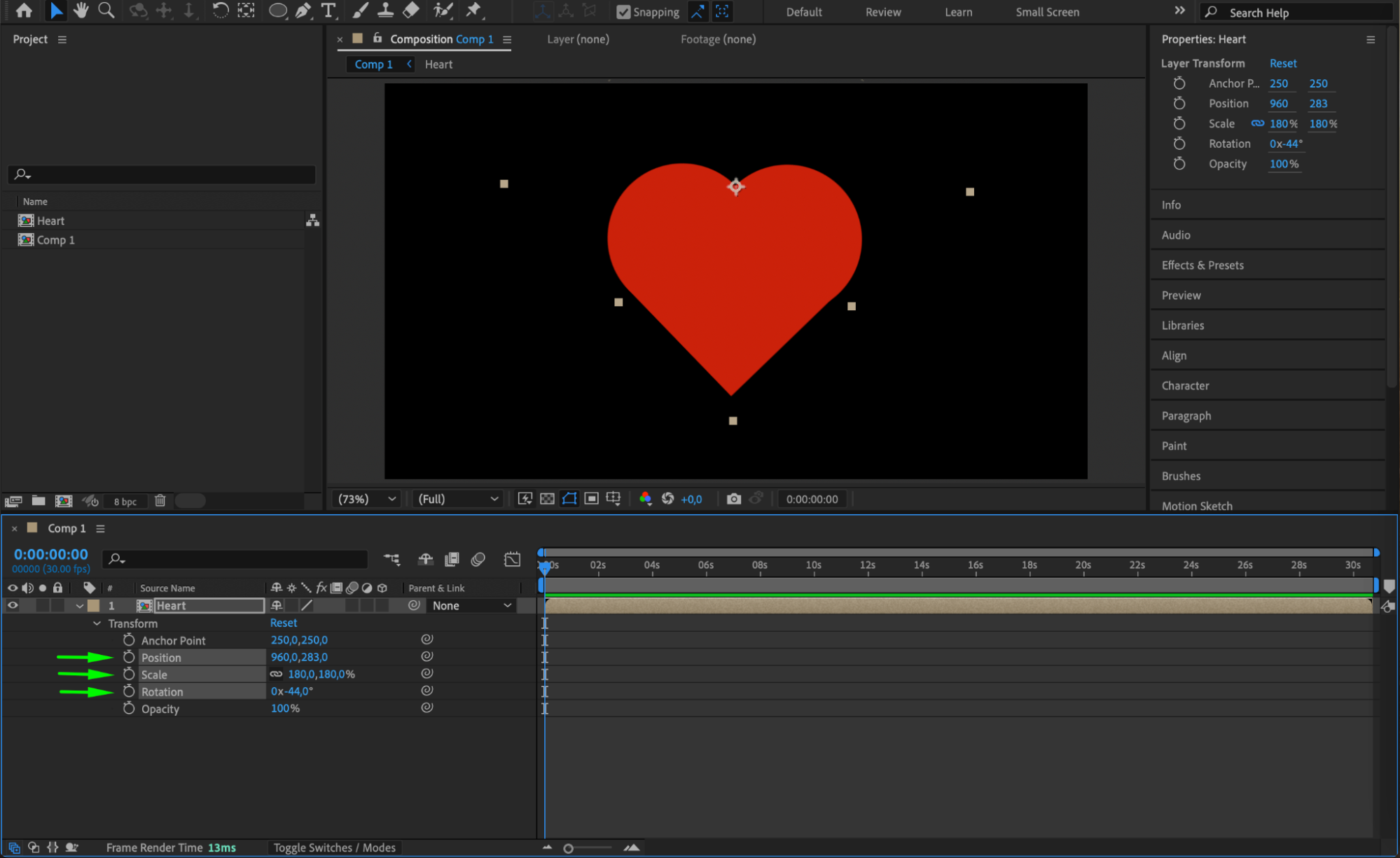

Step 7: Position, Scale, and Rotate the Heart
Drag the heart pre-composition onto the timeline of your new widescreen composition. Use the Scale (S) and Position (P) properties to adjust the size and position of the heart within the frame. Optionally, use the Rotation (R) property to add a slight tilt to the heart for a dynamic effect.

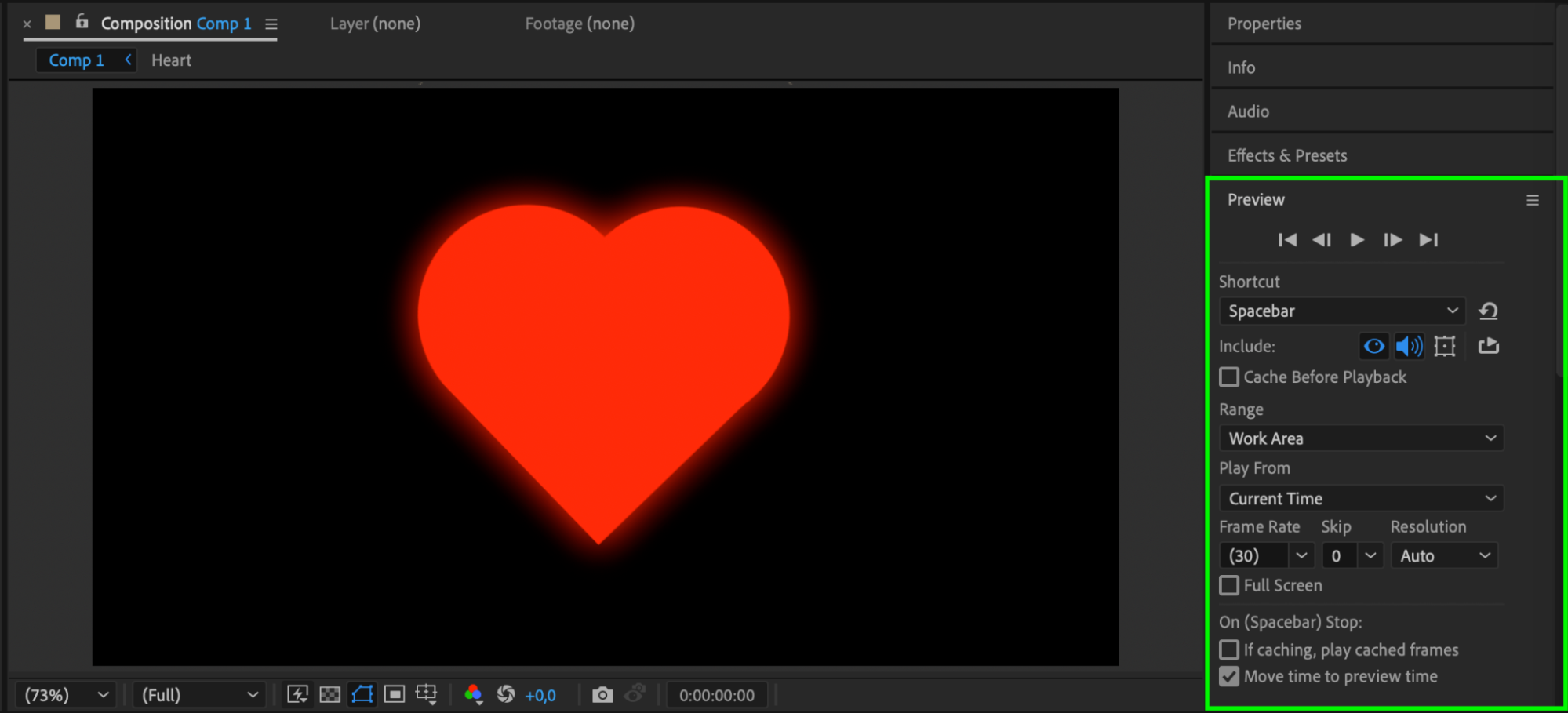

Step 8: Preview the Composition
Press Spacebar to preview your composition. Check that the heart is properly aligned, scaled, and positioned within the widescreen format. Make any necessary adjustments to ensure it looks polished and professional.
Step 9: Render Your Heart

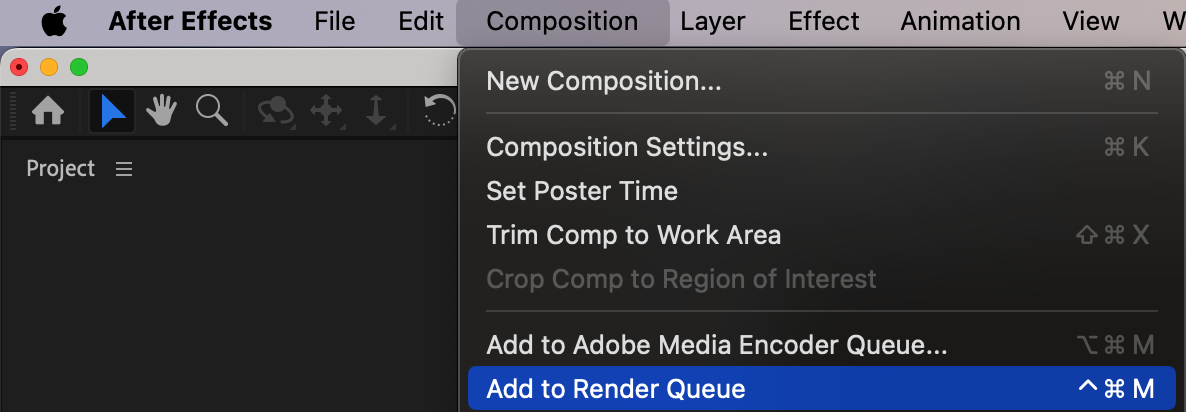

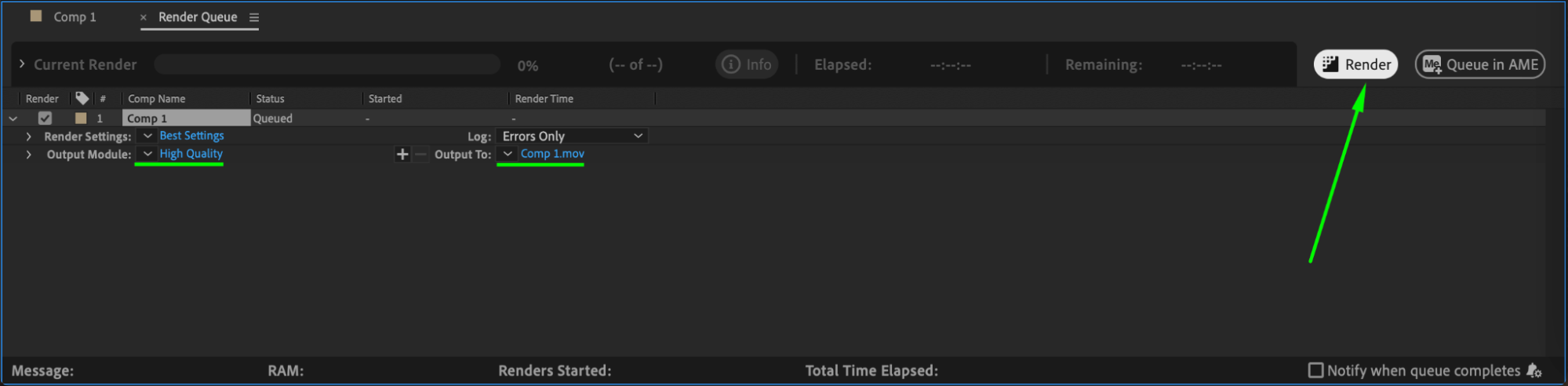

Once you’re satisfied with the heart design, render your project. Go to Composition > Add to Render Queue, adjust your render settings, and click Render. Your heart animation or design is now ready for use in your project.
Conclusion
Designing a heart shape in After Effects is a straightforward process that relies on basic shape tools and proper alignment. By combining squares and circles, pre-composing layers, and adjusting composition settings, you can create a perfectly shaped heart to enhance your projects. With additional scaling, positioning, and rotation, your heart can be customized for any purpose, whether it’s a playful animation or a professional design. Experiment with colors and effects to make your heart truly unique!
