Step-by-Step Guide to Creating a Widescreen Effect in After Effects

 Introduction to Adding a Widescreen Effect in After Effects

Adding a widescreen effect in After Effects can give your project a cinematic look, with black bars at the top and bottom that emulate the widescreen aspect ratio of movies. This guide walks you through each step, from creating black bars to adjusting color grading for a professional touch.

Step 1: Import Your Video File

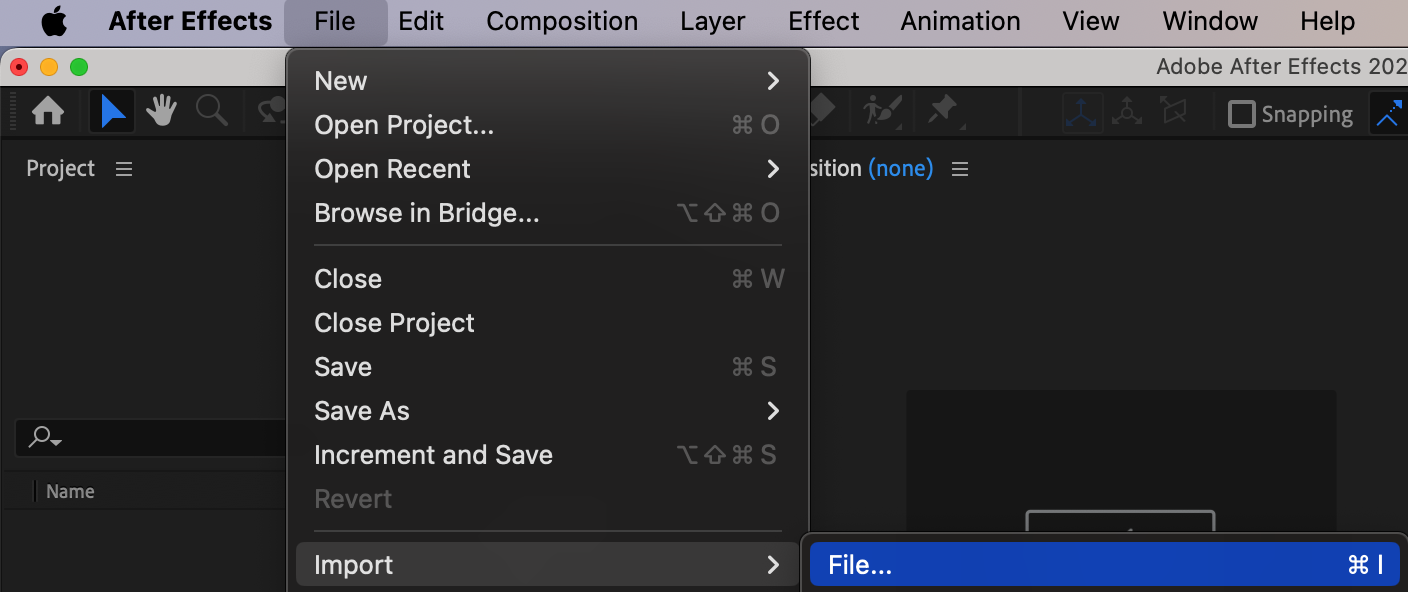

Begin by importing the video file you want to edit. Go to File > Import > File and choose your file. Once imported, drag it onto the timeline to create a new composition. This will be your main workspace for adding the widescreen effect. Step 2: Position the Current Time Indicator

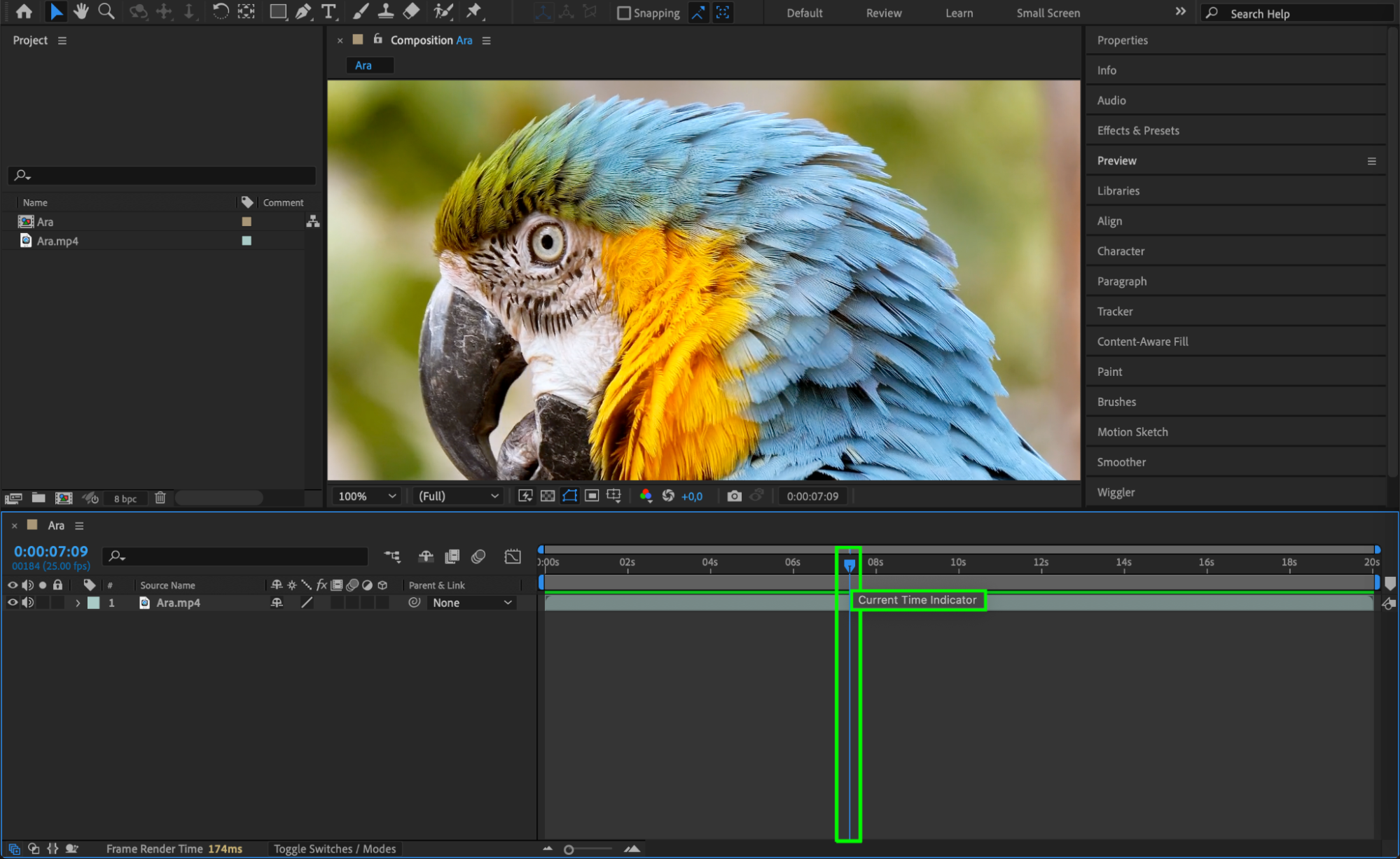

To place the black bars at the correct point in your video, move the Current Time Indicator (CTI) to where you want the widescreen bars to appear. Setting this position now will make it easier to apply timing adjustments as you create the effect.Step 3: Create a Solid Layer for the Black Bars

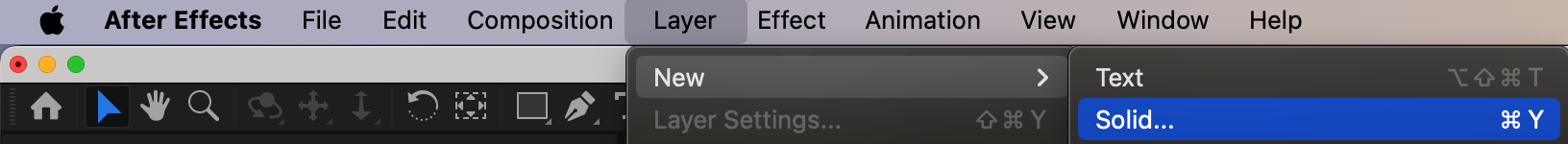

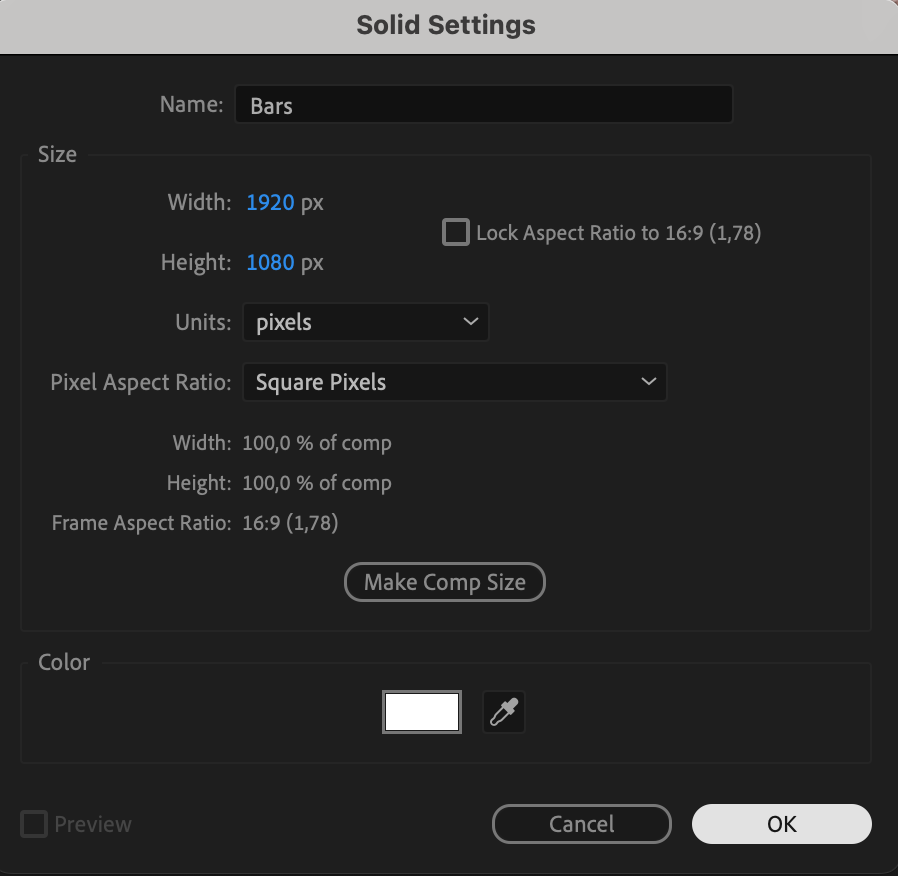

To create the widescreen bars, go to Layer > New > Solid. In the Solid Settings window, set the color to any choice you like, as this solid layer will serve as the base for creating the widescreen effect. This layer will later be adjusted to form the black bars.Step 4: Apply the Fill Effect to the Solid Layer

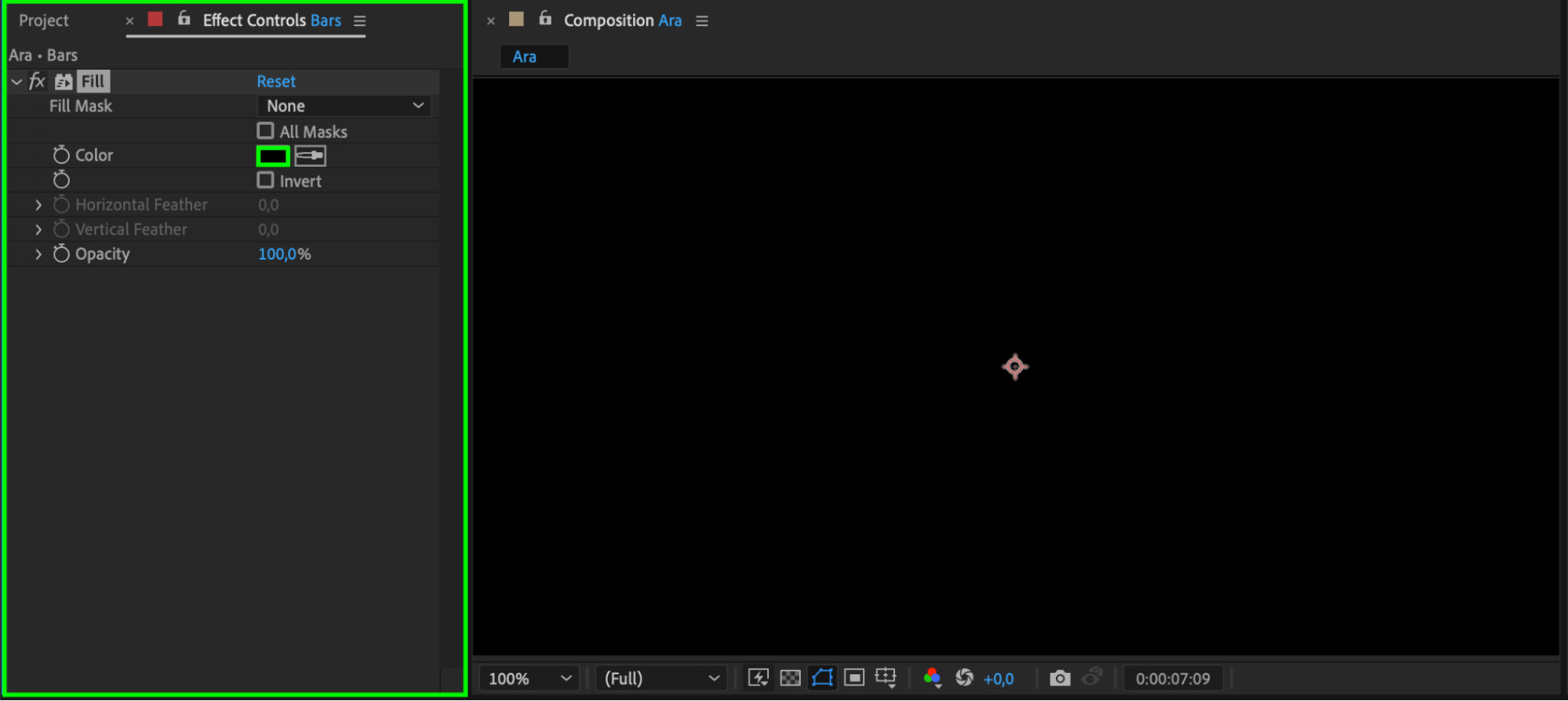

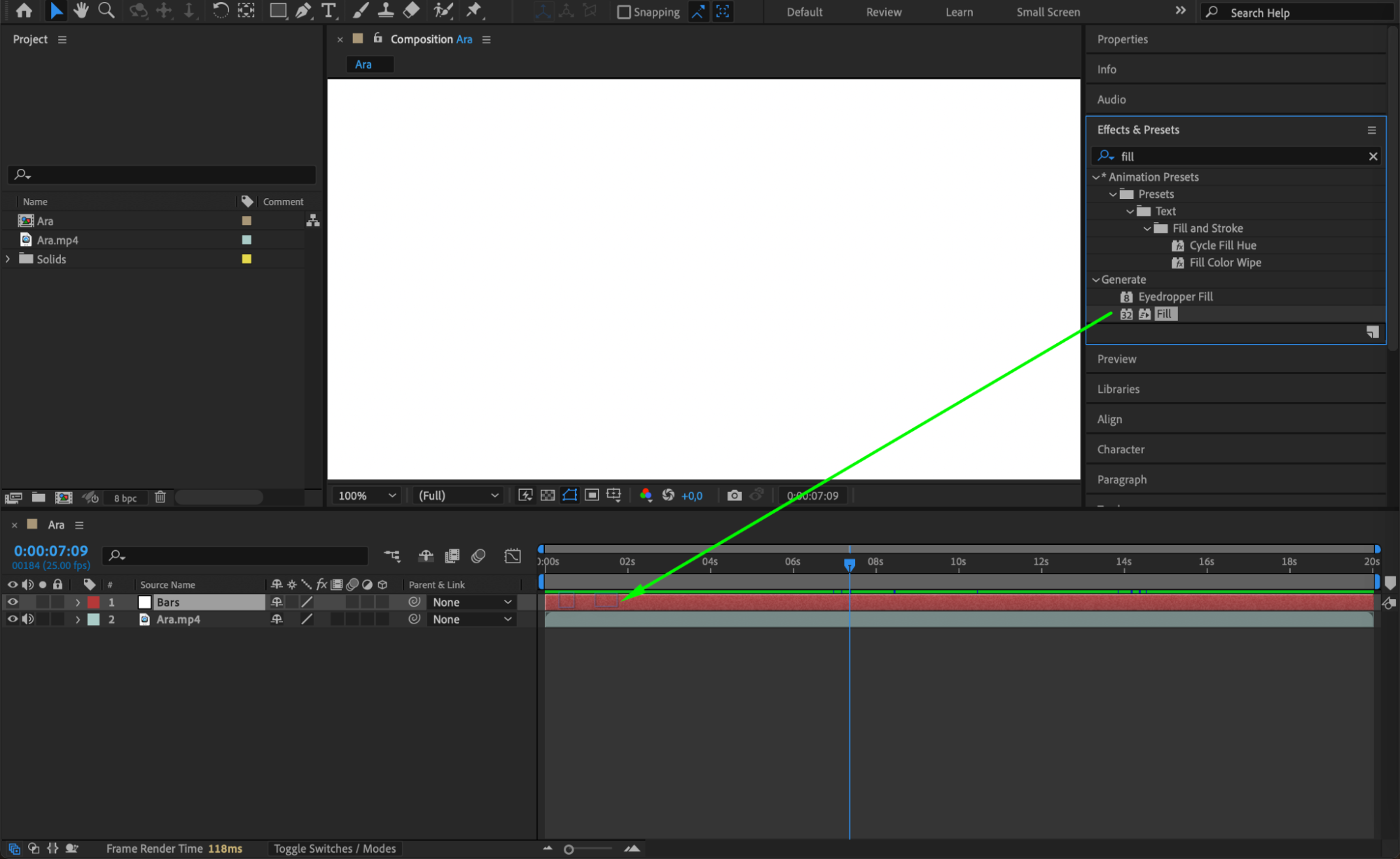

In the Effects & Presets panel, search for the Fill effect and drag it onto the solid layer. Go to the Effect Controls panel and set the fill color to black. This ensures that your widescreen bars are consistently black. Step 5: Add the CC Jaws Effect to Create Bars

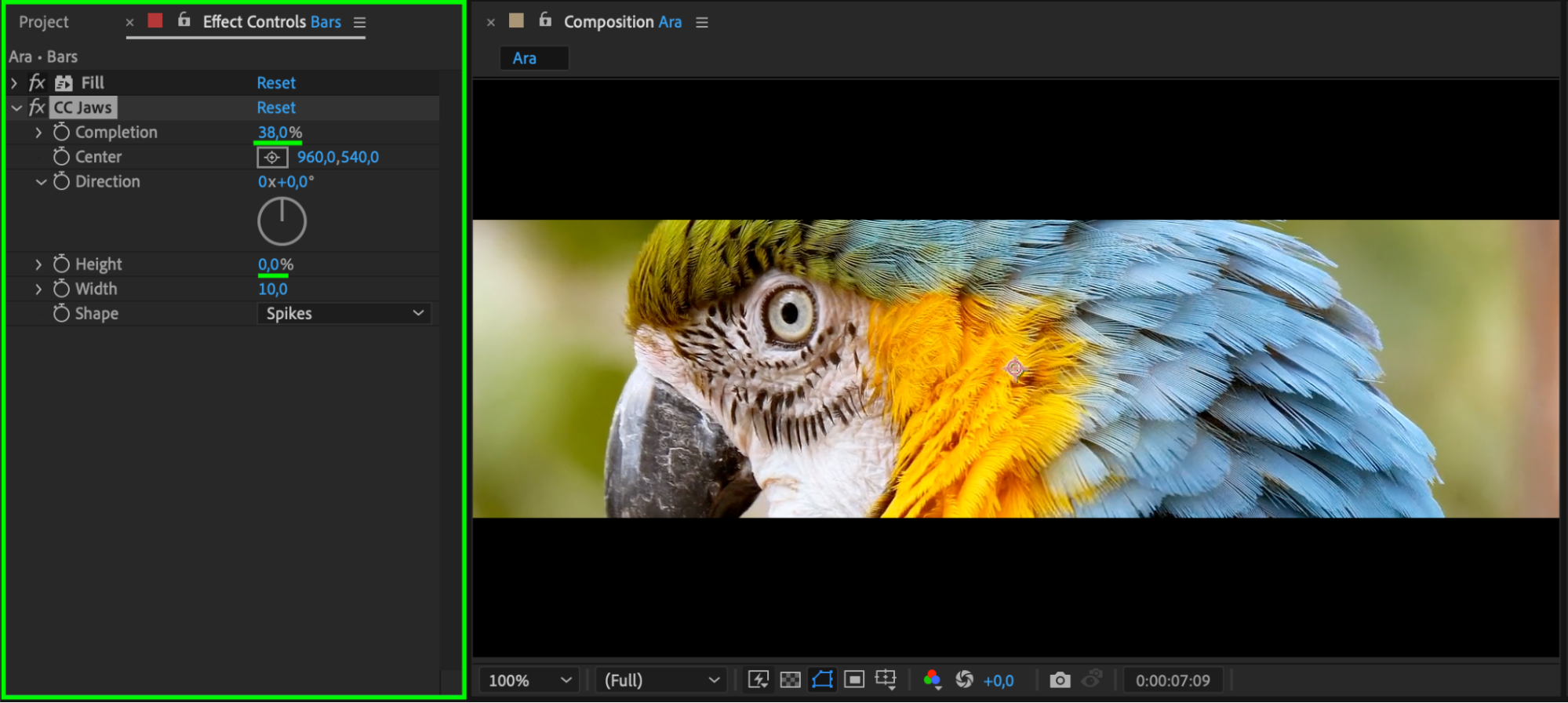

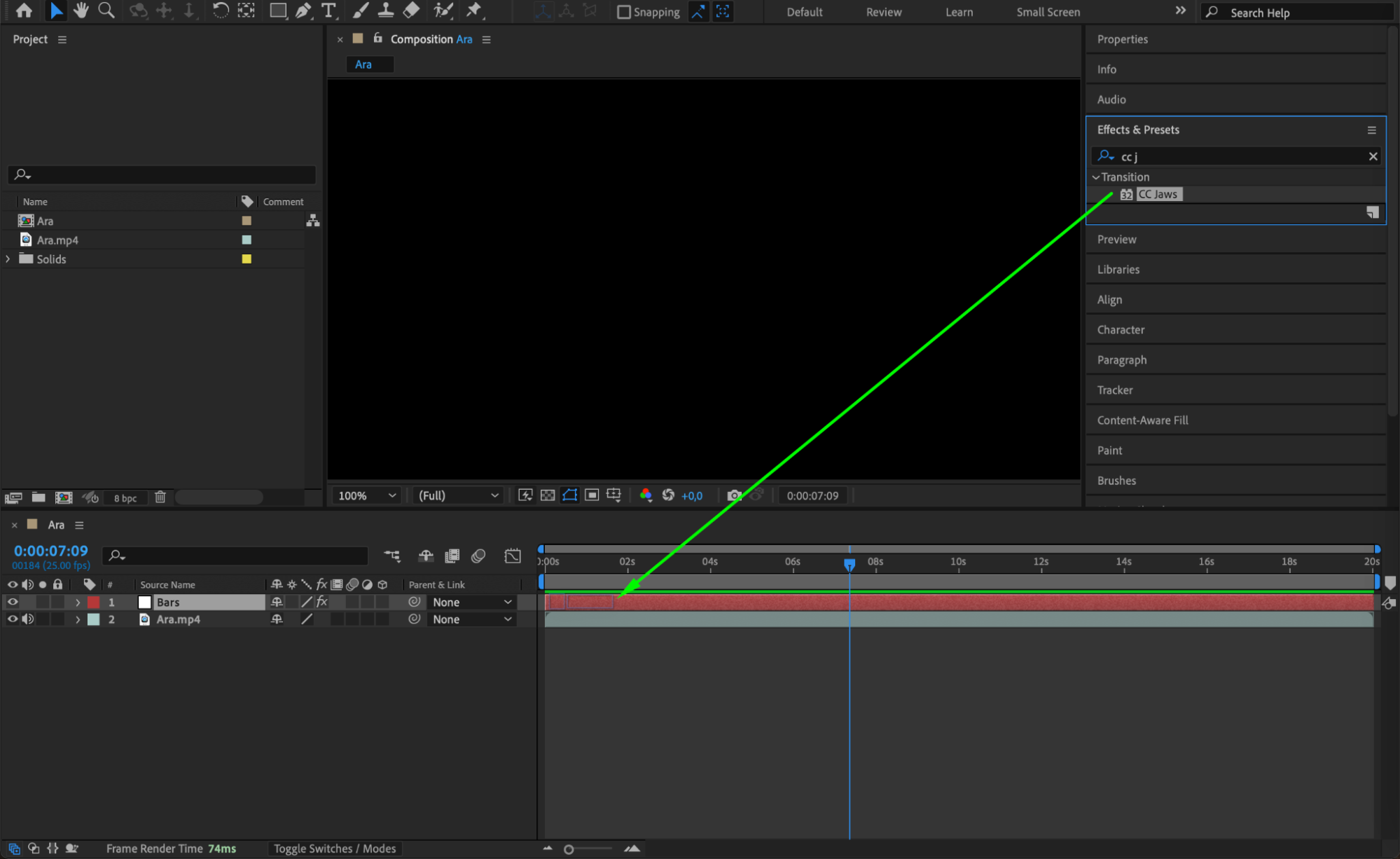

With the solid layer selected, search for the CC Jaws effect in the Effects & Presets panel, and apply it to the layer. In the Effect Controls panel, set Height to 0 and Completion to 38 (or adjust to your preference). These settings will create the black bars, defining the top and bottom edges of the widescreen frame. Step 6: Create an Adjustment Layer for Color Grading

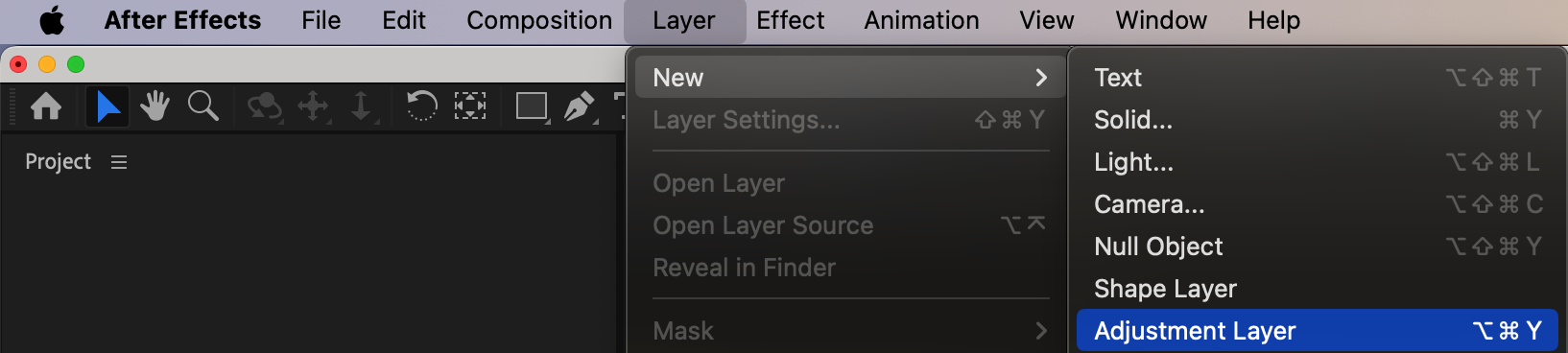

Go to Layer > New > Adjustment Layer to add a new adjustment layer. This layer will be used for color adjustments that enhance the cinematic effect of your footage, adding depth and style to match the widescreen look.Step 7: Apply Curves for Cinematic Contrast

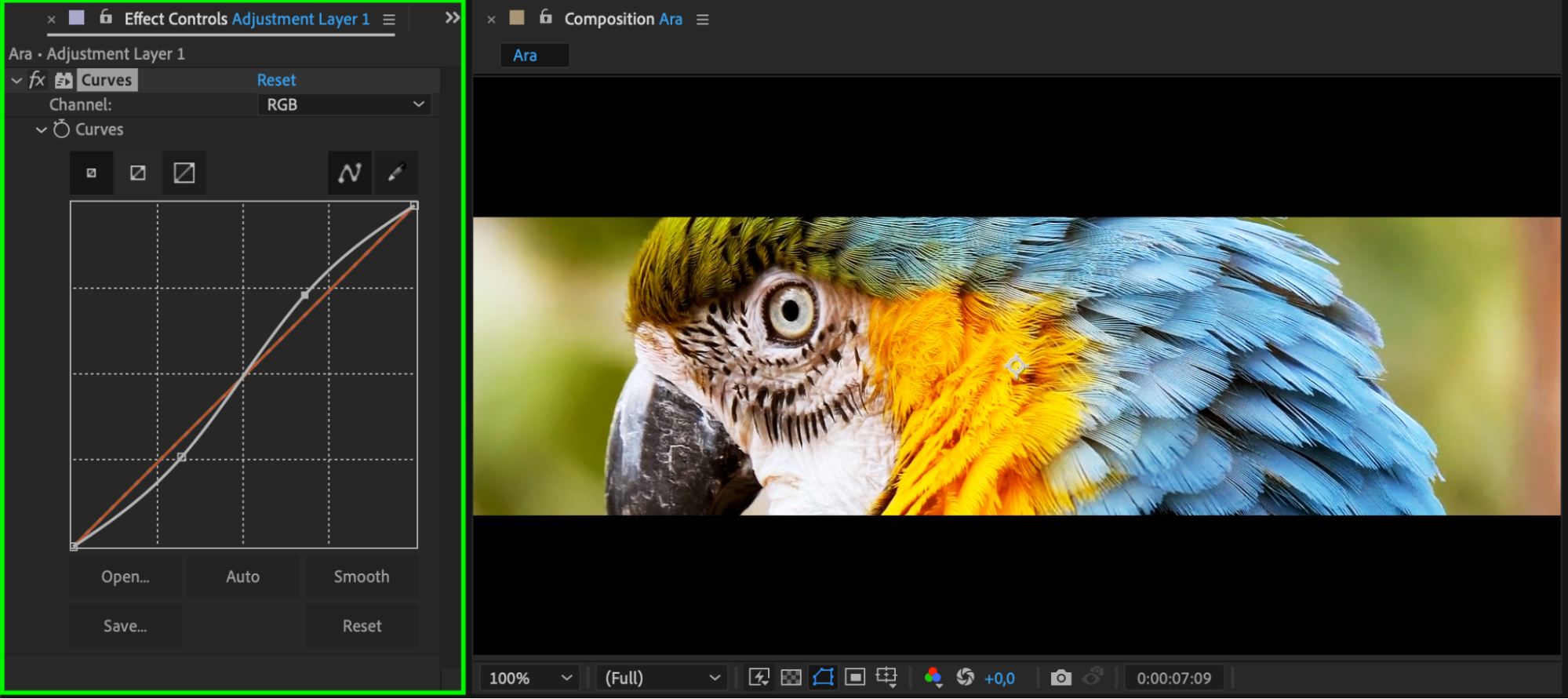

Select the adjustment layer and search for the Curves effect in the Effects & Presets panel. Drag it onto the adjustment layer, then open Effect Controls. Adjust the curve in an “S” shape to increase contrast, which will give the footage a more cinematic feel with richer blacks and brighter highlights.

Step 8: Trim the Bars and Adjustment Layers

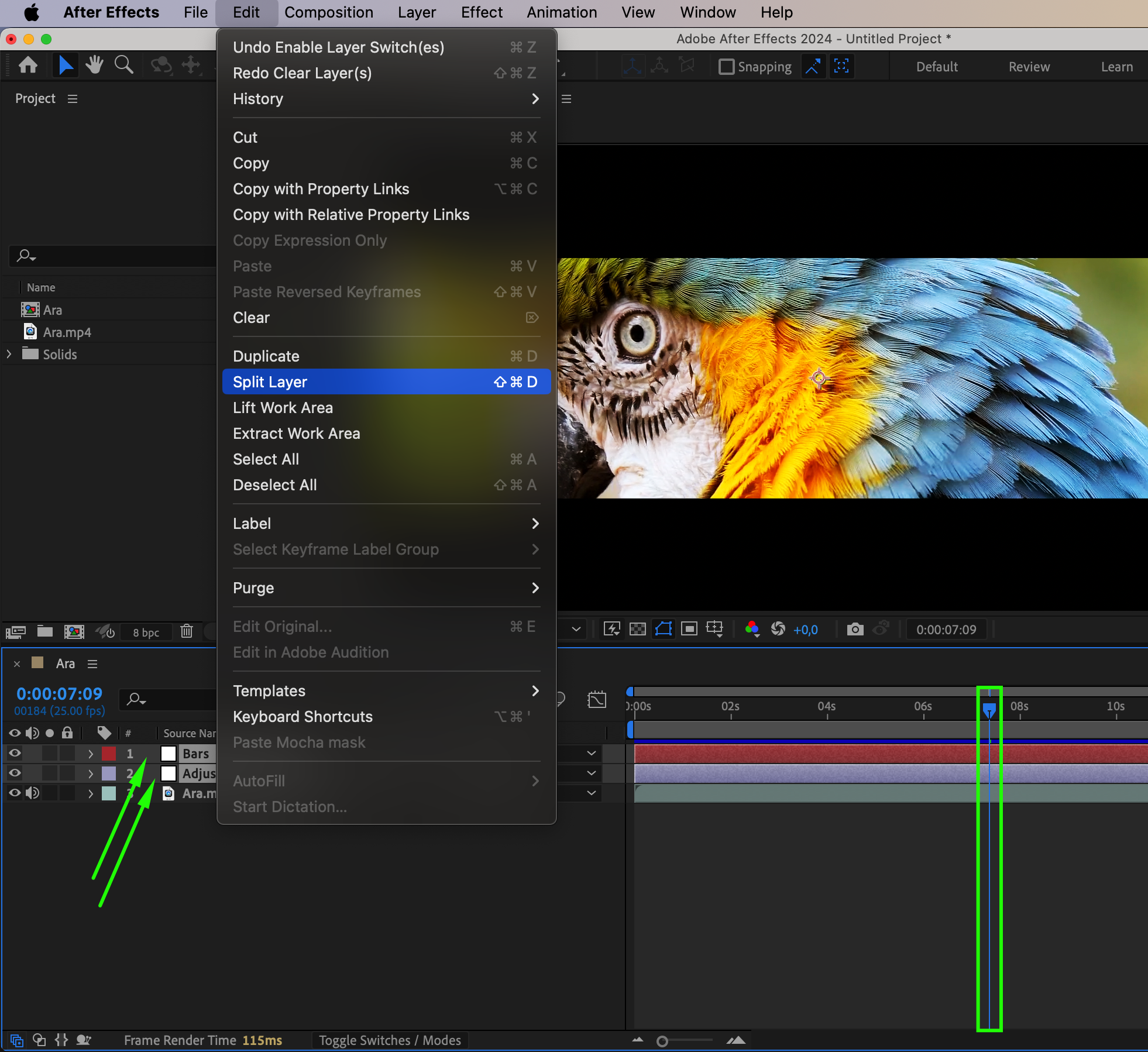

With the bars and adjustment layers selected, go to Edit > Split Layer. This will cut the layers at the position of the CTI, allowing you to remove any unnecessary parts of the layers that extend beyond the intended start or end of the bars. This trimming step creates a clean, cinematic entrance for the widescreen bars. Step 9: Preview the Widescreen Effect

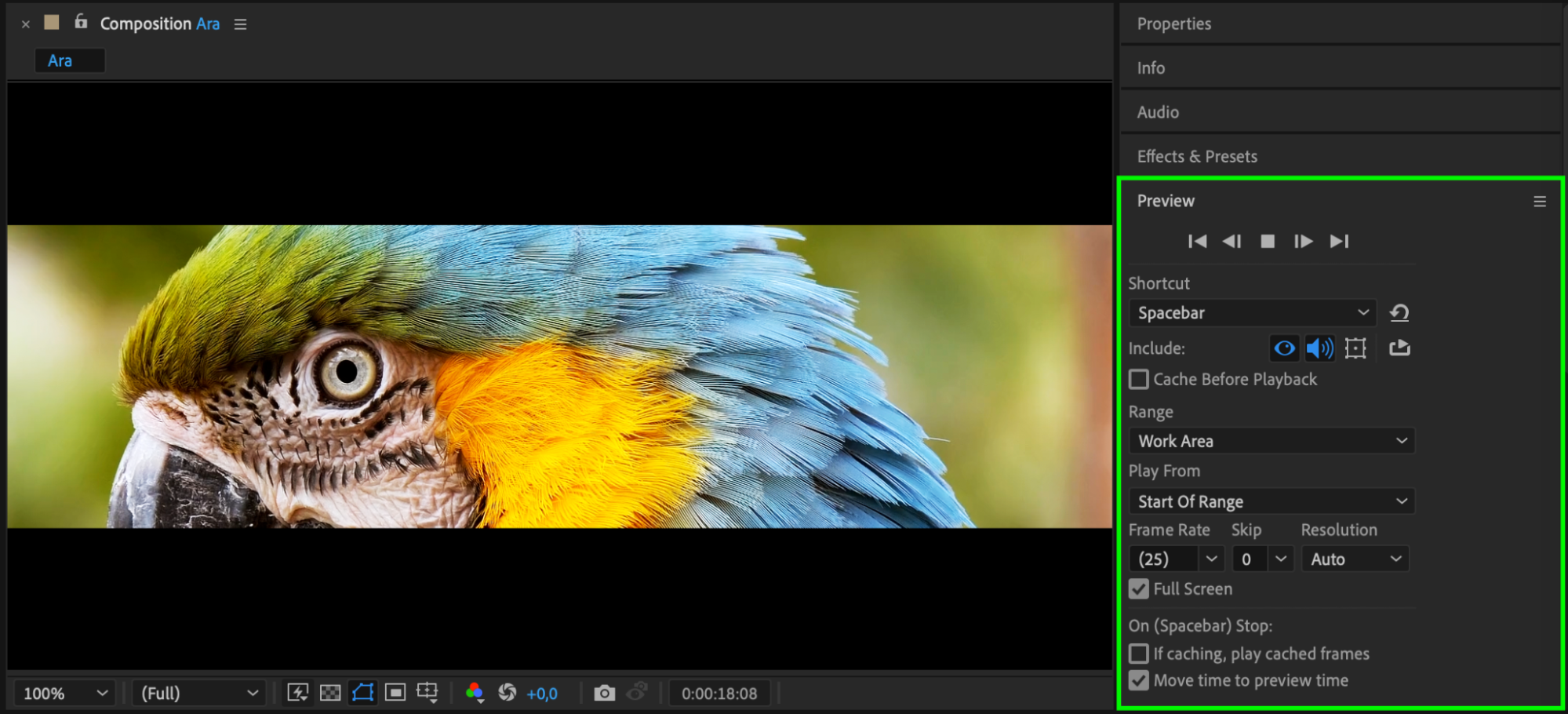

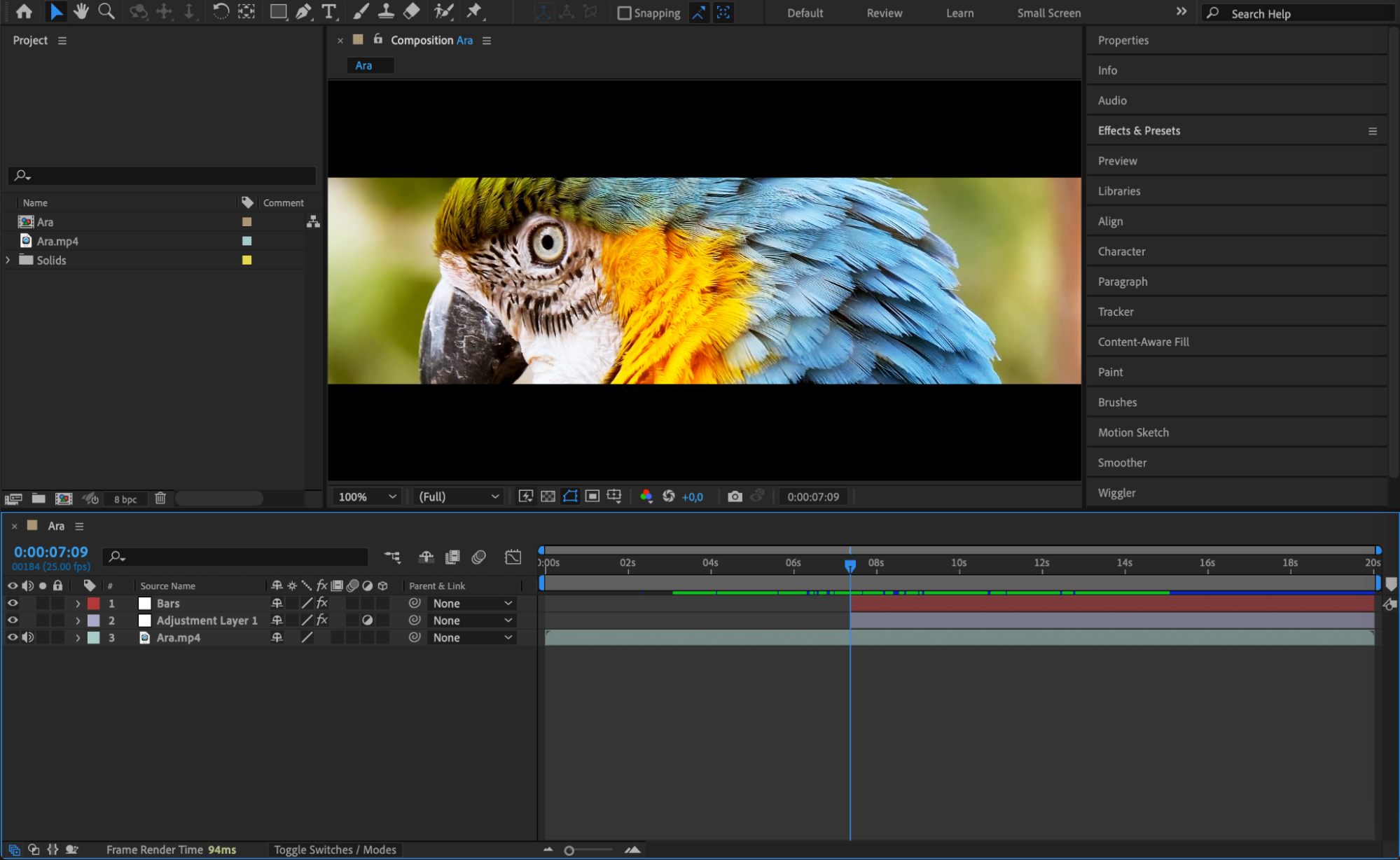

Press Spacebar to preview the effect and check how the widescreen bars and color grading look in the composition. Make any further adjustments to the bar height or curve if needed to achieve the perfect cinematic look.

Step 10: Export the Final Video

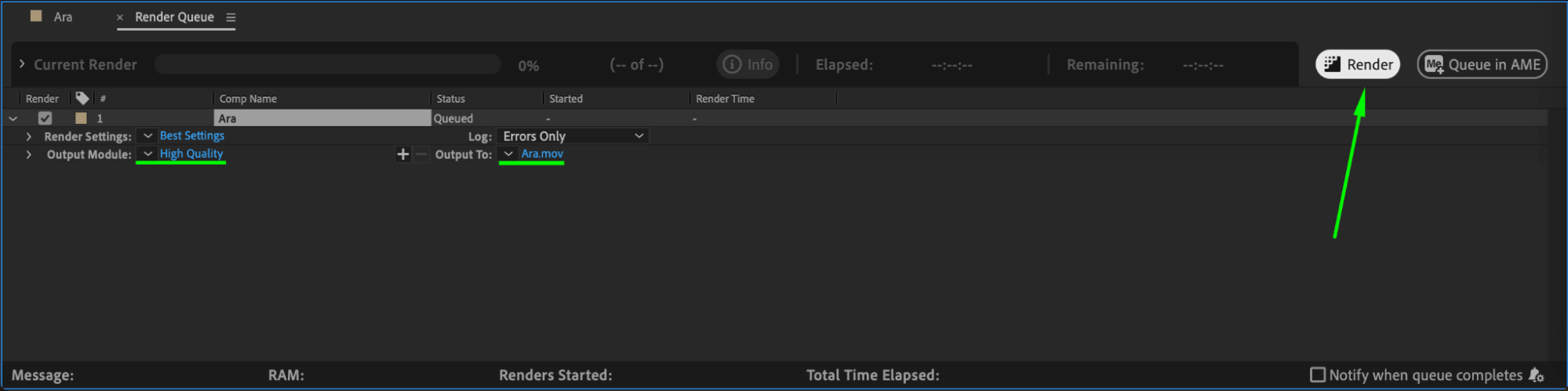

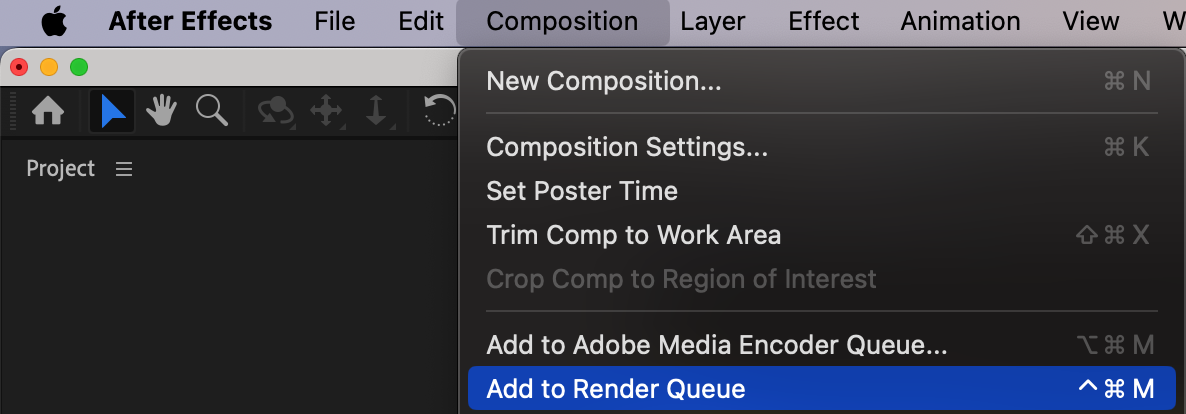

When you’re satisfied with the widescreen effect, go to Composition > Add to Render Queue. Set your output preferences and click Render to export the video. Your composition is now ready with a professional widescreen look!

Conclusion

Adding a widescreen effect in After Effects is a straightforward way to give any project a cinematic flair. By creating black bars, adding subtle color grading, and adjusting contrast, you can emulate the look of professional films and enhance your project’s visual impact.
