How to Flip an Object Horizontally or Vertically in After Effects

Introduction to Flipping Objects in After Effects

Flipping an object in Adobe After Effects can add an interesting dynamic to your visuals or adjust an object’s orientation to fit the scene. Whether you’re creating a mirrored effect or simply adjusting the layout, flipping an object is a quick and easy process. This guide will walk you through the steps to flip an object horizontally or vertically in After Effects.

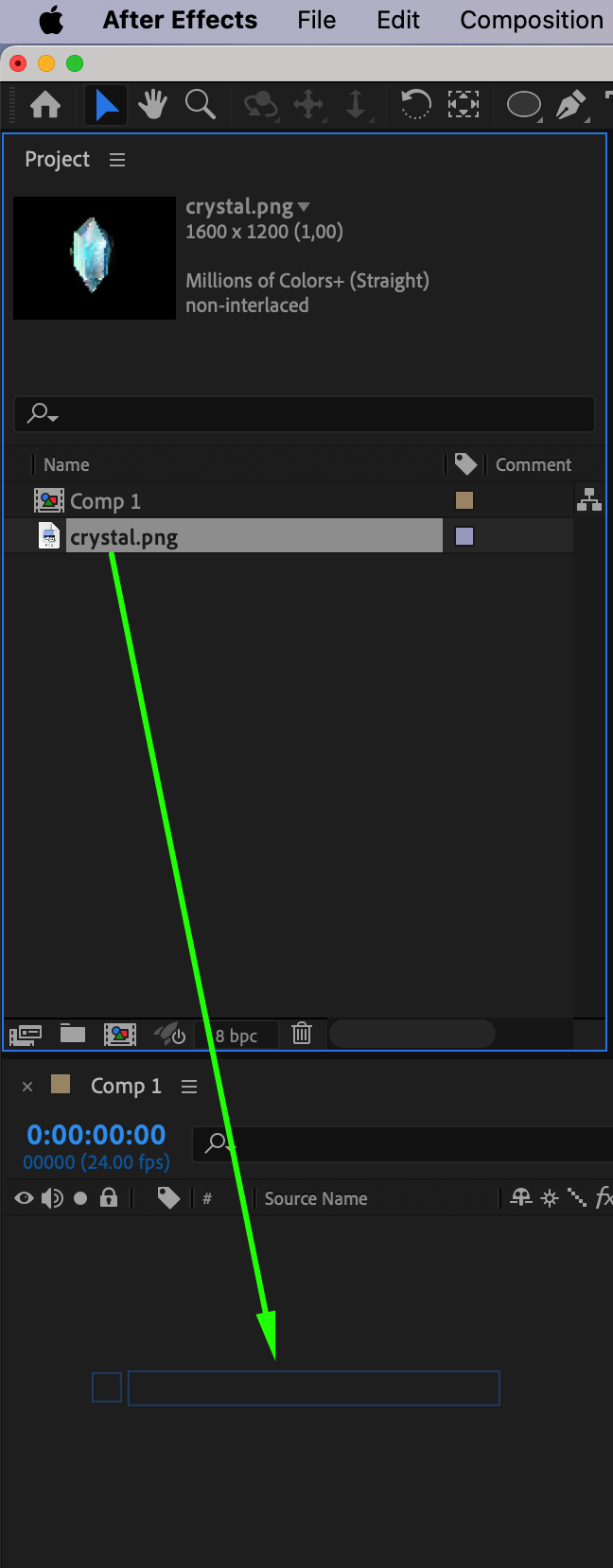

Step 1: Import Your Object into the Composition

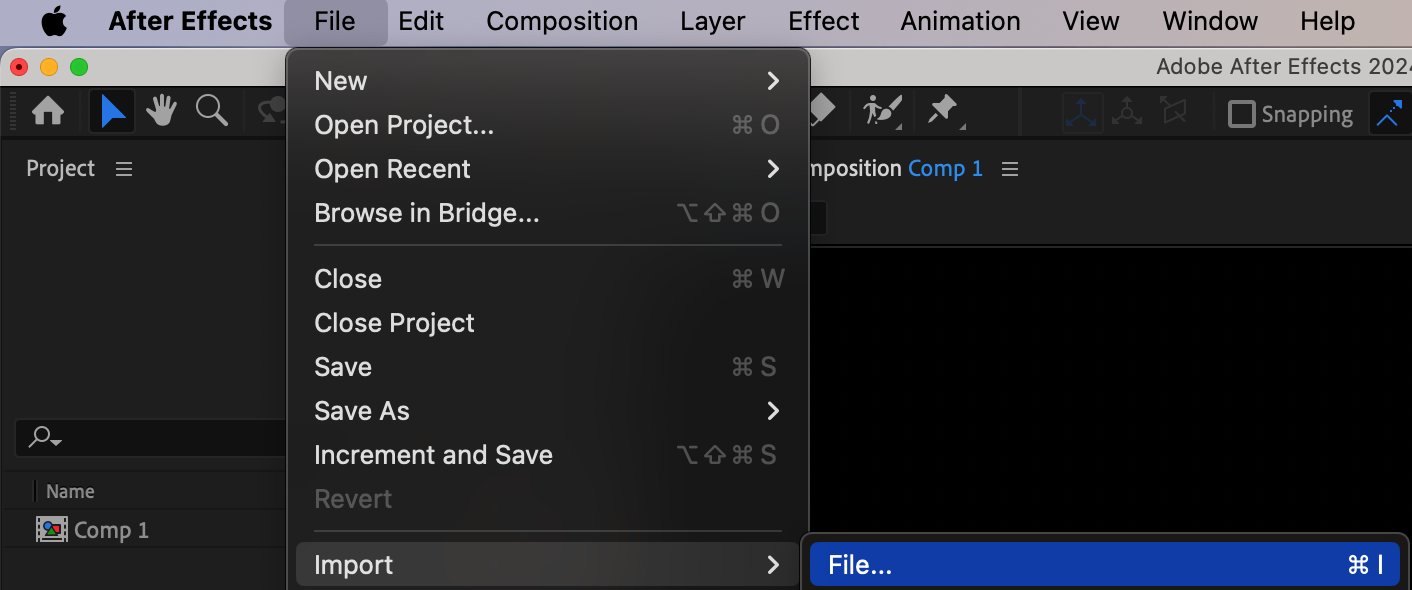

First, import the object you want to flip. Go to File > Import > File and select your image, video, or graphic file. Once it appears in the Project panel, drag it into the Timeline or directly onto the Composition panel. Position it in your composition so that you can easily see the effect of the flip.Step 2: Access the Scale Settings

Select your object layer in the Timeline, then press “S” on your keyboard to reveal the Scale properties. The Scale properties allow you to adjust the size of your object along the X (horizontal) and Y (vertical) axes, which you’ll use to flip it.

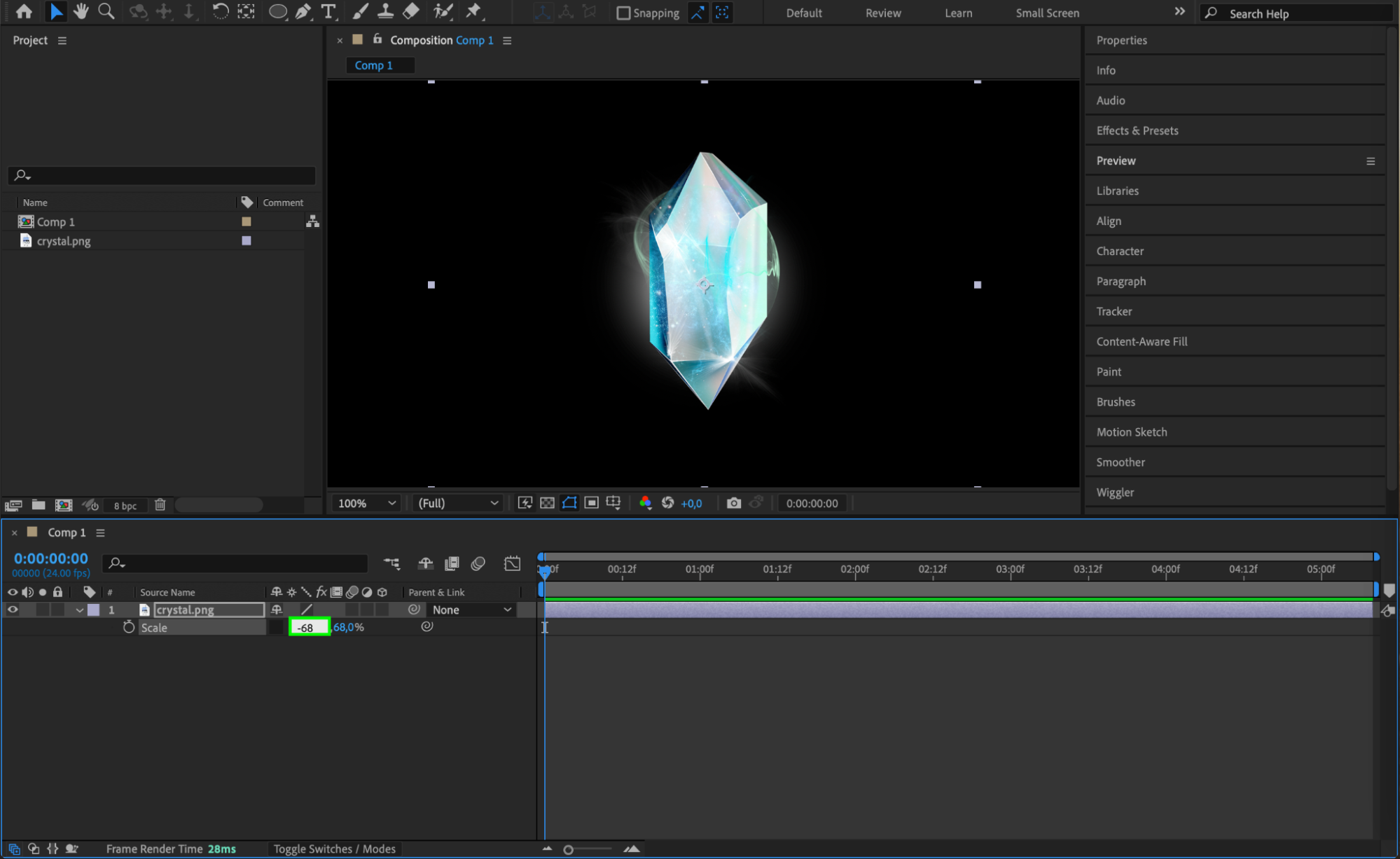

Step 3: Flip the Object Horizontally

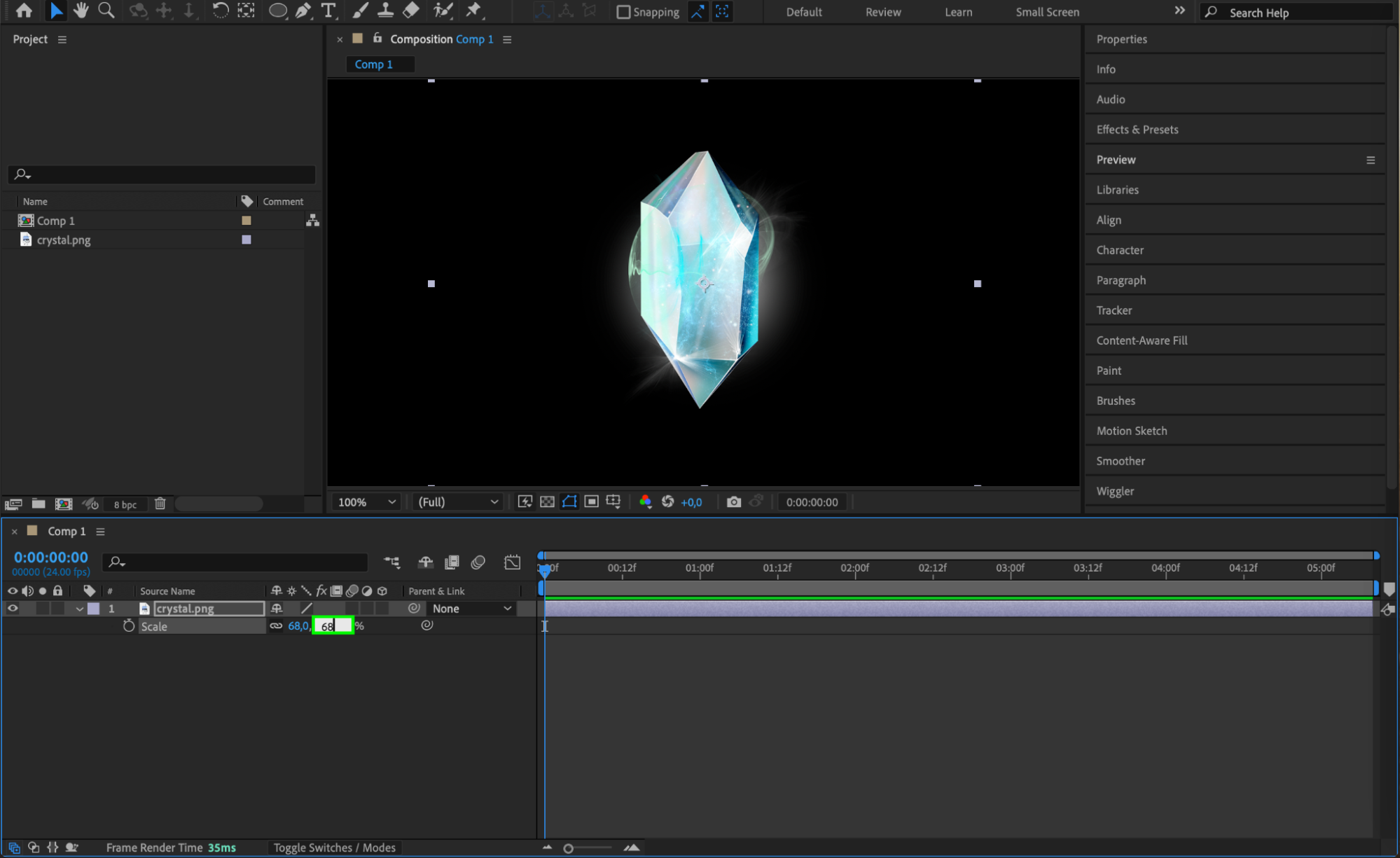

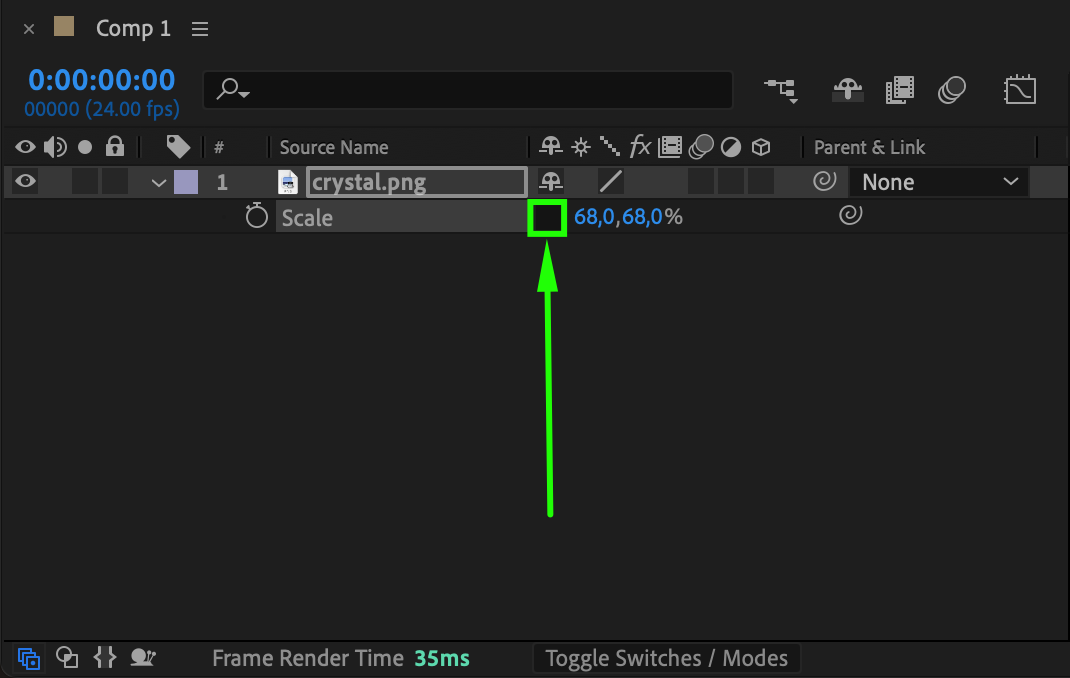

To flip the object horizontally, go to the Scale settings and click on the chain link icon to unlock proportional scaling. This allows you to adjust the X and Y axes independently. Change the X-axis value from 100% to -100%. This will create a mirrored effect by flipping the object horizontally, while keeping it in the same position within the composition.

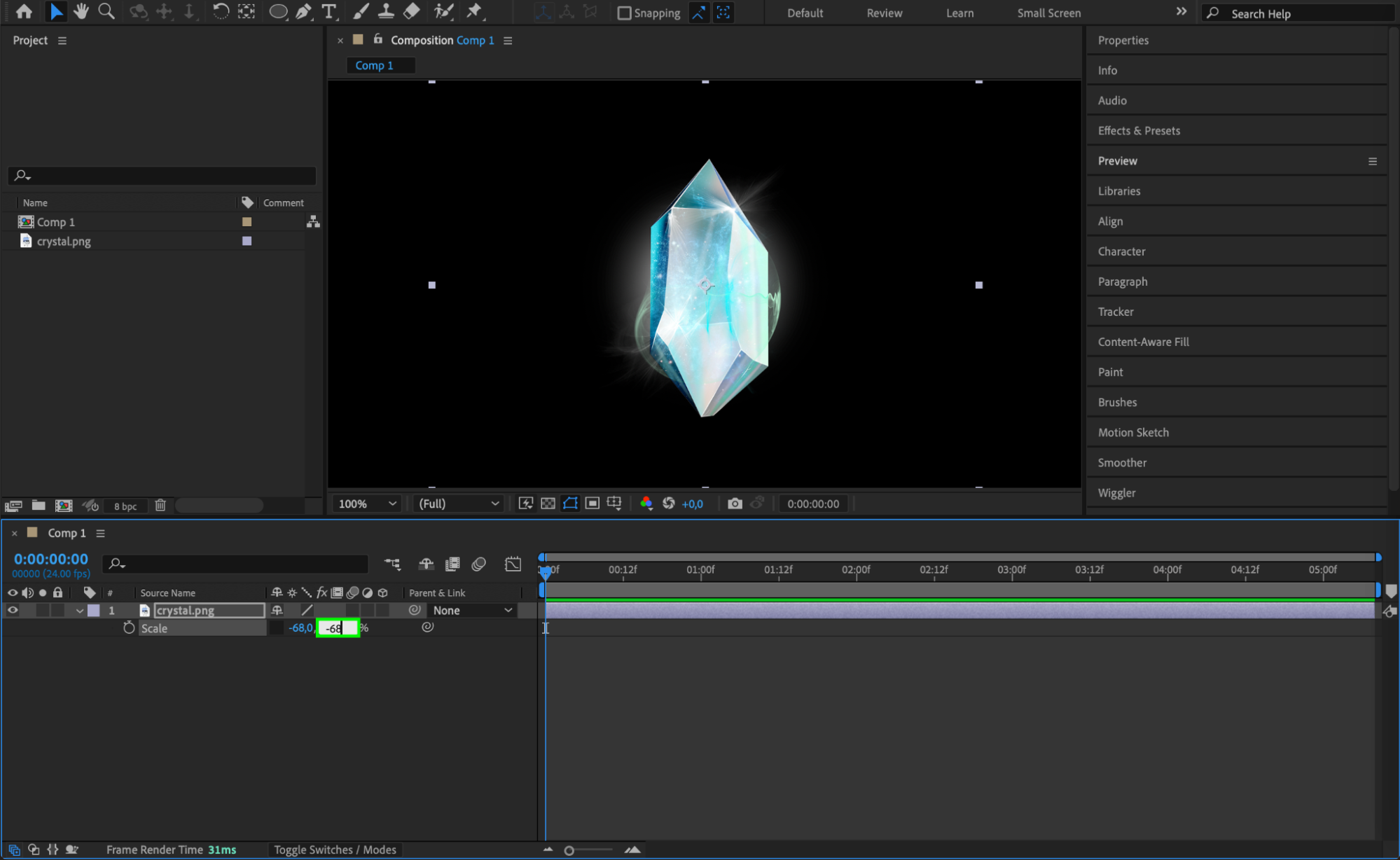

Step 4: Flip the Object Vertically

If you’d like to flip the object vertically, adjust the Y-axis in the Scale settings. Change the Y-axis value from 100% to -100%. This will flip the object vertically, creating an upside-down mirror effect. Like the horizontal flip, this action keeps the object in place while adjusting its orientation.

Step 5: Fine-Tune the Position (If Necessary)

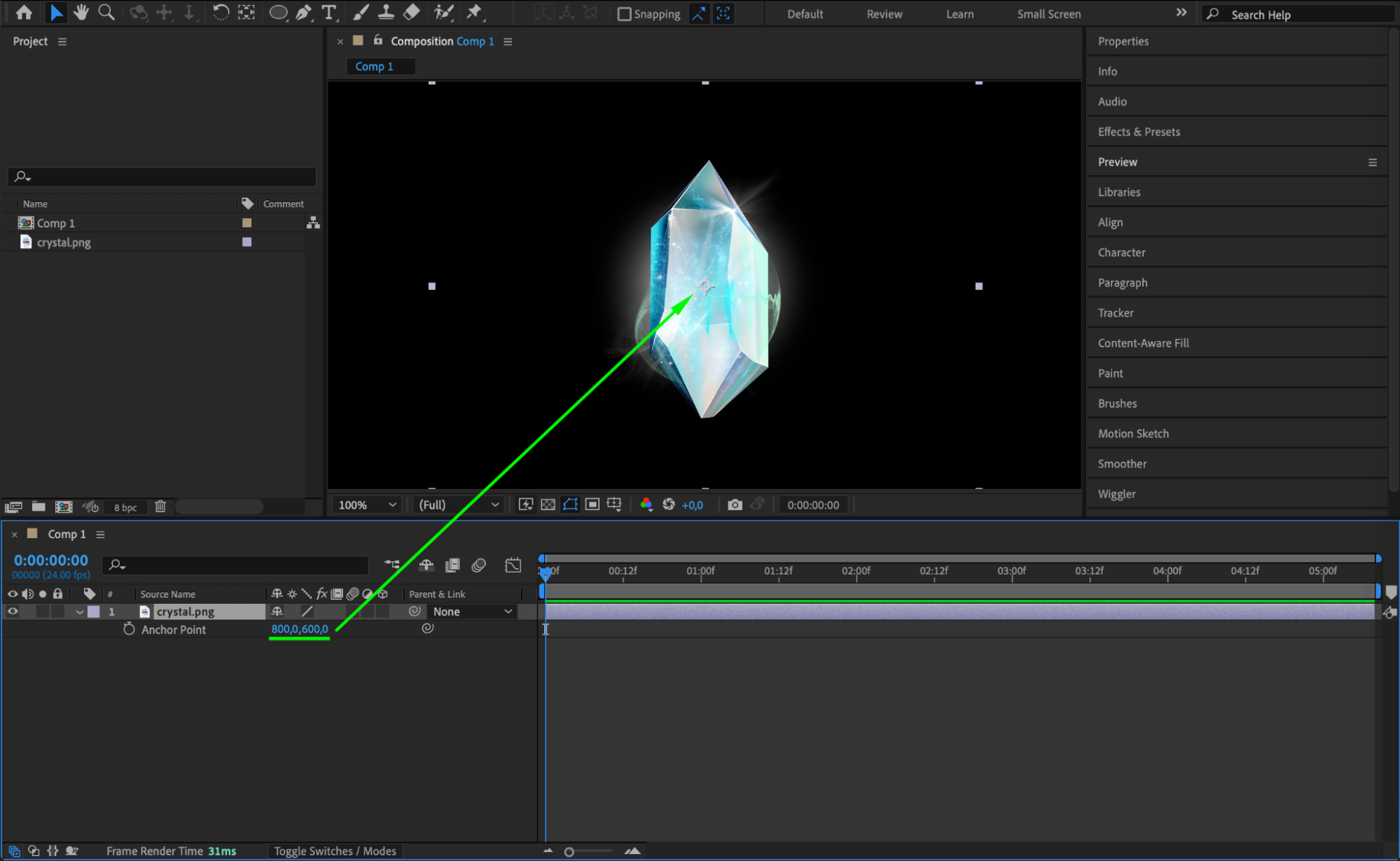

After flipping, you may want to slightly adjust the position of your object to improve its alignment within the composition. Use the Selection Tool (V) to move the object to your desired location. Additionally, you can adjust the Anchor Point if needed to control the pivot around which the object flips.Step 6: Animate the Flip Effect (Optional)

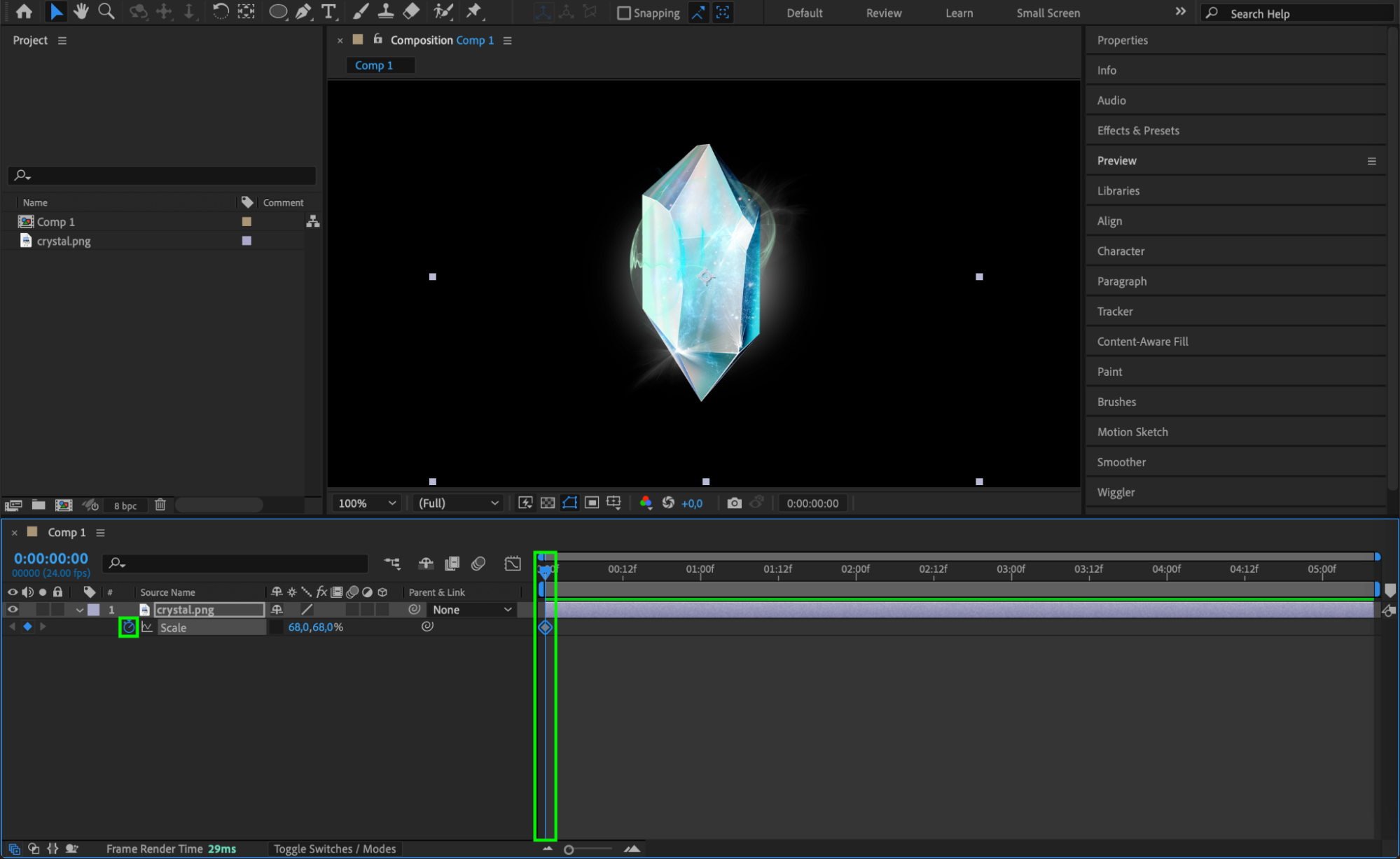

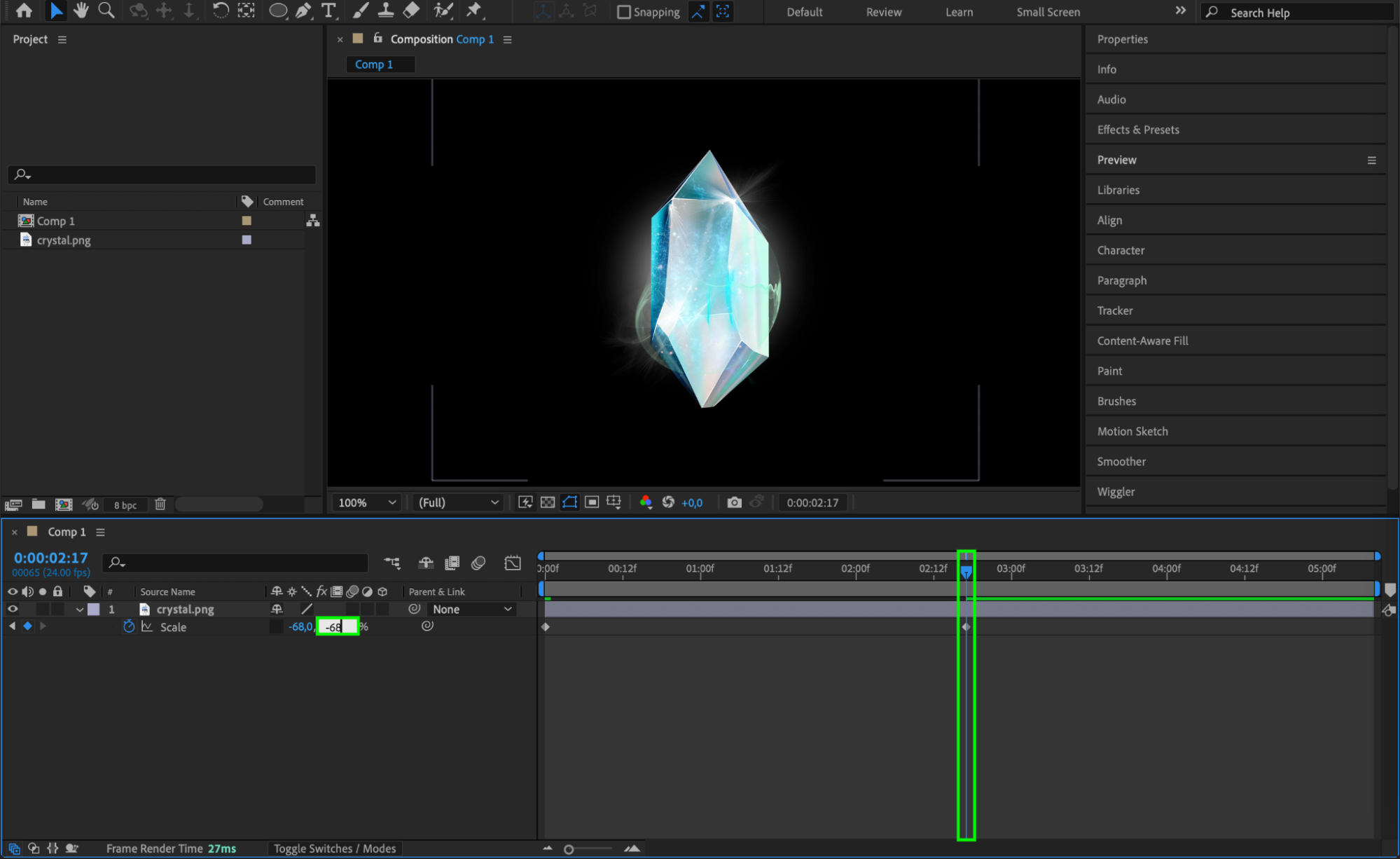

To animate the flip, position the Current Time Indicator (CTI) at the beginning of the timeline. Set initial values in the Scale settings, such as 100, 100 for a normal view. Move the CTI forward in the timeline, then adjust the Scale settings to values like 100, -100 for a vertical flip, -100, 100 for a horizontal flip, or -100, -100 to flip along both axes. This creates a smooth flipping animation. Step 7: Preview Your Flip Effect

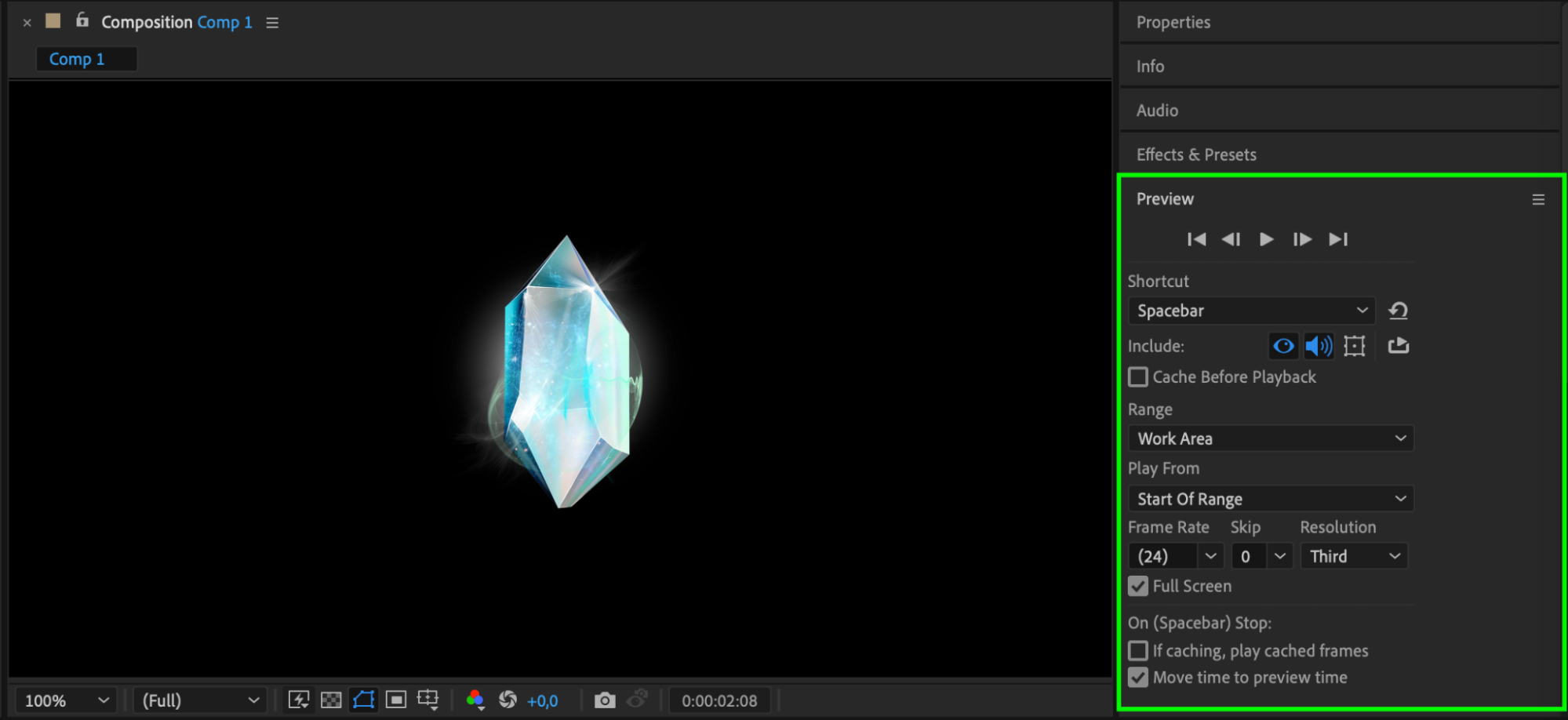

To see how the flip effect appears, press Spacebar to preview your composition. Check if the flip works well with the overall flow of the project. You can make additional adjustments to Scale, Position, or Anchor Point if needed.

Step 8: Render and Export Your Composition

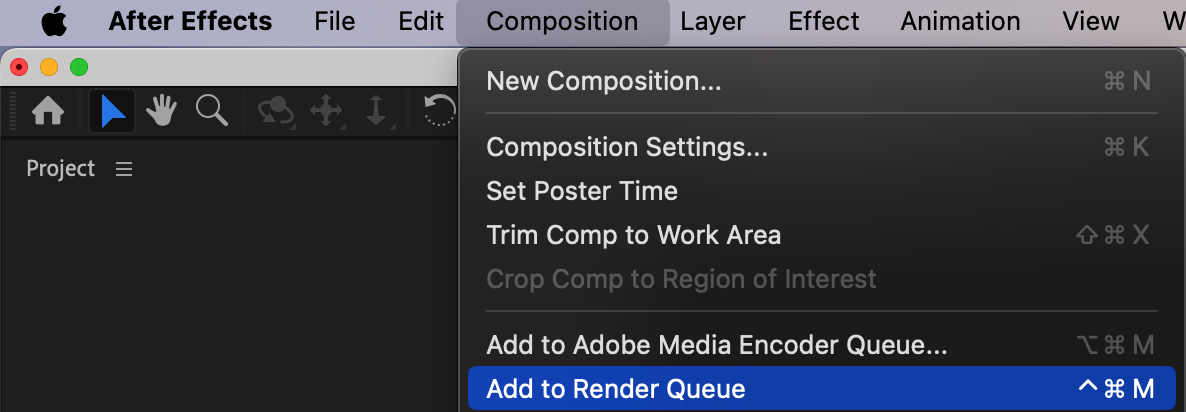

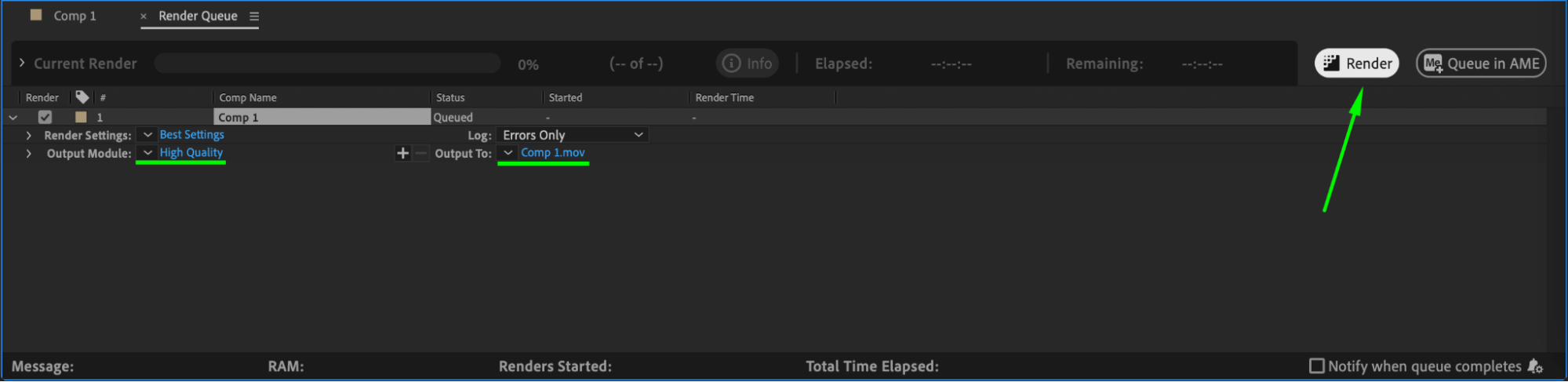

When you’re satisfied with the flip effect, it’s time to export. Go to Composition > Add to Render Queue and set your export preferences. Rendering will save the flipped object and any other adjustments, providing you with a polished final product.

Conclusion

Flipping an object in After Effects is a quick technique that can enhance your visual compositions by creating mirrored effects or altering the object’s orientation. By following these steps, you can easily flip objects to achieve the desired look and balance in your projects. Whether you’re creating a simple flip or an animated flip effect, these techniques will give your visuals a more professional edge.
