How to Make a Wheel Turn in After Effects

Introduction

Animating a turning wheel in After Effects is a simple yet effective way to add realism to your car motion scenes. By masking the wheels, setting anchor points correctly, and animating rotation, you can simulate realistic movement synced with the car’s position.

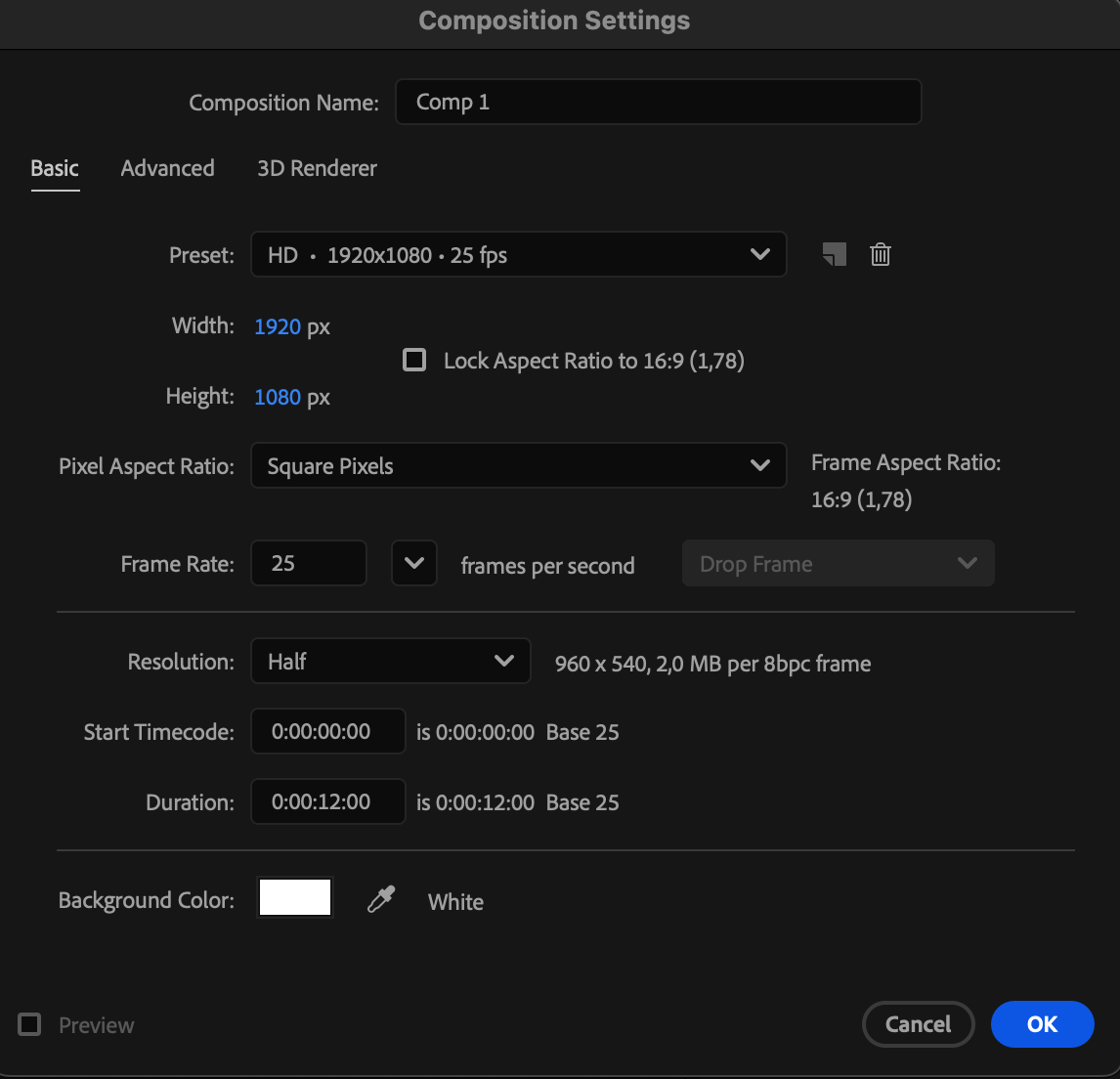

Step 1: Create a New Composition

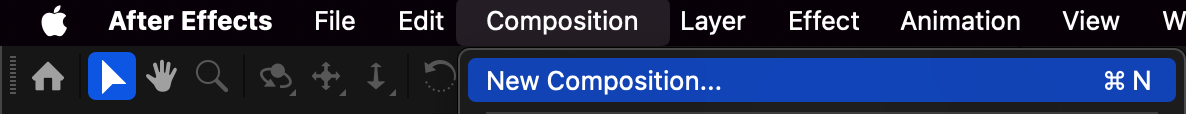

Start by going to Composition > New Composition and set your desired resolution and frame rate. Click OK to create your workspace for the animation

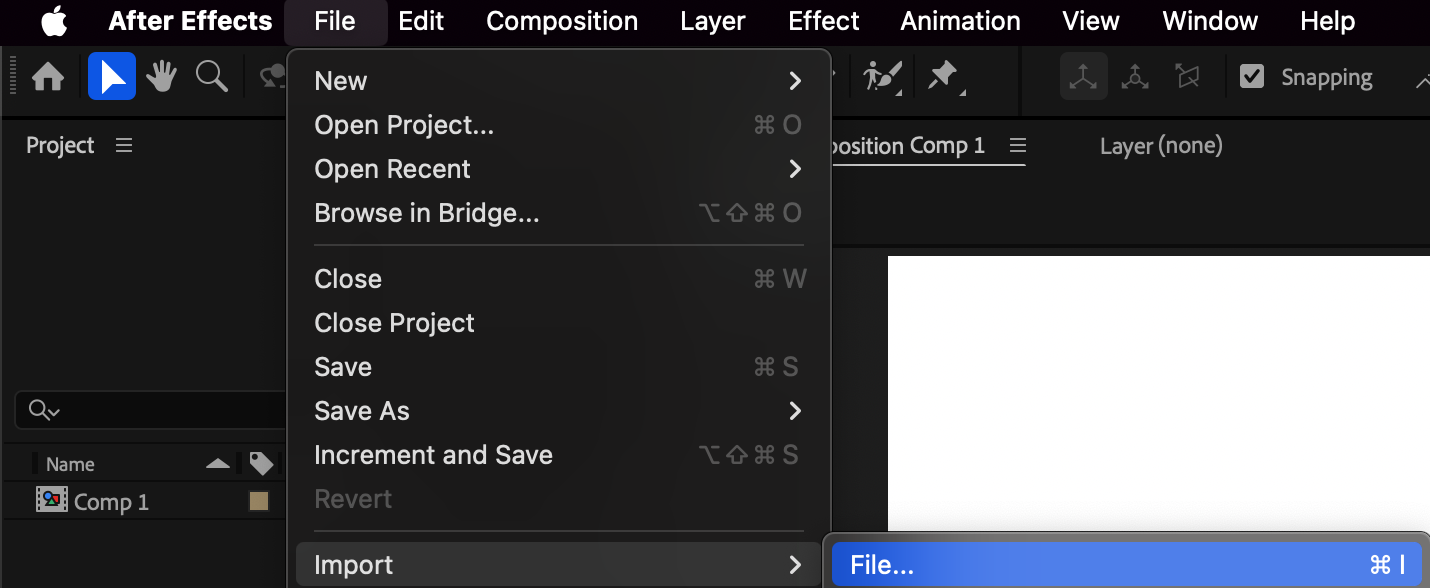

Step 2: Import Your Car Image

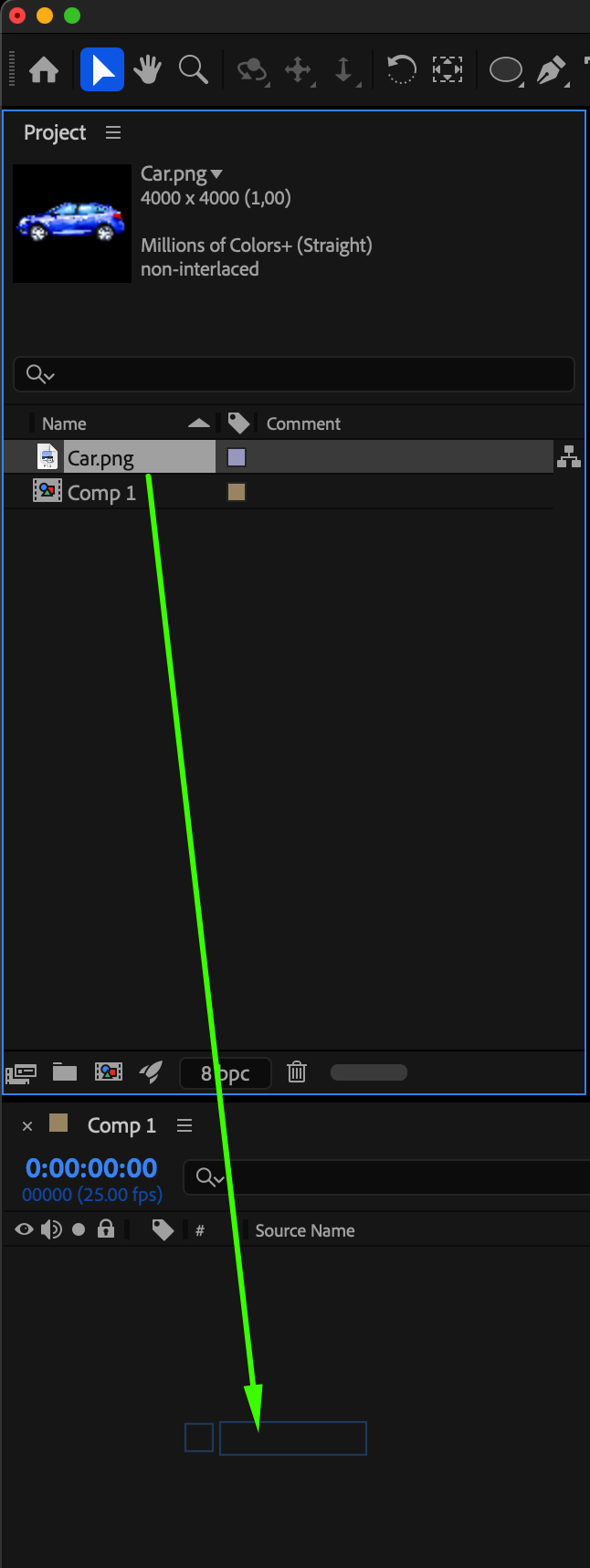

Go to File > Import > File and choose the car image you want to animate. Drag it onto the Timeline to begin working with it in the composition.

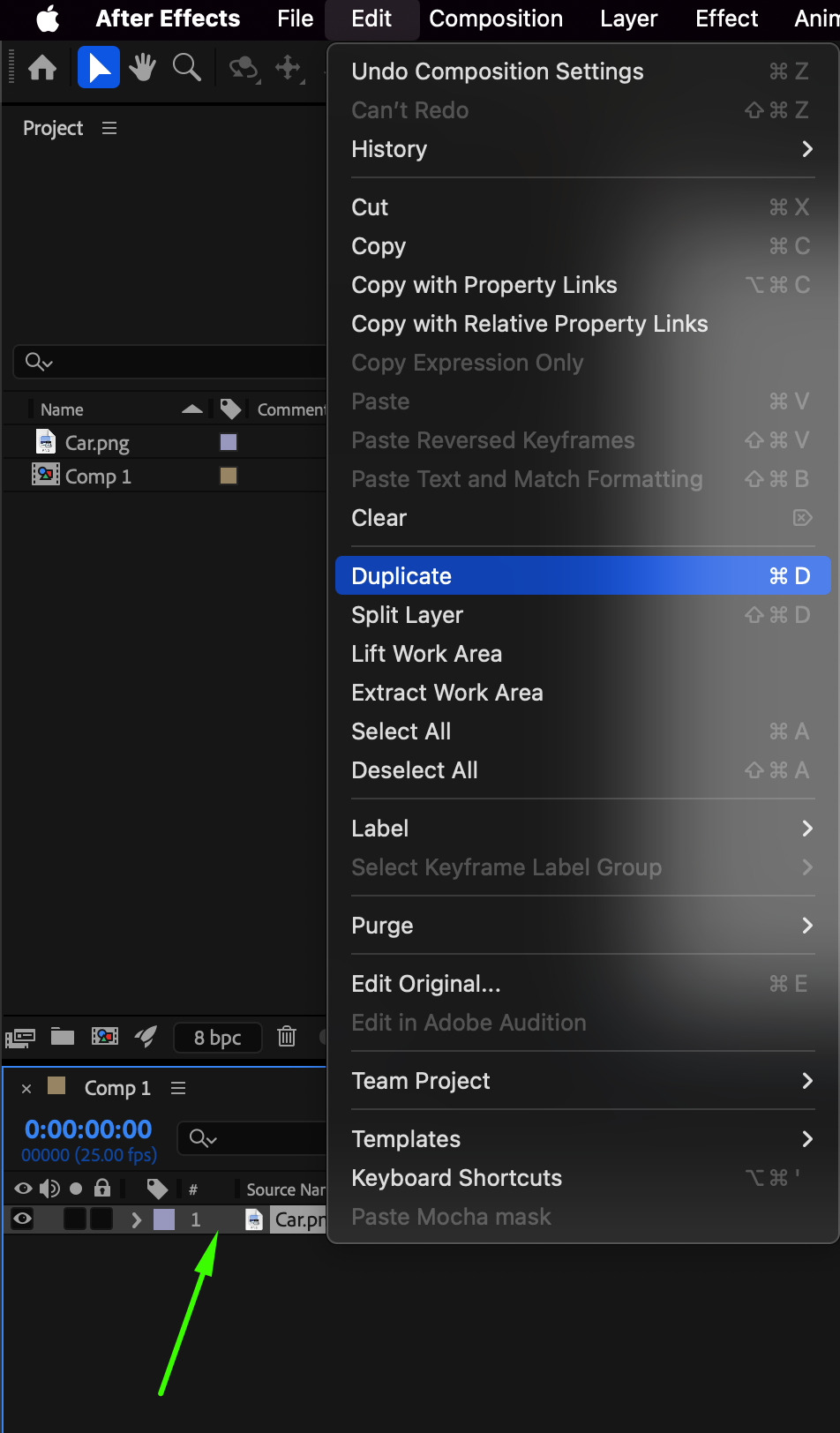

Step 3: Duplicate the Car Layer for Each Wheel

Select your car layer, then press “Ctrl/Cmd + D” twice to create two duplicates.

Rename the copies as Left Wheel and Right Wheel. These layers will represent each rotating wheel.

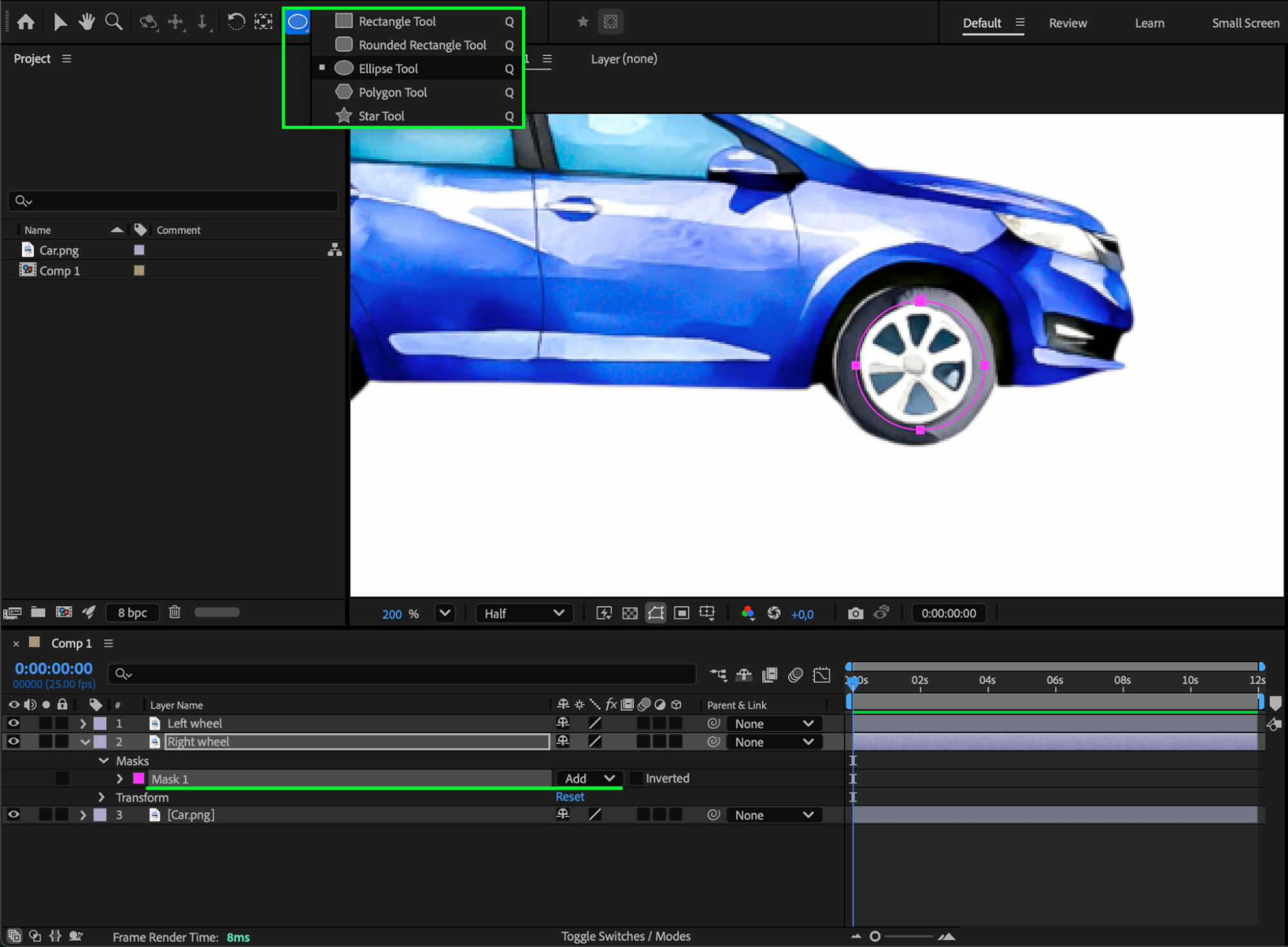

Step 4: Mask Each Wheel and Set Anchor Points

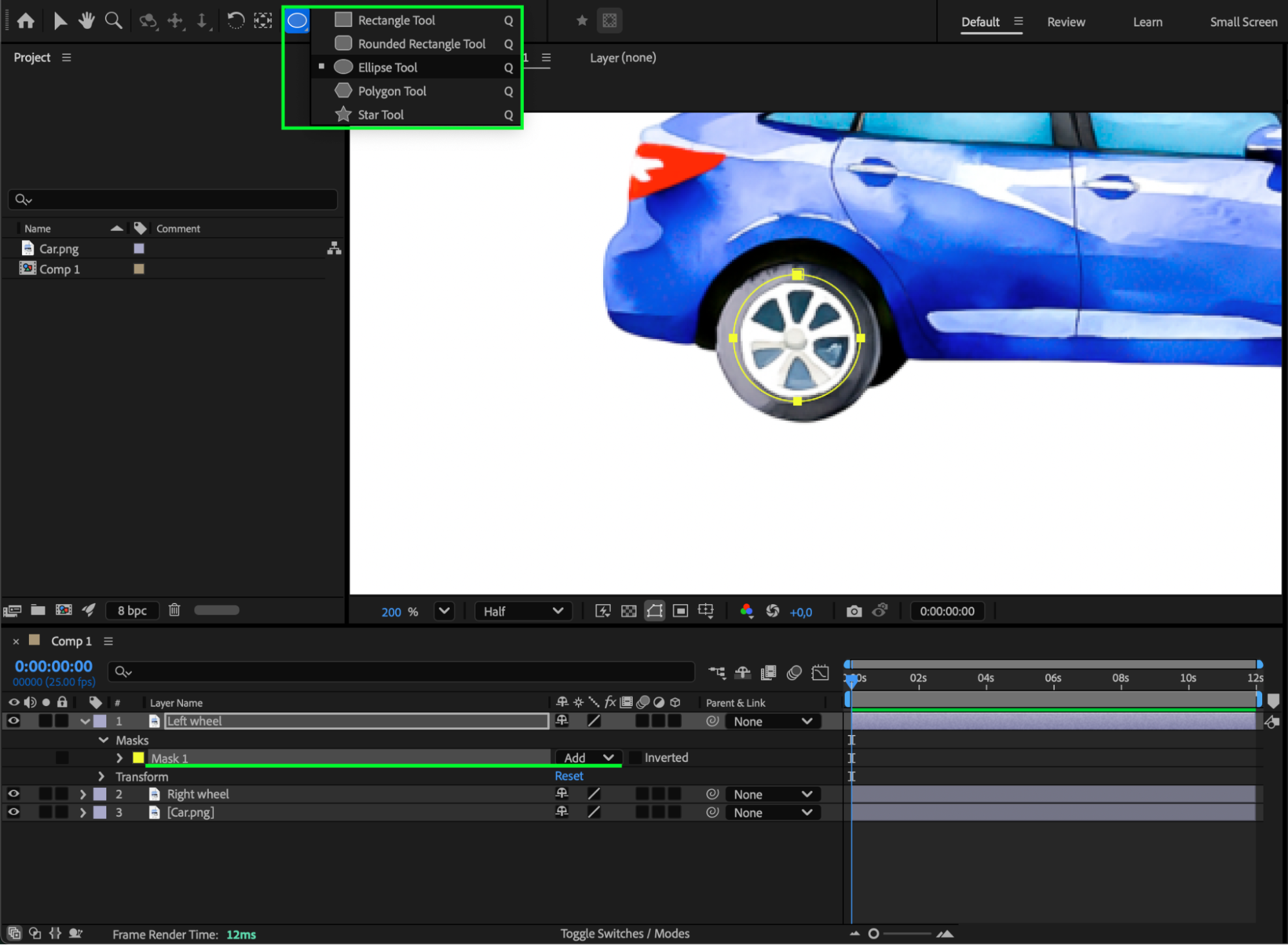

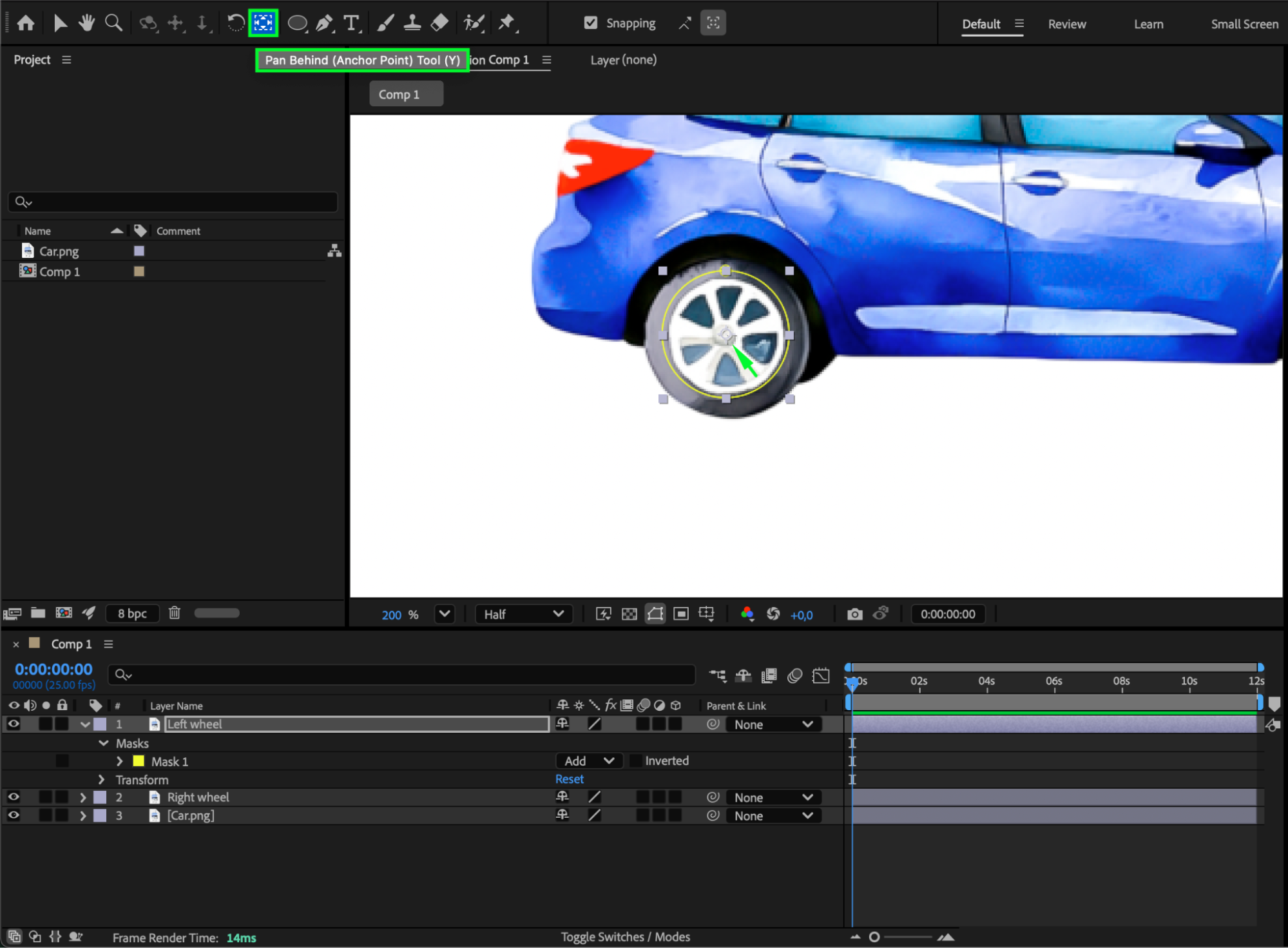

Select the Ellipse Tool (Q) and draw a circular mask around each wheel on its respective layer. Make sure the Mask Mode is set to Add. Then, select the Pan Behind Tool (Y) and move the anchor point to the center of each wheel — this ensures the rotation happens around the correct axis.

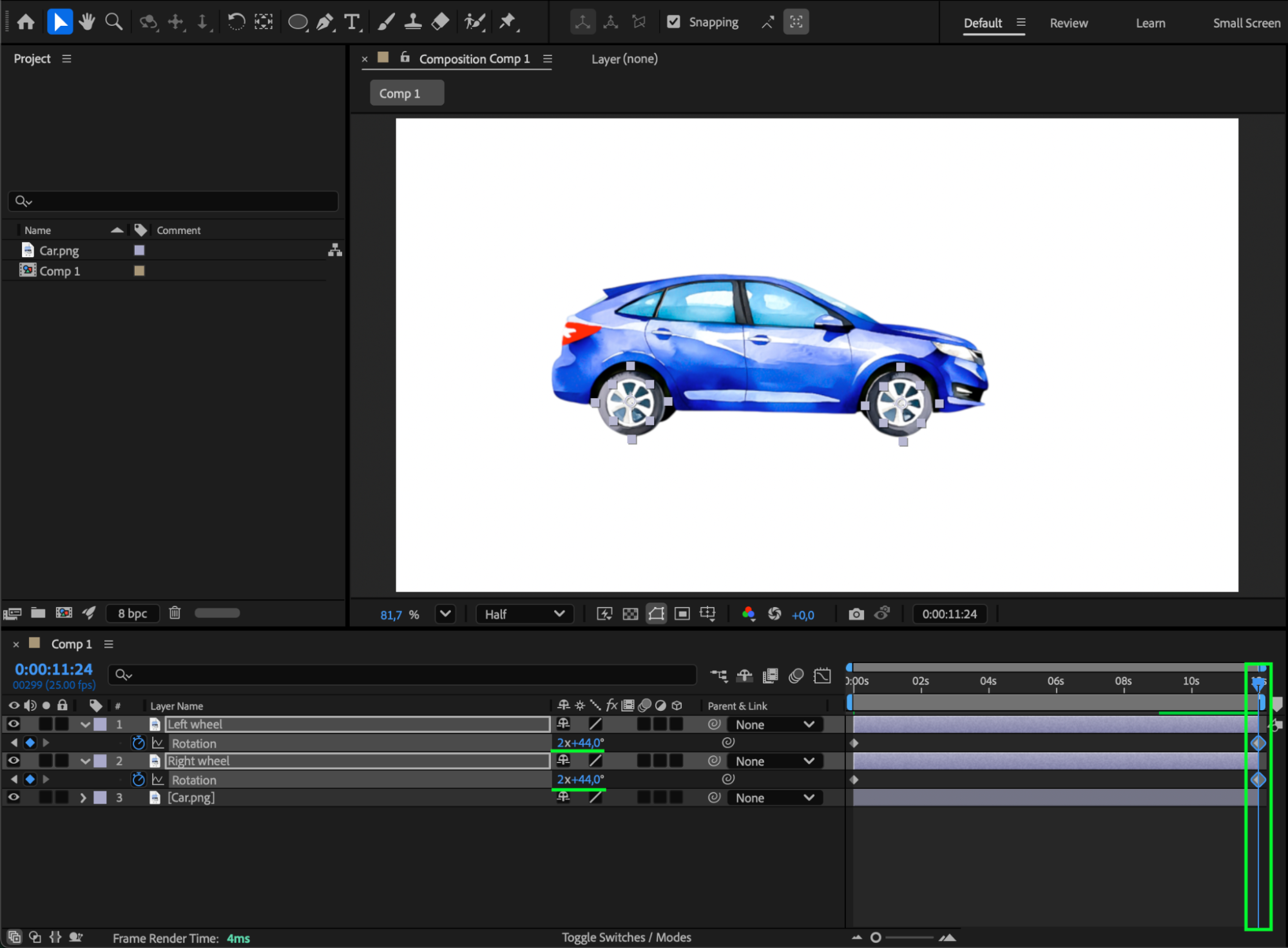

Step 5: Animate the Wheel Rotation

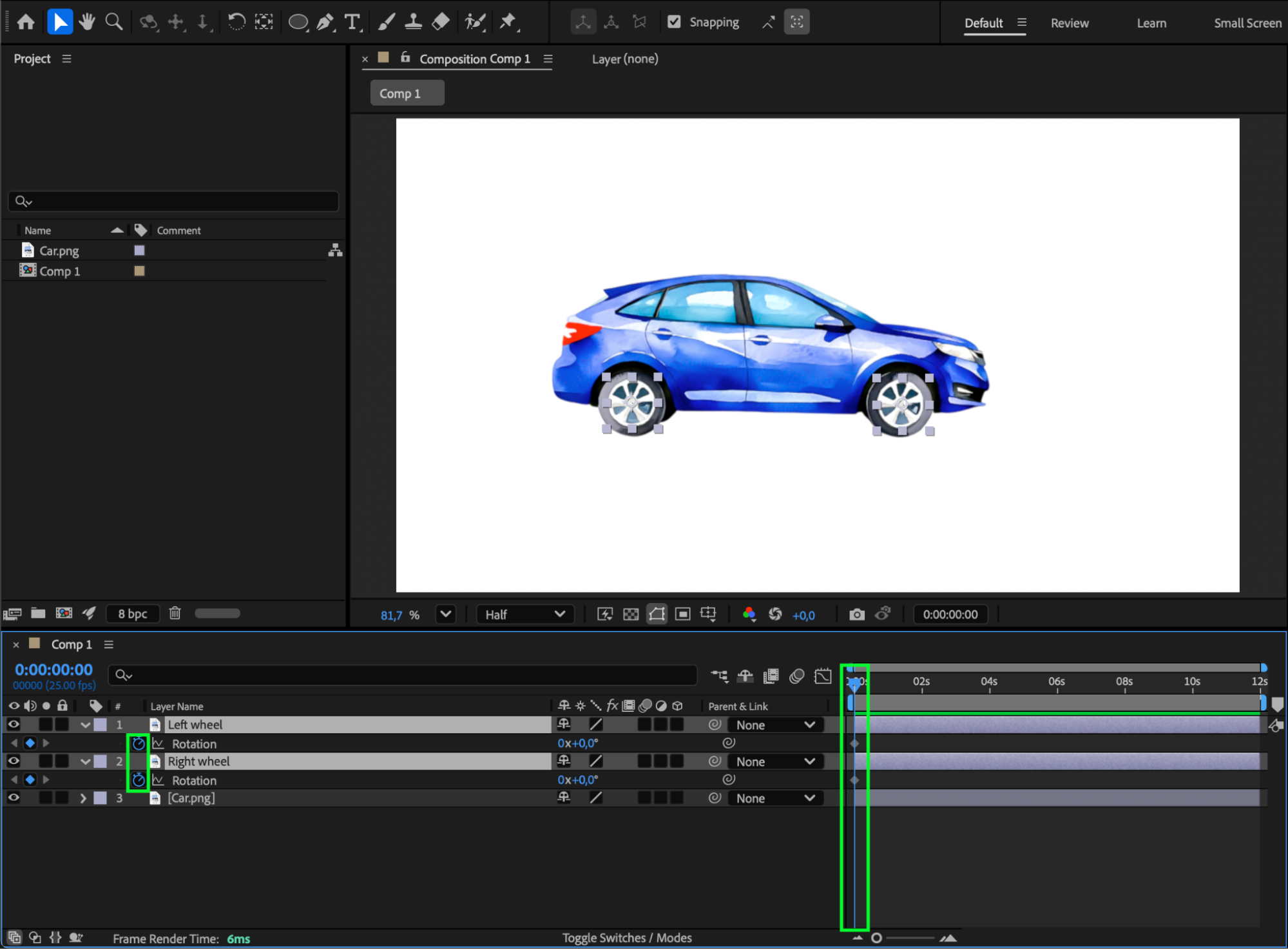

Open the Rotation (R) property for each wheel layer. At the start of the composition, set a keyframe with a rotation value of 0°. Move the CTI (Current Time Indicator) to the end of the composition and change the value to 2x + 44° (this represents two full rotations and a bit more, simulating a realistic roll).

Step 6: Refine Animation with Easy Ease and Graph Editor

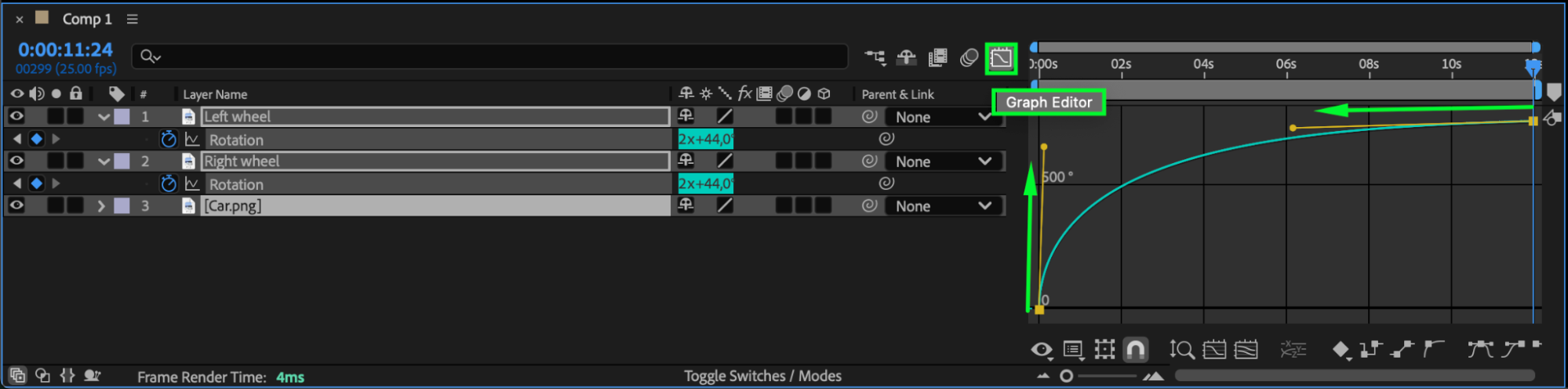

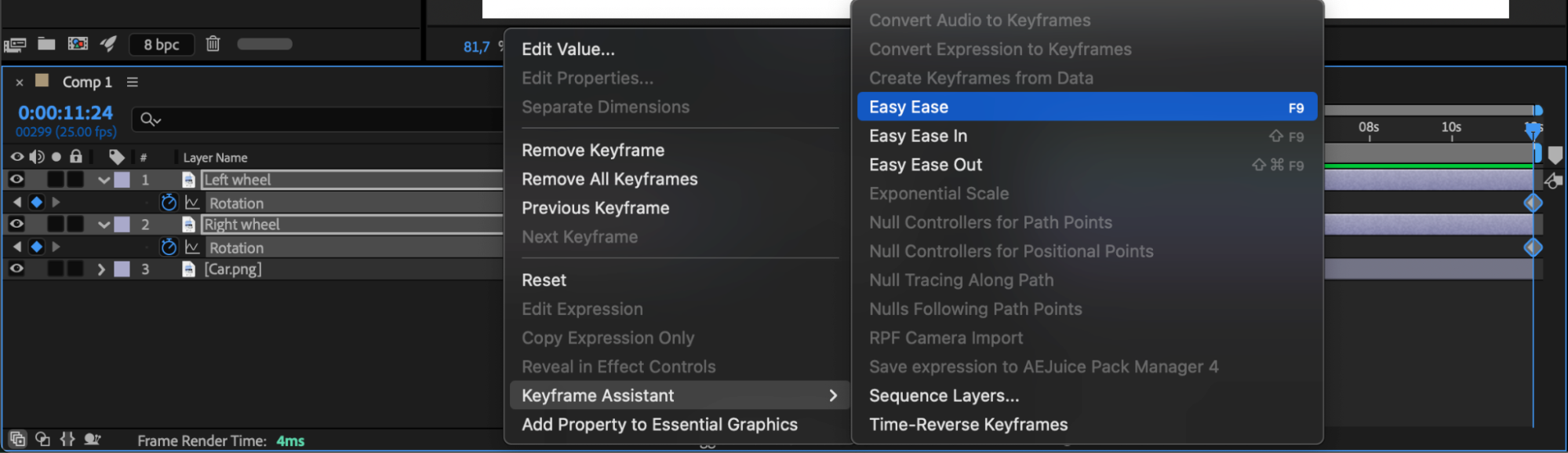

Select both rotation keyframes and press F9 to apply Easy Ease. Open the Graph Editor and adjust the curve for smoother acceleration and deceleration to make the motion feel more natural.

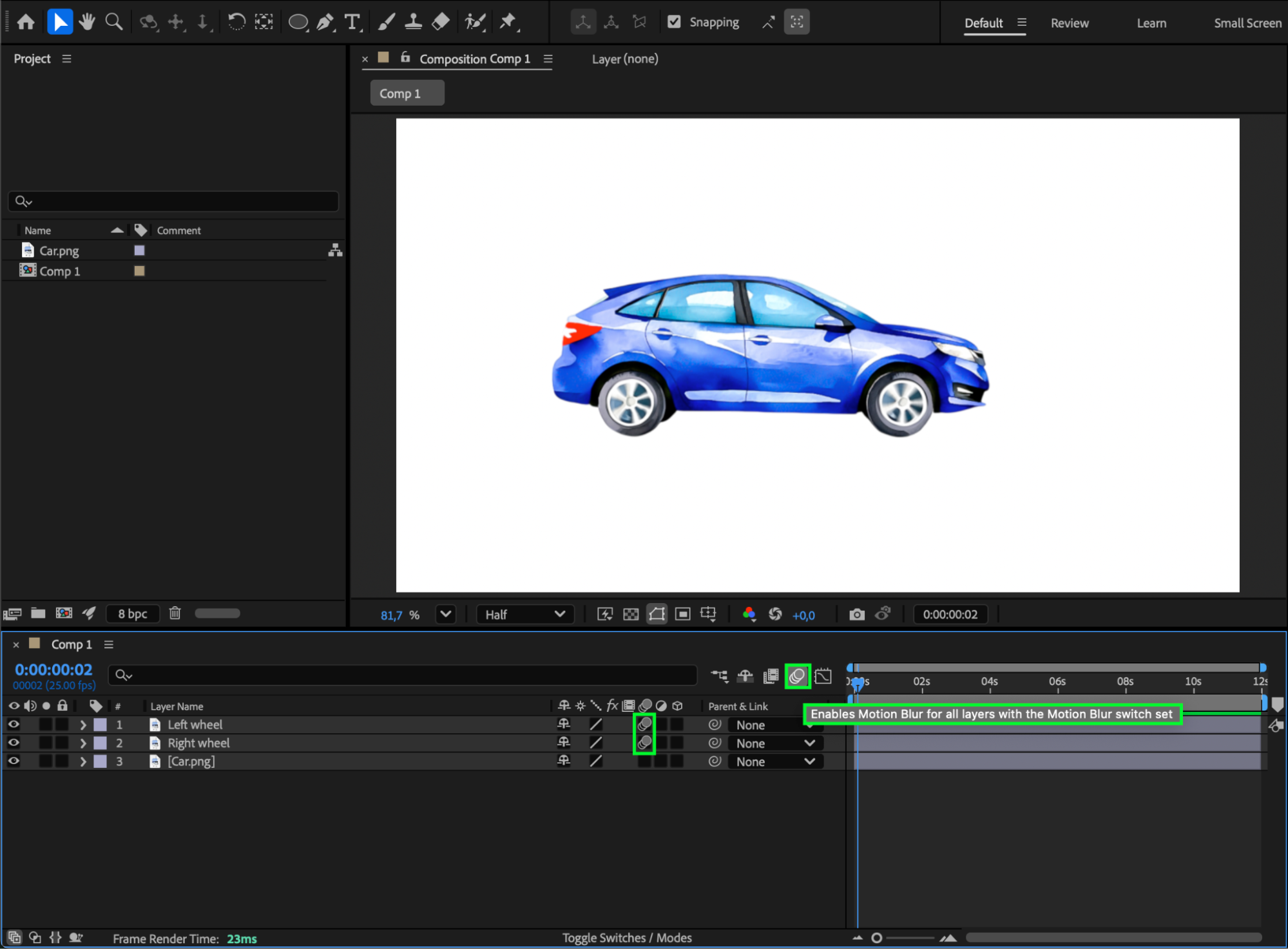

Step 7: Enable Motion Blur

Activate Motion Blur for both wheel layers by clicking the Motion Blur icon (three overlapping circles) in the Timeline panel. This adds realistic streaking to the spinning wheels during fast motion.



Step 8: Parent the Wheels to the Car

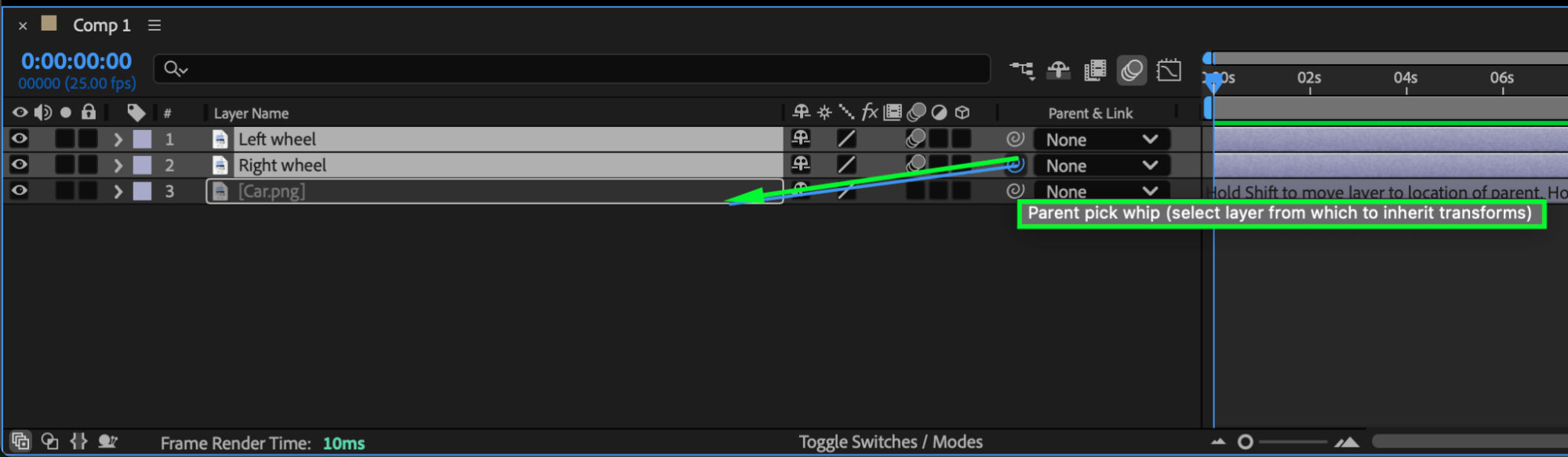

Select both wheel layers, then use the Pick Whip tool to parent them to the main car layer. Now, when you move the car layer, the wheels will follow along while rotating automatically.

Step 9: Animate the Car’s Movement

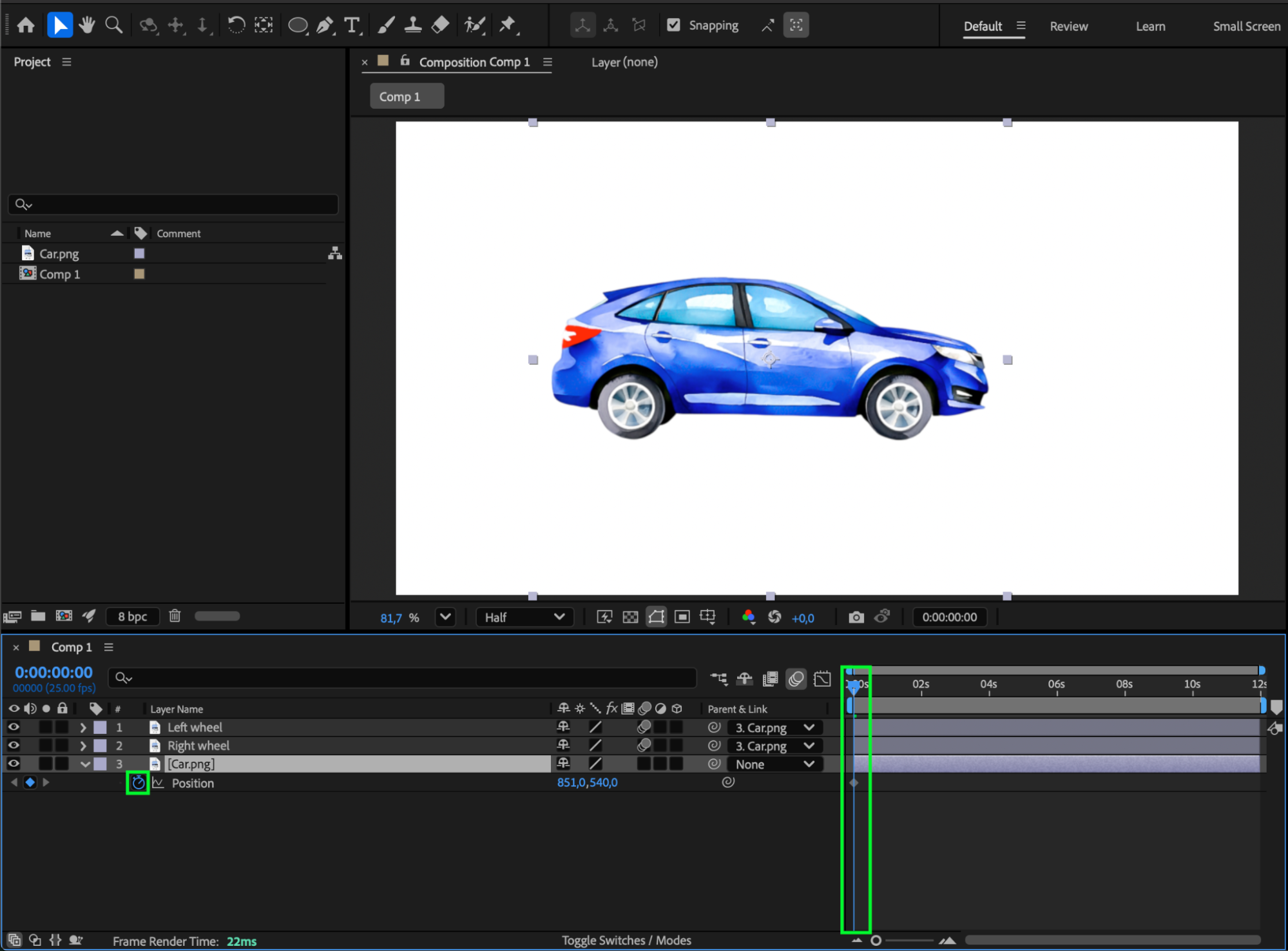

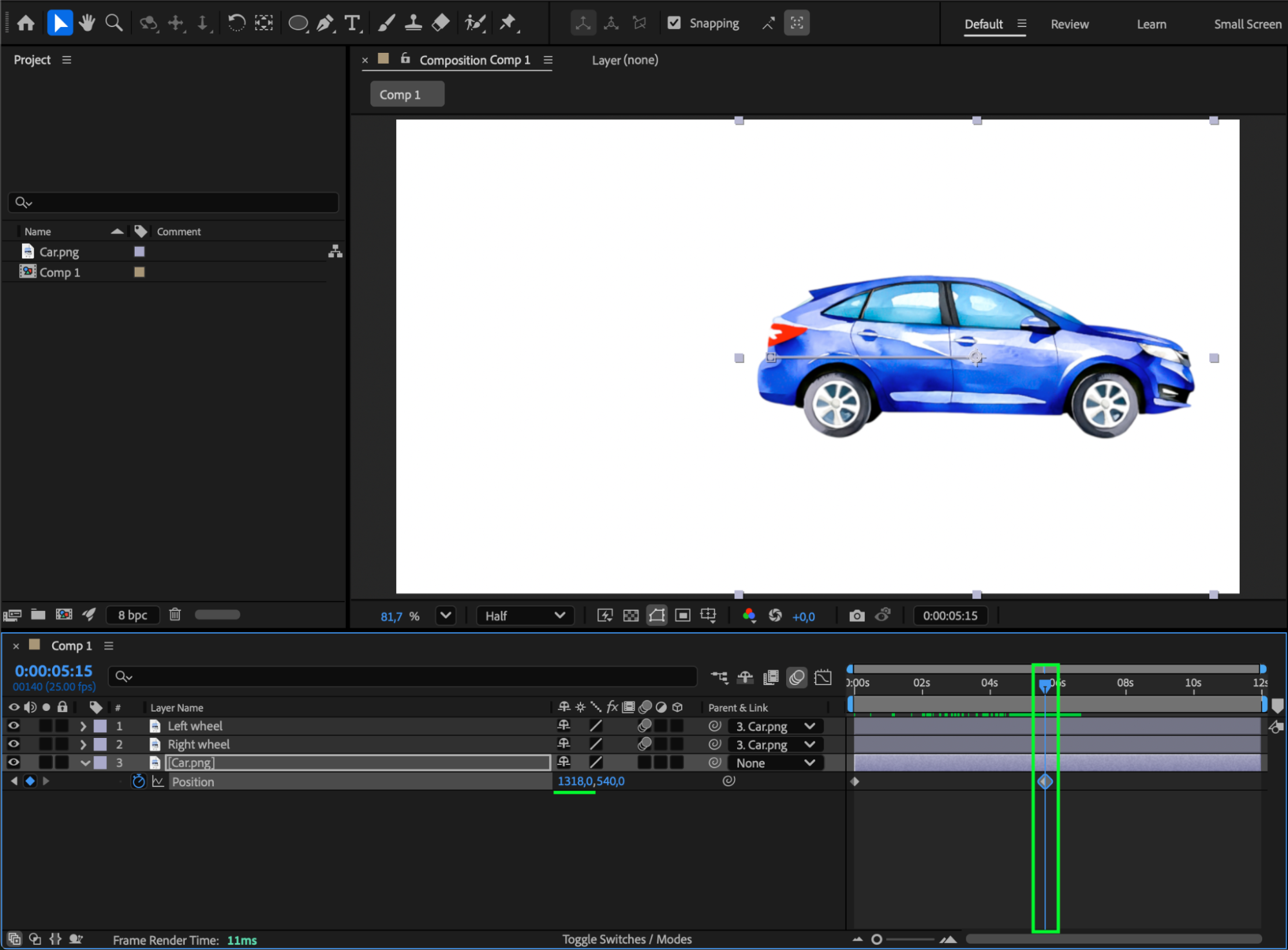

Select the car layer and press “P” to open the Position property. Set keyframes to make the car move across the screen. As it moves, the rotating wheels will make the motion look realistic.

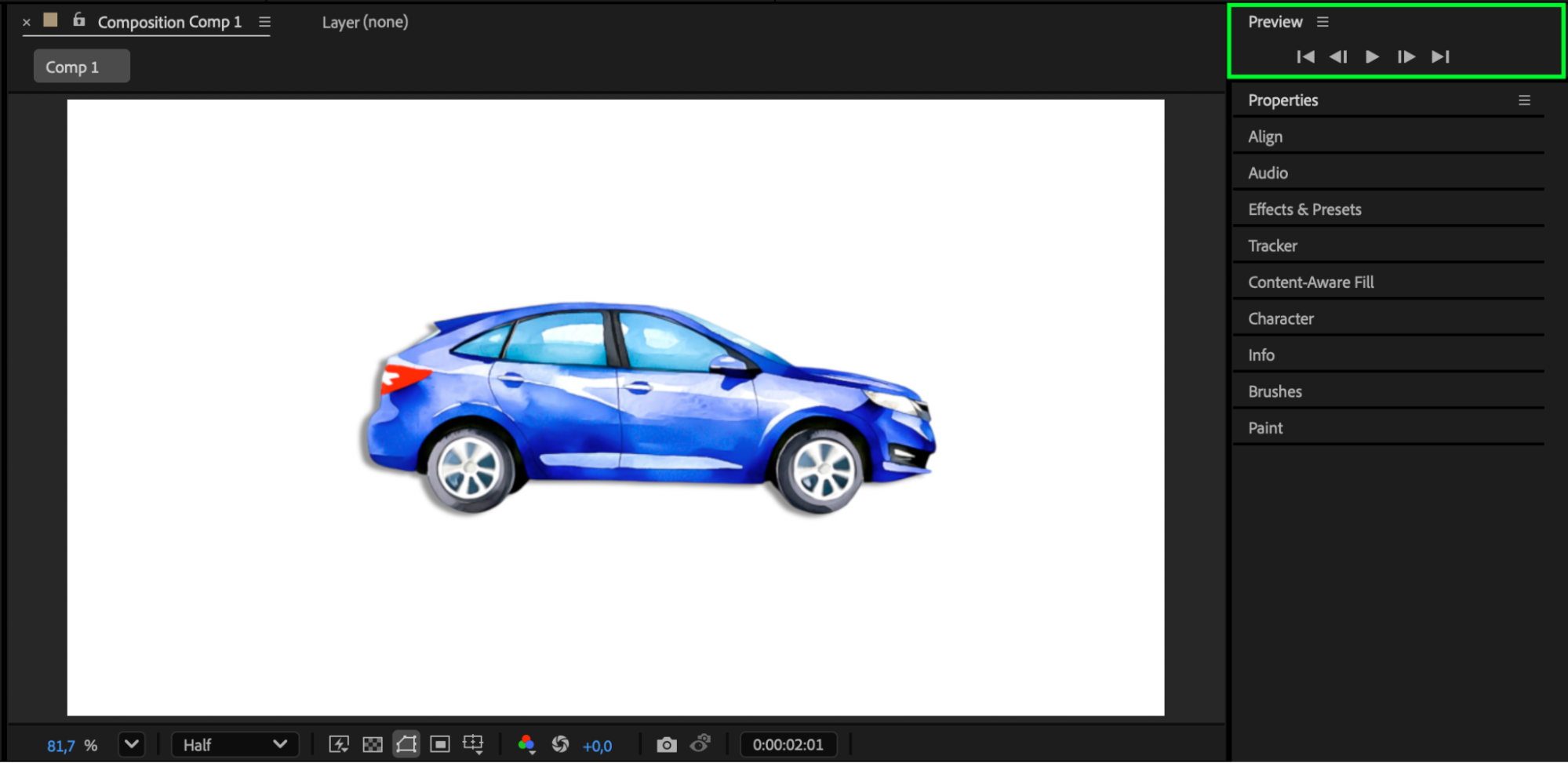

Step 10: Preview and Final Adjustments

Press the Spacebar to preview your animation. Make any timing adjustments as needed to ensure the wheel rotation matches the car’s speed.

Conclusion

By combining rotation keyframes, motion blur, and parenting, you can create a convincing wheel-turning effect in After Effects. This technique works great for cars, bikes, or any project that involves moving wheels and adds a professional, dynamic touch to your animations.
